initialization helper for a proxy. More...

#include <vtkSMProxyInitializationHelper.h>

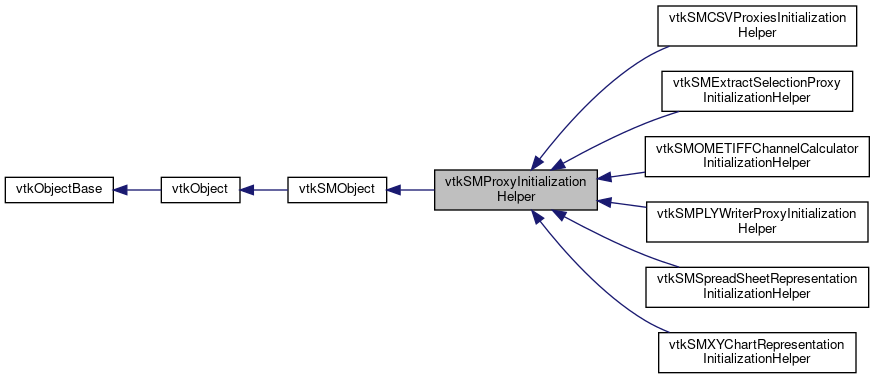

Inheritance diagram for vtkSMProxyInitializationHelper:

[legend]

Collaboration diagram for vtkSMProxyInitializationHelper:

[legend]

Public Types
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	PostInitializeProxy (vtkSMProxy proxy, vtkPVXMLElement xml, vtkMTimeType initializationTimeStamp)=0
	Called during vtkSMParaViewPipelineController::PostInitializeProxy() to initialize a proxy. More...

virtual void	RegisterProxy (vtkSMProxy proxy, vtkPVXMLElement xml)
	Called during vtkSMParaViewPipelineController::Register. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkSMProxyInitializationHelper *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMProxyInitializationHelper ()

	~vtkSMProxyInitializationHelper () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

initialization helper for a proxy.

vtkSMProxyInitializationHelper is used to add custom initialization logic to the initialization of a proxy done by vtkSMParaViewPipelineController. Developers can create new subclasses of vtkSMProxyInitializationHelper for specific proxy types. vtkSMProxyInitializationHelper will instantiate the helper and call PostInitializeProxy() in vtkSMParaViewPipelineController::PostInitializeProxy().

Helpers are added to a proxy in the XML configuration as follows:

<Proxy ...>
 <Hints>
   <InitializationHelper class="vtkMyCustomIntializationHelper" />
 </Hints>
</Proxy>

Definition at line 44 of file vtkSMProxyInitializationHelper.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMObject vtkSMProxyInitializationHelper::Superclass

Definition at line 47 of file vtkSMProxyInitializationHelper.h.

Constructor & Destructor Documentation

◆ vtkSMProxyInitializationHelper()

vtkSMProxyInitializationHelper::vtkSMProxyInitializationHelper ( )

protected

◆ ~vtkSMProxyInitializationHelper()

vtkSMProxyInitializationHelper::~vtkSMProxyInitializationHelper ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkSMProxyInitializationHelper::GetClassName ( )

virtual

Reimplemented from vtkSMObject.

Reimplemented in vtkSMSpreadSheetRepresentationInitializationHelper, vtkSMCSVProxiesInitializationHelper, vtkSMOMETIFFChannelCalculatorInitializationHelper, vtkSMPLYWriterProxyInitializationHelper, vtkSMXYChartRepresentationInitializationHelper, and vtkSMExtractSelectionProxyInitializationHelper.

◆ IsTypeOf()

static int vtkSMProxyInitializationHelper::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMProxyInitializationHelper::IsA ( const char * type )

virtual

Reimplemented from vtkSMObject.

Reimplemented in vtkSMSpreadSheetRepresentationInitializationHelper, vtkSMCSVProxiesInitializationHelper, vtkSMOMETIFFChannelCalculatorInitializationHelper, vtkSMPLYWriterProxyInitializationHelper, vtkSMXYChartRepresentationInitializationHelper, and vtkSMExtractSelectionProxyInitializationHelper.

◆ SafeDownCast()

static vtkSMProxyInitializationHelper* vtkSMProxyInitializationHelper::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMProxyInitializationHelper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMObject.

Reimplemented in vtkSMSpreadSheetRepresentationInitializationHelper, and vtkSMXYChartRepresentationInitializationHelper.

◆ PostInitializeProxy()

virtual void vtkSMProxyInitializationHelper::PostInitializeProxy	(	vtkSMProxy *	proxy,
		vtkPVXMLElement *	xml,
		vtkMTimeType	initializationTimeStamp
	)

pure virtual

Called during vtkSMParaViewPipelineController::PostInitializeProxy() to initialize a proxy.

Parameters

proxy	: the proxy being initialized.
xml	: the XML configuration from this helper from this Hints for the proxy. This makes it possible to pass additional configuration parameters to the initialization helper.
initializationTimeStamp	the timestamp for the proxy initialization. Generally, if a property on the proxy has MTime greater than initializationTimeStamp, the initializer should not modify the property since it was explicitly set by the user during initialization.

Implemented in vtkSMSpreadSheetRepresentationInitializationHelper, vtkSMCSVProxiesInitializationHelper, vtkSMOMETIFFChannelCalculatorInitializationHelper, vtkSMPLYWriterProxyInitializationHelper, vtkSMXYChartRepresentationInitializationHelper, and vtkSMExtractSelectionProxyInitializationHelper.

◆ RegisterProxy()

virtual void vtkSMProxyInitializationHelper::RegisterProxy	(	vtkSMProxy *	proxy,
		vtkPVXMLElement *	xml
	)

virtual

Called during vtkSMParaViewPipelineController::Register.

*Proxy to register any helper proxies created during by this helper. Default implementation does nothing.

Reimplemented in vtkSMOMETIFFChannelCalculatorInitializationHelper.

The documentation for this class was generated from the following file:

/home/paraview/Remoting/ServerManager/vtkSMProxyInitializationHelper.h
