pqQueryClauseWidget is used by pqQueryDialog as the widget allowing the user choose the clauses for the queries. More...

#include <pqQueryClauseWidget.h>

Inherits QWidget.

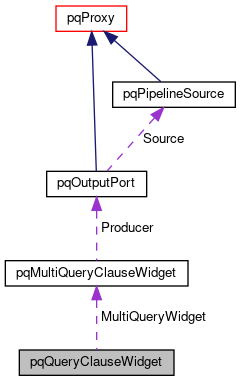

Collaboration diagram for pqQueryClauseWidget:

[legend]

Public Types
enum	CriteriaType { INVALID = 0x0, INDEX = 0x1, GLOBALID = 0x2, THRESHOLD = 0x4, BLOCK = 0x10, AMR_LEVEL = 0x20, AMR_BLOCK = 0x40, PROCESSID = 0x80, QUERY = 0x8, POINTS_NEAR = 0x100, POINT_IN_CELL = 0x200, ANY = 0xffff }

enum	ConditionMode { SINGLE_VALUE, SINGLE_VALUE_GE, SINGLE_VALUE_LE, PAIR_OF_VALUES, TRIPLET_OF_VALUES, LIST_OF_VALUES, BLOCK_ID_VALUE, LIST_OF_BLOCK_ID_VALUES, BLOCK_NAME_VALUE, AMR_LEVEL_VALUE, AMR_BLOCK_VALUE, SINGLE_VALUE_MIN, SINGLE_VALUE_MAX, SINGLE_VALUE_NAN, SINGLE_VALUE_LE_MEAN, SINGLE_VALUE_GE_MEAN, SINGLE_VALUE_MEAN_WITH_TOLERANCE, LOCATION_AND_TOLERANCE, LOCATION }

enum	DataSetType { DataSetType::STANDARD, DataSetType::AMR, DataSetType::MULTIBLOCK }

Public Slots
void	initialize ()
	use this slot to initialize the clause GUI after all properties have been set. More...

void	initialize (CriteriaTypes type_flags, bool qualifier_mode=false)
	initialize the widget only with the subset of criteria mentioned. More...

void	addSelectionQualifiers (vtkSMProxy *)
	Updates the selection source proxy with the criteria in the clause. More...

void	setAddButtonVisible (bool show)
	Set the Add button visibility. More...

void	setRemoveButtonVisible (bool show)
	Set the Remove button visibility. More...

void	setAndLabelVisible (bool show)
	Set the `And` label visibility. More...

Signals
void	addQueryRequested ()
	Emited when user ask for a new query. More...

Public Member Functions
	Q_DECLARE_FLAGS (CriteriaTypes, CriteriaType)

	pqQueryClauseWidget (pqMultiQueryClauseWidget multiQueryWidget, QWidget parent=nullptr, Qt::WindowFlags flags=Qt::WindowFlags{})

	~pqQueryClauseWidget () override

Protected Slots
void	populateSelectionCondition ()
	Based on the selection criteria, populate the options in the selection "condition" combo box. More...

void	updateValueWidget ()
	Update the value widget so show the correct widget based on the chosen criteria and condition. More...

void	showCompositeTree ()
	Pops up a dialog showing the composite data structure for the data. More...

void	deleteQuery ()
	Deletes this widget and notifies parent. More...

Protected Member Functions
void	populateSelectionCriteria (CriteriaTypes type=ANY)
	Based on the selection type and data information from the producer, populate the "criteria" combo box. More...

CriteriaType	currentCriteriaType () const
	Returns the current criteria type. More...

ConditionMode	currentConditionType () const
	Returns the current condition type. More...

Protected Attributes
int	AttributeType

bool	AsQualifier

QString	LastQuery

pqMultiQueryClauseWidget *	MultiQueryWidget

Detailed Description

pqQueryClauseWidget is used by pqQueryDialog as the widget allowing the user choose the clauses for the queries.

Definition at line 48 of file pqQueryClauseWidget.h.

Member Enumeration Documentation

◆ CriteriaType

enum pqQueryClauseWidget::CriteriaType

Enumerator
INVALID
INDEX
GLOBALID
THRESHOLD
BLOCK
AMR_LEVEL
AMR_BLOCK
PROCESSID
QUERY
POINTS_NEAR
POINT_IN_CELL
ANY

Definition at line 54 of file pqQueryClauseWidget.h.

◆ ConditionMode

enum pqQueryClauseWidget::ConditionMode

Enumerator
SINGLE_VALUE
SINGLE_VALUE_GE
SINGLE_VALUE_LE
PAIR_OF_VALUES
TRIPLET_OF_VALUES
LIST_OF_VALUES
BLOCK_ID_VALUE
LIST_OF_BLOCK_ID_VALUES
BLOCK_NAME_VALUE
AMR_LEVEL_VALUE
AMR_BLOCK_VALUE
SINGLE_VALUE_MIN
SINGLE_VALUE_MAX
SINGLE_VALUE_NAN
SINGLE_VALUE_LE_MEAN
SINGLE_VALUE_GE_MEAN
SINGLE_VALUE_MEAN_WITH_TOLERANCE
LOCATION_AND_TOLERANCE
LOCATION

Definition at line 72 of file pqQueryClauseWidget.h.

◆ DataSetType

enum pqQueryClauseWidget::DataSetType

strong

Enumerator
STANDARD
AMR
MULTIBLOCK

Definition at line 95 of file pqQueryClauseWidget.h.

Constructor & Destructor Documentation

◆ pqQueryClauseWidget()

pqQueryClauseWidget::pqQueryClauseWidget	(	pqMultiQueryClauseWidget *	multiQueryWidget,
		QWidget *	parent = `nullptr`,
		Qt::WindowFlags	flags = `Qt::WindowFlags{}`
	)

◆ ~pqQueryClauseWidget()

pqQueryClauseWidget::~pqQueryClauseWidget ( )

override

Member Function Documentation

◆ Q_DECLARE_FLAGS()

pqQueryClauseWidget::Q_DECLARE_FLAGS	(	CriteriaTypes	,
		CriteriaType
	)

◆ initialize [1/2]

void pqQueryClauseWidget::initialize ( )

inlineslot

use this slot to initialize the clause GUI after all properties have been set.

FIXME: Unsupported Terms: process id, amr-level, amr-block. We will need to extend VTK selection support for those, so we will implement them later (possibly 3.10/4.0)

Definition at line 115 of file pqQueryClauseWidget.h.

◆ initialize [2/2]

void pqQueryClauseWidget::initialize	(	CriteriaTypes	type_flags,
		bool	qualifier_mode = `false`
	)

slot

initialize the widget only with the subset of criteria mentioned.

A query clause has two components, the query term and the qualifiers. Some criteria can be both eg. BLOCK can be both the term or a qualifier. The available operators may change in such case. Hence, we specify if it's being used as a qualifier or not.

◆ addSelectionQualifiers

void pqQueryClauseWidget::addSelectionQualifiers ( vtkSMProxy * )

slot

Updates the selection source proxy with the criteria in the clause.

◆ setAddButtonVisible

void pqQueryClauseWidget::setAddButtonVisible ( bool show )

slot

Set the Add button visibility.

◆ setRemoveButtonVisible

void pqQueryClauseWidget::setRemoveButtonVisible ( bool show )

slot

Set the Remove button visibility.

◆ setAndLabelVisible

void pqQueryClauseWidget::setAndLabelVisible ( bool show )

slot

Set the And label visibility.

◆ addQueryRequested

void pqQueryClauseWidget::addQueryRequested ( )

signal

Emited when user ask for a new query.

◆ populateSelectionCondition

void pqQueryClauseWidget::populateSelectionCondition ( )

protectedslot

Based on the selection criteria, populate the options in the selection "condition" combo box.

◆ updateValueWidget

void pqQueryClauseWidget::updateValueWidget ( )

protectedslot

Update the value widget so show the correct widget based on the chosen criteria and condition.

◆ showCompositeTree

void pqQueryClauseWidget::showCompositeTree ( )

protectedslot

Pops up a dialog showing the composite data structure for the data.

◆ deleteQuery

void pqQueryClauseWidget::deleteQuery ( )

protectedslot

Deletes this widget and notifies parent.

◆ populateSelectionCriteria()

void pqQueryClauseWidget::populateSelectionCriteria ( CriteriaTypes type = ANY )

protected

Based on the selection type and data information from the producer, populate the "criteria" combo box.

◆ currentCriteriaType()

CriteriaType pqQueryClauseWidget::currentCriteriaType ( ) const

protected

Returns the current criteria type.

◆ currentConditionType()

ConditionMode pqQueryClauseWidget::currentConditionType ( ) const

protected

Returns the current condition type.

Member Data Documentation

◆ AttributeType

int pqQueryClauseWidget::AttributeType

protected

Definition at line 195 of file pqQueryClauseWidget.h.

◆ AsQualifier

bool pqQueryClauseWidget::AsQualifier

protected

Definition at line 196 of file pqQueryClauseWidget.h.

◆ LastQuery

QString pqQueryClauseWidget::LastQuery

protected

Definition at line 197 of file pqQueryClauseWidget.h.

◆ MultiQueryWidget

pqMultiQueryClauseWidget* pqQueryClauseWidget::MultiQueryWidget

protected

Definition at line 199 of file pqQueryClauseWidget.h.

The documentation for this class was generated from the following file:

/home/paraview/Qt/Components/pqQueryClauseWidget.h
