pqBoolPropertyWidgetDecorator Class Reference

pqBoolPropertyWidgetDecorator is a base class for enable/disable or show/hide widgets based on the status of another property not directly controlled by the widget. More...

#include <pqBoolPropertyWidgetDecorator.h>

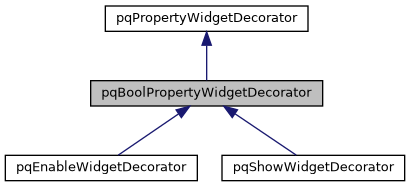

Inheritance diagram for pqBoolPropertyWidgetDecorator:

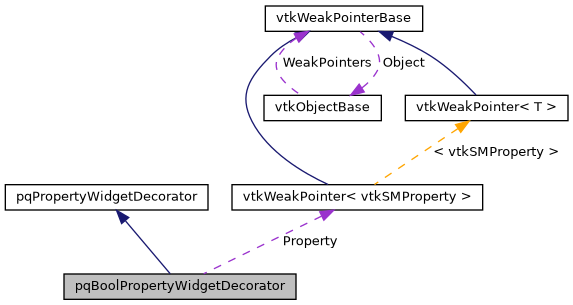

Collaboration diagram for pqBoolPropertyWidgetDecorator:

Signals
void	boolPropertyChanged ()
Signals inherited from pqPropertyWidgetDecorator
void	visibilityChanged ()
	This signal is fired whenever the decorator has determined that the panel may need a refresh since the state of the system has changed which would deem changes in the widget visibility or enable state. More...
void	enableStateChanged ()

Public Member Functions
	pqBoolPropertyWidgetDecorator (vtkPVXMLElement *config, pqPropertyWidget *parent)
	~pqBoolPropertyWidgetDecorator () override
bool	isBoolProperty () const
Public Member Functions inherited from pqPropertyWidgetDecorator
	pqPropertyWidgetDecorator (vtkPVXMLElement *xml, pqPropertyWidget *parent)
	Constructor. More...
	~pqPropertyWidgetDecorator () override
pqPropertyWidget *	parentWidget () const
	Returns the pqPropertyWidget parent. More...
virtual bool	canShowWidget (bool show_advanced) const
	Override this method to override the visibility of the widget in the panel. More...
virtual bool	enableWidget () const
	Override this method to override the enable state of the widget in the panel. More...

Protected Attributes
vtkWeakPointer< vtkSMProperty >	Property
QString	Function
int	Index
unsigned long	ObserverId
bool	BoolProperty
QString	Value

Additional Inherited Members
Static Public Member Functions inherited from pqPropertyWidgetDecorator
static pqPropertyWidgetDecorator *	create (vtkPVXMLElement *xml, pqPropertyWidget *parent)
	Creates a new decorator, given the xml config and the parent pqPropertyWidget for the decorator. More...
Protected Member Functions inherited from pqPropertyWidgetDecorator
vtkPVXMLElement *	xml () const

Detailed Description

pqBoolPropertyWidgetDecorator is a base class for enable/disable or show/hide widgets based on the status of another property not directly controlled by the widget.

Definition at line 16 of file pqBoolPropertyWidgetDecorator.h.

Constructor & Destructor Documentation

pqBoolPropertyWidgetDecorator()

pqBoolPropertyWidgetDecorator::pqBoolPropertyWidgetDecorator	(	vtkPVXMLElement *	config,
		pqPropertyWidget *	parent
	)

~pqBoolPropertyWidgetDecorator()

pqBoolPropertyWidgetDecorator::~pqBoolPropertyWidgetDecorator ( )

override

Member Function Documentation

isBoolProperty()

bool pqBoolPropertyWidgetDecorator::isBoolProperty ( ) const

inline

Definition at line 26 of file pqBoolPropertyWidgetDecorator.h.

boolPropertyChanged

void pqBoolPropertyWidgetDecorator::boolPropertyChanged ( )

signal

Member Data Documentation

Property

vtkWeakPointer<vtkSMProperty> pqBoolPropertyWidgetDecorator::Property

protected

Definition at line 32 of file pqBoolPropertyWidgetDecorator.h.

Function

QString pqBoolPropertyWidgetDecorator::Function

protected

Definition at line 33 of file pqBoolPropertyWidgetDecorator.h.

Index

int pqBoolPropertyWidgetDecorator::Index

protected

Definition at line 34 of file pqBoolPropertyWidgetDecorator.h.

ObserverId

unsigned long pqBoolPropertyWidgetDecorator::ObserverId

protected

Definition at line 35 of file pqBoolPropertyWidgetDecorator.h.

BoolProperty

bool pqBoolPropertyWidgetDecorator::BoolProperty

protected

Definition at line 36 of file pqBoolPropertyWidgetDecorator.h.

Value

QString pqBoolPropertyWidgetDecorator::Value

protected

Definition at line 37 of file pqBoolPropertyWidgetDecorator.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Qt/ApplicationComponents/pqBoolPropertyWidgetDecorator.h
