vtkNetworkAccessManager is used to create new connections and monitor activity of those connections. More...

#include <vtkNetworkAccessManager.h>

Inheritance diagram for vtkNetworkAccessManager:

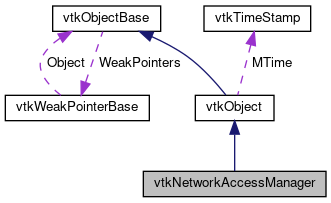

Collaboration diagram for vtkNetworkAccessManager:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkMultiProcessController *	NewConnection (const char *url)=0
	Creates a new connection given the url. More...

virtual void	AbortPendingConnection ()=0
	Used to abort pending connection creation, if any. More...

virtual int	ProcessEvents (unsigned long timeout_msecs)=0
	Process any network activity. More...

virtual bool	GetNetworkEventsAvailable ()=0
	Peeks to check if any activity is available. More...

virtual bool	GetPendingConnectionsPresent ()=0
	Returns true is the manager is currently waiting for any connections. More...

virtual void	DisableFurtherConnections (int port, bool disable)=0
	Enable/disable further connections for given port. More...

virtual bool	GetWrongConnectID ()=0
	Returns true if the last check of connect ids was wrong. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkNetworkAccessManager *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkNetworkAccessManager ()

	~vtkNetworkAccessManager () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

vtkNetworkAccessManager is used to create new connections and monitor activity of those connections.

This is an abstract class that defines the interface. Concrete implementations of this class can be written to support tcp/ip socket or ssl or ssh based network connections among processes.

Definition at line 32 of file vtkNetworkAccessManager.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkNetworkAccessManager::Superclass

Definition at line 35 of file vtkNetworkAccessManager.h.

Constructor & Destructor Documentation

◆ vtkNetworkAccessManager()

vtkNetworkAccessManager::vtkNetworkAccessManager ( )

protected

◆ ~vtkNetworkAccessManager()

vtkNetworkAccessManager::~vtkNetworkAccessManager ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkNetworkAccessManager::GetClassName ( )

virtual

Reimplemented in vtkTCPNetworkAccessManager.

◆ IsTypeOf()

static int vtkNetworkAccessManager::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkNetworkAccessManager::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

Reimplemented in vtkTCPNetworkAccessManager.

◆ SafeDownCast()

static vtkNetworkAccessManager* vtkNetworkAccessManager::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkNetworkAccessManager::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

Reimplemented in vtkTCPNetworkAccessManager.

◆ NewConnection()

virtual vtkMultiProcessController* vtkNetworkAccessManager::NewConnection ( const char * url )

pure virtual

Creates a new connection given the url.

This call may block until the connection can be established. To keep user-interfaces responsive, one can listen to the vtkCommand::ProgressEvent fired periodically by this class while waiting.

vtkNetworkAccessManager can be waiting for atmost one connection at a time. Calling NewConnection() while another connection is pending will raise an error.

To abort the connection and cancel the waiting, simply call AbortPendingConnection() in the vtkCommand::ProgressEvent callback.

Returns the new connection instance on success, otherwise NULL.

URLs are of the following form: <transport>://<address>

tcp://<hostname>:<port>
tcp://localhost:<port>/listen – listen for connection on port.
tcp://localhost:<port>/listenmultiple – listen for multiple Examples:
tcp://medea:12345
tcp://localhost:12345/listen
ssh://utkarsh@medea
http://kitware-server/session?id=12322&authorization=12

Implemented in vtkTCPNetworkAccessManager.

◆ AbortPendingConnection()

virtual void vtkNetworkAccessManager::AbortPendingConnection ( )

pure virtual

Used to abort pending connection creation, if any.

Refer to NewConnection() for details.

Implemented in vtkTCPNetworkAccessManager.

◆ ProcessEvents()

virtual int vtkNetworkAccessManager::ProcessEvents ( unsigned long timeout_msecs )

pure virtual

Process any network activity.

Implemented in vtkTCPNetworkAccessManager.

◆ GetNetworkEventsAvailable()

virtual bool vtkNetworkAccessManager::GetNetworkEventsAvailable ( )

pure virtual

Peeks to check if any activity is available.

When this call returns true, ProcessEvents() will always result in some activity processing if called afterword.

Implemented in vtkTCPNetworkAccessManager.

◆ GetPendingConnectionsPresent()

virtual bool vtkNetworkAccessManager::GetPendingConnectionsPresent ( )

pure virtual

Returns true is the manager is currently waiting for any connections.

Implemented in vtkTCPNetworkAccessManager.

◆ DisableFurtherConnections()

virtual void vtkNetworkAccessManager::DisableFurtherConnections	(	int	port,
		bool	disable
	)

pure virtual

Enable/disable further connections for given port.

Implemented in vtkTCPNetworkAccessManager.

◆ GetWrongConnectID()

virtual bool vtkNetworkAccessManager::GetWrongConnectID ( )

pure virtual

Returns true if the last check of connect ids was wrong.

Implemented in vtkTCPNetworkAccessManager.

The documentation for this class was generated from the following file:

/home/paraview/Remoting/Core/vtkNetworkAccessManager.h
