ParaView options storage. More...

#include <vtkCommandOptions.h>

Inheritance diagram for vtkCommandOptions:

[legend]

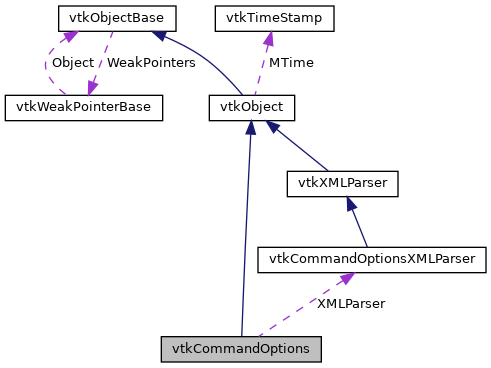

Collaboration diagram for vtkCommandOptions:

[legend]

Public Types
enum	{ EVERYBODY = 0, XMLONLY = 0x1 }

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	Parse (int argc, const char *const argv[])

void	GetRemainingArguments (int argc, char *argv[])

const char *	GetHelp ()

int	GetProcessType ()
	Set/Get the type of the process for this set of options. More...

void	SetProcessType (int p)

const char *	GetArgv0 ()
	Get argv[0]. More...

int	GetLastArgument ()
	Get the index of the last argument parsed. More...

virtual int	ParseExtraXMLTag (const char , const char *)
	Pass in the name and the attributes for all tags that are not Options. More...


virtual int	GetHelpSelected ()
	Was help selected? More...

virtual void	SetHelpSelected (int)
	Was help selected? More...


virtual char *	GetUnknownArgument ()
	In case of unknown argument, set this variable with the unknown argument. More...


virtual char *	GetErrorMessage ()
	Get the error message if Parse returned 0. More...


virtual char *	GetApplicationPath ()
	Get full path of executable (based on Argv0) More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkCommandOptions *	New ()

static int	IsTypeOf (const char *type)

static vtkCommandOptions *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Types
typedef int(*	CallbackType) (const char argument, const char value, void *call_data)
	Prototype for callbacks. More...

Protected Member Functions
	vtkCommandOptions ()
	Default constructor. More...

	~vtkCommandOptions () override
	Destructor. More...

void	AddCallback (const char longarg, const char shortarg, CallbackType callback, void call_data, const char help, int type=EVERYBODY)

virtual void	Initialize ()
	Initialize arguments. More...

virtual int	PostProcess (int argc, const char const argv)
	After parsing, process extra option dependencies. More...

virtual int	WrongArgument (const char *argument)
	This method is called when wrong argument is found. More...

virtual int	DeprecatedArgument (const char *argument)
	This method is called when a deprecated argument is found. More...

int	LoadXMLConfigFile (const char *)
	This method loads the paraview config file. More...

virtual void	SetUnknownArgument (const char *)

virtual void	SetErrorMessage (const char *)

virtual void	SetXMLConfigFile (const char *)

void	CleanArgcArgv ()

virtual void	SetApplicationPath (const char *)

void	ComputeApplicationPath ()


void	AddBooleanArgument (const char longarg, const char shortarg, int var, const char help, int type=EVERYBODY)
	Add a command line option. More...

void	AddDeprecatedArgument (const char longarg, const char shortarg, const char *help, int type=EVERYBODY)
	Add a command line option. More...

void	AddArgument (const char longarg, const char shortarg, int var, const char help, int type=EVERYBODY)
	Add a command line option. More...

void	AddArgument (const char longarg, const char shortarg, char *var, const char help, int type=EVERYBODY)
	Add a command line option. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkCommandOptionsXMLParser *	XMLParser

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

ParaView options storage.

An object of this class represents a storage for ParaView options

These options can be retrieved during run-time, set using configuration file or using Command Line Arguments.

Deprecated:: in ParaView 5.12.0. See vtkCLIOptions instead. See https://gitlab.kitware.com/paraview/paraview/-/merge_requests/4951 for developer guidelines.

Definition at line 27 of file vtkCommandOptions.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkCommandOptions::Superclass

Definition at line 32 of file vtkCommandOptions.h.

◆ CallbackType

typedef int(* vtkCommandOptions::CallbackType) (const char *argument, const char *value, void *call_data)

protected

Prototype for callbacks.

Definition at line 112 of file vtkCommandOptions.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
EVERYBODY
XMLONLY

Definition at line 38 of file vtkCommandOptions.h.

Constructor & Destructor Documentation

◆ vtkCommandOptions()

vtkCommandOptions::vtkCommandOptions ( )

protected

Default constructor.

◆ ~vtkCommandOptions()

vtkCommandOptions::~vtkCommandOptions ( )

overrideprotected

Destructor.

Member Function Documentation

◆ New()

static vtkCommandOptions* vtkCommandOptions::New ( )

static

◆ GetClassName()

virtual const char* vtkCommandOptions::GetClassName ( )

virtual

Reimplemented in vtkPVOptions.

◆ IsTypeOf()

static int vtkCommandOptions::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCommandOptions::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

Reimplemented in vtkPVOptions.

◆ SafeDownCast()

static vtkCommandOptions* vtkCommandOptions::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCommandOptions::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ Parse()

int vtkCommandOptions::Parse	(	int	argc,
		const char *const	argv[]
	)

◆ GetRemainingArguments()

void vtkCommandOptions::GetRemainingArguments	(	int *	argc,
		char **	argv[]
	)

◆ GetHelp()

const char* vtkCommandOptions::GetHelp ( )

◆ GetHelpSelected()

virtual int vtkCommandOptions::GetHelpSelected ( )

virtual

Was help selected?

◆ SetHelpSelected()

virtual void vtkCommandOptions::SetHelpSelected ( int )

virtual

Was help selected?

◆ GetProcessType()

int vtkCommandOptions::GetProcessType ( )

inline

Set/Get the type of the process for this set of options.

data-server, render-server, combined-server or client.

Definition at line 58 of file vtkCommandOptions.h.

◆ SetProcessType()

void vtkCommandOptions::SetProcessType ( int p )

inline

Definition at line 59 of file vtkCommandOptions.h.

◆ GetUnknownArgument()

virtual char* vtkCommandOptions::GetUnknownArgument ( )

virtual

In case of unknown argument, set this variable with the unknown argument.

◆ GetErrorMessage()

virtual char* vtkCommandOptions::GetErrorMessage ( )

virtual

Get the error message if Parse returned 0.

◆ GetArgv0()

const char* vtkCommandOptions::GetArgv0 ( )

Get argv[0].

◆ GetApplicationPath()

virtual char* vtkCommandOptions::GetApplicationPath ( )

virtual

Get full path of executable (based on Argv0)

◆ GetLastArgument()

int vtkCommandOptions::GetLastArgument ( )

Get the index of the last argument parsed.

◆ ParseExtraXMLTag()

virtual int vtkCommandOptions::ParseExtraXMLTag	(	const char *	,
		const char **
	)

inlinevirtual

Pass in the name and the attributes for all tags that are not Options.

If it returns 1, then it is successful, and 0 if it failed.

Definition at line 96 of file vtkCommandOptions.h.

◆ AddBooleanArgument()

void vtkCommandOptions::AddBooleanArgument	(	const char *	longarg,
		const char *	shortarg,
		int *	var,
		const char *	help,
		int	type = `EVERYBODY`
	)

protected

Add a command line option.

For each argument added there is a long version –long and a short version -l, a help string, and a variable that is set to the value of the option. The types can be int, char*, or boolean (set to 1 of option is present). Also deprecated arguments can be added with only a help string. The help string should say that the argument is deprecated and suggest the alternative argument to use. Each option can specify in a bit flag int the processes that the option is valid for, the default is to be valid for all paraview processes.

◆ AddDeprecatedArgument()

void vtkCommandOptions::AddDeprecatedArgument	(	const char *	longarg,
		const char *	shortarg,
		const char *	help,
		int	type = `EVERYBODY`
	)

protected

Add a command line option.

For each argument added there is a long version –long and a short version -l, a help string, and a variable that is set to the value of the option. The types can be int, char*, or boolean (set to 1 of option is present). Also deprecated arguments can be added with only a help string. The help string should say that the argument is deprecated and suggest the alternative argument to use. Each option can specify in a bit flag int the processes that the option is valid for, the default is to be valid for all paraview processes.

◆ AddArgument() [1/2]

void vtkCommandOptions::AddArgument	(	const char *	longarg,
		const char *	shortarg,
		int *	var,
		const char *	help,
		int	type = `EVERYBODY`
	)

protected

Add a command line option.

For each argument added there is a long version –long and a short version -l, a help string, and a variable that is set to the value of the option. The types can be int, char*, or boolean (set to 1 of option is present). Also deprecated arguments can be added with only a help string. The help string should say that the argument is deprecated and suggest the alternative argument to use. Each option can specify in a bit flag int the processes that the option is valid for, the default is to be valid for all paraview processes.

◆ AddArgument() [2/2]

void vtkCommandOptions::AddArgument	(	const char *	longarg,
		const char *	shortarg,
		char **	var,
		const char *	help,
		int	type = `EVERYBODY`
	)

protected

Add a command line option.

For each argument added there is a long version –long and a short version -l, a help string, and a variable that is set to the value of the option. The types can be int, char*, or boolean (set to 1 of option is present). Also deprecated arguments can be added with only a help string. The help string should say that the argument is deprecated and suggest the alternative argument to use. Each option can specify in a bit flag int the processes that the option is valid for, the default is to be valid for all paraview processes.

◆ AddCallback()

void vtkCommandOptions::AddCallback	(	const char *	longarg,
		const char *	shortarg,
		CallbackType	callback,
		void *	call_data,
		const char *	help,
		int	type = `EVERYBODY`
	)

protected

◆ Initialize()

virtual void vtkCommandOptions::Initialize ( )

protectedvirtual

Initialize arguments.

◆ PostProcess()

virtual int vtkCommandOptions::PostProcess	(	int	argc,
		const char const	argv
	)

protectedvirtual

After parsing, process extra option dependencies.

◆ WrongArgument()

virtual int vtkCommandOptions::WrongArgument ( const char * argument )

protectedvirtual

This method is called when wrong argument is found.

If it returns 0, then the parsing will fail.

◆ DeprecatedArgument()

virtual int vtkCommandOptions::DeprecatedArgument ( const char * argument )

protectedvirtual

This method is called when a deprecated argument is found.

If it returns 0, then the parsing will fail.

◆ LoadXMLConfigFile()

int vtkCommandOptions::LoadXMLConfigFile ( const char * )

protected

This method loads the paraview config file.

The command line will override any of the values in this file, but all options can be in the file.

◆ SetUnknownArgument()

virtual void vtkCommandOptions::SetUnknownArgument ( const char * )

protectedvirtual

◆ SetErrorMessage()

virtual void vtkCommandOptions::SetErrorMessage ( const char * )

protectedvirtual

◆ SetXMLConfigFile()

virtual void vtkCommandOptions::SetXMLConfigFile ( const char * )

protectedvirtual

◆ CleanArgcArgv()

void vtkCommandOptions::CleanArgcArgv ( )

protected

◆ SetApplicationPath()

virtual void vtkCommandOptions::SetApplicationPath ( const char * )

protectedvirtual

◆ ComputeApplicationPath()

void vtkCommandOptions::ComputeApplicationPath ( )

protected

Member Data Documentation

◆ XMLParser

vtkCommandOptionsXMLParser* vtkCommandOptions::XMLParser

protected

Definition at line 178 of file vtkCommandOptions.h.

The documentation for this class was generated from the following file:

/home/local/KHQ/cory.quammen/src/paraview-5.12/VTKExtensions/Core/vtkCommandOptions.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

◆ CallbackType

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ vtkCommandOptions()

◆ ~vtkCommandOptions()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ Parse()

◆ GetRemainingArguments()

◆ GetHelp()

◆ GetHelpSelected()

◆ SetHelpSelected()

◆ GetProcessType()

◆ SetProcessType()

◆ GetUnknownArgument()

◆ GetErrorMessage()

◆ GetArgv0()

◆ GetApplicationPath()

◆ GetLastArgument()

◆ ParseExtraXMLTag()

◆ AddBooleanArgument()

◆ AddDeprecatedArgument()

◆ AddArgument() [1/2]

◆ AddArgument() [2/2]

◆ AddCallback()

◆ Initialize()

◆ PostProcess()

◆ WrongArgument()

◆ DeprecatedArgument()

◆ LoadXMLConfigFile()

◆ SetUnknownArgument()

◆ SetErrorMessage()

◆ SetXMLConfigFile()

◆ CleanArgcArgv()

◆ SetApplicationPath()

◆ ComputeApplicationPath()

Member Data Documentation

◆ XMLParser
