deserializes proxies from their states. More...

#include <vtkSMDeserializer.h>

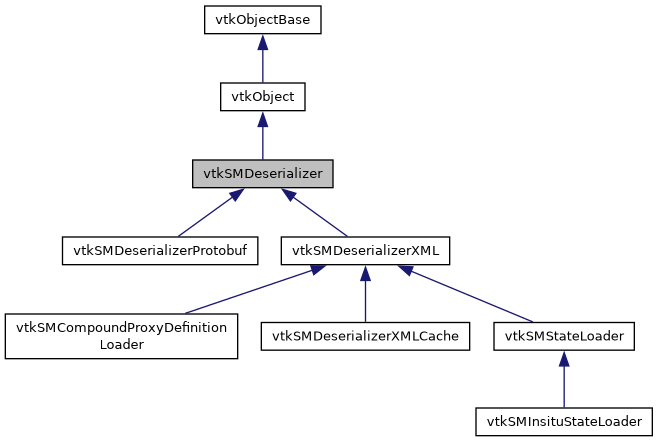

Inheritance diagram for vtkSMDeserializer:

[legend]

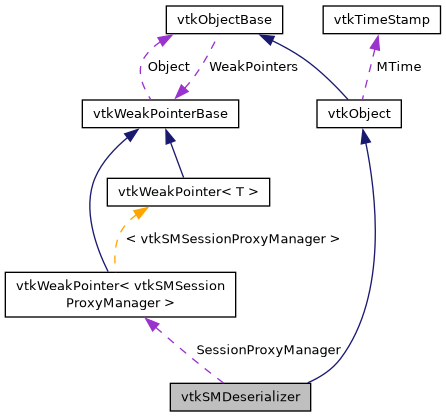

Collaboration diagram for vtkSMDeserializer:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetSession (vtkSMSession *session)
	Convenience method for setting the SessionProxyManager. More...

vtkSMSession *	GetSession ()
	Provides access to the session. More...


vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Get/Set the proxy manager on which this deserializer is expected to operate. More...

void	SetSessionProxyManager (vtkSMSessionProxyManager *)
	Get/Set the proxy manager on which this deserializer is expected to operate. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkSMDeserializer *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMDeserializer ()

	~vtkSMDeserializer () override

virtual vtkSMProxy *	NewProxy (vtkTypeUInt32 id, vtkSMProxyLocator *locator)=0
	Create a new proxy with the id if possible. More...

virtual vtkSMProxy *	CreateProxy (const char xmlgroup, const char xmlname, const char *subProxyName=nullptr)
	Create a new proxy of the given group and name. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkWeakPointer< vtkSMSessionProxyManager >	SessionProxyManager

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMProxyLocator

Detailed Description

deserializes proxies from their states.

vtkSMDeserializer is used to deserialize proxies from their XML/Protobuf/? states. This is the base class of deserialization classes that load XMLs/Protobuf/? to restore servermanager state (or part thereof).

Definition at line 25 of file vtkSMDeserializer.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkSMDeserializer::Superclass

Definition at line 28 of file vtkSMDeserializer.h.

Constructor & Destructor Documentation

◆ vtkSMDeserializer()

vtkSMDeserializer::vtkSMDeserializer ( )

protected

◆ ~vtkSMDeserializer()

vtkSMDeserializer::~vtkSMDeserializer ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkSMDeserializer::GetClassName ( )

virtual

Reimplemented in vtkSMStateLoader, vtkSMCompoundProxyDefinitionLoader, vtkSMDeserializerProtobuf, vtkSMDeserializerXML, vtkSMDeserializerXMLCache, and vtkSMInsituStateLoader.

◆ IsTypeOf()

static int vtkSMDeserializer::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMDeserializer::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

Reimplemented in vtkSMStateLoader, vtkSMCompoundProxyDefinitionLoader, vtkSMDeserializerProtobuf, vtkSMDeserializerXML, vtkSMDeserializerXMLCache, and vtkSMInsituStateLoader.

◆ SafeDownCast()

static vtkSMDeserializer* vtkSMDeserializer::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMDeserializer::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

Reimplemented in vtkSMStateLoader, vtkSMDeserializerProtobuf, vtkSMDeserializerXML, and vtkSMDeserializerXMLCache.

◆ SetSession()

void vtkSMDeserializer::SetSession ( vtkSMSession * session )

Convenience method for setting the SessionProxyManager.

This is equivalent to calling vtkSMDeserializer::SetSessionProxyManager(session->GetSessionProxyManager()).

◆ GetSessionProxyManager()

vtkSMSessionProxyManager* vtkSMDeserializer::GetSessionProxyManager ( )

Get/Set the proxy manager on which this deserializer is expected to operate.

◆ SetSessionProxyManager()

void vtkSMDeserializer::SetSessionProxyManager ( vtkSMSessionProxyManager * )

Get/Set the proxy manager on which this deserializer is expected to operate.

◆ GetSession()

vtkSMSession* vtkSMDeserializer::GetSession ( )

Provides access to the session.

This is same as calling this->GetSessionProxyManager()->GetSession() (with nullptr checks).

◆ NewProxy()

virtual vtkSMProxy* vtkSMDeserializer::NewProxy	(	vtkTypeUInt32	id,
		vtkSMProxyLocator *	locator
	)

protectedpure virtual

Create a new proxy with the id if possible.

Implemented in vtkSMDeserializerProtobuf, vtkSMDeserializerXML, and vtkSMInsituStateLoader.

◆ CreateProxy()

virtual vtkSMProxy* vtkSMDeserializer::CreateProxy	(	const char *	xmlgroup,
		const char *	xmlname,
		const char *	subProxyName = `nullptr`
	)

protectedvirtual

Create a new proxy of the given group and name.

Default implementation simply asks the proxy manager to create a new proxy of the requested type.

Reimplemented in vtkSMStateLoader, and vtkSMDeserializerXML.

Friends And Related Function Documentation

◆ vtkSMProxyLocator

friend class vtkSMProxyLocator

friend

Definition at line 58 of file vtkSMDeserializer.h.

Member Data Documentation

◆ SessionProxyManager

vtkWeakPointer<vtkSMSessionProxyManager> vtkSMDeserializer::SessionProxyManager
