provides meta data about arrays. More...

#include <vtkPVArrayInformation.h>

Inheritance diagram for vtkPVArrayInformation:

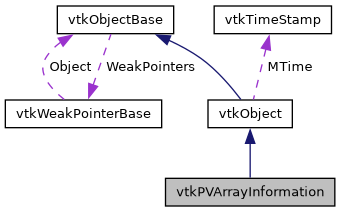

Collaboration diagram for vtkPVArrayInformation:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	Initialize ()
	Resets to default state. More...

virtual int	GetDataType ()
	Get the type for values in the array e.g. More...

const char *	GetDataTypeAsString () const
	Returns a printable string for the array value type. More...

std::string	GetRangesAsString (int lowExponent=-6, int highExponent=20) const
	Returns range as a string. More...

const char *	GetName () const
	Get array's name. More...

int	GetNumberOfComponents () const
	Get number of components. More...

const char *	GetComponentName (int component) const
	Returns the name for a component. More...

virtual vtkTypeInt64	GetNumberOfTuples ()
	Returns the number of tuples in this array. More...

void	GetDataTypeRange (double range[2]) const
	This method return the Min and Max possible range of the native data type. More...

void	CopyFromCellAttribute (vtkCellGrid grid, vtkCellAttribute attribute)

void	CopyFromGenericAttribute (vtkGenericAttribute *array)

void	CopyToStream (vtkClientServerStream *) const

bool	CopyFromStream (const vtkClientServerStream *)


const double *	GetComponentRange (int comp) const VTK_SIZEHINT(2)
	Returns component range. More...

void	GetComponentRange (int comp, double range[2]) const
	Returns component range. More...


const double *	GetComponentFiniteRange (int component) const VTK_SIZEHINT(2)
	Returns the finite range for each component. More...

void	GetComponentFiniteRange (int comp, double range[2]) const
	Returns the finite range for each component. More...


virtual bool	GetIsPartial ()
	If IsPartial is true, this array is in only some of the parts of a multi-block dataset. More...


int	GetNumberOfInformationKeys () const
	Get information on the InformationKeys of this array. More...

const char *	GetInformationKeyLocation (int) const
	Get information on the InformationKeys of this array. More...

const char *	GetInformationKeyName (int) const
	Get information on the InformationKeys of this array. More...

bool	HasInformationKey (const char location, const char name) const
	Get information on the InformationKeys of this array. More...


int	GetNumberOfStringValues ()
	For string arrays, this returns first few non-empty values. More...

const char *	GetStringValue (int)
	For string arrays, this returns first few non-empty values. More...


void	CopyFromArray (vtkAbstractArray *array)
	Copy info from an array. More...

void	CopyFromArray (vtkFieldData *fieldData, int fdArrayIdx)
	Copy info from an array. More...

void	CopyFromArray (vtkAbstractArray array, vtkFieldData fieldData)
	Copy info from an array. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVArrayInformation *	New ()

static int	IsTypeOf (const char *type)

static vtkPVArrayInformation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVArrayInformation ()

	~vtkPVArrayInformation () override

virtual void	SetName (std::string)


void	DeepCopy (vtkPVArrayInformation *info)
	API for vtkPVDataSetAttributesInformation. More...

void	AddInformation (vtkPVArrayInformation *, int fieldAssociation)
	API for vtkPVDataSetAttributesInformation. More...

virtual void	SetIsPartial (bool)
	API for vtkPVDataSetAttributesInformation. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Friends
class	vtkPVDataSetAttributesInformation

class	vtkPVDataInformation

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

provides meta data about arrays.

vtkPVArrayInformation provides meta-data about individual arrays. It is accessed through vtkPVDataInformation and provides information like ranges, component names, etc. for array present in a dataset.

Definition at line 31 of file vtkPVArrayInformation.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkPVArrayInformation::Superclass

Definition at line 35 of file vtkPVArrayInformation.h.

Constructor & Destructor Documentation

◆ vtkPVArrayInformation()

vtkPVArrayInformation::vtkPVArrayInformation ( )

protected

◆ ~vtkPVArrayInformation()

vtkPVArrayInformation::~vtkPVArrayInformation ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVArrayInformation* vtkPVArrayInformation::New ( )

static

◆ GetClassName()

virtual const char* vtkPVArrayInformation::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkPVArrayInformation::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVArrayInformation::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkPVArrayInformation* vtkPVArrayInformation::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVArrayInformation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ Initialize()

void vtkPVArrayInformation::Initialize ( )

Resets to default state.

◆ GetDataType()

virtual int vtkPVArrayInformation::GetDataType ( )

virtual

Get the type for values in the array e.g.

VTK_FLOAT, VTK_DOUBLE etc.

◆ GetDataTypeAsString()

const char* vtkPVArrayInformation::GetDataTypeAsString ( ) const

inline

Returns a printable string for the array value type.

Definition at line 51 of file vtkPVArrayInformation.h.

◆ GetRangesAsString()

std::string vtkPVArrayInformation::GetRangesAsString	(	int	lowExponent = `-6`,
		int	highExponent = `20`
	)		const

Returns range as a string.

For string arrays, this lists string values instead.

◆ GetName()

const char* vtkPVArrayInformation::GetName ( ) const

inline

Get array's name.

Definition at line 62 of file vtkPVArrayInformation.h.

◆ GetNumberOfComponents()

int vtkPVArrayInformation::GetNumberOfComponents ( ) const

Get number of components.

◆ GetComponentName()

const char* vtkPVArrayInformation::GetComponentName ( int component ) const

Returns the name for a component.

If none present, a default component name may be returned.

◆ GetNumberOfTuples()

virtual vtkTypeInt64 vtkPVArrayInformation::GetNumberOfTuples ( )

virtual

Returns the number of tuples in this array.

◆ GetComponentRange() [1/2]

const double* vtkPVArrayInformation::GetComponentRange ( int comp ) const

Returns component range.

If component is -1, then the range of the magnitude (L2 norm) over all components will be provided.

Returns invalid range for non-numeric arrays.

◆ GetComponentRange() [2/2]

void vtkPVArrayInformation::GetComponentRange	(	int	comp,
		double	range[2]
	)		const

Returns component range.

If component is -1, then the range of the magnitude (L2 norm) over all components will be provided.

Returns invalid range for non-numeric arrays.

◆ GetComponentFiniteRange() [1/2]

const double* vtkPVArrayInformation::GetComponentFiniteRange ( int component ) const

Returns the finite range for each component.

If component is -1, then the range of the magnitude (L2 norm) over all components will be provided.

Returns invalid range for non-numeric arrays.

◆ GetComponentFiniteRange() [2/2]

void vtkPVArrayInformation::GetComponentFiniteRange	(	int	comp,
		double	range[2]
	)		const

Returns the finite range for each component.

If component is -1, then the range of the magnitude (L2 norm) over all components will be provided.

Returns invalid range for non-numeric arrays.

◆ GetDataTypeRange()

void vtkPVArrayInformation::GetDataTypeRange ( double range[2] ) const

This method return the Min and Max possible range of the native data type.

For example if a vtkScalars consists of unsigned char data these will return (0,255). Nothing particular for 12bits data is done

◆ GetIsPartial()

virtual bool vtkPVArrayInformation::GetIsPartial ( )

virtual

If IsPartial is true, this array is in only some of the parts of a multi-block dataset.

By default, IsPartial is set to 0.

◆ GetNumberOfInformationKeys()

int vtkPVArrayInformation::GetNumberOfInformationKeys ( ) const

Get information on the InformationKeys of this array.

◆ GetInformationKeyLocation()

const char* vtkPVArrayInformation::GetInformationKeyLocation ( int ) const

Get information on the InformationKeys of this array.

◆ GetInformationKeyName()

const char* vtkPVArrayInformation::GetInformationKeyName ( int ) const

Get information on the InformationKeys of this array.

◆ HasInformationKey()

bool vtkPVArrayInformation::HasInformationKey	(	const char *	location,
		const char *	name
	)		const

Get information on the InformationKeys of this array.

◆ GetNumberOfStringValues()

int vtkPVArrayInformation::GetNumberOfStringValues ( )

For string arrays, this returns first few non-empty values.

◆ GetStringValue()

const char* vtkPVArrayInformation::GetStringValue ( int )

For string arrays, this returns first few non-empty values.

◆ CopyFromArray() [1/3]

void vtkPVArrayInformation::CopyFromArray ( vtkAbstractArray * array )

Copy info from an array.

Prefer the field data overload when copying from a field data array.

◆ CopyFromArray() [2/3]

void vtkPVArrayInformation::CopyFromArray	(	vtkFieldData *	fieldData,
		int	fdArrayIdx
	)

Copy info from an array.

Prefer the field data overload when copying from a field data array.

◆ CopyFromArray() [3/3]

void vtkPVArrayInformation::CopyFromArray	(	vtkAbstractArray *	array,
		vtkFieldData *	fieldData
	)

Copy info from an array.

Prefer the field data overload when copying from a field data array.

◆ CopyFromCellAttribute()

void vtkPVArrayInformation::CopyFromCellAttribute	(	vtkCellGrid *	grid,
		vtkCellAttribute *	attribute
	)

◆ CopyFromGenericAttribute()

void vtkPVArrayInformation::CopyFromGenericAttribute ( vtkGenericAttribute * array )

◆ CopyToStream()

void vtkPVArrayInformation::CopyToStream ( vtkClientServerStream * ) const

◆ CopyFromStream()

bool vtkPVArrayInformation::CopyFromStream ( const vtkClientServerStream * )

◆ DeepCopy()

void vtkPVArrayInformation::DeepCopy ( vtkPVArrayInformation * info )

protected

API for vtkPVDataSetAttributesInformation.

◆ AddInformation()

void vtkPVArrayInformation::AddInformation	(	vtkPVArrayInformation *	,
		int	fieldAssociation
	)

protected

API for vtkPVDataSetAttributesInformation.

◆ SetIsPartial()

virtual void vtkPVArrayInformation::SetIsPartial ( bool )

protectedvirtual

API for vtkPVDataSetAttributesInformation.

◆ SetName()

virtual void vtkPVArrayInformation::SetName ( std::string )

protectedvirtual

Friends And Related Function Documentation

◆ vtkPVDataSetAttributesInformation

friend class vtkPVDataSetAttributesInformation

friend

Definition at line 159 of file vtkPVArrayInformation.h.

◆ vtkPVDataInformation

friend class vtkPVDataInformation

friend

Definition at line 160 of file vtkPVArrayInformation.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Core/vtkPVArrayInformation.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPVArrayInformation()

◆ ~vtkPVArrayInformation()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ Initialize()

◆ GetDataType()

◆ GetDataTypeAsString()

◆ GetRangesAsString()

◆ GetName()

◆ GetNumberOfComponents()

◆ GetComponentName()

◆ GetNumberOfTuples()

◆ GetComponentRange() [1/2]

◆ GetComponentRange() [2/2]

◆ GetComponentFiniteRange() [1/2]

◆ GetComponentFiniteRange() [2/2]

◆ GetDataTypeRange()

◆ GetIsPartial()

◆ GetNumberOfInformationKeys()

◆ GetInformationKeyLocation()

◆ GetInformationKeyName()

◆ HasInformationKey()

◆ GetNumberOfStringValues()

◆ GetStringValue()

◆ CopyFromArray() [1/3]

◆ CopyFromArray() [2/3]

◆ CopyFromArray() [3/3]

◆ CopyFromCellAttribute()

◆ CopyFromGenericAttribute()

◆ CopyToStream()

◆ CopyFromStream()

◆ DeepCopy()

◆ AddInformation()

◆ SetIsPartial()

◆ SetName()

Friends And Related Function Documentation

◆ vtkPVDataSetAttributesInformation

◆ vtkPVDataInformation
