iterator used to iterate over data information for a composite data set. More...

#include <vtkPVCompositeDataInformationIterator.h>

Inheritance diagram for vtkPVCompositeDataInformationIterator:

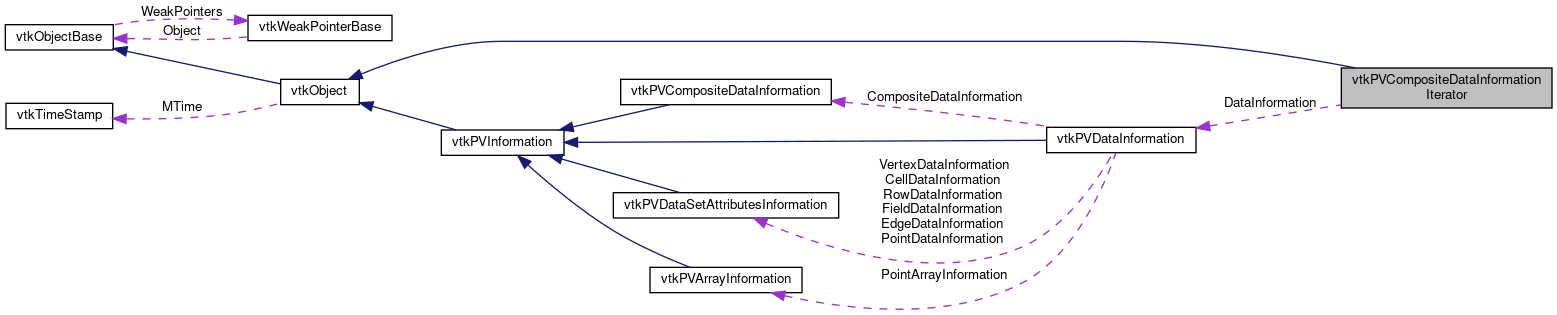

Collaboration diagram for vtkPVCompositeDataInformationIterator:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	InitTraversal ()
	Initializes the traversal. More...

bool	IsDoneWithTraversal ()
	Returns true, if the iterator is finished with the traversal. More...

void	GoToNextItem ()
	Goes to the next node. More...

vtkPVDataInformation *	GetCurrentDataInformation ()
	Returns the current nodes data-information. More...

const char *	GetCurrentName ()
	Returns the name for the current node. More...


void	SetDataInformation (vtkPVDataInformation *)
	Get/Set the vtkPVDataInformation instance to iterate over. More...

virtual vtkPVDataInformation *	GetDataInformation ()
	Get/Set the vtkPVDataInformation instance to iterate over. More...


virtual unsigned int	GetCurrentFlatIndex ()
	Returns the current flat index/composite index. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVCompositeDataInformationIterator *	New ()

static int	IsTypeOf (const char *type)

static vtkPVCompositeDataInformationIterator *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVCompositeDataInformationIterator ()

	~vtkPVCompositeDataInformationIterator () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
unsigned int	CurrentFlatIndex

vtkPVDataInformation *	DataInformation

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

iterator used to iterate over data information for a composite data set.

vtkPVCompositeDataInformationIterator is an iterator used to iterate over data information for a composite data set.

Definition at line 32 of file vtkPVCompositeDataInformationIterator.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkPVCompositeDataInformationIterator::Superclass

Definition at line 36 of file vtkPVCompositeDataInformationIterator.h.

Constructor & Destructor Documentation

◆ vtkPVCompositeDataInformationIterator()

vtkPVCompositeDataInformationIterator::vtkPVCompositeDataInformationIterator ( )

protected

◆ ~vtkPVCompositeDataInformationIterator()

vtkPVCompositeDataInformationIterator::~vtkPVCompositeDataInformationIterator ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVCompositeDataInformationIterator* vtkPVCompositeDataInformationIterator::New ( )

static

◆ GetClassName()

virtual const char* vtkPVCompositeDataInformationIterator::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkPVCompositeDataInformationIterator::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVCompositeDataInformationIterator::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkPVCompositeDataInformationIterator* vtkPVCompositeDataInformationIterator::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVCompositeDataInformationIterator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ SetDataInformation()

void vtkPVCompositeDataInformationIterator::SetDataInformation ( vtkPVDataInformation * )

Get/Set the vtkPVDataInformation instance to iterate over.

It is assumed that the argument represents the data information for a composite dataset.

◆ GetDataInformation()

virtual vtkPVDataInformation* vtkPVCompositeDataInformationIterator::GetDataInformation ( )

virtual

Get/Set the vtkPVDataInformation instance to iterate over.

It is assumed that the argument represents the data information for a composite dataset.

◆ InitTraversal()

void vtkPVCompositeDataInformationIterator::InitTraversal ( )

Initializes the traversal.

◆ IsDoneWithTraversal()

bool vtkPVCompositeDataInformationIterator::IsDoneWithTraversal ( )

Returns true, if the iterator is finished with the traversal.

◆ GoToNextItem()

void vtkPVCompositeDataInformationIterator::GoToNextItem ( )

Goes to the next node.

◆ GetCurrentDataInformation()

vtkPVDataInformation* vtkPVCompositeDataInformationIterator::GetCurrentDataInformation ( )

Returns the current nodes data-information.

If current node is a piece within a multi-piece dataset, then this will return NULL.

◆ GetCurrentName()

const char* vtkPVCompositeDataInformationIterator::GetCurrentName ( )

Returns the name for the current node.

Name may be valid only for a child node. The root node has no name. Returns NULL when no name is provided.

◆ GetCurrentFlatIndex()

virtual unsigned int vtkPVCompositeDataInformationIterator::GetCurrentFlatIndex ( )

virtual

Returns the current flat index/composite index.

This is only valid is IsDoneWithTraversal() returns false.

Member Data Documentation

◆ CurrentFlatIndex

unsigned int vtkPVCompositeDataInformationIterator::CurrentFlatIndex

protected

Definition at line 87 of file vtkPVCompositeDataInformationIterator.h.

◆ DataInformation

vtkPVDataInformation* vtkPVCompositeDataInformationIterator::DataInformation

protected

Definition at line 88 of file vtkPVCompositeDataInformationIterator.h.

The documentation for this class was generated from the following file:

/home/paraview/Remoting/Core/vtkPVCompositeDataInformationIterator.h
