vtkPVGeneralSettings Class Reference

object for general options. More...

#include <vtkPVGeneralSettings.h>

Inheritance diagram for vtkPVGeneralSettings:

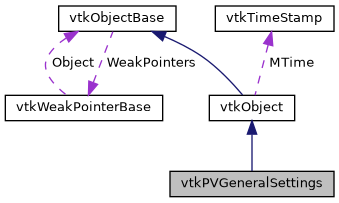

Collaboration diagram for vtkPVGeneralSettings:

Public Types
enum	{ DEFAULT_TIME_STEP_UNCHANGED, DEFAULT_TIME_STEP_FIRST, DEFAULT_TIME_STEP_LAST }
	Enum for DefaultTimeStep. More...
enum	RealNumberNotation { MIXED = 0, SCIENTIFIC, FIXED, FULL }
enum	{ ALL_IN_ONE = 0, SEPARATE_DISPLAY_PROPERTIES = 1, SEPARATE_VIEW_PROPERTIES = 2, ALL_SEPARATE = 3 }
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
void	SetInheritRepresentationProperties (bool val)
	Forwarded for vtkSMParaViewPipelineControllerWithRendering. More...
void	SetIgnoreNegativeLogAxisWarning (bool val)
bool	GetIgnoreNegativeLogAxisWarning ()
void	SetAutoConvertProperties (bool val)
	Automatically convert data arrays as needed by filters including converting cell arrays to point arrays, or vice versa, and extracting single components from multi-component arrays. More...
bool	GetAutoConvertProperties ()
	Automatically convert data arrays as needed by filters including converting cell arrays to point arrays, or vice versa, and extracting single components from multi-component arrays. More...
virtual int	GetBlockColorsDistinctValues ()
	Determines the number of distinct values in vtkBlockColors. More...
virtual void	SetBlockColorsDistinctValues (int)
	Determines the number of distinct values in vtkBlockColors. More...
virtual bool	GetAutoApply ()
	Automatically apply changes in the 'Properties' panel. More...
virtual void	SetAutoApply (bool)
	Automatically apply changes in the 'Properties' panel. More...
virtual int	GetAutoApplyDelay ()
	Get/Set delay for auto apply. More...
virtual void	SetAutoApplyDelay (int)
	Get/Set delay for auto apply. More...
virtual bool	GetAutoApplyActiveOnly ()
	Automatically apply changes in the 'Properties' panel. More...
virtual void	SetAutoApplyActiveOnly (bool)
	Automatically apply changes in the 'Properties' panel. More...
virtual std::string	GetDefaultViewType ()
	Get/Set the default view type. More...
virtual void	SetDefaultViewType (std::string)
	Get/Set the default view type. More...
virtual std::string	GetInterfaceLanguage ()
	Get/Set the default interface language. More...
virtual void	SetInterfaceLanguage (std::string)
	Get/Set the default interface language. More...
void	SetCacheGeometryForAnimation (bool val)
	Set when animation geometry caching is enabled. More...
bool	GetCacheGeometryForAnimation ()
	Set when animation geometry caching is enabled. More...
void	SetAnimationGeometryCacheLimit (unsigned long val)
	Set the animation cache limit in KBs. More...
virtual unsigned long	GetAnimationGeometryCacheLimit ()
	Set the animation cache limit in KBs. More...
virtual void	SetAnimationTimeNotation (int)
	Set the notation for the animation time toolbar. More...
virtual int	GetAnimationTimeNotation ()
	Set the notation for the animation time toolbar. More...
virtual void	SetAnimationTimeShortestAccuratePrecision (bool)
	Get/Set the usage of shortest accurate precision instead of actual precision for animation time. More...
virtual bool	GetAnimationTimeShortestAccuratePrecision ()
	Get/Set the usage of shortest accurate precision instead of actual precision for animation time. More...
virtual void	SetAnimationTimePrecision (int)
	Set the precision of the animation time toolbar. More...
virtual int	GetAnimationTimePrecision ()
	Set the precision of the animation time toolbar. More...
virtual void	SetShowAnimationShortcuts (bool)
	Set when animation shortcuts are shown. More...
virtual bool	GetShowAnimationShortcuts ()
	Set when animation shortcuts are shown. More...
virtual void	ShowAnimationShortcutsOn ()
	Set when animation shortcuts are shown. More...
virtual void	ShowAnimationShortcutsOff ()
	Set when animation shortcuts are shown. More...
virtual void	SetResetDisplayEmptyViews (bool)
	Set whether to reset display when showing a representation in an empty view. More...
virtual bool	GetResetDisplayEmptyViews ()
	Set whether to reset display when showing a representation in an empty view. More...
virtual void	ResetDisplayEmptyViewsOn ()
	Set whether to reset display when showing a representation in an empty view. More...
virtual void	ResetDisplayEmptyViewsOff ()
	Set whether to reset display when showing a representation in an empty view. More...
virtual void	SetRealNumberDisplayedNotation (int)
	Get/Set the notation of real number displayed in widgets or views. More...
virtual int	GetRealNumberDisplayedNotation ()
	Get/Set the notation of real number displayed in widgets or views. More...
virtual void	SetRealNumberDisplayedShortestAccuratePrecision (bool)
	Get/Set the usage of shortest accurate precision instead of actual precision for real numbers. More...
virtual bool	GetRealNumberDisplayedShortestAccuratePrecision ()
	Get/Set the usage of shortest accurate precision instead of actual precision for real numbers. More...
virtual void	SetRealNumberDisplayedPrecision (int)
	Get/Set the precision of real number displayed in widgets or views. More...
virtual int	GetRealNumberDisplayedPrecision ()
	Get/Set the precision of real number displayed in widgets or views. More...
virtual void	SetFullNotationLowExponent (int)
	Get/Set the low exponent used with full notation. More...
virtual int	GetFullNotationLowExponent ()
	Get/Set the low exponent used with full notation. More...
virtual void	SetFullNotationHighExponent (int)
	Get/Set the high exponent used with full notation. More...
virtual int	GetFullNotationHighExponent ()
	Get/Set the high exponent used with full notation. More...
virtual void	SetPropertiesPanelMode (int)
	Properties panel configuration. More...
virtual int	GetPropertiesPanelMode ()
	Properties panel configuration. More...
virtual void	SetLockPanels (bool)
	Set whether to dock widgets into place. More...
virtual bool	GetLockPanels ()
	Set whether to dock widgets into place. More...
void	SetLoadAllVariables (bool val)
	Load all variables when loading a data set. More...
bool	GetLoadAllVariables ()
	Load all variables when loading a data set. More...
void	SetLoadNoChartVariables (bool val)
	Load no variables when showing a 2D chart. More...
bool	GetLoadNoChartVariables ()
	Load no variables when showing a 2D chart. More...
virtual void	SetGUIFontSize (int)
	Get/Set the GUI font size. More...
virtual int	GetGUIFontSize ()
	Get/Set the GUI font size. More...
virtual void	SetGUIOverrideFont (bool)
	Get/Set whether the GUIFontSize should be used. More...
virtual bool	GetGUIOverrideFont ()
	Get/Set whether the GUIFontSize should be used. More...
virtual void	SetColorByBlockColorsOnApply (bool)
	Automatically color by vtkBlockColors if array is present on Apply. More...
virtual bool	GetColorByBlockColorsOnApply ()
	Automatically color by vtkBlockColors if array is present on Apply. More...
void	SetEnableStreaming (bool)
	Turn on streamed rendering. More...
virtual bool	GetEnableStreaming ()
	Turn on streamed rendering. More...
virtual void	EnableStreamingOn ()
	Turn on streamed rendering. More...
virtual void	EnableStreamingOff ()
	Turn on streamed rendering. More...
void	SetUseAcceleratedFilters (bool)
	Enable use of accelerated filters where available. More...
bool	GetUseAcceleratedFilters ()
	Enable use of accelerated filters where available. More...
virtual void	UseAcceleratedFiltersOn ()
	Enable use of accelerated filters where available. More...
virtual void	UseAcceleratedFiltersOff ()
	Enable use of accelerated filters where available. More...
virtual bool	GetSelectOnClickMultiBlockInspector ()
	ActiveSelection is hooked up in the MultiBlock Inspector such that a click on a/multiple block(s) selects it/them. More...
virtual void	SetSelectOnClickMultiBlockInspector (bool)
	ActiveSelection is hooked up in the MultiBlock Inspector such that a click on a/multiple block(s) selects it/them. More...
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
virtual vtkMTimeType	GetMTime ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVGeneralSettings *	New ()
static int	IsTypeOf (const char *type)
static vtkPVGeneralSettings *	SafeDownCast (vtkObject *o)
static vtkPVGeneralSettings *	GetInstance ()
	Access the singleton. More...
static int	GetNumberOfCallbackThreads ()
	Sets the number of threads that are used for vtkPVSession::ThreadedCallbackQueue. More...
static void	SetNumberOfCallbackThreads (int)
	Sets the number of threads that are used for vtkPVSession::ThreadedCallbackQueue. More...
static int	GetNumberOfSMPThreads ()
	Sets the number of threads that are used by vtkSMPTools. More...
static void	SetNumberOfSMPThreads (int)
	Sets the number of threads that are used by vtkSMPTools. More...
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVGeneralSettings ()=default
	~vtkPVGeneralSettings () override=default
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
int	BlockColorsDistinctValues = 7
bool	AutoApply = false
int	AutoApplyDelay = 0
bool	AutoApplyActiveOnly = false
std::string	DefaultViewType = "RenderView"
std::string	InterfaceLanguage = "en"
int	ScalarBarMode = AUTOMATICALLY_HIDE_SCALAR_BARS
bool	CacheGeometryForAnimation = false
unsigned long	AnimationGeometryCacheLimit = 0
int	AnimationTimeNotation = MIXED
bool	AnimationTimeShortestAccuratePrecision = false
int	AnimationTimePrecision = 6
bool	ShowAnimationShortcuts = false
int	RealNumberDisplayedNotation = MIXED
bool	RealNumberDisplayedShortestAccuratePrecision = false
int	RealNumberDisplayedPrecision = 6
int	FullNotationLowExponent = -6
int	FullNotationHighExponent = 20
bool	ResetDisplayEmptyViews = false
int	PropertiesPanelMode = ALL_IN_ONE
bool	LockPanels = false
int	GUIFontSize = 0
bool	GUIOverrideFont = false
bool	ColorByBlockColorsOnApply = true
bool	EnableStreaming = false
bool	SelectOnClickMultiBlockInspector = true
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers
enum	{ AUTOMATICALLY_SHOW_AND_HIDE_SCALAR_BARS = 0, AUTOMATICALLY_HIDE_SCALAR_BARS = 1, MANUAL_SCALAR_BARS = 2 }
	Enum for ScalarBarMode. More...
virtual int	GetScalarBarMode ()
	Enum for ScalarBarMode. More...
void	SetScalarBarMode (int)
	Enum for ScalarBarMode. More...

Detailed Description

object for general options.

vtkPVGeneralSettings keeps track of general options in a ParaView application. This is a singleton. All calls to vtkPVGeneralSettings::New() return a pointer to the same global instance (with reference count incremented as expected).

Definition at line 23 of file vtkPVGeneralSettings.h.

Member Typedef Documentation

Superclass

typedef vtkObject vtkPVGeneralSettings::Superclass

Definition at line 27 of file vtkPVGeneralSettings.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enum for DefaultTimeStep.

Enumerator
DEFAULT_TIME_STEP_UNCHANGED
DEFAULT_TIME_STEP_FIRST
DEFAULT_TIME_STEP_LAST

Definition at line 105 of file vtkPVGeneralSettings.h.

anonymous enum

anonymous enum

Enum for ScalarBarMode.

Enumerator
AUTOMATICALLY_SHOW_AND_HIDE_SCALAR_BARS
AUTOMATICALLY_HIDE_SCALAR_BARS
MANUAL_SCALAR_BARS

Definition at line 116 of file vtkPVGeneralSettings.h.

RealNumberNotation

enum vtkPVGeneralSettings::RealNumberNotation

Enumerator
MIXED
SCIENTIFIC
FIXED
FULL

Definition at line 142 of file vtkPVGeneralSettings.h.

anonymous enum

anonymous enum

Enumerator
ALL_IN_ONE
SEPARATE_DISPLAY_PROPERTIES
SEPARATE_VIEW_PROPERTIES
ALL_SEPARATE

Definition at line 245 of file vtkPVGeneralSettings.h.

Constructor & Destructor Documentation

vtkPVGeneralSettings()

vtkPVGeneralSettings::vtkPVGeneralSettings ( )

protecteddefault

~vtkPVGeneralSettings()

vtkPVGeneralSettings::~vtkPVGeneralSettings ( )

overrideprotecteddefault

Member Function Documentation

New()

static vtkPVGeneralSettings* vtkPVGeneralSettings::New ( )

static

GetClassName()

virtual const char* vtkPVGeneralSettings::GetClassName ( )

virtual

IsTypeOf()

static int vtkPVGeneralSettings::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkPVGeneralSettings::IsA ( const char *  type )

virtual

Reimplemented from vtkObjectBase.

SafeDownCast()

static vtkPVGeneralSettings* vtkPVGeneralSettings::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkPVGeneralSettings::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkObject.

GetInstance()

static vtkPVGeneralSettings* vtkPVGeneralSettings::GetInstance ( )

static

Access the singleton.

SetAutoConvertProperties()

void vtkPVGeneralSettings::SetAutoConvertProperties

(

bool

val

)

Automatically convert data arrays as needed by filters including converting cell arrays to point arrays, or vice versa, and extracting single components from multi-component arrays.

Forwards the call to vtkSMInputArrayDomain::SetAutomaticPropertyConversion.

GetAutoConvertProperties()

bool vtkPVGeneralSettings::GetAutoConvertProperties

(

)

Automatically convert data arrays as needed by filters including converting cell arrays to point arrays, or vice versa, and extracting single components from multi-component arrays.

Forwards the call to vtkSMInputArrayDomain::SetAutomaticPropertyConversion.

GetBlockColorsDistinctValues()

virtual int vtkPVGeneralSettings::GetBlockColorsDistinctValues ( )

virtual

Determines the number of distinct values in vtkBlockColors.

This array is added to each block if the dataset is a composite dataset. The array has one value set to (blockIndex % BlockColorsDistinctValues)

SetBlockColorsDistinctValues()

virtual void vtkPVGeneralSettings::SetBlockColorsDistinctValues ( int  )

virtual

Determines the number of distinct values in vtkBlockColors.

This array is added to each block if the dataset is a composite dataset. The array has one value set to (blockIndex % BlockColorsDistinctValues)

GetAutoApply()

virtual bool vtkPVGeneralSettings::GetAutoApply ( )

virtual

Automatically apply changes in the 'Properties' panel.

Default is false.

SetAutoApply()

virtual void vtkPVGeneralSettings::SetAutoApply ( bool  )

virtual

Automatically apply changes in the 'Properties' panel.

Default is false.

GetAutoApplyDelay()

virtual int vtkPVGeneralSettings::GetAutoApplyDelay ( )

virtual

Get/Set delay for auto apply.

Not exposed in the UI. Default is 0.

SetAutoApplyDelay()

virtual void vtkPVGeneralSettings::SetAutoApplyDelay ( int  )

virtual

Get/Set delay for auto apply.

Not exposed in the UI. Default is 0.

GetAutoApplyActiveOnly()

virtual bool vtkPVGeneralSettings::GetAutoApplyActiveOnly ( )

virtual

Automatically apply changes in the 'Properties' panel.

Default is false.

SetAutoApplyActiveOnly()

virtual void vtkPVGeneralSettings::SetAutoApplyActiveOnly ( bool  )

virtual

Automatically apply changes in the 'Properties' panel.

Default is false.

GetDefaultViewType()

virtual std::string vtkPVGeneralSettings::GetDefaultViewType ( )

virtual

Get/Set the default view type.

SetDefaultViewType()

virtual void vtkPVGeneralSettings::SetDefaultViewType ( std::string  )

virtual

Get/Set the default view type.

GetInterfaceLanguage()

virtual std::string vtkPVGeneralSettings::GetInterfaceLanguage ( )

virtual

Get/Set the default interface language.

Default is en

SetInterfaceLanguage()

virtual void vtkPVGeneralSettings::SetInterfaceLanguage ( std::string  )

virtual

Get/Set the default interface language.

Default is en

GetScalarBarMode()

virtual int vtkPVGeneralSettings::GetScalarBarMode ( )

virtual

Enum for ScalarBarMode.

SetScalarBarMode()

void vtkPVGeneralSettings::SetScalarBarMode

(

int

)

Enum for ScalarBarMode.

SetCacheGeometryForAnimation()

void vtkPVGeneralSettings::SetCacheGeometryForAnimation

(

bool

val

)

Set when animation geometry caching is enabled.

GetCacheGeometryForAnimation()

bool vtkPVGeneralSettings::GetCacheGeometryForAnimation

(

)

Set when animation geometry caching is enabled.

SetAnimationGeometryCacheLimit()

void vtkPVGeneralSettings::SetAnimationGeometryCacheLimit

(

unsigned long

val

)

Set the animation cache limit in KBs.

GetAnimationGeometryCacheLimit()

virtual unsigned long vtkPVGeneralSettings::GetAnimationGeometryCacheLimit ( )

virtual

Set the animation cache limit in KBs.

SetAnimationTimeNotation()

virtual void vtkPVGeneralSettings::SetAnimationTimeNotation ( int  )

virtual

Set the notation for the animation time toolbar.

Accepted values are MIXED, SCIENTIFIC, and FIXED.

GetAnimationTimeNotation()

virtual int vtkPVGeneralSettings::GetAnimationTimeNotation ( )

virtual

Set the notation for the animation time toolbar.

Accepted values are MIXED, SCIENTIFIC, and FIXED.

SetAnimationTimeShortestAccuratePrecision()

virtual void vtkPVGeneralSettings::SetAnimationTimeShortestAccuratePrecision ( bool  )

virtual

Get/Set the usage of shortest accurate precision instead of actual precision for animation time.

GetAnimationTimeShortestAccuratePrecision()

virtual bool vtkPVGeneralSettings::GetAnimationTimeShortestAccuratePrecision ( )

virtual

Get/Set the usage of shortest accurate precision instead of actual precision for animation time.

SetAnimationTimePrecision()

virtual void vtkPVGeneralSettings::SetAnimationTimePrecision ( int  )

virtual

Set the precision of the animation time toolbar.

GetAnimationTimePrecision()

virtual int vtkPVGeneralSettings::GetAnimationTimePrecision ( )

virtual

Set the precision of the animation time toolbar.

SetShowAnimationShortcuts()

virtual void vtkPVGeneralSettings::SetShowAnimationShortcuts ( bool  )

virtual

Set when animation shortcuts are shown.

GetShowAnimationShortcuts()

virtual bool vtkPVGeneralSettings::GetShowAnimationShortcuts ( )

virtual

Set when animation shortcuts are shown.

ShowAnimationShortcutsOn()

virtual void vtkPVGeneralSettings::ShowAnimationShortcutsOn ( )

virtual

Set when animation shortcuts are shown.

ShowAnimationShortcutsOff()

virtual void vtkPVGeneralSettings::ShowAnimationShortcutsOff ( )

virtual

Set when animation shortcuts are shown.

SetResetDisplayEmptyViews()

virtual void vtkPVGeneralSettings::SetResetDisplayEmptyViews ( bool  )

virtual

Set whether to reset display when showing a representation in an empty view.

GetResetDisplayEmptyViews()

virtual bool vtkPVGeneralSettings::GetResetDisplayEmptyViews ( )

virtual

Set whether to reset display when showing a representation in an empty view.

ResetDisplayEmptyViewsOn()

virtual void vtkPVGeneralSettings::ResetDisplayEmptyViewsOn ( )

virtual

Set whether to reset display when showing a representation in an empty view.

ResetDisplayEmptyViewsOff()

virtual void vtkPVGeneralSettings::ResetDisplayEmptyViewsOff ( )

virtual

Set whether to reset display when showing a representation in an empty view.

SetRealNumberDisplayedNotation()

virtual void vtkPVGeneralSettings::SetRealNumberDisplayedNotation ( int  )

virtual

Get/Set the notation of real number displayed in widgets or views.

GetRealNumberDisplayedNotation()

virtual int vtkPVGeneralSettings::GetRealNumberDisplayedNotation ( )

virtual

Get/Set the notation of real number displayed in widgets or views.

SetRealNumberDisplayedShortestAccuratePrecision()

virtual void vtkPVGeneralSettings::SetRealNumberDisplayedShortestAccuratePrecision ( bool  )

virtual

Get/Set the usage of shortest accurate precision instead of actual precision for real numbers.

GetRealNumberDisplayedShortestAccuratePrecision()

virtual bool vtkPVGeneralSettings::GetRealNumberDisplayedShortestAccuratePrecision ( )

virtual

Get/Set the usage of shortest accurate precision instead of actual precision for real numbers.

SetRealNumberDisplayedPrecision()

virtual void vtkPVGeneralSettings::SetRealNumberDisplayedPrecision ( int  )

virtual

Get/Set the precision of real number displayed in widgets or views.

GetRealNumberDisplayedPrecision()

virtual int vtkPVGeneralSettings::GetRealNumberDisplayedPrecision ( )

virtual

Get/Set the precision of real number displayed in widgets or views.

SetFullNotationLowExponent()

virtual void vtkPVGeneralSettings::SetFullNotationLowExponent ( int  )

virtual

Get/Set the low exponent used with full notation.

GetFullNotationLowExponent()

virtual int vtkPVGeneralSettings::GetFullNotationLowExponent ( )

virtual

Get/Set the low exponent used with full notation.

SetFullNotationHighExponent()

virtual void vtkPVGeneralSettings::SetFullNotationHighExponent ( int  )

virtual

Get/Set the high exponent used with full notation.

GetFullNotationHighExponent()

virtual int vtkPVGeneralSettings::GetFullNotationHighExponent ( )

virtual

Get/Set the high exponent used with full notation.

SetInheritRepresentationProperties()

void vtkPVGeneralSettings::SetInheritRepresentationProperties

(

bool

val

)

Forwarded for vtkSMParaViewPipelineControllerWithRendering.

SetIgnoreNegativeLogAxisWarning()

void vtkPVGeneralSettings::SetIgnoreNegativeLogAxisWarning

(

bool

val

)

GetIgnoreNegativeLogAxisWarning()

bool vtkPVGeneralSettings::GetIgnoreNegativeLogAxisWarning

(

)

SetPropertiesPanelMode()

virtual void vtkPVGeneralSettings::SetPropertiesPanelMode ( int  )

virtual

Properties panel configuration.

GetPropertiesPanelMode()

virtual int vtkPVGeneralSettings::GetPropertiesPanelMode ( )

virtual

Properties panel configuration.

SetLockPanels()

virtual void vtkPVGeneralSettings::SetLockPanels ( bool  )

virtual

Set whether to dock widgets into place.

GetLockPanels()

virtual bool vtkPVGeneralSettings::GetLockPanels ( )

virtual

Set whether to dock widgets into place.

SetLoadAllVariables()

void vtkPVGeneralSettings::SetLoadAllVariables

(

bool

val

)

Load all variables when loading a data set.

GetLoadAllVariables()

bool vtkPVGeneralSettings::GetLoadAllVariables

(

)

Load all variables when loading a data set.

SetLoadNoChartVariables()

void vtkPVGeneralSettings::SetLoadNoChartVariables

(

bool

val

)

Load no variables when showing a 2D chart.

GetLoadNoChartVariables()

bool vtkPVGeneralSettings::GetLoadNoChartVariables

(

)

Load no variables when showing a 2D chart.

SetGUIFontSize()

virtual void vtkPVGeneralSettings::SetGUIFontSize ( int  )

virtual

Get/Set the GUI font size.

This is used only if GUIOverrideFont is true.

GetGUIFontSize()

virtual int vtkPVGeneralSettings::GetGUIFontSize ( )

virtual

Get/Set the GUI font size.

This is used only if GUIOverrideFont is true.

SetGUIOverrideFont()

virtual void vtkPVGeneralSettings::SetGUIOverrideFont ( bool  )

virtual

Get/Set whether the GUIFontSize should be used.

GetGUIOverrideFont()

virtual bool vtkPVGeneralSettings::GetGUIOverrideFont ( )

virtual

Get/Set whether the GUIFontSize should be used.

SetColorByBlockColorsOnApply()

virtual void vtkPVGeneralSettings::SetColorByBlockColorsOnApply ( bool  )

virtual

Automatically color by vtkBlockColors if array is present on Apply.

GetColorByBlockColorsOnApply()

virtual bool vtkPVGeneralSettings::GetColorByBlockColorsOnApply ( )

virtual

Automatically color by vtkBlockColors if array is present on Apply.

SetEnableStreaming()

void vtkPVGeneralSettings::SetEnableStreaming

(

bool

)

Turn on streamed rendering.

GetEnableStreaming()

virtual bool vtkPVGeneralSettings::GetEnableStreaming ( )

virtual

Turn on streamed rendering.

EnableStreamingOn()

virtual void vtkPVGeneralSettings::EnableStreamingOn ( )

virtual

Turn on streamed rendering.

EnableStreamingOff()

virtual void vtkPVGeneralSettings::EnableStreamingOff ( )

virtual

Turn on streamed rendering.

SetUseAcceleratedFilters()

void vtkPVGeneralSettings::SetUseAcceleratedFilters

(

bool

)

Enable use of accelerated filters where available.

GetUseAcceleratedFilters()

bool vtkPVGeneralSettings::GetUseAcceleratedFilters

(

)

Enable use of accelerated filters where available.

UseAcceleratedFiltersOn()

virtual void vtkPVGeneralSettings::UseAcceleratedFiltersOn ( )

virtual

Enable use of accelerated filters where available.

UseAcceleratedFiltersOff()

virtual void vtkPVGeneralSettings::UseAcceleratedFiltersOff ( )

virtual

Enable use of accelerated filters where available.

GetSelectOnClickMultiBlockInspector()

virtual bool vtkPVGeneralSettings::GetSelectOnClickMultiBlockInspector ( )

virtual

ActiveSelection is hooked up in the MultiBlock Inspector such that a click on a/multiple block(s) selects it/them.

Default is true.

SetSelectOnClickMultiBlockInspector()

virtual void vtkPVGeneralSettings::SetSelectOnClickMultiBlockInspector ( bool  )

virtual

ActiveSelection is hooked up in the MultiBlock Inspector such that a click on a/multiple block(s) selects it/them.

Default is true.

GetNumberOfCallbackThreads()

static int vtkPVGeneralSettings::GetNumberOfCallbackThreads ( )

static

Sets the number of threads that are used for vtkPVSession::ThreadedCallbackQueue.

SetNumberOfCallbackThreads()

static void vtkPVGeneralSettings::SetNumberOfCallbackThreads ( int  )

static

Sets the number of threads that are used for vtkPVSession::ThreadedCallbackQueue.

GetNumberOfSMPThreads()

static int vtkPVGeneralSettings::GetNumberOfSMPThreads ( )

static

Sets the number of threads that are used by vtkSMPTools.

SetNumberOfSMPThreads()

static void vtkPVGeneralSettings::SetNumberOfSMPThreads ( int  )

static

Sets the number of threads that are used by vtkSMPTools.

Member Data Documentation

BlockColorsDistinctValues

int vtkPVGeneralSettings::BlockColorsDistinctValues = 7

protected

Definition at line 355 of file vtkPVGeneralSettings.h.

AutoApply

bool vtkPVGeneralSettings::AutoApply = false

protected

Definition at line 356 of file vtkPVGeneralSettings.h.

AutoApplyDelay

int vtkPVGeneralSettings::AutoApplyDelay = 0

protected

Definition at line 357 of file vtkPVGeneralSettings.h.

AutoApplyActiveOnly

bool vtkPVGeneralSettings::AutoApplyActiveOnly = false

protected

Definition at line 358 of file vtkPVGeneralSettings.h.

DefaultViewType

std::string vtkPVGeneralSettings::DefaultViewType = "RenderView"

protected

Definition at line 359 of file vtkPVGeneralSettings.h.

InterfaceLanguage

std::string vtkPVGeneralSettings::InterfaceLanguage = "en"

protected

Definition at line 360 of file vtkPVGeneralSettings.h.

ScalarBarMode

int vtkPVGeneralSettings::ScalarBarMode = AUTOMATICALLY_HIDE_SCALAR_BARS

protected

Definition at line 361 of file vtkPVGeneralSettings.h.

CacheGeometryForAnimation

bool vtkPVGeneralSettings::CacheGeometryForAnimation = false

protected

Definition at line 362 of file vtkPVGeneralSettings.h.

AnimationGeometryCacheLimit

unsigned long vtkPVGeneralSettings::AnimationGeometryCacheLimit = 0

protected

Definition at line 363 of file vtkPVGeneralSettings.h.

AnimationTimeNotation

int vtkPVGeneralSettings::AnimationTimeNotation = MIXED

protected

Definition at line 364 of file vtkPVGeneralSettings.h.

AnimationTimeShortestAccuratePrecision

bool vtkPVGeneralSettings::AnimationTimeShortestAccuratePrecision = false

protected

Definition at line 365 of file vtkPVGeneralSettings.h.

AnimationTimePrecision

int vtkPVGeneralSettings::AnimationTimePrecision = 6

protected

Definition at line 366 of file vtkPVGeneralSettings.h.

ShowAnimationShortcuts

bool vtkPVGeneralSettings::ShowAnimationShortcuts = false

protected

Definition at line 367 of file vtkPVGeneralSettings.h.

RealNumberDisplayedNotation

int vtkPVGeneralSettings::RealNumberDisplayedNotation = MIXED

protected

Definition at line 368 of file vtkPVGeneralSettings.h.

RealNumberDisplayedShortestAccuratePrecision

bool vtkPVGeneralSettings::RealNumberDisplayedShortestAccuratePrecision = false

protected

Definition at line 369 of file vtkPVGeneralSettings.h.

RealNumberDisplayedPrecision

int vtkPVGeneralSettings::RealNumberDisplayedPrecision = 6

protected

Definition at line 370 of file vtkPVGeneralSettings.h.

FullNotationLowExponent

int vtkPVGeneralSettings::FullNotationLowExponent = -6

protected

Definition at line 371 of file vtkPVGeneralSettings.h.

FullNotationHighExponent

int vtkPVGeneralSettings::FullNotationHighExponent = 20

protected

Definition at line 372 of file vtkPVGeneralSettings.h.

ResetDisplayEmptyViews

bool vtkPVGeneralSettings::ResetDisplayEmptyViews = false

protected

Definition at line 373 of file vtkPVGeneralSettings.h.

PropertiesPanelMode

int vtkPVGeneralSettings::PropertiesPanelMode = ALL_IN_ONE

protected

Definition at line 374 of file vtkPVGeneralSettings.h.

LockPanels

bool vtkPVGeneralSettings::LockPanels = false

protected

Definition at line 375 of file vtkPVGeneralSettings.h.

GUIFontSize

int vtkPVGeneralSettings::GUIFontSize = 0

protected

Definition at line 376 of file vtkPVGeneralSettings.h.

GUIOverrideFont

bool vtkPVGeneralSettings::GUIOverrideFont = false

protected

Definition at line 377 of file vtkPVGeneralSettings.h.

ColorByBlockColorsOnApply

bool vtkPVGeneralSettings::ColorByBlockColorsOnApply = true

protected

Definition at line 378 of file vtkPVGeneralSettings.h.

EnableStreaming

bool vtkPVGeneralSettings::EnableStreaming = false

protected

Definition at line 379 of file vtkPVGeneralSettings.h.

SelectOnClickMultiBlockInspector

bool vtkPVGeneralSettings::SelectOnClickMultiBlockInspector = true

protected

Definition at line 380 of file vtkPVGeneralSettings.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Settings/vtkPVGeneralSettings.h
