#include <pqPythonEditorActions.h>

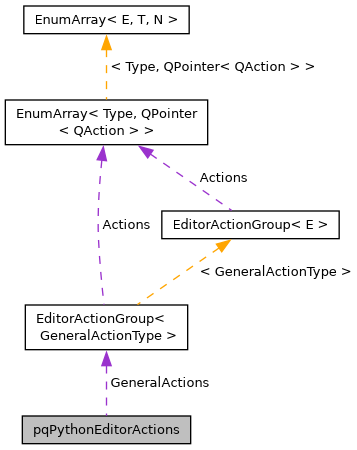

Collaboration diagram for pqPythonEditorActions:

[legend]

Public Types
enum	GeneralActionType : std::uint8_t { GeneralActionType::NewFile, GeneralActionType::OpenFile, GeneralActionType::SaveFile, GeneralActionType::SaveFileAs, GeneralActionType::SaveFileAsMacro, GeneralActionType::SaveFileAsScript, GeneralActionType::DeleteAll, GeneralActionType::Undo, GeneralActionType::Redo, GeneralActionType::Copy, GeneralActionType::Cut, GeneralActionType::Paste, GeneralActionType::CloseCurrentTab, GeneralActionType::Exit, GeneralActionType::Run, GeneralActionType::END }
	General editor actions. More...

enum	ScriptActionType : std::uint8_t { ScriptActionType::Open, ScriptActionType::Load, ScriptActionType::Delete, ScriptActionType::Run, ScriptActionType::END }
	Specialized actions for the scripting part of the editor. More...

using	TGeneralAction = EditorActionGroup< GeneralActionType >

using	ScriptAction = EditorActionGroup< ScriptActionType >

Public Member Functions
	pqPythonEditorActions ()
	Default constructor initialize the tooltip and text of the various actions. More...

const QAction &	operator[] (const GeneralActionType action) const
	const accessor to an action More...

QAction &	operator[] (const GeneralActionType action)
	accessor to an action More...

void	updateScriptsList (pqPythonManager *python_mgr)
	Updates the list of actions by listing the files contained into the default Script dir. More...

void	FillQMenu (EnumArray< ScriptAction::Type, QMenu *> menus)
	Fill the input menus with the current actions listed by this object. More...

Static Public Member Functions
template<class T >
static void	connect (pqPythonEditorActions &, T *)
	Connects the pqPythonEditorActions to the type T. More...

template<class T >
static void	disconnect (pqPythonEditorActions &, T *)
	Disconnects the pqPythonEditorActions to the type T. More...

Public Attributes
TGeneralAction	GeneralActions
	The list of general actions. More...

std::vector< ScriptAction >	ScriptActions
	The variable sized array of script actions. More...

Detailed Description

Definition at line 73 of file pqPythonEditorActions.h.

Member Typedef Documentation

◆ TGeneralAction

using pqPythonEditorActions::TGeneralAction = EditorActionGroup<GeneralActionType>

Definition at line 127 of file pqPythonEditorActions.h.

◆ ScriptAction

using pqPythonEditorActions::ScriptAction = EditorActionGroup<ScriptActionType>

Definition at line 134 of file pqPythonEditorActions.h.

Member Enumeration Documentation

◆ GeneralActionType

enum pqPythonEditorActions::GeneralActionType : std::uint8_t

strong

General editor actions.

Enumerator
NewFile
OpenFile
SaveFile
SaveFileAs
SaveFileAsMacro
SaveFileAsScript
DeleteAll
Undo
Redo
Copy
Cut
Paste
CloseCurrentTab
Exit
Run
END

Definition at line 85 of file pqPythonEditorActions.h.

◆ ScriptActionType

enum pqPythonEditorActions::ScriptActionType : std::uint8_t

strong

Specialized actions for the scripting part of the editor.

Enumerator
Open
Load
Delete
Run
END

Definition at line 117 of file pqPythonEditorActions.h.

Constructor & Destructor Documentation

◆ pqPythonEditorActions()

pqPythonEditorActions::pqPythonEditorActions ( )

Default constructor initialize the tooltip and text of the various actions.

Member Function Documentation

◆ operator[]() [1/2]

const QAction& pqPythonEditorActions::operator[] ( const GeneralActionType action ) const

inline

const accessor to an action

Definition at line 144 of file pqPythonEditorActions.h.

◆ operator[]() [2/2]

QAction& pqPythonEditorActions::operator[] ( const GeneralActionType action )

inline

accessor to an action

Definition at line 152 of file pqPythonEditorActions.h.

◆ updateScriptsList()

void pqPythonEditorActions::updateScriptsList ( pqPythonManager * python_mgr )

Updates the list of actions by listing the files contained into the default Script dir.

Parameters

python_mgr instance of the python manager

◆ FillQMenu()

void pqPythonEditorActions::FillQMenu ( EnumArray< ScriptAction::Type, QMenu *> menus )

Fill the input menus with the current actions listed by this object.

◆ connect()

template<class T >

static void pqPythonEditorActions::connect	(	pqPythonEditorActions &	,
		T *
	)

static

Connects the pqPythonEditorActions to the type T.

◆ disconnect()

template<class T >

static void pqPythonEditorActions::disconnect	(	pqPythonEditorActions &	,
		T *
	)

static

Disconnects the pqPythonEditorActions to the type T.

Member Data Documentation

◆ GeneralActions

TGeneralAction pqPythonEditorActions::GeneralActions

The list of general actions.

Definition at line 132 of file pqPythonEditorActions.h.

◆ ScriptActions

std::vector<ScriptAction> pqPythonEditorActions::ScriptActions

The variable sized array of script actions.

Definition at line 139 of file pqPythonEditorActions.h.

The documentation for this struct was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Qt/Python/pqPythonEditorActions.h
