pqLinkedObjectQTextEdit Struct Reference

pqLinkedObjectQTextEdit implements the pqLinkedObjectInterface for a QTextEdit More...

#include <pqLinkedObjectQTextEdit.h>

Inheritance diagram for pqLinkedObjectQTextEdit:

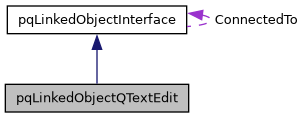

Collaboration diagram for pqLinkedObjectQTextEdit:

Public Member Functions
	pqLinkedObjectQTextEdit ()=delete
	Default constructor is deleted. More...
	pqLinkedObjectQTextEdit (QTextEdit &textEdit) noexcept
	Constructor that takes the QTextEdit as parameter. More...
	pqLinkedObjectQTextEdit (const pqLinkedObjectQTextEdit &other) noexcept
	Copy constructor. More...
	~pqLinkedObjectQTextEdit () noexcept override
	Destructor that unlink this object on deletion. More...
std::unique_ptr< pqLinkedObjectInterface >	clone () const override
	Constructs a new instance of pqLinkedObjectQTextEdit using the default copy constructor of this class. More...
void	link (pqLinkedObjectInterface *other) override
	Link this object to the other. More...
void	unlink () override
	Unlink this object with the other. More...
void	setText (const QString &txt) override
	See pqLinkedObjectInterface::setText. More...
QString	getText () const override
	See pqLinkedObjectInterface::getText. More...
QObject *	getLinked () const noexcept override
	See pqLinkedObjectInterface::getLinked. More...
QString	getName () const override
	See pqLinkedObjectInterface::getName. More...
Public Member Functions inherited from pqLinkedObjectInterface
	pqLinkedObjectInterface ()=default
	Default constructor. More...
	pqLinkedObjectInterface (const pqLinkedObjectInterface &)=default
	Copy constructor needed for the clone method. More...
virtual	~pqLinkedObjectInterface () noexcept=default
	Default virtual destructor. More...
bool	isLinked () const noexcept
	Returns true if this object is connected to another one. More...

Public Attributes
QTextEdit &	TextEdit

Additional Inherited Members
Public Types inherited from pqLinkedObjectInterface
enum	QtSignalState : bool { QtSignalState::On = true, QtSignalState::Off = false }
	Used to trigger on and off an object signal. More...
Protected Attributes inherited from pqLinkedObjectInterface
pqLinkedObjectInterface *	ConnectedTo = nullptr
QMetaObject::Connection	Connection
bool	SettingText = false

Detailed Description

pqLinkedObjectQTextEdit implements the pqLinkedObjectInterface for a QTextEdit

Definition at line 16 of file pqLinkedObjectQTextEdit.h.

Constructor & Destructor Documentation

pqLinkedObjectQTextEdit() [1/3]

pqLinkedObjectQTextEdit::pqLinkedObjectQTextEdit ( )

delete

Default constructor is deleted.

pqLinkedObjectQTextEdit() [2/3]

pqLinkedObjectQTextEdit::pqLinkedObjectQTextEdit ( QTextEdit &  textEdit )

inlineexplicitnoexcept

Constructor that takes the QTextEdit as parameter.

Definition at line 26 of file pqLinkedObjectQTextEdit.h.

pqLinkedObjectQTextEdit() [3/3]

pqLinkedObjectQTextEdit::pqLinkedObjectQTextEdit ( const pqLinkedObjectQTextEdit &  other )

inlineexplicitnoexcept

Copy constructor.

Do link the other object to this one if it exists

Definition at line 34 of file pqLinkedObjectQTextEdit.h.

~pqLinkedObjectQTextEdit()

pqLinkedObjectQTextEdit::~pqLinkedObjectQTextEdit ( )

inlineoverridenoexcept

Destructor that unlink this object on deletion.

Definition at line 47 of file pqLinkedObjectQTextEdit.h.

Member Function Documentation

clone()

std::unique_ptr<pqLinkedObjectInterface> pqLinkedObjectQTextEdit::clone ( ) const

inlineoverridevirtual

Constructs a new instance of pqLinkedObjectQTextEdit using the default copy constructor of this class.

Implements pqLinkedObjectInterface.

Reimplemented in pqLinkedObjectPythonTextArea.

Definition at line 53 of file pqLinkedObjectQTextEdit.h.

link()

void pqLinkedObjectQTextEdit::link ( pqLinkedObjectInterface *  other )

overridevirtual

Link this object to the other.

Note that the link is established if and only if the given pqLinkedObjectInterface is not nullptr.

Implements pqLinkedObjectInterface.

Reimplemented in pqLinkedObjectPythonTextArea.

unlink()

void pqLinkedObjectQTextEdit::unlink ( )

overridevirtual

Unlink this object with the other.

Implements pqLinkedObjectInterface.

setText()

void pqLinkedObjectQTextEdit::setText ( const QString &  txt )

overridevirtual

See pqLinkedObjectInterface::setText.

Implements pqLinkedObjectInterface.

getText()

QString pqLinkedObjectQTextEdit::getText ( ) const

overridevirtual

See pqLinkedObjectInterface::getText.

Implements pqLinkedObjectInterface.

getLinked()

QObject* pqLinkedObjectQTextEdit::getLinked ( ) const

overridevirtualnoexcept

See pqLinkedObjectInterface::getLinked.

Implements pqLinkedObjectInterface.

getName()

QString pqLinkedObjectQTextEdit::getName ( ) const

overridevirtual

See pqLinkedObjectInterface::getName.

Implements pqLinkedObjectInterface.

Member Data Documentation

TextEdit

QTextEdit& pqLinkedObjectQTextEdit::TextEdit

Definition at line 89 of file pqLinkedObjectQTextEdit.h.

---

The documentation for this struct was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Qt/Core/pqLinkedObjectQTextEdit.h
