Serialize/deserialize vtkSelection to/from xml. More...

#include <vtkSelectionSerializer.h>

Inheritance diagram for vtkSelectionSerializer:

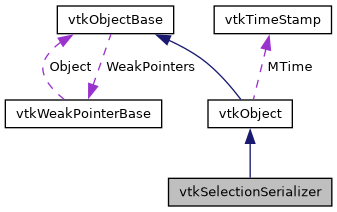

Collaboration diagram for vtkSelectionSerializer:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSelectionSerializer *	New ()

static int	IsTypeOf (const char *type)

static vtkSelectionSerializer *	SafeDownCast (vtkObject *o)

static vtkInformationIntegerKey *	ORIGINAL_SOURCE_ID ()
	ID of the dataset or algorithm that the selection belongs to. More...


static void	PrintXML (int printData, vtkSelection *selection)
	Serialize the selection tree to a stream as xml. More...

static void	PrintXML (ostream &os, vtkIndent indent, int printData, vtkSelection *selection)
	Serialize the selection tree to a stream as xml. More...


static void	Parse (const char xml, vtkSelection root)
	Parse an xml string to create a new selection tree. More...

static void	Parse (const char xml, unsigned int length, vtkSelection root)
	Parse an xml string to create a new selection tree. More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSelectionSerializer ()

	~vtkSelectionSerializer () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

Serialize/deserialize vtkSelection to/from xml.

vtkSelectionSerializer is a helper class that can serialize/deserialize vtkSelection to/from xml. Currently, it supports only a subset of properties: CONTENT_TYPE, SOURCE_ID, PROP_ID, PROCESS_ID, ORIGINAL_SOURCE_ID

See also: vtkSelection

Definition at line 26 of file vtkSelectionSerializer.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkSelectionSerializer::Superclass

Definition at line 30 of file vtkSelectionSerializer.h.

Constructor & Destructor Documentation

◆ vtkSelectionSerializer()

vtkSelectionSerializer::vtkSelectionSerializer ( )

protected

◆ ~vtkSelectionSerializer()

vtkSelectionSerializer::~vtkSelectionSerializer ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSelectionSerializer* vtkSelectionSerializer::New ( )

static

◆ GetClassName()

virtual const char* vtkSelectionSerializer::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkSelectionSerializer::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSelectionSerializer::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkSelectionSerializer* vtkSelectionSerializer::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSelectionSerializer::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ PrintXML() [1/2]

static void vtkSelectionSerializer::PrintXML	(	int	printData,
		vtkSelection *	selection
	)

static

Serialize the selection tree to a stream as xml.

For now, only keys of type vtkInformationIntegerKey are supported.

◆ PrintXML() [2/2]

static void vtkSelectionSerializer::PrintXML	(	ostream &	os,
		vtkIndent	indent,
		int	printData,
		vtkSelection *	selection
	)

static

Serialize the selection tree to a stream as xml.

For now, only keys of type vtkInformationIntegerKey are supported.

◆ Parse() [1/2]

static void vtkSelectionSerializer::Parse	(	const char *	xml,
		vtkSelection *	root
	)

static

Parse an xml string to create a new selection tree.

The string is 0 terminated for the first version of this function, or we specify the length of the string for the second version. Currently, this supports only a subset of properties: CONTENT_TYPE, SOURCE_ID, PROP_ID, PROCESS_ID

◆ Parse() [2/2]

static void vtkSelectionSerializer::Parse	(	const char *	xml,
		unsigned int	length,
		vtkSelection *	root
	)

static

Parse an xml string to create a new selection tree.

The string is 0 terminated for the first version of this function, or we specify the length of the string for the second version. Currently, this supports only a subset of properties: CONTENT_TYPE, SOURCE_ID, PROP_ID, PROCESS_ID

◆ ORIGINAL_SOURCE_ID()

static vtkInformationIntegerKey* vtkSelectionSerializer::ORIGINAL_SOURCE_ID ( )

static

ID of the dataset or algorithm that the selection belongs to.

What ID means is application specific.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/Misc/vtkSelectionSerializer.h
