helper to help reload a reader. More...

#include <vtkSMReaderReloadHelper.h>

Inheritance diagram for vtkSMReaderReloadHelper:

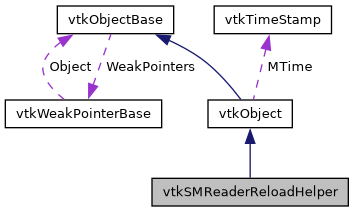

Collaboration diagram for vtkSMReaderReloadHelper:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual bool	SupportsReload (vtkSMSourceProxy *proxy)
	Returns true if its possible to reload data files for the given proxy i.e. More...

virtual bool	SupportsFileSeries (vtkSMSourceProxy *proxy)
	Returns true if the reader supports file series. More...

virtual bool	ReloadFiles (vtkSMSourceProxy *proxy)
	Make the reader reload its data file(s). More...

virtual bool	ExtendFileSeries (vtkSMSourceProxy *proxy)
	Attempts to find more files in a file series specified on the reader proxy and all those files to the reader. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMReaderReloadHelper *	New ()

static int	IsTypeOf (const char *type)

static vtkSMReaderReloadHelper *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMReaderReloadHelper ()

	~vtkSMReaderReloadHelper () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

helper to help reload a reader.

vtkSMReaderReloadHelper helps make a reader reload its files. There are two ways of reloading: reload existing data files, or extend the file series with any new files that are now available. This class supports both. Use vtkSMReaderReloadHelper::ReloadFiles() to reload existing files (potentially using a specific property on the reader proxy for reloading, if available). Use vtkSMReaderReloadHelper::ExtendFileSeries() to detect new files in a file series and update the reader to use those.

Definition at line 24 of file vtkSMReaderReloadHelper.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkSMReaderReloadHelper::Superclass

Definition at line 28 of file vtkSMReaderReloadHelper.h.

Constructor & Destructor Documentation

◆ vtkSMReaderReloadHelper()

vtkSMReaderReloadHelper::vtkSMReaderReloadHelper ( )

protected

◆ ~vtkSMReaderReloadHelper()

vtkSMReaderReloadHelper::~vtkSMReaderReloadHelper ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMReaderReloadHelper* vtkSMReaderReloadHelper::New ( )

static

◆ GetClassName()

virtual const char* vtkSMReaderReloadHelper::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkSMReaderReloadHelper::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMReaderReloadHelper::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkSMReaderReloadHelper* vtkSMReaderReloadHelper::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMReaderReloadHelper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ SupportsReload()

virtual bool vtkSMReaderReloadHelper::SupportsReload ( vtkSMSourceProxy * proxy )

virtual

Returns true if its possible to reload data files for the given proxy i.e.

checks if the proxy is a reader. If not, returns false.

◆ SupportsFileSeries()

virtual bool vtkSMReaderReloadHelper::SupportsFileSeries ( vtkSMSourceProxy * proxy )

virtual

Returns true if the reader supports file series.

◆ ReloadFiles()

virtual bool vtkSMReaderReloadHelper::ReloadFiles ( vtkSMSourceProxy * proxy )

virtual

Make the reader reload its data file(s).

If a reader supports API to support such reloads in a smart way, then the reader proxy should use the <ReloadFiles /> hint to name the property. In that case, this method will use that property. Otherwise, it will use vtkSMProxy::RecreateVTKObjects() to simply recreate the VTK object and update its state.

◆ ExtendFileSeries()

virtual bool vtkSMReaderReloadHelper::ExtendFileSeries ( vtkSMSourceProxy * proxy )

virtual

Attempts to find more files in a file series specified on the reader proxy and all those files to the reader.

This should be called only when IsFileSeriesCapable() returns true.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMReaderReloadHelper.h
