vtkSMPropertyHelper Class Reference

helper class to get/set property values. More...

#include <vtkSMPropertyHelper.h>

Inheritance diagram for vtkSMPropertyHelper:

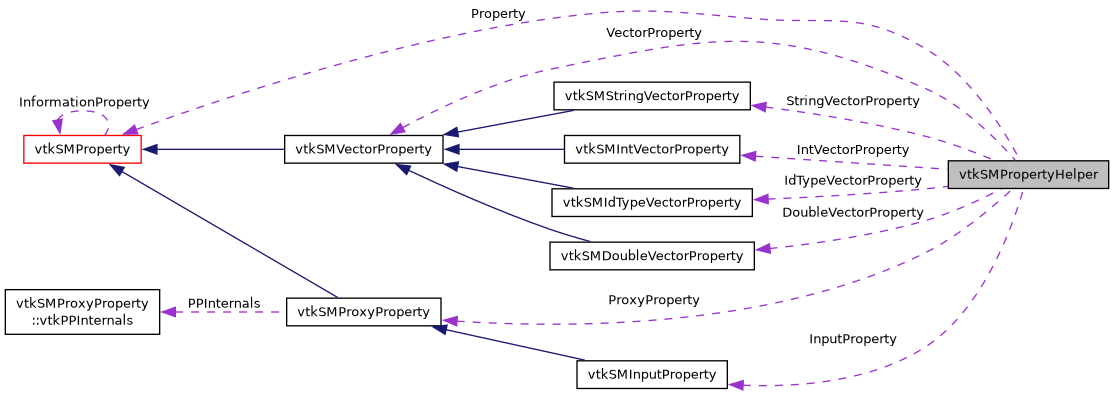

Collaboration diagram for vtkSMPropertyHelper:

Public Member Functions
void	UpdateValueFromServer ()
	Updates the property value by fetching the value from the server. More...
void	SetNumberOfElements (unsigned int elems)
	Set the number of elements in the property. More...
unsigned int	GetNumberOfElements () const
	Get the number of elements in the property. More...
void	RemoveAllValues ()
	Equivalent to SetNumberOfElements(0). More...
vtkVariant	GetAsVariant (unsigned int index) const
	Get value as a variant. More...
template<class T >
std::vector< T >	GetArray () const
	Templated method to call GetIntArray(), GetDoubleArray(), GetIdTypeArray(). More...
template<class T >
T	GetAs (unsigned int index=0) const
	Templated method to call GetAsInt(), GetAsDouble(), GetAsIdType() Note, we only provide implementations for T==double, int, vtkIdType. More...
vtkIdType	GetAsIdType (unsigned int index=0) const
std::vector< vtkIdType >	GetIdTypeArray () const
void	RemoveStatus (const char *key)
	Removes the status value specified for the given key, if any. More...
void	SetUseUnchecked (bool val)
	Get/Set whether to use unchecked properties. More...
bool	GetUseUnchecked () const
bool	Copy (const vtkSMPropertyHelper &source)
	Copy property values from another vtkSMPropertyHelper. More...
vtkSMPropertyHelper &	Modified ()
	Set the proxy to modified if necessary before calling Set() Return reference so method chaining can be used. More...
template<>
std::vector< int >	GetArray () const
template<>
std::vector< double >	GetArray () const
template<>
int	GetAs (unsigned int index) const
template<>
double	GetAs (unsigned int index) const
	vtkSMPropertyHelper (vtkSMProxy *proxy, const char *name, bool quiet=false)
	If quiet is true, then no errors or warning are raised if the property is missing or of incorrect type. More...
	vtkSMPropertyHelper (vtkSMProperty *property, bool quiet=false)
	If quiet is true, then no errors or warning are raised if the property is missing or of incorrect type. More...
	~vtkSMPropertyHelper ()
	If quiet is true, then no errors or warning are raised if the property is missing or of incorrect type. More...
void	Set (int value)
	Set/Get methods with int API. More...
void	Set (unsigned int index, int value)
	Set/Get methods with int API. More...
void	Set (const int *values, unsigned int count)
	Set/Get methods with int API. More...
void	Append (const int *values, unsigned int count)
	Set/Get methods with int API. More...
int	GetAsInt (unsigned int index=0) const
	Set/Get methods with int API. More...
unsigned int	Get (int *values, unsigned int count=1) const
	Set/Get methods with int API. More...
std::vector< int >	GetIntArray () const
	Set/Get methods with int API. More...
void	Set (double value)
	Set/Get methods with double API. More...
void	Set (unsigned int index, double value)
	Set/Get methods with double API. More...
void	Set (const double *values, unsigned int count)
	Set/Get methods with double API. More...
void	Append (const double *values, unsigned int count)
	Set/Get methods with double API. More...
double	GetAsDouble (unsigned int index=0) const
	Set/Get methods with double API. More...
unsigned int	Get (double *values, unsigned int count=1) const
	Set/Get methods with double API. More...
std::vector< double >	GetDoubleArray () const
	Set/Get methods with double API. More...
void	Set (const char *value)
	Set/Get methods for vtkSMStringVectorProperty. More...
void	Set (unsigned int index, const char *value)
	Set/Get methods for vtkSMStringVectorProperty. More...
const char *	GetAsString (unsigned int index=0) const
	Set/Get methods for vtkSMStringVectorProperty. More...
Proxy convenience methods
Helper functions for setting and getting proxies on vtkSMProxyProperty and vtkSMInputProperty instances. These methods simplify proxy management by supporting operations such as replacing, adding, or querying proxies and their associated output ports. The outputport argument is only relevant for vtkSMInputProperty.
void	Set (vtkSMProxy *value, unsigned int outputport=0)
	Replace the proxy at index 0 with a new one (optionally specifying output port). More...
void	Set (unsigned int index, vtkSMProxy *value, unsigned int outputport=0)
	Replace the proxy at a given index (optionally specifying output port). More...
void	Set (vtkSMProxy **value, unsigned int count, unsigned int *outputports=nullptr)
	Set multiple proxies at once (optionally with associated output ports). More...
void	Add (vtkSMProxy *value, unsigned int outputport=0)
	Append a proxy to the list (optionally specifying output port). More...
void	Remove (vtkSMProxy *value)
	Remove a specific proxy from the property. More...
bool	Contains (const vtkSMProxy *value) const
	Check if a proxy is present in the property. More...
vtkSMProxy *	GetAsProxy (unsigned int index=0) const
	Get the proxy at the given index. More...
unsigned int	GetOutputPort (unsigned int index=0) const
	Get the output port index associated with a proxy. More...
vtkSMOutputPort *	GetAsOutputPort (unsigned int index=0) const
	Get the corresponding vtkSMOutputPort instance. More...
void	SetStatus (const char *key, int value)
	This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status. More...
int	GetStatus (const char *key, int default_value=0) const
	This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status. More...
void	SetStatus (const char *key, double *values, int num_values)
	This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example), the second value is its status and the third value is number of status. More...
bool	GetStatus (const char *key, double *values, int num_values) const
	This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example), the second value is its status and the third value is number of status. More...
void	SetStatus (int key, int *values, int num_values)
	This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example), the second value is its status and the third value is number of status. More...
bool	GetStatus (int key, int *values, int num_values) const
	This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example), the second value is its status and the third value is number of status. More...
void	SetStatus (const char *key, const char *value)
	This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status (as a string) More...
const char *	GetStatus (const char *key, const char *default_value) const
	This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status (as a string) More...
void	SetStatus (int key, int value)
	This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example) and the second value is its status. More...
int	GetStatus (int key, int default_value=0) const
	This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example) and the second value is its status. More...
void	SetInputArrayToProcess (int fieldAssociation, const char *arrayName)
	For vtkSMStringVectorProperty that is used to setting input array to process on algorithms, this provides a convenient API to get/set the values. More...
int	GetInputArrayAssociation () const
	For vtkSMStringVectorProperty that is used to setting input array to process on algorithms, this provides a convenient API to get/set the values. More...
const char *	GetInputArrayNameToProcess () const
	For vtkSMStringVectorProperty that is used to setting input array to process on algorithms, this provides a convenient API to get/set the values. More...

Protected Member Functions
void	setUseUnchecked (bool useUnchecked)

Detailed Description

helper class to get/set property values.

vtkSMPropertyHelper is a helper class to get/set property values in a type independent fashion. eg.

vtkSMPropertyHelper(proxy, "Visibility").Set(0);
vtkSMPropertyHelper(proxy, "Input").Set(inputProxy, 0);

double center[3] = {...};
vtkSMPropertyHelper(proxy, "Center").Set(center, 3);

Caveat:

This class is not wrapped, hence not available in any of the wrapped languagues such as python.

Definition at line 52 of file vtkSMPropertyHelper.h.

Constructor & Destructor Documentation

vtkSMPropertyHelper() [1/2]

vtkSMPropertyHelper::vtkSMPropertyHelper	(	vtkSMProxy *	proxy,
		const char *	name,
		bool	quiet = false
	)

If quiet is true, then no errors or warning are raised if the property is missing or of incorrect type.

vtkSMPropertyHelper() [2/2]

vtkSMPropertyHelper::vtkSMPropertyHelper	(	vtkSMProperty *	property,
		bool	quiet = false
	)

If quiet is true, then no errors or warning are raised if the property is missing or of incorrect type.

~vtkSMPropertyHelper()

vtkSMPropertyHelper::~vtkSMPropertyHelper

(

)

If quiet is true, then no errors or warning are raised if the property is missing or of incorrect type.

Member Function Documentation

UpdateValueFromServer()

void vtkSMPropertyHelper::UpdateValueFromServer

(

)

Updates the property value by fetching the value from the server.

This only works for properties with InformationOnly attribute set to 1. For all other properties, this has no effect.

SetNumberOfElements()

void vtkSMPropertyHelper::SetNumberOfElements

(

unsigned int

elems

)

Set the number of elements in the property.

For vtkSMProxyProperty, this is equivalent to SetNumberOfProxies().

GetNumberOfElements()

unsigned int vtkSMPropertyHelper::GetNumberOfElements

(

)

const

Get the number of elements in the property.

For vtkSMProxyProperty, this is equivalent to GetNumberOfProxies().

RemoveAllValues()

void vtkSMPropertyHelper::RemoveAllValues ( )

inline

Equivalent to SetNumberOfElements(0).

Definition at line 87 of file vtkSMPropertyHelper.h.

GetAsVariant()

vtkVariant vtkSMPropertyHelper::GetAsVariant

(

unsigned int

index

)

const

Get value as a variant.

GetArray() [1/3]

template<class T >

std::vector<T> vtkSMPropertyHelper::GetArray

(

)

const

Templated method to call GetIntArray(), GetDoubleArray(), GetIdTypeArray().

Note, we only provide implementations for T==double, int, vtkIdType.

GetAs() [1/3]

template<class T >

T vtkSMPropertyHelper::GetAs

(

unsigned int

index = 0

)

const

Templated method to call GetAsInt(), GetAsDouble(), GetAsIdType() Note, we only provide implementations for T==double, int, vtkIdType.

Set() [1/11]

void vtkSMPropertyHelper::Set ( int  value )

inline

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Definition at line 113 of file vtkSMPropertyHelper.h.

Set() [2/11]

void vtkSMPropertyHelper::Set	(	unsigned int	index,
		int	value
	)

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Set() [3/11]

void vtkSMPropertyHelper::Set	(	const int *	values,
		unsigned int	count
	)

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Append() [1/2]

void vtkSMPropertyHelper::Append	(	const int *	values,
		unsigned int	count
	)

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

GetAsInt()

int vtkSMPropertyHelper::GetAsInt

(

unsigned int

index = 0

)

const

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Get() [1/2]

unsigned int vtkSMPropertyHelper::Get	(	int *	values,
		unsigned int	count = 1
	)		const

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

GetIntArray()

std::vector<int> vtkSMPropertyHelper::GetIntArray

(

)

const

Set/Get methods with int API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Set() [4/11]

void vtkSMPropertyHelper::Set ( double  value )

inline

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Definition at line 127 of file vtkSMPropertyHelper.h.

Set() [5/11]

void vtkSMPropertyHelper::Set	(	unsigned int	index,
		double	value
	)

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Set() [6/11]

void vtkSMPropertyHelper::Set	(	const double *	values,
		unsigned int	count
	)

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Append() [2/2]

void vtkSMPropertyHelper::Append	(	const double *	values,
		unsigned int	count
	)

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

GetAsDouble()

double vtkSMPropertyHelper::GetAsDouble

(

unsigned int

index = 0

)

const

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

Get() [2/2]

unsigned int vtkSMPropertyHelper::Get	(	double *	values,
		unsigned int	count = 1
	)		const

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

GetDoubleArray()

std::vector<double> vtkSMPropertyHelper::GetDoubleArray

(

)

const

Set/Get methods with double API.

Calling these method on vtkSMStringVectorProperty or vtkSMProxyProperty will raise errors.

GetAsIdType()

vtkIdType vtkSMPropertyHelper::GetAsIdType

(

unsigned int

index = 0

)

const

GetIdTypeArray()

std::vector<vtkIdType> vtkSMPropertyHelper::GetIdTypeArray

(

)

const

Set() [7/11]

void vtkSMPropertyHelper::Set ( const char *  value )

inline

Set/Get methods for vtkSMStringVectorProperty.

Calling these methods on any other type of property will raise errors. These overloads can be used for vtkSMIntVectorProperty with an enumeration domain as well, in which case the string-to-int (and vice-versa) translations are done internally.

Definition at line 160 of file vtkSMPropertyHelper.h.

Set() [8/11]

void vtkSMPropertyHelper::Set	(	unsigned int	index,
		const char *	value
	)

Set/Get methods for vtkSMStringVectorProperty.

Calling these methods on any other type of property will raise errors. These overloads can be used for vtkSMIntVectorProperty with an enumeration domain as well, in which case the string-to-int (and vice-versa) translations are done internally.

GetAsString()

const char* vtkSMPropertyHelper::GetAsString

(

unsigned int

index = 0

)

const

Set/Get methods for vtkSMStringVectorProperty.

Calling these methods on any other type of property will raise errors. These overloads can be used for vtkSMIntVectorProperty with an enumeration domain as well, in which case the string-to-int (and vice-versa) translations are done internally.

Set() [9/11]

void vtkSMPropertyHelper::Set ( vtkSMProxy *  value, unsigned int  outputport = 0  )

inline

Replace the proxy at index 0 with a new one (optionally specifying output port).

Definition at line 177 of file vtkSMPropertyHelper.h.

Set() [10/11]

void vtkSMPropertyHelper::Set	(	unsigned int	index,
		vtkSMProxy *	value,
		unsigned int	outputport = 0
	)

Replace the proxy at a given index (optionally specifying output port).

Set() [11/11]

void vtkSMPropertyHelper::Set	(	vtkSMProxy **	value,
		unsigned int	count,
		unsigned int *	outputports = nullptr
	)

Set multiple proxies at once (optionally with associated output ports).

Add()

void vtkSMPropertyHelper::Add	(	vtkSMProxy *	value,
		unsigned int	outputport = 0
	)

Append a proxy to the list (optionally specifying output port).

Remove()

void vtkSMPropertyHelper::Remove

(

vtkSMProxy *

value

)

Remove a specific proxy from the property.

Contains()

bool vtkSMPropertyHelper::Contains

(

const vtkSMProxy *

value

)

const

Check if a proxy is present in the property.

GetAsProxy()

vtkSMProxy* vtkSMPropertyHelper::GetAsProxy

(

unsigned int

index = 0

)

const

Get the proxy at the given index.

GetOutputPort()

unsigned int vtkSMPropertyHelper::GetOutputPort

(

unsigned int

index = 0

)

const

Get the output port index associated with a proxy.

GetAsOutputPort()

vtkSMOutputPort* vtkSMPropertyHelper::GetAsOutputPort

(

unsigned int

index = 0

)

const

Get the corresponding vtkSMOutputPort instance.

SetStatus() [1/5]

void vtkSMPropertyHelper::SetStatus	(	const char *	key,
		int	value
	)

This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status.

GetStatus() [1/5]

int vtkSMPropertyHelper::GetStatus	(	const char *	key,
		int	default_value = 0
	)		const

This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status.

SetStatus() [2/5]

void vtkSMPropertyHelper::SetStatus	(	const char *	key,
		double *	values,
		int	num_values
	)

This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example), the second value is its status and the third value is number of status.

GetStatus() [2/5]

bool vtkSMPropertyHelper::GetStatus	(	const char *	key,
		double *	values,
		int	num_values
	)		const

This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example), the second value is its status and the third value is number of status.

SetStatus() [3/5]

void vtkSMPropertyHelper::SetStatus	(	int	key,
		int *	values,
		int	num_values
	)

This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example), the second value is its status and the third value is number of status.

GetStatus() [3/5]

bool vtkSMPropertyHelper::GetStatus	(	int	key,
		int *	values,
		int	num_values
	)		const

This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example), the second value is its status and the third value is number of status.

SetStatus() [4/5]

void vtkSMPropertyHelper::SetStatus	(	const char *	key,
		const char *	value
	)

This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status (as a string)

GetStatus() [4/5]

const char* vtkSMPropertyHelper::GetStatus	(	const char *	key,
		const char *	default_value
	)		const

This API is useful for setting values on vtkSMStringVectorProperty that is used for status where the first value is the name of the array (for example) and the second value is its status (as a string)

RemoveStatus()

void vtkSMPropertyHelper::RemoveStatus

(

const char *

key

)

Removes the status value specified for the given key, if any.

Applicable only to vtkSMStringVectorProperty objects, and this function assumes that the presence of a key in the property indicates that it is enabled.

SetStatus() [5/5]

void vtkSMPropertyHelper::SetStatus	(	int	key,
		int	value
	)

This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example) and the second value is its status.

GetStatus() [5/5]

int vtkSMPropertyHelper::GetStatus	(	int	key,
		int	default_value = 0
	)		const

This API is useful for setting values on vtkSMIntVectorProperty that is used for status where the first value is the id of the element (for example) and the second value is its status.

SetInputArrayToProcess()

void vtkSMPropertyHelper::SetInputArrayToProcess	(	int	fieldAssociation,
		const char *	arrayName
	)

For vtkSMStringVectorProperty that is used to setting input array to process on algorithms, this provides a convenient API to get/set the values.

GetInputArrayAssociation()

int vtkSMPropertyHelper::GetInputArrayAssociation

(

)

const

For vtkSMStringVectorProperty that is used to setting input array to process on algorithms, this provides a convenient API to get/set the values.

GetInputArrayNameToProcess()

const char* vtkSMPropertyHelper::GetInputArrayNameToProcess

(

)

const

For vtkSMStringVectorProperty that is used to setting input array to process on algorithms, this provides a convenient API to get/set the values.

SetUseUnchecked()

void vtkSMPropertyHelper::SetUseUnchecked ( bool  val )

inline

Get/Set whether to use unchecked properties.

Definition at line 275 of file vtkSMPropertyHelper.h.

GetUseUnchecked()

bool vtkSMPropertyHelper::GetUseUnchecked ( ) const

inline

Definition at line 276 of file vtkSMPropertyHelper.h.

Copy()

bool vtkSMPropertyHelper::Copy

(

const vtkSMPropertyHelper &

source

)

Copy property values from another vtkSMPropertyHelper.

This only works for compatible properties and currently only supported for numeric vtkSMVectorProperty subclasses.

Modified()

vtkSMPropertyHelper& vtkSMPropertyHelper::Modified

(

)

Set the proxy to modified if necessary before calling Set() Return reference so method chaining can be used.

setUseUnchecked()

void vtkSMPropertyHelper::setUseUnchecked ( bool  useUnchecked )

inlineprotected

Definition at line 292 of file vtkSMPropertyHelper.h.

GetArray() [2/3]

template<>

std::vector<int> vtkSMPropertyHelper::GetArray ( void  ) const

inline

Definition at line 345 of file vtkSMPropertyHelper.h.

GetArray() [3/3]

template<>

std::vector<double> vtkSMPropertyHelper::GetArray ( void  ) const

inline

Definition at line 351 of file vtkSMPropertyHelper.h.

GetAs() [2/3]

template<>

int vtkSMPropertyHelper::GetAs ( unsigned int  index ) const

inline

Definition at line 365 of file vtkSMPropertyHelper.h.

GetAs() [3/3]

template<>

double vtkSMPropertyHelper::GetAs ( unsigned int  index ) const

inline

Definition at line 371 of file vtkSMPropertyHelper.h.

Member Data Documentation

Property

vtkSMProperty* vtkSMPropertyHelper::Property

Definition at line 333 of file vtkSMPropertyHelper.h.

VectorProperty

vtkSMVectorProperty* vtkSMPropertyHelper::VectorProperty

Definition at line 334 of file vtkSMPropertyHelper.h.

IntVectorProperty

vtkSMIntVectorProperty* vtkSMPropertyHelper::IntVectorProperty

Definition at line 335 of file vtkSMPropertyHelper.h.

DoubleVectorProperty

vtkSMDoubleVectorProperty* vtkSMPropertyHelper::DoubleVectorProperty

Definition at line 336 of file vtkSMPropertyHelper.h.

IdTypeVectorProperty

vtkSMIdTypeVectorProperty* vtkSMPropertyHelper::IdTypeVectorProperty

Definition at line 337 of file vtkSMPropertyHelper.h.

StringVectorProperty

vtkSMStringVectorProperty* vtkSMPropertyHelper::StringVectorProperty

Definition at line 338 of file vtkSMPropertyHelper.h.

ProxyProperty

vtkSMProxyProperty* vtkSMPropertyHelper::ProxyProperty

Definition at line 339 of file vtkSMPropertyHelper.h.

InputProperty

vtkSMInputProperty* vtkSMPropertyHelper::InputProperty

Definition at line 340 of file vtkSMPropertyHelper.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMPropertyHelper.h
