vtkPVTransferFunction2D Class Reference

Defines a 2D transfer function for mapping to RGBA values for volume rendering. More...

#include <vtkPVTransferFunction2D.h>

Inheritance diagram for vtkPVTransferFunction2D:

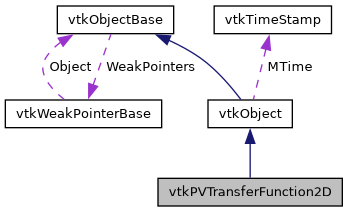

Collaboration diagram for vtkPVTransferFunction2D:

Public Member Functions
virtual void	Build ()
	Generate the transfer function image data. More...
std::vector< vtkSmartPointer< vtkPVTransferFunction2DBox > >	GetBoxes ()
	Get the control boxes defined on the function. More...
void	RemoveAllBoxes ()
	Remove all control boxes from the transfer function. More...
vtkImageData *	GetFunction ()
	Get the 2D transfer function. More...
virtual void	SetOutputDimensions (int, int)
	Set/Get the output dimensions of the image data that is the transfer function. More...
void	SetOutputDimensions (int [2])
	Set/Get the output dimensions of the image data that is the transfer function. More...
virtual int *	GetOutputDimensions ()
	Set/Get the output dimensions of the image data that is the transfer function. More...
virtual void	GetOutputDimensions (int &, int &)
	Set/Get the output dimensions of the image data that is the transfer function. More...
virtual void	GetOutputDimensions (int [2])
	Set/Get the output dimensions of the image data that is the transfer function. More...
int	AddControlBox (double x, double y, double width, double height, double r, double g, double b, double a)
	Add/Remove a control box to/from the 2D transfer function. More...
int	AddControlBox (double x, double y, double width, double height, double *color)
	Add/Remove a control box to/from the 2D transfer function. More...
int	AddControlBox (vtkRectd &box, double *color)
	Add/Remove a control box to/from the 2D transfer function. More...
int	AddControlBox (vtkSmartPointer< vtkPVTransferFunction2DBox > box)
	Add/Remove a control box to/from the 2D transfer function. More...
int	SetControlBox (int id, vtkSmartPointer< vtkPVTransferFunction2DBox > box)
	Add/Remove a control box to/from the 2D transfer function. More...
int	RemoveControlBox (int id)
	Add/Remove a control box to/from the 2D transfer function. More...
int	RemoveControlBox (vtkSmartPointer< vtkPVTransferFunction2DBox > box)
	Add/Remove a control box to/from the 2D transfer function. More...
virtual void	SetRange (double, double, double, double)
	Set/Get the range of the function. More...
virtual void	SetRange (double [4])
	Set/Get the range of the function. More...
virtual double *	GetRange ()
	Set/Get the range of the function. More...
virtual void	GetRange (double &, double &, double &, double &)
	Set/Get the range of the function. More...
virtual void	GetRange (double [4])
	Set/Get the range of the function. More...
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
virtual vtkMTimeType	GetMTime ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVTransferFunction2D *	New ()
	Instantiate the class. More...
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVTransferFunction2D ()
	~vtkPVTransferFunction2D () override
bool	UpdateRange ()
	Update the range of the function. More...
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
double	Range [4] = { 0, 0, 0, 0 }
	The range for the X and Y axes of the function. More...
int	OutputDimensions [2] = { 10, 10 }
	The output dimensions for the transfer function. More...
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers
typedef vtkObject	Superclass
	Standard methods for the VTK class. More...
static int	IsTypeOf (const char *type)
	Standard methods for the VTK class. More...
static vtkPVTransferFunction2D *	SafeDownCast (vtkObject *o)
	Standard methods for the VTK class. More...
virtual const char *	GetClassName ()
	Standard methods for the VTK class. More...
virtual int	IsA (const char *type)
	Standard methods for the VTK class. More...
void	PrintSelf (ostream &os, vtkIndent indent) override
	Standard methods for the VTK class. More...

Detailed Description

Defines a 2D transfer function for mapping to RGBA values for volume rendering.

vtkPVTransferFunction2D is a color mapping in RGBA space that uses 2D functions to allow interpolation along both the X and Y axes of the function.

Definition at line 27 of file vtkPVTransferFunction2D.h.

Member Typedef Documentation

Superclass

typedef vtkObject vtkPVTransferFunction2D::Superclass

Standard methods for the VTK class.

Definition at line 39 of file vtkPVTransferFunction2D.h.

Constructor & Destructor Documentation

vtkPVTransferFunction2D()

vtkPVTransferFunction2D::vtkPVTransferFunction2D ( )

protected

~vtkPVTransferFunction2D()

vtkPVTransferFunction2D::~vtkPVTransferFunction2D ( )

overrideprotected

Member Function Documentation

New()

static vtkPVTransferFunction2D* vtkPVTransferFunction2D::New ( )

static

Instantiate the class.

GetClassName()

virtual const char* vtkPVTransferFunction2D::GetClassName ( )

virtual

Standard methods for the VTK class.

IsTypeOf()

static int vtkPVTransferFunction2D::IsTypeOf ( const char *  type )

static

Standard methods for the VTK class.

IsA()

virtual int vtkPVTransferFunction2D::IsA ( const char *  type )

virtual

Standard methods for the VTK class.

Reimplemented from vtkObjectBase.

SafeDownCast()

static vtkPVTransferFunction2D* vtkPVTransferFunction2D::SafeDownCast ( vtkObject *  o )

static

Standard methods for the VTK class.

PrintSelf()

void vtkPVTransferFunction2D::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Standard methods for the VTK class.

Reimplemented from vtkObject.

Build()

virtual void vtkPVTransferFunction2D::Build ( )

virtual

Generate the transfer function image data.

SetOutputDimensions() [1/2]

virtual void vtkPVTransferFunction2D::SetOutputDimensions ( int  , int    )

virtual

Set/Get the output dimensions of the image data that is the transfer function.

By default, this is (10, 10).

SetOutputDimensions() [2/2]

void vtkPVTransferFunction2D::SetOutputDimensions

(

int

[2]

)

Set/Get the output dimensions of the image data that is the transfer function.

By default, this is (10, 10).

GetOutputDimensions() [1/3]

virtual int* vtkPVTransferFunction2D::GetOutputDimensions ( )

virtual

Set/Get the output dimensions of the image data that is the transfer function.

By default, this is (10, 10).

GetOutputDimensions() [2/3]

virtual void vtkPVTransferFunction2D::GetOutputDimensions ( int &  , int &    )

virtual

Set/Get the output dimensions of the image data that is the transfer function.

By default, this is (10, 10).

GetOutputDimensions() [3/3]

virtual void vtkPVTransferFunction2D::GetOutputDimensions ( int  [2] )

virtual

Set/Get the output dimensions of the image data that is the transfer function.

By default, this is (10, 10).

AddControlBox() [1/4]

int vtkPVTransferFunction2D::AddControlBox	(	double	x,
		double	y,
		double	width,
		double	height,
		double	r,
		double	g,
		double	b,
		double	a
	)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

AddControlBox() [2/4]

int vtkPVTransferFunction2D::AddControlBox	(	double	x,
		double	y,
		double	width,
		double	height,
		double *	color
	)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

AddControlBox() [3/4]

int vtkPVTransferFunction2D::AddControlBox	(	vtkRectd &	box,
		double *	color
	)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

AddControlBox() [4/4]

int vtkPVTransferFunction2D::AddControlBox

(

vtkSmartPointer< vtkPVTransferFunction2DBox >

box

)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

SetControlBox()

int vtkPVTransferFunction2D::SetControlBox	(	int	id,
		vtkSmartPointer< vtkPVTransferFunction2DBox >	box
	)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

RemoveControlBox() [1/2]

int vtkPVTransferFunction2D::RemoveControlBox

(

int

id

)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

RemoveControlBox() [2/2]

int vtkPVTransferFunction2D::RemoveControlBox

(

vtkSmartPointer< vtkPVTransferFunction2DBox >

box

)

Add/Remove a control box to/from the 2D transfer function.

Returns the index of the added box or -1 on error.

Note

This function does not check to see if the box already exists in the function before adding it. Adding an existing box would add a duplicate control to the transfer function.

GetBoxes()

std::vector<vtkSmartPointer<vtkPVTransferFunction2DBox> > vtkPVTransferFunction2D::GetBoxes

(

)

Get the control boxes defined on the function.

RemoveAllBoxes()

void vtkPVTransferFunction2D::RemoveAllBoxes

(

)

Remove all control boxes from the transfer function.

SetRange() [1/2]

virtual void vtkPVTransferFunction2D::SetRange ( double  , double  , double  , double    )

virtual

Set/Get the range of the function.

Set/Get the (minX, maxX, minY, maxY) for the 2D transfer function.

SetRange() [2/2]

virtual void vtkPVTransferFunction2D::SetRange ( double  [4] )

virtual

Set/Get the range of the function.

Set/Get the (minX, maxX, minY, maxY) for the 2D transfer function.

GetRange() [1/3]

virtual double* vtkPVTransferFunction2D::GetRange ( )

virtual

Set/Get the range of the function.

Set/Get the (minX, maxX, minY, maxY) for the 2D transfer function.

GetRange() [2/3]

virtual void vtkPVTransferFunction2D::GetRange ( double &  , double &  , double &  , double &    )

virtual

Set/Get the range of the function.

Set/Get the (minX, maxX, minY, maxY) for the 2D transfer function.

GetRange() [3/3]

virtual void vtkPVTransferFunction2D::GetRange ( double  [4] )

virtual

Set/Get the range of the function.

Set/Get the (minX, maxX, minY, maxY) for the 2D transfer function.

GetFunction()

vtkImageData* vtkPVTransferFunction2D::GetFunction

(

)

Get the 2D transfer function.

UpdateRange()

bool vtkPVTransferFunction2D::UpdateRange ( )

protected

Update the range of the function.

Returns true if the range changes. If the range has changed, calls Modified(). If UseCustomRange is set, this is a no-op.

Member Data Documentation

Range

double vtkPVTransferFunction2D::Range[4] = { 0, 0, 0, 0 }

protected

The range for the X and Y axes of the function.

This will determine the bounds of the transfer function.

Definition at line 108 of file vtkPVTransferFunction2D.h.

OutputDimensions

int vtkPVTransferFunction2D::OutputDimensions[2] = { 10, 10 }

protected

The output dimensions for the transfer function.

Definition at line 113 of file vtkPVTransferFunction2D.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVTransferFunction2D.h
