view with 3 orthographic slice views and 1 3D view. More...

#include <vtkPVOrthographicSliceView.h>

Inheritance diagram for vtkPVOrthographicSliceView:

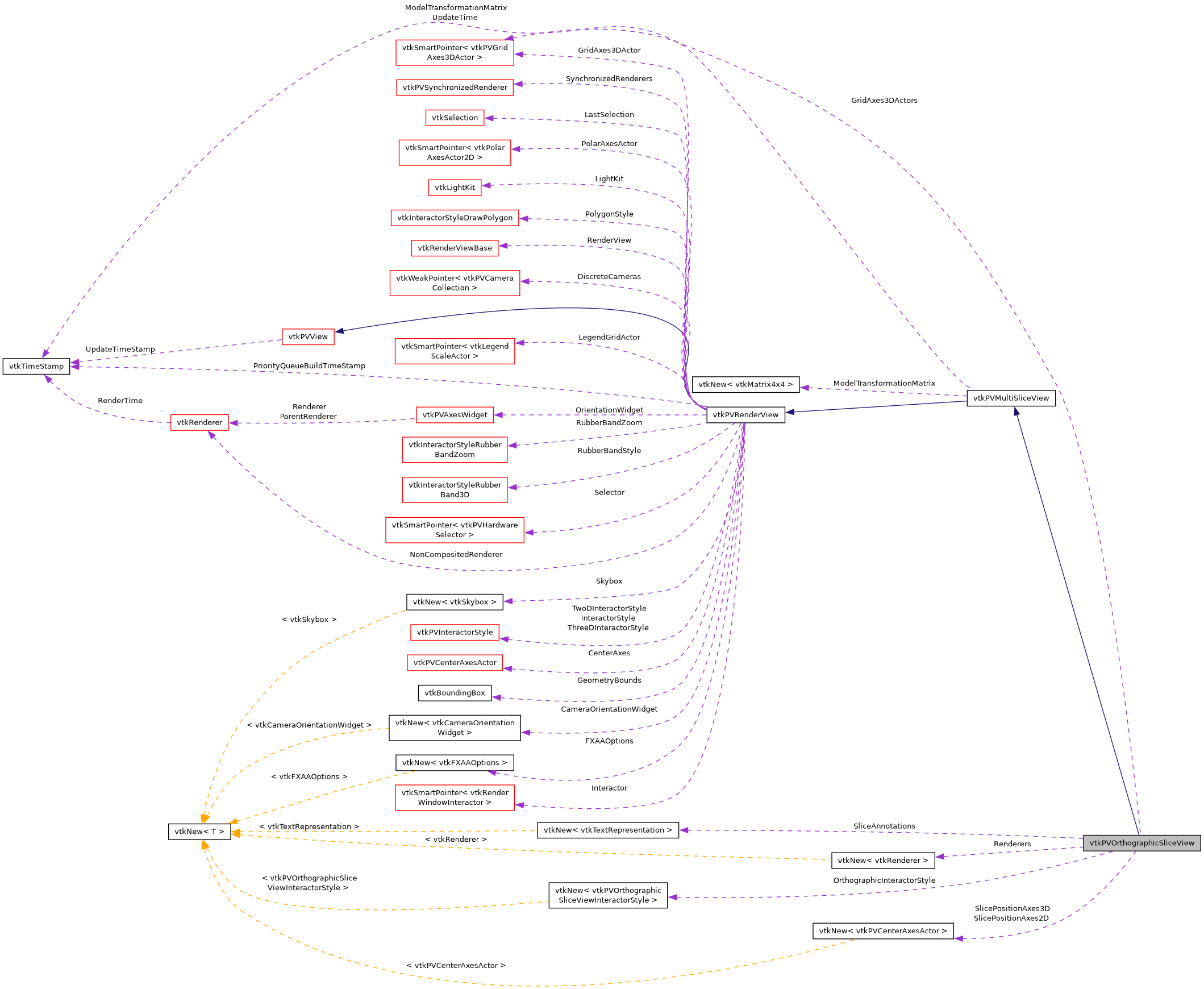

Collaboration diagram for vtkPVOrthographicSliceView:

[legend]

Public Types
enum	{ SAGITTAL_VIEW_RENDERER = vtkPVRenderView::NON_COMPOSITED_RENDERER + 1, AXIAL_VIEW_RENDERER, CORONAL_VIEW_RENDERER }

typedef vtkPVMultiSliceView	Superclass

Public Types inherited from vtkPVMultiSliceView
typedef vtkPVRenderView	Superclass

Public Types inherited from vtkPVRenderView
enum	InteractionModes { INTERACTION_MODE_UNINTIALIZED = -1, INTERACTION_MODE_3D = 0, INTERACTION_MODE_2D, INTERACTION_MODE_SELECTION, INTERACTION_MODE_ZOOM, INTERACTION_MODE_POLYGON }

enum	{ DEFAULT_RENDERER = 0, NON_COMPOSITED_RENDERER = 1 }
	Defines various renderer types. More...

enum	BackgroundMode { DEFAULT, GRADIENT, IMAGE, SKYBOX, STEREO_SKYBOX }

enum	GenericFilmicPresets { Custom = 0, Default = 1, Uncharted2 = 2 }
	Defines tone mapping generic filmic presets. More...

typedef vtkPVView	Superclass

enum	{ USE_BOUNDS_FOR_REDISTRIBUTION = 0x01, DATA_IS_REDISTRIBUTABLE = 0x02, USE_DATA_FOR_LOAD_BALANCING = 0x40 }
	`OrderedCompositingConfiguration` lets representations indicate to the view how the representation participates in data-redistribution necessary when ordered-compositing is being used. More...

Public Types inherited from vtkPVView
typedef vtkView	Superclass

Public Types inherited from vtkView
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	Update () override
	Overridden to ensure that the SlicePositionAxes3D doesn't get used when determine view bounds. More...

vtkRenderer *	GetRenderer (int rendererType=vtkPVRenderView::DEFAULT_RENDERER) override
	Overridden to add support for new types of renderers. More...

virtual void	ResetCamera ()

virtual void	ResetCamera (double bounds[6])

void	SetInteractionMode (int mode) override
	Get/Set the interaction mode. More...

void	SetupInteractor (vtkRenderWindowInteractor *) override
	Set the interactor. More...

void	SetCenterAxesVisibility (bool) override
	To avoid confusion, we don't show the center axes at all in this view. More...

void	SetBackgroundTexture (vtkTexture *val) override
	Forward to 3D renderer. More...

void	ScaleRendererViewports (const double viewport[4]) override
	Overridden to scale the projection viewports appropriately. More...


void	SetSlicePosition (double x, double y, double z)
	Set the slice position. More...

virtual double *	GetSlicePosition ()
	Set the slice position. More...

virtual void	GetSlicePosition (double &, double &, double &)
	Set the slice position. More...

virtual void	GetSlicePosition (double [3])
	Set the slice position. More...


virtual void	SetSliceIncrements (double, double, double)
	Set slice increments. More...

virtual void	SetSliceIncrements (double [3])
	Set slice increments. More...


virtual void	SetSliceAnnotationsVisibility (bool)
	Get/Set whether to show slice annotations. More...

virtual bool	GetSliceAnnotationsVisibility ()
	Get/Set whether to show slice annotations. More...

Public Member Functions inherited from vtkPVMultiSliceView
void	SetNumberOfXSlices (unsigned int count)

void	SetXSlices (const double *values)

void	SetNumberOfYSlices (unsigned int count)

void	SetYSlices (const double *values)

void	SetNumberOfZSlices (unsigned int count)

void	SetZSlices (const double *values)

const std::vector< double > &	GetSlices (int axis) const

const std::vector< double > &	GetXSlices () const

const std::vector< double > &	GetYSlices () const

const std::vector< double > &	GetZSlices () const

void	GetDataBounds (double bounds[6]) const

const char *	GetXAxisLabel () const

const char *	GetYAxisLabel () const

const char *	GetZAxisLabel () const

const vtkClientServerStream &	GetAxisLabels () const

void	SetModelTransformationMatrix (vtkMatrix4x4 *)

Public Member Functions inherited from vtkPVRenderView
void	PrintSelf (ostream &os, vtkIndent indent) override

vtkRenderWindowInteractor *	GetInteractor ()
	Returns the interactor. More...

void	StillRender () override
	Triggers a high-resolution render. More...

void	InteractiveRender () override
	Triggers a interactive render. More...

void	ConfigureCompressor (const char *configuration)
	Passes the compressor configuration to the client-server synchronizer, if any. More...

virtual void	ResetCameraClippingRange ()
	Resets the clipping range. More...

void	InvalidateCachedSelection ()
	Invalidates cached selection. More...

void	SetMaxClipBounds (double bds[6])
	Used by Cinema to enforce a consistent depth scaling. More...

virtual void	SetLegendGridActor (vtkLegendScaleActor *)
	Set the vtkLegendScaleActor to use for the view. More...

virtual void	SetPolarGridActor (vtkPolarAxesActor2D *)
	Set the vtkPolarAxesActor to use for the view. More...

virtual void	SetCenterAxesXColor (double r, double g, double b)

virtual void	SetCenterAxesYColor (double r, double g, double b)

virtual void	SetCenterAxesZColor (double r, double g, double b)

void	SetParallelProjection (int mode)
	Forward to vtkCamera. More...

virtual void	SynchronizeGeometryBounds ()
	Synchronizes bounds information on all nodes and reset camera clipping planes. More...

void	Update () override
	Overridden to synchronize information among processes whenever data changes. More...

virtual void	UpdateLOD ()
	Asks representations to update their LOD geometries. More...

int	GetDataDistributionMode (bool low_res)
	Returns the data distribution mode to use. More...

void	Deliver (int use_lod, unsigned int size, unsigned int *representation_ids) override
	Called on all processes to request data-delivery for the list of representations. More...

bool	GetUseOrderedCompositing ()
	Returns true when ordered compositing is needed on the current group of processes. More...

bool	GetRenderEmptyImages ()
	Returns true when the compositor should not use the empty images optimization. More...

void	CopyViewUpdateOptions (vtkPVRenderView *otherView)
	Copy internal fields that are used for rendering decision such as remote/local rendering, composite and so on. More...

bool	GetOSPRayContinueStreaming ()
	Has OSPRay reached the max frames? More...

void	SetOSPRayRendererType (std::string)
	Set the OSPRay renderer to use. More...

virtual void	SetMaterialLibrary (vtkPVMaterialLibrary *)
	For OSPRay, set the library of materials. More...

void	SetViewTime (double value) override
	Get/Set the time this view is showing. More...

virtual vtkRenderViewBase *	GetRenderView ()

void	ScaleRendererViewports (const double viewport[4]) override
	Overridden to scale the OrientationWidget appropriately. More...

void	SynchronizeMaximumIds (vtkIdType maxPointId, vtkIdType maxCellId)
	This is used by vtkPVHardwareSelector to synchronize element ids between all ranks involved in selection. More...

void	SetHardwareSelector (vtkPVHardwareSelector *selector)

virtual int	GetInteractionMode ()
	Get/Set the interaction mode. More...

void	SetSize (int, int) override
	Overridden to call InvalidateCachedSelection() whenever the render window parameters change. More...

void	SetPosition (int, int) override
	Overridden to call InvalidateCachedSelection() whenever the render window parameters change. More...

virtual vtkRenderer *	GetNonCompositedRenderer ()
	Gets the non-composited renderer for this view. More...

vtkCamera *	GetActiveCamera ()
	Get/Set the active camera. More...

virtual void	SetActiveCamera (vtkCamera *)
	Get/Set the active camera. More...

virtual vtkPVInteractorStyle *	GetInteractorStyle ()
	Returns the interactor style. More...

void	ResetCamera ()
	Resets the active camera using collective prop-bounds. More...

void	ResetCamera (double bounds[6])
	Resets the active camera using collective prop-bounds. More...

void	ResetCameraScreenSpace (double offsetRatio=0.9)
	Resets the active camera using collective prop-bounds. More...

void	ResetCameraScreenSpace (double *bounds, double offsetRatio=0.9)
	Resets the active camera using collective prop-bounds. More...

virtual void	SetSuppressRendering (bool)
	SuppressRendering can be used to suppress the render within a StillRender or InteractiveRender. More...

virtual bool	GetSuppressRendering ()
	SuppressRendering can be used to suppress the render within a StillRender or InteractiveRender. More...

virtual void	SuppressRenderingOn ()
	SuppressRendering can be used to suppress the render within a StillRender or InteractiveRender. More...

virtual void	SuppressRenderingOff ()
	SuppressRendering can be used to suppress the render within a StillRender or InteractiveRender. More...

virtual void	SetStillRenderImageReductionFactor (int)
	Get/Set the reduction-factor to use when for StillRender(). More...

virtual int	GetStillRenderImageReductionFactor ()
	Get/Set the reduction-factor to use when for StillRender(). More...

virtual void	SetInteractiveRenderImageReductionFactor (int)
	Get/Set the reduction-factor to use when for InteractiveRender(). More...

virtual int	GetInteractiveRenderImageReductionFactor ()
	Get/Set the reduction-factor to use when for InteractiveRender(). More...

virtual void	SetRemoteRenderingThreshold (double)
	Get/Set the data-size in megabytes above which remote-rendering should be used, if possible. More...

virtual double	GetRemoteRenderingThreshold ()
	Get/Set the data-size in megabytes above which remote-rendering should be used, if possible. More...

virtual void	SetLODRenderingThreshold (double)
	Get/Set the data-size in megabytes above which LOD rendering should be used, if possible. More...

virtual double	GetLODRenderingThreshold ()
	Get/Set the data-size in megabytes above which LOD rendering should be used, if possible. More...

virtual void	SetLODResolution (double)
	Get/Set the LOD resolution. More...

virtual double	GetLODResolution ()
	Get/Set the LOD resolution. More...

virtual void	SetUseOutlineForLODRendering (bool)
	When set to true, instead of using simplified geometry for LOD rendering, uses outline, if possible. More...

virtual bool	GetUseOutlineForLODRendering ()
	When set to true, instead of using simplified geometry for LOD rendering, uses outline, if possible. More...

void	SetUseLightKit (bool enable)
	Enable/Disable light kit. More...

virtual bool	GetUseLightKit ()
	Enable/Disable light kit. More...

virtual void	UseLightKitOn ()
	Enable/Disable light kit. More...

virtual void	UseLightKitOff ()
	Enable/Disable light kit. More...

void	StreamingUpdate (const double view_planes[24])

void	DeliverStreamedPieces (unsigned int size, unsigned int *representation_ids)

void	SelectCells (int region[4], const char *array=nullptr)
	Make a selection. More...

void	SelectCells (int region0, int region1, int region2, int region3, const char *array=nullptr)
	Make a selection. More...

void	SelectPoints (int region[4], const char *array=nullptr)
	Make a selection. More...

void	SelectPoints (int region0, int region1, int region2, int region3, const char *array=nullptr)
	Make a selection. More...

void	Select (int field_association, int region[4], const char *array=nullptr)
	Make a selection. More...

void	SelectPolygonPoints (int *polygon2DArray, vtkIdType arrayLen)
	Make a selection with a polygon. More...

void	SelectPolygonCells (int *polygon2DArray, vtkIdType arrayLen)
	Make a selection with a polygon. More...

void	SelectPolygon (int field_association, int *polygon2DArray, vtkIdType arrayLen)
	Make a selection with a polygon. More...

virtual vtkSelection *	GetLastSelection ()
	Provides access to the last selection. More...

virtual void	SetUseInteractiveRenderingForScreenshots (bool)
	Set or get whether capture should be done as StillRender or InteractiveRender when capturing screenshots. More...

virtual void	UseInteractiveRenderingForScreenshotsOn ()
	Set or get whether capture should be done as StillRender or InteractiveRender when capturing screenshots. More...

virtual void	UseInteractiveRenderingForScreenshotsOff ()
	Set or get whether capture should be done as StillRender or InteractiveRender when capturing screenshots. More...

virtual bool	GetUseInteractiveRenderingForScreenshots ()
	Set or get whether capture should be done as StillRender or InteractiveRender when capturing screenshots. More...

virtual bool	GetRemoteRenderingAvailable ()
	Returns if remote-rendering is possible on the current group of processes. More...

void	RemoteRenderingAvailableOff ()
	Returns if remote-rendering is possible on the current group of processes. More...

void	NVPipeAvailableOn ()
	Determine if NVPipe is an available compressor option. More...

void	NVPipeAvailableOff ()
	Determine if NVPipe is an available compressor option. More...

virtual bool	GetUsedLODForLastRender ()
	Returns true if the most recent render used LOD. More...

void	SetLockBounds (bool nv)
	Used by Cinema to enforce a consistent viewpoint and depth scaling. More...

virtual bool	GetLockBounds ()
	Used by Cinema to enforce a consistent viewpoint and depth scaling. More...

int	RegisterPropForHardwareSelection (vtkPVDataRepresentation repr, vtkProp prop)
	Representations that support hardware (render-buffer based) selection, should register the prop that they use for selection rendering. More...

void	UnRegisterPropForHardwareSelection (vtkPVDataRepresentation repr, vtkProp prop)
	Representations that support hardware (render-buffer based) selection, should register the prop that they use for selection rendering. More...

void	SetShowAnnotation (bool val)
	Enable/disable showing of annotation for developers. More...

virtual void	SetUpdateAnnotation (bool)
	Enable/disable showing of annotation for developers. More...

void	SetAnnotationColor (double r, double g, double b)
	Set color of annotation text for developers. More...

virtual void	SetOrientationAxesInteractivity (bool)
	Forwarded to orientation axes widget. More...

virtual void	SetOrientationAxesVisibility (bool)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesLabelColor (double r, double g, double b)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesOutlineColor (double r, double g, double b)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesXColor (double r, double g, double b)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesYColor (double r, double g, double b)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesZColor (double r, double g, double b)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesXVisibility (bool vis)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesYVisibility (bool vis)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesZVisibility (bool vis)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesXLabelText (const char *text)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesYLabelText (const char *text)
	Forwarded to orientation axes widget. More...

void	SetOrientationAxesZLabelText (const char *text)
	Forwarded to orientation axes widget. More...

void	SetCameraOrientationWidgetVisibility (bool visible)
	Forwarded to camera orientation widget. More...

void	SetCameraOrientationWidgetSize (int size)
	Forwarded to camera orientation widget. More...

void	SetCameraOrientationWidgetPadding (int padding[2])
	Forwarded to camera orientation widget. More...

void	SetCameraOrientationWidgetAnchor (int anchor)
	Forwarded to camera orientation widget. More...

void	SetKeyLightWarmth (double val)
	Forward to vtkLightKit. More...

void	SetKeyLightIntensity (double val)
	Forward to vtkLightKit. More...

void	SetKeyLightElevation (double val)
	Forward to vtkLightKit. More...

void	SetKeyLightAzimuth (double val)
	Forward to vtkLightKit. More...

void	SetFillLightWarmth (double val)
	Forward to vtkLightKit. More...

void	SetKeyToFillRatio (double val)
	Forward to vtkLightKit. More...

void	SetFillLightElevation (double val)
	Forward to vtkLightKit. More...

void	SetFillLightAzimuth (double val)
	Forward to vtkLightKit. More...

void	SetBackLightWarmth (double val)
	Forward to vtkLightKit. More...

void	SetKeyToBackRatio (double val)
	Forward to vtkLightKit. More...

void	SetBackLightElevation (double val)
	Forward to vtkLightKit. More...

void	SetBackLightAzimuth (double val)
	Forward to vtkLightKit. More...

void	SetHeadLightWarmth (double val)
	Forward to vtkLightKit. More...

void	SetKeyToHeadRatio (double val)
	Forward to vtkLightKit. More...

void	SetMaintainLuminance (int val)
	Forward to vtkLightKit. More...

virtual void	SetUseHiddenLineRemoval (bool)
	Forward to 3D renderer. More...

virtual void	SetUseDepthPeeling (int val)
	Forward to 3D renderer. More...

virtual void	SetUseDepthPeelingForVolumes (bool val)
	Forward to 3D renderer. More...

virtual void	SetMaximumNumberOfPeels (int val)
	Forward to 3D renderer. More...

virtual void	SetUseRenderViewSettingsForBackground (bool)
	When set, background color and mode will be obtained from vtkPVRenderViewSettings. More...

virtual bool	GetUseRenderViewSettingsForBackground ()
	When set, background color and mode will be obtained from vtkPVRenderViewSettings. More...

virtual void	SetBackgroundColorMode (int)
	API for background color selection. More...

virtual void	SetBackground (double, double, double)
	API for background color selection. More...

virtual void	SetBackground (double [3])
	API for background color selection. More...

virtual double *	GetBackground ()
	API for background color selection. More...

virtual void	GetBackground (double &, double &, double &)
	API for background color selection. More...

virtual void	GetBackground (double [3])
	API for background color selection. More...

virtual void	SetBackground2 (double, double, double)
	API for background color selection. More...

virtual void	SetBackground2 (double [3])
	API for background color selection. More...

virtual double *	GetBackground2 ()
	API for background color selection. More...

virtual void	GetBackground2 (double &, double &, double &)
	API for background color selection. More...

virtual void	GetBackground2 (double [3])
	API for background color selection. More...

virtual void	SetUseEnvironmentLighting (bool)
	API for background color selection. More...

virtual void	SetSkyboxRotation (double x, double y, double z)
	Generate and set the renderer's environment rotation matrix from the parameter angles. More...

virtual double *	GetSkyboxRotation ()
	API for background color selection. More...

virtual void	GetSkyboxRotation (double &, double &, double &)
	API for background color selection. More...

virtual void	GetSkyboxRotation (double [3])
	API for background color selection. More...

virtual void	SetEnvironmentalBG (double r, double g, double b)
	Entry point for environmental backgrounds. More...

virtual void	SetEnvironmentalBG2 (double r, double g, double b)
	Entry point for environmental backgrounds. More...

virtual void	SetEnvironmentalBGTexture (vtkTexture *val)
	Entry point for environmental backgrounds. More...

virtual void	SetGradientEnvironmentalBG (int val)
	Entry point for environmental backgrounds. More...

virtual void	SetTexturedEnvironmentalBG (int val)
	Entry point for environmental backgrounds. More...

virtual void	SetBackgroundMode (int val)
	Entry point for environmental backgrounds. More...

void	AddLight (vtkLight *)
	Entry point for dynamic lights. More...

void	RemoveLight (vtkLight *)
	Entry point for dynamic lights. More...

void	SetStereoCapableWindow (int val)
	Forward to vtkRenderWindow. More...

void	SetStereoRender (int val)
	Forward to vtkRenderWindow. More...

virtual void	SetStereoType (int)
	Forward to vtkRenderWindow. More...

virtual void	SetServerStereoType (int)
	Forward to vtkRenderWindow. More...

void	SetMultiSamples (int val)
	Forward to vtkRenderWindow. More...

void	SetAlphaBitPlanes (int val)
	Forward to vtkRenderWindow. More...

void	SetStencilCapable (int val)
	Forward to vtkRenderWindow. More...

void	SetPhysicalToWorldMatrix (const double[16])
	Forward to vtkRenderWindow. More...

virtual void	SetCamera2DManipulators (const int manipulators[9])
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

virtual void	SetCamera3DManipulators (const int manipulators[9])
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

void	SetCameraManipulators (vtkPVInteractorStyle *style, const int manipulators[9])
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

virtual void	SetReverseMouseWheelZoomDirection (bool reverse)
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

virtual void	SetMouseWheelZoomsToCursor (bool value)
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

virtual void	SetCamera2DMouseWheelMotionFactor (double factor)
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

virtual void	SetCamera3DMouseWheelMotionFactor (double factor)
	Forwarded to vtkPVInteractorStyle if present on local processes. More...

virtual bool	GetUseLODForInteractiveRender ()
	Returns whether the view will use LOD rendering for the next InteractiveRender() call based on the geometry sizes determined by the most recent call to Update(). More...

virtual bool	GetUseDistributedRenderingForRender ()
	Returns whether the view will use distributed rendering for the next full-resolution render. More...

virtual bool	GetUseDistributedRenderingForLODRender ()
	Returns whether the view will use distributed rendering for the next low-resolution render. More...

virtual vtkTypeUInt32	GetStillRenderProcesses ()
	Returns the processes (vtkPVSession::ServerFlags) that are to be involved in the next StillRender() call based on the decisions made during the most recent Update(). More...

virtual vtkTypeUInt32	GetInteractiveRenderProcesses ()
	Returns the processes (vtkPVSession::ServerFlags) that are to be involved in the next InteractiveRender() call based on the decisions made during the most recent Update() and UpdateLOD(). More...

virtual void	SetUseFXAA (bool)
	Enable/disable FXAA antialiasing. More...

virtual bool	GetUseFXAA ()
	Enable/disable FXAA antialiasing. More...

void	SetFXAARelativeContrastThreshold (double val)
	FXAA tunable parameters. More...

void	SetFXAAHardContrastThreshold (double val)
	FXAA tunable parameters. More...

void	SetFXAASubpixelBlendLimit (double val)
	FXAA tunable parameters. More...

void	SetFXAASubpixelContrastThreshold (double val)
	FXAA tunable parameters. More...

void	SetFXAAUseHighQualityEndpoints (bool val)
	FXAA tunable parameters. More...

void	SetFXAAEndpointSearchIterations (int val)
	FXAA tunable parameters. More...

void	SetUseToneMapping (bool v)
	Tone Mapping options. More...

virtual bool	GetUseToneMapping ()
	Tone Mapping options. More...

void	SetToneMappingType (int)
	Tone Mapping options. More...

void	SetExposure (double)
	Tone Mapping options. More...

void	SetContrast (double)
	Tone Mapping options. More...

void	SetShoulder (double)
	Tone Mapping options. More...

void	SetMidIn (double)
	Tone Mapping options. More...

void	SetMidOut (double)
	Tone Mapping options. More...

void	SetHdrMax (double)
	Tone Mapping options. More...

void	SetUseACES (bool)
	Tone Mapping options. More...

void	SetGenericFilmicPresets (int t)
	Tone Mapping options. More...

virtual void	SetUseSSAO (bool)
	SSAO options. More...

virtual bool	GetUseSSAO ()
	SSAO options. More...

virtual void	SetUseSSAODefaultPresets (bool)
	SSAO options. More...

virtual void	SetRadius (double)
	SSAO options. More...

virtual void	SetKernelSize (int)
	SSAO options. More...

virtual void	SetBias (double)
	SSAO options. More...

virtual void	SetBlur (bool)
	SSAO options. More...

void	AddPropToRenderer (vtkProp *prop)
	Add props directly to the view. More...

void	RemovePropFromRenderer (vtkProp *prop)
	Add props directly to the view. More...

bool	BeginValuePassForRendering (int fieldAssociation, const char *arrayName, int component)
	Experimental API to grab re-colorable images. More...

void	EndValuePassForRendering ()
	Experimental API to grab re-colorable images. More...

vtkSmartPointer< vtkFloatArray >	GrabValuePassResult ()
	Experimental API to grab re-colorable images. More...

void	CaptureZBuffer ()
	Access to the Z buffer. More...

vtkFloatArray *	GetCapturedZBuffer ()
	Access to the Z buffer. More...

void	SetEnableSynchronizableActors (bool)
	Turn on/off synchronizable actors. More...

bool	GetEnableSynchronizableActors ()
	Turn on/off synchronizable actors. More...

void	SetEnableOSPRay (bool)
	Switches between rasterization and ray tracing. More...

bool	GetEnableOSPRay ()
	Switches between rasterization and ray tracing. More...

void	SetEnableANARI (bool)
	Enable/disable ray tracing with ANARI. More...

bool	GetEnableANARI ()
	Enable/disable ray tracing with ANARI. More...

void	SetANARILibrary (std::string)
	Set/Get the ANARI library name. More...

const char *	GetANARILibrary ()
	Set/Get the ANARI library name. More...

void	SetANARIRenderer (std::string)
	Set/Get the ANARI renderer. More...

const char *	GetANARIRenderer ()
	Set/Get the ANARI renderer. More...

void	SetShadows (bool)
	Controls whether OSPRay sends casts shadow rays or not. More...

bool	GetShadows ()
	Controls whether OSPRay sends casts shadow rays or not. More...

void	SetAmbientOcclusionSamples (int)
	Sets the number of occlusion query rays that OSPRay sends at each intersection. More...

int	GetAmbientOcclusionSamples ()
	Sets the number of occlusion query rays that OSPRay sends at each intersection. More...

void	SetRouletteDepth (int)
	Sets the depth of monte carlo samples on the path tracer. More...

int	GetRouletteDepth ()
	Sets the depth of monte carlo samples on the path tracer. More...

void	SetSamplesPerPixel (int)
	Set the number of primary rays that OSPRay shoots per pixel. More...

int	GetSamplesPerPixel ()
	Set the number of primary rays that OSPRay shoots per pixel. More...

void	SetMaxFrames (int)
	Set the number of render passes OSPRay takes to accumulate subsampled color results. More...

int	GetMaxFrames ()
	Set the number of render passes OSPRay takes to accumulate subsampled color results. More...

void	SetDenoise (bool)
	Controls whether to use image denoising to improve appearance. More...

bool	GetDenoise ()
	Controls whether to use image denoising to improve appearance. More...

void	SetLightScale (double)
	Dimish or Amplify all lights in the scene. More...

double	GetLightScale ()
	Dimish or Amplify all lights in the scene. More...

void	SetBackgroundNorth (double x, double y, double z)
	Control of background orientation for OSPRay. More...

void	SetBackgroundEast (double x, double y, double z)
	Control of background orientation for OSPRay. More...

void	SetTimeCacheSize (int)
	Set the size of OSPRay's temporal cache. More...

int	GetTimeCacheSize ()
	Set the size of OSPRay's temporal cache. More...

double *	ComputeVisibleBounds (vtkPVDataRepresentation *pvrepr) VTK_SIZEHINT(6)
	Compute and reduce the visible bounds of the provided representation. More...

bool	IsForceDataDistributionModeSet () const
	This is an temporary/experimental option and may be removed without notice. More...

int	GetForceDataDistributionMode () const
	This is an temporary/experimental option and may be removed without notice. More...

Public Member Functions inherited from vtkPVView
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetPPI (int)
	Description: Set the screen PPI. More...

virtual int	GetPPI ()

virtual bool	GetViewTimeValid ()
	Get ViewTimeValid. More...

void	Update () override
	Overridden to not call Update() directly on the input representations, instead use ProcessViewRequest() for all vtkPVDataRepresentations. More...

bool	InTileDisplayMode ()
	Returns true if the application is currently in tile display mode. More...

bool	InCaveDisplayMode ()
	Returns true if the application is currently in cave/immersive display mode. More...

bool	GetLocalProcessSupportsInteraction ()
	Returns true if the local process can support interaction. More...

vtkRenderWindow *	GetRenderWindow ()
	If this view needs a render window (not all views may use one), this method can be used to get the render window associated with this view on the current process. More...

vtkMTimeType	GetUpdateTimeStamp ()
	Provides access to the time when Update() was last called. More...

virtual bool	IsCached (vtkPVDataRepresentation *)
	Called in `vtkPVDataRepresentation::ProcessViewRequest` to check if the representation already has cached data. More...

virtual void	ClearCache (vtkPVDataRepresentation *)
	Called by `vtkPVDataRepresentation` whenever `vtkPVDataRepresentation::MarkModified` is called. More...

virtual int *	GetPosition ()
	Set the position on this view in the multiview configuration. More...

virtual void	GetPosition (int &, int &)
	Set the position on this view in the multiview configuration. More...

virtual void	GetPosition (int [2])
	Set the position on this view in the multiview configuration. More...

virtual int *	GetSize ()
	Set the size of this view in the multiview configuration. More...

virtual void	GetSize (int &, int &)
	Set the size of this view in the multiview configuration. More...

virtual void	GetSize (int [2])
	Set the size of this view in the multiview configuration. More...

virtual double	GetViewTime ()
	Get/Set the time this view is showing. More...

virtual void	SetCacheKey (double)
	Get/Set the cache key. More...

virtual double	GetCacheKey ()
	Get/Set the cache key. More...

virtual void	SetUseCache (bool)
	Get/Set whether caching is enabled. More...

virtual bool	GetUseCache ()
	Get/Set whether caching is enabled. More...

virtual void	PrepareForScreenshot ()
	These methods are used to setup the view for capturing screen shots. More...

virtual void	CleanupAfterScreenshot ()
	These methods are used to setup the view for capturing screen shots. More...

void	SetTileScale (int x, int y)
	When saving screenshots with tiling, these methods get called. More...

void	SetTileViewport (double x0, double y0, double x1, double y1)
	When saving screenshots with tiling, these methods get called. More...

virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

void	SetDeliveryManager (vtkPVDataDeliveryManager *)
	Provides access to data delivery & cache manager for this view. More...

virtual vtkPVDataDeliveryManager *	GetDeliveryManager ()
	Provides access to data delivery & cache manager for this view. More...

Public Member Functions inherited from vtkView
vtkView *	NewInstance () const

void	AddRepresentation (vtkDataRepresentation *rep)

void	SetRepresentation (vtkDataRepresentation *rep)

vtkDataRepresentation *	AddRepresentationFromInputConnection (vtkAlgorithmOutput *conn)

vtkDataRepresentation *	SetRepresentationFromInputConnection (vtkAlgorithmOutput *conn)

vtkDataRepresentation *	AddRepresentationFromInput (vtkDataObject *input)

vtkDataRepresentation *	SetRepresentationFromInput (vtkDataObject *input)

void	RemoveRepresentation (vtkDataRepresentation *rep)

void	RemoveRepresentation (vtkAlgorithmOutput *rep)

void	RemoveAllRepresentations ()

int	GetNumberOfRepresentations ()

vtkDataRepresentation *	GetRepresentation (int index=0)

bool	IsRepresentationPresent (vtkDataRepresentation *rep)

virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))

vtkCommand *	GetObserver ()

void	RegisterProgress (vtkObject algorithm, const char message=NULL)

void	UnRegisterProgress (vtkObject *algorithm)

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVOrthographicSliceView *	New ()

static int	IsTypeOf (const char *type)

static vtkPVOrthographicSliceView *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVMultiSliceView
static vtkPVMultiSliceView *	New ()

static int	IsTypeOf (const char *type)

static vtkPVMultiSliceView *	SafeDownCast (vtkObject *o)

static void	SetAxisTitle (vtkInformation info, int axis, const char title)

static void	SetDataBounds (vtkInformation *info, const double bounds[6])

Static Public Member Functions inherited from vtkPVRenderView
static vtkPVRenderView *	New ()

static int	IsTypeOf (const char *type)

static vtkPVRenderView *	SafeDownCast (vtkObject *o)

static vtkInformationIntegerKey *	USE_LOD ()
	USE_LOD indicates if LOD is being used for the current render/update. More...

static vtkInformationDoubleKey *	LOD_RESOLUTION ()
	Indicates the LOD resolution in REQUEST_UPDATE_LOD() pass. More...

static vtkInformationIntegerKey *	USE_OUTLINE_FOR_LOD ()
	Indicates the LOD must use outline if possible in REQUEST_UPDATE_LOD() pass. More...

static vtkInformationIntegerKey *	RENDER_EMPTY_IMAGES ()
	Representation can publish this key in their REQUEST_INFORMATION() pass to indicate that the representation needs to disable IceT's empty image optimization. More...

static vtkInformationIntegerKey *	NEED_ORDERED_COMPOSITING ()
	Representation can publish this key in their REQUEST_INFORMATION() pass to indicate that the representation needs ordered compositing. More...

static vtkInformationDoubleVectorKey *	VIEW_PLANES ()
	Key used to pass meta-data about the view frustum in REQUEST_STREAMING_UPDATE() pass. More...

static vtkInformationRequestKey *	REQUEST_STREAMING_UPDATE ()
	Streaming pass request. More...

static vtkInformationRequestKey *	REQUEST_PROCESS_STREAMED_PIECE ()
	Pass to relay the streamed "piece" to the representations. More...

static void	SetDeliverToAllProcesses (vtkInformation info, vtkPVDataRepresentation repr, bool clone)
	Requests the view to deliver the pieces produced by the `repr` to all processes after a gather to the root node to merge the datasets generated by each process. More...

static void	SetDeliverToClientAndRenderingProcesses (vtkInformation info, vtkPVDataRepresentation repr, bool deliver_to_client, bool gather_before_delivery, int port=0)
	Requests the view to deliver the data to the client always. More...

static vtkAlgorithmOutput *	GetPieceProducer (vtkInformation info, vtkPVDataRepresentation repr, int port=0)
	Convenience methods used by representations to pass represented data. More...

static vtkAlgorithmOutput *	GetPieceProducerLOD (vtkInformation info, vtkPVDataRepresentation repr, int port=0)
	Convenience methods used by representations to pass represented data. More...

static void	SetRedistributionMode (vtkInformation info, vtkPVDataRepresentation repr, int mode, int port=0)
	Convenience methods used by representations to pass represented data. More...

static void	SetRedistributionModeToSplitBoundaryCells (vtkInformation info, vtkPVDataRepresentation repr, int port=0)
	Convenience methods used by representations to pass represented data. More...

static void	SetRedistributionModeToDuplicateBoundaryCells (vtkInformation info, vtkPVDataRepresentation repr, int port=0)
	Convenience methods used by representations to pass represented data. More...

static void	SetRedistributionModeToUniquelyAssignBoundaryCells (vtkInformation info, vtkPVDataRepresentation repr, int port=0)
	Convenience methods used by representations to pass represented data. More...

static void	SetGeometryBounds (vtkInformation info, vtkPVDataRepresentation repr, const double bounds[6], vtkMatrix4x4 *transform=nullptr, int port=0)
	Convenience methods used by representations to pass represented data. More...

static void	SetStreamable (vtkInformation info, vtkPVDataRepresentation repr, bool streamable)
	Convenience methods used by representations to pass represented data. More...

static void	SetNextStreamedPiece (vtkInformation info, vtkPVDataRepresentation repr, vtkDataObject *piece)
	Convenience methods used by representations to pass represented data. More...

static vtkDataObject *	GetCurrentStreamedPiece (vtkInformation info, vtkPVDataRepresentation repr)
	Convenience methods used by representations to pass represented data. More...

static void	SetRequiresDistributedRendering (vtkInformation info, vtkPVDataRepresentation repr, bool value, bool for_lod=false)
	Some representation only work when remote rendering or local rendering. More...

static void	SetRequiresDistributedRenderingLOD (vtkInformation info, vtkPVDataRepresentation repr, bool value)
	Some representation only work when remote rendering or local rendering. More...

static vtkPVCameraCollection *	GetDiscreteCameras (vtkInformation info, vtkPVDataRepresentation repr)
	DiscreteCameras are a collection of cameras when specified, forces the view to only interact to a camera in the collection. More...

static void	SetDiscreteCameras (vtkInformation info, vtkPVDataRepresentation repr, vtkPVCameraCollection *style)
	DiscreteCameras are a collection of cameras when specified, forces the view to only interact to a camera in the collection. More...

static void	SetOrderedCompositingConfiguration (vtkInformation info, vtkPVDataRepresentation repr, int config, const double *bounds=nullptr, int port=0)
	`OrderedCompositingConfiguration` lets representations indicate to the view how the representation participates in data-redistribution necessary when ordered-compositing is being used. More...

static void	SetForceDataDistributionMode (vtkInformation *info, int flag)
	This is an temporary/experimental option and may be removed without notice. More...

Static Public Member Functions inherited from vtkPVView
static int	IsTypeOf (const char *type)

static vtkPVView *	SafeDownCast (vtkObject *o)

static void	SetEnableStreaming (bool)

static bool	GetEnableStreaming ()

static vtkInformationObjectBaseKey *	VIEW ()
	Key used to pass the vtkPVView pointer to the representation during any of the view passes such as REQUEST_UPDATE(), REQUEST_UPDATE_LOD(), REQUEST_RENDER(), etc. More...

static vtkInformationRequestKey *	REQUEST_UPDATE ()
	This is a Update-Data pass. More...

static vtkInformationRequestKey *	REQUEST_UPDATE_LOD ()
	This is a Update-LOD-Data pass. More...

static vtkInformationRequestKey *	REQUEST_RENDER ()
	This is a render pass. More...

static void	SetPiece (vtkInformation info, vtkPVDataRepresentation repr, vtkDataObject *data, unsigned long trueSize=0, int port=0)

static vtkDataObject *	GetPiece (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static vtkDataObject *	GetDeliveredPiece (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static void	SetPieceLOD (vtkInformation info, vtkPVDataRepresentation repr, vtkDataObject *data, unsigned long trueSize=0, int port=0)

static vtkDataObject *	GetPieceLOD (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static vtkDataObject *	GetDeliveredPieceLOD (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static void	SetUseGenericOpenGLRenderWindow (bool val)
	Use this to indicate that the process should use vtkGenericOpenGLRenderWindow rather than vtkRenderWindow when creating an new render window. More...

static bool	GetUseGenericOpenGLRenderWindow ()
	Use this to indicate that the process should use vtkGenericOpenGLRenderWindow rather than vtkRenderWindow when creating an new render window. More...

Static Public Member Functions inherited from vtkView
static vtkView *	New ()

static int	IsTypeOf (const char *type)

static vtkView *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Types
enum	{ SIDE_VIEW = 0, TOP_VIEW = 1, FRONT_VIEW = 2, YZ_PLANE = SIDE_VIEW, ZX_PLANE = TOP_VIEW, XY_PLANE = FRONT_VIEW, AXIAL_VIEW = TOP_VIEW, CORONAL_VIEW = FRONT_VIEW, SAGITTAL_VIEW = SIDE_VIEW, RIGHT_SIDE_VIEW = SIDE_VIEW }

Protected Member Functions
	vtkPVOrthographicSliceView ()

	~vtkPVOrthographicSliceView () override

void	AboutToRenderOnLocalProcess (bool interactive) override
	Called just before the local process renders. More...

void	UpdateCenterAxes () override
	UpdateCenterAxes(). More...

void	SetCenterOfRotation (double x, double y, double z) override
	Forward to vtkPVInteractorStyle instances. More...

void	SetRotationFactor (double factor) override
	Forward to vtkPVInteractorStyle instances. More...

void	SetGridAxes3DActor (vtkPVGridAxes3DActor *) override
	Set the vtkPVGridAxes3DActor to use for the view. More...

void	UpdateBackground (vtkRenderer *renderer=nullptr) override
	Overridden to ensure all internal renderers are updated. More...

Protected Member Functions inherited from vtkPVMultiSliceView
	vtkPVMultiSliceView ()

	~vtkPVMultiSliceView () override

void	SetNumberOfSlices (int type, unsigned int count)

void	SetSlices (int type, const double *values)

const char *	GetAxisLabel (int axis) const

Protected Member Functions inherited from vtkPVRenderView
	vtkPVRenderView ()

	~vtkPVRenderView () override

virtual void	Render (bool interactive, bool skip_rendering)
	Actual render method. More...

bool	ShouldUseDistributedRendering (double geometry_size, bool using_lod)
	Returns true if distributed rendering should be used based on the geometry size. More...

bool	ShouldUseLODRendering (double geometry)
	Returns true if LOD rendering should be used based on the geometry size. More...

bool	IsProcessRenderingGeometriesForCompositing (bool using_distributed_rendering)
	Returns true if the local process is invovled in rendering composited geometry i.e. More...

void	SetLastSelection (vtkSelection *)
	Set the last selection object. More...

bool	GetLocalProcessDoesRendering (bool using_distributed_rendering)
	Returns true if the local process is doing to do actual render or displaying an image in a viewport. More...

bool	TestCollaborationCounter ()
	In multi-clients mode, ensures that all processes are in the same "state" as far as the view is concerned. More...

void	SynchronizeForCollaboration ()
	Synchronizes remote-rendering related parameters for collaborative rendering in multi-clients mode. More...

virtual void	BuildAnnotationText (ostream &str)
	Method to build annotation text to annotate the view with runtime information. More...

virtual bool	PrepareSelect (int fieldAssociation, const char *array=nullptr)
	Prepare for selection. More...

virtual void	PostSelect (vtkSelection sel, const char array=nullptr)
	Post process after selection. More...

void	ConfigureTexture (vtkTexture *texture)
	Configure texture based on scalar type. More...

virtual void	SetupAndSetRenderer (vtkRenderer *ren)
	Set the 3D renderer to use within the render view. More...

virtual unsigned int	GetSynchronizationCounter ()
	SynchronizationCounter is used in multi-clients mode to ensure that the views on two different clients are in the same state as the server side. More...

virtual bool	GetMakingSelection ()
	Returns true is currently generating a selection. More...

Protected Member Functions inherited from vtkPVView
	vtkPVView (bool create_render_window=true)

	~vtkPVView () override

vtkRenderWindow *	NewRenderWindow ()
	Subclasses should use this method to create new render windows instead of directly creating a new one. More...

void	SetRenderWindow (vtkRenderWindow *)
	Subclasses can use this method to set the render window created for this view. More...

void	AllReduce (const vtkBoundingBox &source, vtkBoundingBox &dest)
	Reduce bounding box between all participating processes. More...

void	AllReduce (vtkTypeUInt64 source, vtkTypeUInt64 &dest, int operation, bool skip_data_server=false)
	Reduce between all participating processes using the operation (vtkCommunicator::StandardOperations) specified. More...

vtkPVSession *	GetSession ()

virtual bool	GetInCaptureScreenshot ()
	Flag set to true between calls to `PrepareForScreenshot` and `CleanupAfterScreenshot`. More...

void	SynchronizeRepresentationTemporalPipelineStates ()
	Called in Update() to sync HasTemporalPipeline flags between representations on all processes. More...

void	AddRepresentationInternal (vtkDataRepresentation *rep) override
	Overridden to assign IDs to each representation. More...

void	RemoveRepresentationInternal (vtkDataRepresentation *rep) override
	Overridden to assign IDs to each representation. More...

int	CallProcessViewRequest (vtkInformationRequestKey passType, vtkInformation request, vtkInformationVector *reply)
	Subclasses can use this method to trigger a pass on all representations. More...

Protected Member Functions inherited from vtkView
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkView ()

	~vtkView ()

virtual vtkDataRepresentation *	CreateDefaultRepresentation (vtkAlgorithmOutput *conn)

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual void	AddRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	RemoveRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual void	AddRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	RemoveRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	SetReuseSingleRepresentation (bool)

virtual bool	GetReuseSingleRepresentation ()

virtual void	ReuseSingleRepresentationOn ()

virtual void	ReuseSingleRepresentationOff ()

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkNew< vtkRenderer >	Renderers [3]

vtkNew< vtkPVOrthographicSliceViewInteractorStyle >	OrthographicInteractorStyle

vtkNew< vtkPVCenterAxesActor >	SlicePositionAxes2D [3]

vtkNew< vtkPVCenterAxesActor >	SlicePositionAxes3D

vtkNew< vtkTextRepresentation >	SliceAnnotations [3]

vtkSmartPointer< vtkPVGridAxes3DActor >	GridAxes3DActors [3]

double	SliceIncrements [3]

double	SlicePosition [3]

bool	SliceAnnotationsVisibility

Protected Attributes inherited from vtkPVMultiSliceView
vtkNew< vtkMatrix4x4 >	ModelTransformationMatrix

vtkTimeStamp	ModelTransformationMatrixUpdateTime

Protected Attributes inherited from vtkPVRenderView
vtkLightKit *	LightKit

vtkRenderViewBase *	RenderView

vtkRenderer *	NonCompositedRenderer

vtkPVSynchronizedRenderer *	SynchronizedRenderers

vtkSmartPointer< vtkRenderWindowInteractor >	Interactor

vtkInteractorStyleRubberBand3D *	RubberBandStyle

vtkInteractorStyleRubberBandZoom *	RubberBandZoom

vtkInteractorStyleDrawPolygon *	PolygonStyle

vtkPVCenterAxesActor *	CenterAxes

vtkPVAxesWidget *	OrientationWidget

vtkSmartPointer< vtkPVHardwareSelector >	Selector

vtkSelection *	LastSelection

vtkSmartPointer< vtkPVGridAxes3DActor >	GridAxes3DActor

vtkSmartPointer< vtkLegendScaleActor >	LegendGridActor

vtkSmartPointer< vtkPolarAxesActor2D >	PolarAxesActor

vtkNew< vtkSkybox >	Skybox

vtkNew< vtkCameraOrientationWidget >	CameraOrientationWidget

int	StillRenderImageReductionFactor

int	InteractiveRenderImageReductionFactor

int	InteractionMode

bool	ShowAnnotation

bool	UpdateAnnotation

bool	SuppressRendering

vtkPVInteractorStyle *	TwoDInteractorStyle

vtkPVInteractorStyle *	ThreeDInteractorStyle

bool	ReverseMouseWheelZoomDirection = false

vtkPVInteractorStyle *	InteractorStyle

vtkWeakPointer< vtkPVCameraCollection >	DiscreteCameras

unsigned int	SynchronizationCounter

double	RemoteRenderingThreshold

double	LODRenderingThreshold

vtkBoundingBox	GeometryBounds

bool	UseInteractiveRenderingForScreenshots

bool	NeedsOrderedCompositing

bool	RenderEmptyImages

bool	UseFXAA

vtkNew< vtkFXAAOptions >	FXAAOptions

bool	UseToneMapping

bool	UseSSAO

bool	UseSSAODefaultPresets

double	Radius

int	KernelSize

double	Bias

bool	Blur

double	LODResolution

bool	UseLightKit

bool	UsedLODForLastRender

bool	UseLODForInteractiveRender

bool	UseOutlineForLODRendering

bool	UseDistributedRenderingForRender

bool	UseDistributedRenderingForLODRender

vtkTypeUInt32	StillRenderProcesses

vtkTypeUInt32	InteractiveRenderProcesses

vtkTimeStamp	PriorityQueueBuildTimeStamp
	Keeps track of the time when the priority-queue for streaming was generated. More...

bool	LockBounds

Protected Attributes inherited from vtkPVView
double	ViewTime

double	CacheKey

bool	UseCache

int	Size [2]

int	Position [2]

int	PPI

vtkTimeStamp	UpdateTimeStamp
	Keeps track of the time when vtkPVRenderView::Update() was called. More...

vtkInformation *	RequestInformation
	These are passed as arguments to vtkDataRepresentation::ProcessViewRequest(). More...

vtkInformationVector *	ReplyInformationVector
	These are passed as arguments to vtkDataRepresentation::ProcessViewRequest(). More...

Protected Attributes inherited from vtkView
bool	ReuseSingleRepresentation

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkPVOrthographicSliceViewInteractorStyle

Additional Inherited Members
Public Attributes inherited from vtkPVRenderView
double	LastRepresentationVisibleBounds [6]
	Compute and reduce the visible bounds of the provided representation. More...

Static Protected Member Functions inherited from vtkPVView
static vtkPVDataDeliveryManager *	GetDeliveryManager (vtkInformation *info)

Detailed Description

view with 3 orthographic slice views and 1 3D view.

vtkPVOrthographicSliceView extends vtkPVMultiSliceView to support showing a quad-view with orthographic views along with the 3D view. Work with vtkPVCompositeOrthographicSliceRepresentation and vtkGeometrySliceRepresentation, this class create a 3 slices for any dataset shown in this view and shows those slices in the orthographic views. The orthographic views themselves are non-composited i.e. the data is simply cloned on all rendering processes (hence we limit ourselves to showing slices alone).

Interactions:: In the orthographic views, users can use the thumb-wheel to change the slice plane (in which case the SliceIncrements are used to update the slice position). Additionally, users can double click in any of the orthographic views to move the slice position to that location.

Definition at line 29 of file vtkPVOrthographicSliceView.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPVMultiSliceView vtkPVOrthographicSliceView::Superclass

Definition at line 33 of file vtkPVOrthographicSliceView.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
SAGITTAL_VIEW_RENDERER
AXIAL_VIEW_RENDERER
CORONAL_VIEW_RENDERER

Definition at line 42 of file vtkPVOrthographicSliceView.h.

◆ anonymous enum

anonymous enum

protected

Enumerator
SIDE_VIEW
TOP_VIEW
FRONT_VIEW
YZ_PLANE
ZX_PLANE
XY_PLANE
AXIAL_VIEW
CORONAL_VIEW
SAGITTAL_VIEW
RIGHT_SIDE_VIEW

Definition at line 117 of file vtkPVOrthographicSliceView.h.

Constructor & Destructor Documentation

◆ vtkPVOrthographicSliceView()

vtkPVOrthographicSliceView::vtkPVOrthographicSliceView ( )

protected

◆ ~vtkPVOrthographicSliceView()

vtkPVOrthographicSliceView::~vtkPVOrthographicSliceView ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVOrthographicSliceView* vtkPVOrthographicSliceView::New ( )

static

◆ GetClassName()

virtual const char* vtkPVOrthographicSliceView::GetClassName ( )

virtual

Reimplemented from vtkPVMultiSliceView.

◆ IsTypeOf()

static int vtkPVOrthographicSliceView::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVOrthographicSliceView::IsA ( const char * type )

virtual

Reimplemented from vtkPVMultiSliceView.

◆ SafeDownCast()

static vtkPVOrthographicSliceView* vtkPVOrthographicSliceView::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVOrthographicSliceView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkPVMultiSliceView.

◆ Update()

void vtkPVOrthographicSliceView::Update ( )

overridevirtual

Overridden to ensure that the SlicePositionAxes3D doesn't get used when determine view bounds.

Reimplemented from vtkPVMultiSliceView.

◆ GetRenderer()

vtkRenderer* vtkPVOrthographicSliceView::GetRenderer ( int rendererType = vtkPVRenderView::DEFAULT_RENDERER )

overridevirtual

Overridden to add support for new types of renderers.

Reimplemented from vtkPVRenderView.

◆ ResetCamera() [1/2]

virtual void vtkPVOrthographicSliceView::ResetCamera ( )

virtual

◆ ResetCamera() [2/2]

virtual void vtkPVOrthographicSliceView::ResetCamera ( double bounds[6] )

virtual

◆ SetInteractionMode()

void vtkPVOrthographicSliceView::SetInteractionMode ( int mode )

overridevirtual

Get/Set the interaction mode.

Default is INTERACTION_MODE_3D. If INTERACTION_MODE_SELECTION is selected, then whenever the user drags and creates a selection region, this class will fire a vtkCommand::SelectionChangedEvent event with the selection region as the argument.

Note: CallOnAllProcesses; this must be called on all processes, however it will have any effect only the driver processes i.e. the process with the interactor.

Reimplemented from vtkPVRenderView.

◆ SetupInteractor()

void vtkPVOrthographicSliceView::SetupInteractor ( vtkRenderWindowInteractor * )

overridevirtual

Set the interactor.

Client applications must set the interactor to enable interactivity. Note this method will also change the interactor styles set on the interactor.

Reimplemented from vtkPVRenderView.

◆ SetSlicePosition()

void vtkPVOrthographicSliceView::SetSlicePosition	(	double	x,
		double	y,
		double	z
	)

Set the slice position.

◆ GetSlicePosition() [1/3]

virtual double* vtkPVOrthographicSliceView::GetSlicePosition ( )

virtual

Set the slice position.

◆ GetSlicePosition() [2/3]

virtual void vtkPVOrthographicSliceView::GetSlicePosition	(	double &	,
		double &	,
		double &
	)

virtual

Set the slice position.

◆ GetSlicePosition() [3/3]

virtual void vtkPVOrthographicSliceView::GetSlicePosition ( double [3] )

virtual

Set the slice position.

◆ SetSliceIncrements() [1/2]

virtual void vtkPVOrthographicSliceView::SetSliceIncrements	(	double	,
		double	,
		double
	)

virtual

Set slice increments.

◆ SetSliceIncrements() [2/2]

virtual void vtkPVOrthographicSliceView::SetSliceIncrements ( double [3] )

virtual

Set slice increments.

◆ SetSliceAnnotationsVisibility()

virtual void vtkPVOrthographicSliceView::SetSliceAnnotationsVisibility ( bool )

virtual

Get/Set whether to show slice annotations.

◆ GetSliceAnnotationsVisibility()

virtual bool vtkPVOrthographicSliceView::GetSliceAnnotationsVisibility ( )

virtual

Get/Set whether to show slice annotations.

◆ SetCenterAxesVisibility()

void vtkPVOrthographicSliceView::SetCenterAxesVisibility ( bool )

inlineoverridevirtual

To avoid confusion, we don't show the center axes at all in this view.

Reimplemented from vtkPVRenderView.

Definition at line 85 of file vtkPVOrthographicSliceView.h.

◆ SetBackgroundTexture()

void vtkPVOrthographicSliceView::SetBackgroundTexture ( vtkTexture * val )

overridevirtual

Forward to 3D renderer.

Reimplemented from vtkPVRenderView.

◆ ScaleRendererViewports()

void vtkPVOrthographicSliceView::ScaleRendererViewports ( const double viewport[4] )

overridevirtual

Overridden to scale the projection viewports appropriately.

Reimplemented from vtkPVView.

◆ AboutToRenderOnLocalProcess()

void vtkPVOrthographicSliceView::AboutToRenderOnLocalProcess ( bool interactive )

overrideprotectedvirtual

Called just before the local process renders.

This is only called on the nodes where the rendering is going to happen.

Reimplemented from vtkPVMultiSliceView.

◆ UpdateCenterAxes()

void vtkPVOrthographicSliceView::UpdateCenterAxes ( )

overrideprotectedvirtual

UpdateCenterAxes().

Updates CenterAxes's scale and position.

Reimplemented from vtkPVRenderView.

◆ SetCenterOfRotation()

void vtkPVOrthographicSliceView::SetCenterOfRotation	(	double	x,
		double	y,
		double	z
	)

overrideprotectedvirtual

Forward to vtkPVInteractorStyle instances.

Reimplemented from vtkPVRenderView.

◆ SetRotationFactor()

void vtkPVOrthographicSliceView::SetRotationFactor ( double factor )

overrideprotectedvirtual

Forward to vtkPVInteractorStyle instances.

Reimplemented from vtkPVRenderView.

◆ SetGridAxes3DActor()

void vtkPVOrthographicSliceView::SetGridAxes3DActor ( vtkPVGridAxes3DActor * )

overrideprotectedvirtual

Set the vtkPVGridAxes3DActor to use for the view.

Reimplemented from vtkPVRenderView.

◆ UpdateBackground()

void vtkPVOrthographicSliceView::UpdateBackground ( vtkRenderer * renderer = nullptr )

overrideprotectedvirtual

Overridden to ensure all internal renderers are updated.

Reimplemented from vtkPVRenderView.

Friends And Related Function Documentation

◆ vtkPVOrthographicSliceViewInteractorStyle

friend class vtkPVOrthographicSliceViewInteractorStyle

friend

Definition at line 156 of file vtkPVOrthographicSliceView.h.

Member Data Documentation

◆ Renderers

vtkNew<vtkRenderer> vtkPVOrthographicSliceView::Renderers[3]

protected

Definition at line 134 of file vtkPVOrthographicSliceView.h.

◆ OrthographicInteractorStyle

vtkNew<vtkPVOrthographicSliceViewInteractorStyle> vtkPVOrthographicSliceView::OrthographicInteractorStyle

protected

Definition at line 135 of file vtkPVOrthographicSliceView.h.

◆ SlicePositionAxes2D

vtkNew<vtkPVCenterAxesActor> vtkPVOrthographicSliceView::SlicePositionAxes2D[3]

protected

Definition at line 136 of file vtkPVOrthographicSliceView.h.

◆ SlicePositionAxes3D

vtkNew<vtkPVCenterAxesActor> vtkPVOrthographicSliceView::SlicePositionAxes3D

protected

Definition at line 137 of file vtkPVOrthographicSliceView.h.

◆ SliceAnnotations

vtkNew<vtkTextRepresentation> vtkPVOrthographicSliceView::SliceAnnotations[3]

protected

Definition at line 138 of file vtkPVOrthographicSliceView.h.

◆ GridAxes3DActors

vtkSmartPointer<vtkPVGridAxes3DActor> vtkPVOrthographicSliceView::GridAxes3DActors[3]

protected

Definition at line 139 of file vtkPVOrthographicSliceView.h.

◆ SliceIncrements

double vtkPVOrthographicSliceView::SliceIncrements[3]

protected

Definition at line 141 of file vtkPVOrthographicSliceView.h.

◆ SlicePosition

double vtkPVOrthographicSliceView::SlicePosition[3]

protected

Definition at line 142 of file vtkPVOrthographicSliceView.h.

◆ SliceAnnotationsVisibility

bool vtkPVOrthographicSliceView::SliceAnnotationsVisibility

protected

Definition at line 143 of file vtkPVOrthographicSliceView.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVOrthographicSliceView.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ vtkPVOrthographicSliceView()

◆ ~vtkPVOrthographicSliceView()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ Update()

◆ GetRenderer()

◆ ResetCamera() [1/2]

◆ ResetCamera() [2/2]

◆ SetInteractionMode()

◆ SetupInteractor()

◆ SetSlicePosition()

◆ GetSlicePosition() [1/3]

◆ GetSlicePosition() [2/3]

◆ GetSlicePosition() [3/3]

◆ SetSliceIncrements() [1/2]

◆ SetSliceIncrements() [2/2]

◆ SetSliceAnnotationsVisibility()

◆ GetSliceAnnotationsVisibility()

◆ SetCenterAxesVisibility()

◆ SetBackgroundTexture()

◆ ScaleRendererViewports()

◆ AboutToRenderOnLocalProcess()

◆ UpdateCenterAxes()

◆ SetCenterOfRotation()

◆ SetRotationFactor()

◆ SetGridAxes3DActor()

◆ UpdateBackground()

Friends And Related Function Documentation

◆ vtkPVOrthographicSliceViewInteractorStyle

Member Data Documentation

◆ Renderers

◆ OrthographicInteractorStyle

◆ SlicePositionAxes2D

◆ SlicePositionAxes3D

◆ SliceAnnotations

◆ GridAxes3DActors

◆ SliceIncrements

◆ SlicePosition

◆ SliceAnnotationsVisibility
