Geometry filter that does outlines for volumes. More...

#include <vtkPVGeometryFilter.h>

Inheritance diagram for vtkPVGeometryFilter:

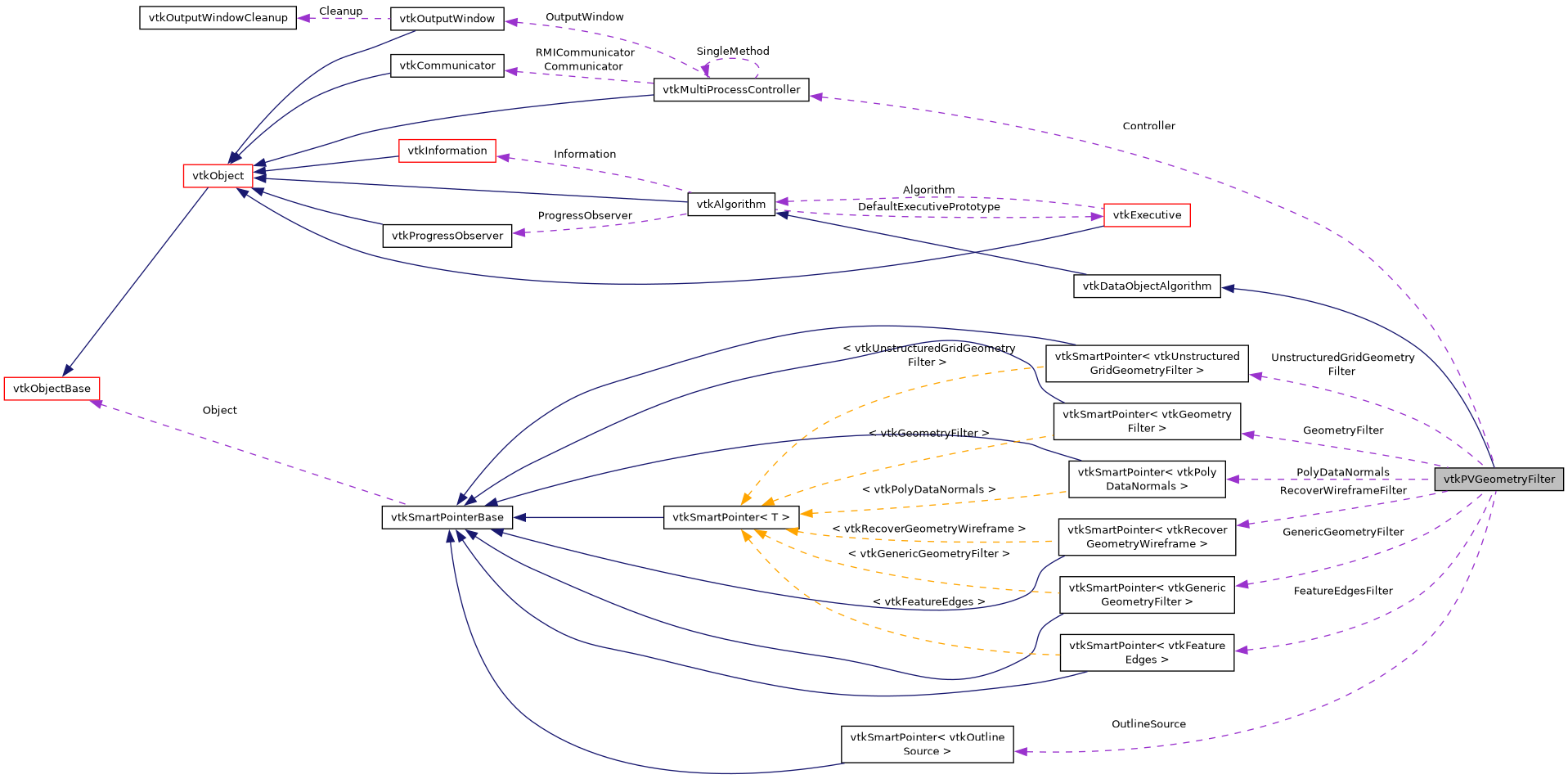

Collaboration diagram for vtkPVGeometryFilter:

[legend]

Public Types
typedef vtkDataObjectAlgorithm	Superclass

Public Types inherited from vtkDataObjectAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override


virtual int	GetOutlineFlag ()
	This flag is set during the execute method. More...


virtual void	SetUseOutline (int)
	Set/get whether to produce outline (vs. More...

virtual int	GetUseOutline ()
	Set/get whether to produce outline (vs. More...


void	SetGenerateFeatureEdges (bool)
	Set/get whether to produce feature edges (vs. More...

virtual bool	GetGenerateFeatureEdges ()
	Set/get whether to produce feature edges (vs. More...


virtual void	SetBlockColorsDistinctValues (int)
	Determines the number of distinct values in vtkBlockColors. More...

virtual int	GetBlockColorsDistinctValues ()
	Determines the number of distinct values in vtkBlockColors. More...


void	SetGenerateCellNormals (int)
	Whether to generate cell normals. More...

virtual int	GetGenerateCellNormals ()
	Whether to generate cell normals. More...

virtual void	GenerateCellNormalsOn ()
	Whether to generate cell normals. More...

virtual void	GenerateCellNormalsOff ()
	Whether to generate cell normals. More...


void	SetGeneratePointNormals (bool)
	Whether to generate point normals. More...

virtual bool	GetGeneratePointNormals ()
	Whether to generate point normals. More...

virtual void	GeneratePointNormalsOn ()
	Whether to generate point normals. More...

virtual void	GeneratePointNormalsOff ()
	Whether to generate point normals. More...


void	SetFeatureAngle (double)
	Specify the angle that defines a sharp edge. More...

virtual double	GetFeatureAngle ()
	Specify the angle that defines a sharp edge. More...


void	SetSplitting (bool)
	Turn on/off the splitting of sharp edges. More...

virtual void	SplittingOn ()
	Turn on/off the splitting of sharp edges. More...

virtual void	SplittingOff ()
	Turn on/off the splitting of sharp edges. More...


virtual void	SetTriangulate (int)
	Whether to triangulate mesh for rendering. More...

virtual int	GetTriangulate ()
	Whether to triangulate mesh for rendering. More...

virtual void	TriangulateOn ()
	Whether to triangulate mesh for rendering. More...

virtual void	TriangulateOff ()
	Whether to triangulate mesh for rendering. More...


virtual void	SetNonlinearSubdivisionLevel (int)
	Nonlinear faces are approximated with flat polygons. More...

virtual int	GetNonlinearSubdivisionLevel ()
	Nonlinear faces are approximated with flat polygons. More...


virtual void	SetMatchBoundariesIgnoringCellOrder (int)
	When two volumetric cells of different order are connected by their corners (for instance, a quadratic hexahedron next to a linear hexahedron ), the internal face is rendered and is not considered as a ghost cell. More...

virtual int	GetMatchBoundariesIgnoringCellOrder ()
	When two volumetric cells of different order are connected by their corners (for instance, a quadratic hexahedron next to a linear hexahedron ), the internal face is rendered and is not considered as a ghost cell. More...


virtual void	SetController (vtkMultiProcessController *)
	Set and get the controller. More...

virtual vtkMultiProcessController *	GetController ()
	Set and get the controller. More...


void	SetPassThroughCellIds (int)
	If on, the output polygonal dataset will have a celldata array that holds the cell index of the original 3D cell that produced each output cell. More...

virtual int	GetPassThroughCellIds ()
	If on, the output polygonal dataset will have a celldata array that holds the cell index of the original 3D cell that produced each output cell. More...

virtual void	PassThroughCellIdsOn ()
	If on, the output polygonal dataset will have a celldata array that holds the cell index of the original 3D cell that produced each output cell. More...

virtual void	PassThroughCellIdsOff ()
	If on, the output polygonal dataset will have a celldata array that holds the cell index of the original 3D cell that produced each output cell. More...


void	SetPassThroughPointIds (int)
	If on, the output polygonal dataset will have a pointdata array that holds the point index of the original vertex that produced each output vertex. More...

virtual int	GetPassThroughPointIds ()
	If on, the output polygonal dataset will have a pointdata array that holds the point index of the original vertex that produced each output vertex. More...

virtual void	PassThroughPointIdsOn ()
	If on, the output polygonal dataset will have a pointdata array that holds the point index of the original vertex that produced each output vertex. More...

virtual void	PassThroughPointIdsOff ()
	If on, the output polygonal dataset will have a pointdata array that holds the point index of the original vertex that produced each output vertex. More...


virtual void	SetGenerateProcessIds (bool)
	If on, point arrays named vtkProcessId is added. More...

virtual bool	GetGenerateProcessIds ()
	If on, point arrays named vtkProcessId is added. More...

virtual void	GenerateProcessIdsOn ()
	If on, point arrays named vtkProcessId is added. More...

virtual void	GenerateProcessIdsOff ()
	If on, point arrays named vtkProcessId is added. More...


virtual void	SetHideInternalAMRFaces (bool)
	This property affects the way AMR outlines and faces are generated. More...

virtual bool	GetHideInternalAMRFaces ()
	This property affects the way AMR outlines and faces are generated. More...

virtual void	HideInternalAMRFacesOn ()
	This property affects the way AMR outlines and faces are generated. More...

virtual void	HideInternalAMRFacesOff ()
	This property affects the way AMR outlines and faces are generated. More...


virtual void	SetUseNonOverlappingAMRMetaDataForOutlines (bool)
	For overlapping AMR, this property controls affects the way AMR outlines are generated. More...

virtual bool	GetUseNonOverlappingAMRMetaDataForOutlines ()
	For overlapping AMR, this property controls affects the way AMR outlines are generated. More...

virtual void	UseNonOverlappingAMRMetaDataForOutlinesOn ()
	For overlapping AMR, this property controls affects the way AMR outlines are generated. More...

virtual void	UseNonOverlappingAMRMetaDataForOutlinesOff ()
	For overlapping AMR, this property controls affects the way AMR outlines are generated. More...

Public Member Functions inherited from vtkDataObjectAlgorithm
vtkDataObjectAlgorithm *	NewInstance () const

vtkDataObject *	GetInput ()

vtkDataObject *	GetInput (int port)

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

virtual void	SetOutput (vtkDataObject *d)

virtual int	ProcessRequest (vtkInformation , vtkInformationVector , vtkInformationVector )

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

virtual void	SetOutput (vtkDataObject *d)

virtual int	ProcessRequest (vtkInformation , vtkInformationVector , vtkInformationVector )

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVGeometryFilter *	New ()

static int	IsTypeOf (const char *type)

static vtkPVGeometryFilter *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkDataObjectAlgorithm
static vtkDataObjectAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkDataObjectAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVGeometryFilter ()

	~vtkPVGeometryFilter () override

void	ExecuteAMRBlock (vtkCartesianGrid input, vtkPolyData output, const bool extractface[6])
	Produce geometry for a block in the dataset. More...

void	ExecuteAMRBlockOutline (const double bounds[6], vtkPolyData *output, const bool extractface[6])
	Used instead of ExecuteAMRBlock() when this->UseOutline is true. More...

void	ExecuteBlock (vtkDataObject input, vtkPolyData output, int doCommunicate, int updatePiece, int updateNumPieces, int updateGhosts, const int *wholeExtent)

void	DataSetExecute (vtkDataSet input, vtkPolyData output, int doCommunicate)

void	GenericDataSetExecute (vtkGenericDataSet input, vtkPolyData output, int doCommunicate)

void	ImageDataExecute (vtkImageData input, vtkPolyData output, int doCommunicate, int updatePiece, const int *ext)

void	StructuredGridExecute (vtkStructuredGrid input, vtkPolyData output, int updatePiece, int updateNumPieces, int updateGhosts, const int *wholeExtent)

void	RectilinearGridExecute (vtkRectilinearGrid input, vtkPolyData output, int updatePiece, int updateNumPieces, int updateGhosts, const int *wholeExtent)

void	UnstructuredGridExecute (vtkUnstructuredGridBase input, vtkPolyData output, int doCommunicate)

void	PolyDataExecute (vtkPolyData input, vtkPolyData output, int doCommunicate)

void	HyperTreeGridExecute (vtkHyperTreeGrid input, vtkPolyData output, int doCommunicate)

void	ExplicitStructuredGridExecute (vtkExplicitStructuredGrid input, vtkPolyData out, int doCommunicate, const int *wholeExtent)

void	CellGridExecute (vtkCellGrid input, vtkPolyData output, int doCommunicate)

int	CheckAttributes (vtkDataObject *input)
	Call CheckAttributes on the `input` which ensures that all attribute arrays have valid lengths. More...

void	HandleGeometryFilterProgress (vtkObject caller, unsigned long, void )

int	FillInputPortInformation (int, vtkInformation *) override

void	ReportReferences (vtkGarbageCollector *) override


int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector ) override
	Overridden to create vtkMultiBlockDataSet when input is a composite-dataset and vtkPolyData when input is a vtkDataSet. More...

virtual int	RequestAMRData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
	Overridden to create vtkMultiBlockDataSet when input is a composite-dataset and vtkPolyData when input is a vtkDataSet. More...

virtual int	RequestDataObjectTree (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
	Overridden to create vtkMultiBlockDataSet when input is a composite-dataset and vtkPolyData when input is a vtkDataSet. More...

int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override
	Overridden to create vtkMultiBlockDataSet when input is a composite-dataset and vtkPolyData when input is a vtkDataSet. More...


void	CleanupOutputData (vtkPolyData *output)
	Cleans up the output polydata. More...

Protected Member Functions inherited from vtkDataObjectAlgorithm
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkDataObjectAlgorithm ()

	~vtkDataObjectAlgorithm ()

virtual int	RequestInformation (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

virtual vtkExecutive *	CreateDefaultExecutive ()

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
int	OutlineFlag

int	UseOutline

int	BlockColorsDistinctValues

bool	GenerateCellNormals

bool	GeneratePointNormals

bool	Splitting

double	FeatureAngle

int	Triangulate

int	NonlinearSubdivisionLevel

int	MatchBoundariesIgnoringCellOrder = 0

vtkMultiProcessController *	Controller

vtkSmartPointer< vtkOutlineSource >	OutlineSource

vtkSmartPointer< vtkGeometryFilter >	GeometryFilter

vtkSmartPointer< vtkGenericGeometryFilter >	GenericGeometryFilter

vtkSmartPointer< vtkUnstructuredGridGeometryFilter >	UnstructuredGridGeometryFilter

vtkSmartPointer< vtkRecoverGeometryWireframe >	RecoverWireframeFilter

vtkSmartPointer< vtkFeatureEdges >	FeatureEdgesFilter

vtkSmartPointer< vtkPolyDataNormals >	PolyDataNormals

bool	GenerateProcessIds

int	PassThroughCellIds

int	PassThroughPointIds

bool	HideInternalAMRFaces

bool	UseNonOverlappingAMRMetaDataForOutlines

bool	GenerateFeatureEdges

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

Geometry filter that does outlines for volumes.

This filter defaults to using the outline filter unless the input is a structured volume.

Definition at line 44 of file vtkPVGeometryFilter.h.

Member Typedef Documentation

◆ Superclass

typedef vtkDataObjectAlgorithm vtkPVGeometryFilter::Superclass

Definition at line 48 of file vtkPVGeometryFilter.h.

Constructor & Destructor Documentation

◆ vtkPVGeometryFilter()

vtkPVGeometryFilter::vtkPVGeometryFilter ( )

protected

◆ ~vtkPVGeometryFilter()

vtkPVGeometryFilter::~vtkPVGeometryFilter ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVGeometryFilter* vtkPVGeometryFilter::New ( )

static

◆ GetClassName()

virtual const char* vtkPVGeometryFilter::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkPVGeometryFilter::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVGeometryFilter::IsA ( const char * type )

virtual

Reimplemented from vtkDataObjectAlgorithm.

◆ SafeDownCast()

static vtkPVGeometryFilter* vtkPVGeometryFilter::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVGeometryFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkDataObjectAlgorithm.

◆ GetOutlineFlag()

virtual int vtkPVGeometryFilter::GetOutlineFlag ( )

virtual

This flag is set during the execute method.

It indicates that the input was 3d and an outline representation was used.

◆ SetUseOutline()

virtual void vtkPVGeometryFilter::SetUseOutline ( int )

virtual

Set/get whether to produce outline (vs.

surface).

◆ GetUseOutline()

virtual int vtkPVGeometryFilter::GetUseOutline ( )

virtual

Set/get whether to produce outline (vs.

surface).

◆ SetGenerateFeatureEdges()

void vtkPVGeometryFilter::SetGenerateFeatureEdges ( bool )

Set/get whether to produce feature edges (vs.

surface). If both this and UseOutline are true, then an outline will be produced.

◆ GetGenerateFeatureEdges()

virtual bool vtkPVGeometryFilter::GetGenerateFeatureEdges ( )

virtual

Set/get whether to produce feature edges (vs.

surface). If both this and UseOutline are true, then an outline will be produced.

◆ SetBlockColorsDistinctValues()

virtual void vtkPVGeometryFilter::SetBlockColorsDistinctValues ( int )

virtual

Determines the number of distinct values in vtkBlockColors.

◆ GetBlockColorsDistinctValues()

virtual int vtkPVGeometryFilter::GetBlockColorsDistinctValues ( )

virtual

Determines the number of distinct values in vtkBlockColors.

◆ SetGenerateCellNormals()

void vtkPVGeometryFilter::SetGenerateCellNormals ( int )

Whether to generate cell normals.

The default value is false.

◆ GetGenerateCellNormals()

virtual int vtkPVGeometryFilter::GetGenerateCellNormals ( )

virtual

Whether to generate cell normals.

The default value is false.

◆ GenerateCellNormalsOn()

virtual void vtkPVGeometryFilter::GenerateCellNormalsOn ( )

virtual

Whether to generate cell normals.

The default value is false.

◆ GenerateCellNormalsOff()

virtual void vtkPVGeometryFilter::GenerateCellNormalsOff ( )

virtual

Whether to generate cell normals.

The default value is false.

◆ SetGeneratePointNormals()

void vtkPVGeometryFilter::SetGeneratePointNormals ( bool )

Whether to generate point normals.

The default value is false.

◆ GetGeneratePointNormals()

virtual bool vtkPVGeometryFilter::GetGeneratePointNormals ( )

virtual

Whether to generate point normals.

The default value is false.

◆ GeneratePointNormalsOn()

virtual void vtkPVGeometryFilter::GeneratePointNormalsOn ( )

virtual

Whether to generate point normals.

The default value is false.

◆ GeneratePointNormalsOff()

virtual void vtkPVGeometryFilter::GeneratePointNormalsOff ( )

virtual

Whether to generate point normals.

The default value is false.

◆ SetFeatureAngle()

void vtkPVGeometryFilter::SetFeatureAngle ( double )

Specify the angle that defines a sharp edge.

If the difference in angle across neighboring polygons is greater than this value, the shared edge is considered "sharp".

The default value is 30 degrees.

◆ GetFeatureAngle()

virtual double vtkPVGeometryFilter::GetFeatureAngle ( )

virtual

Specify the angle that defines a sharp edge.

If the difference in angle across neighboring polygons is greater than this value, the shared edge is considered "sharp".

The default value is 30 degrees.

◆ SetSplitting()

void vtkPVGeometryFilter::SetSplitting ( bool )

Turn on/off the splitting of sharp edges.

The default value is true.

◆ SplittingOn()

virtual void vtkPVGeometryFilter::SplittingOn ( )

virtual

Turn on/off the splitting of sharp edges.

The default value is true.

◆ SplittingOff()

virtual void vtkPVGeometryFilter::SplittingOff ( )

virtual

Turn on/off the splitting of sharp edges.

The default value is true.

◆ SetTriangulate()

virtual void vtkPVGeometryFilter::SetTriangulate ( int )

virtual

Whether to triangulate mesh for rendering.

This parameter avoid rendering issues of non-convex polygons. This option has no effect when using OpenGL2 rendering backend. OpenGL2 rendering always triangulates polygonal meshes.

◆ GetTriangulate()

virtual int vtkPVGeometryFilter::GetTriangulate ( )

virtual

Whether to triangulate mesh for rendering.

This parameter avoid rendering issues of non-convex polygons. This option has no effect when using OpenGL2 rendering backend. OpenGL2 rendering always triangulates polygonal meshes.

◆ TriangulateOn()

virtual void vtkPVGeometryFilter::TriangulateOn ( )

virtual

Whether to triangulate mesh for rendering.

This parameter avoid rendering issues of non-convex polygons. This option has no effect when using OpenGL2 rendering backend. OpenGL2 rendering always triangulates polygonal meshes.

◆ TriangulateOff()

virtual void vtkPVGeometryFilter::TriangulateOff ( )

virtual

Whether to triangulate mesh for rendering.

This parameter avoid rendering issues of non-convex polygons. This option has no effect when using OpenGL2 rendering backend. OpenGL2 rendering always triangulates polygonal meshes.

◆ SetNonlinearSubdivisionLevel()

virtual void vtkPVGeometryFilter::SetNonlinearSubdivisionLevel ( int )

virtual

Nonlinear faces are approximated with flat polygons.

This parameter controls how many times to subdivide nonlinear surface cells. Higher subdivisions generate closer approximations but take more memory and rendering time. Subdivision is recursive, so the number of output polygons can grow exponentially with this parameter.

◆ GetNonlinearSubdivisionLevel()

virtual int vtkPVGeometryFilter::GetNonlinearSubdivisionLevel ( )

virtual

Nonlinear faces are approximated with flat polygons.

This parameter controls how many times to subdivide nonlinear surface cells. Higher subdivisions generate closer approximations but take more memory and rendering time. Subdivision is recursive, so the number of output polygons can grow exponentially with this parameter.

◆ SetMatchBoundariesIgnoringCellOrder()

virtual void vtkPVGeometryFilter::SetMatchBoundariesIgnoringCellOrder ( int )

virtual

When two volumetric cells of different order are connected by their corners (for instance, a quadratic hexahedron next to a linear hexahedron ), the internal face is rendered and is not considered as a ghost cell.

To remove these faces, switch MatchBoundariesIgnoringCellOrder to 1 (default is 0).

◆ GetMatchBoundariesIgnoringCellOrder()

virtual int vtkPVGeometryFilter::GetMatchBoundariesIgnoringCellOrder ( )

virtual

When two volumetric cells of different order are connected by their corners (for instance, a quadratic hexahedron next to a linear hexahedron ), the internal face is rendered and is not considered as a ghost cell.

To remove these faces, switch MatchBoundariesIgnoringCellOrder to 1 (default is 0).

◆ SetController()

virtual void vtkPVGeometryFilter::SetController ( vtkMultiProcessController * )

virtual

Set and get the controller.

◆ GetController()

virtual vtkMultiProcessController* vtkPVGeometryFilter::GetController ( )

virtual

Set and get the controller.

◆ SetPassThroughCellIds()

void vtkPVGeometryFilter::SetPassThroughCellIds ( int )

If on, the output polygonal dataset will have a celldata array that holds the cell index of the original 3D cell that produced each output cell.
