vtkPVAxesActor Class Reference

a 3D axes representation More...

#include <vtkPVAxesActor.h>

Inheritance diagram for vtkPVAxesActor:

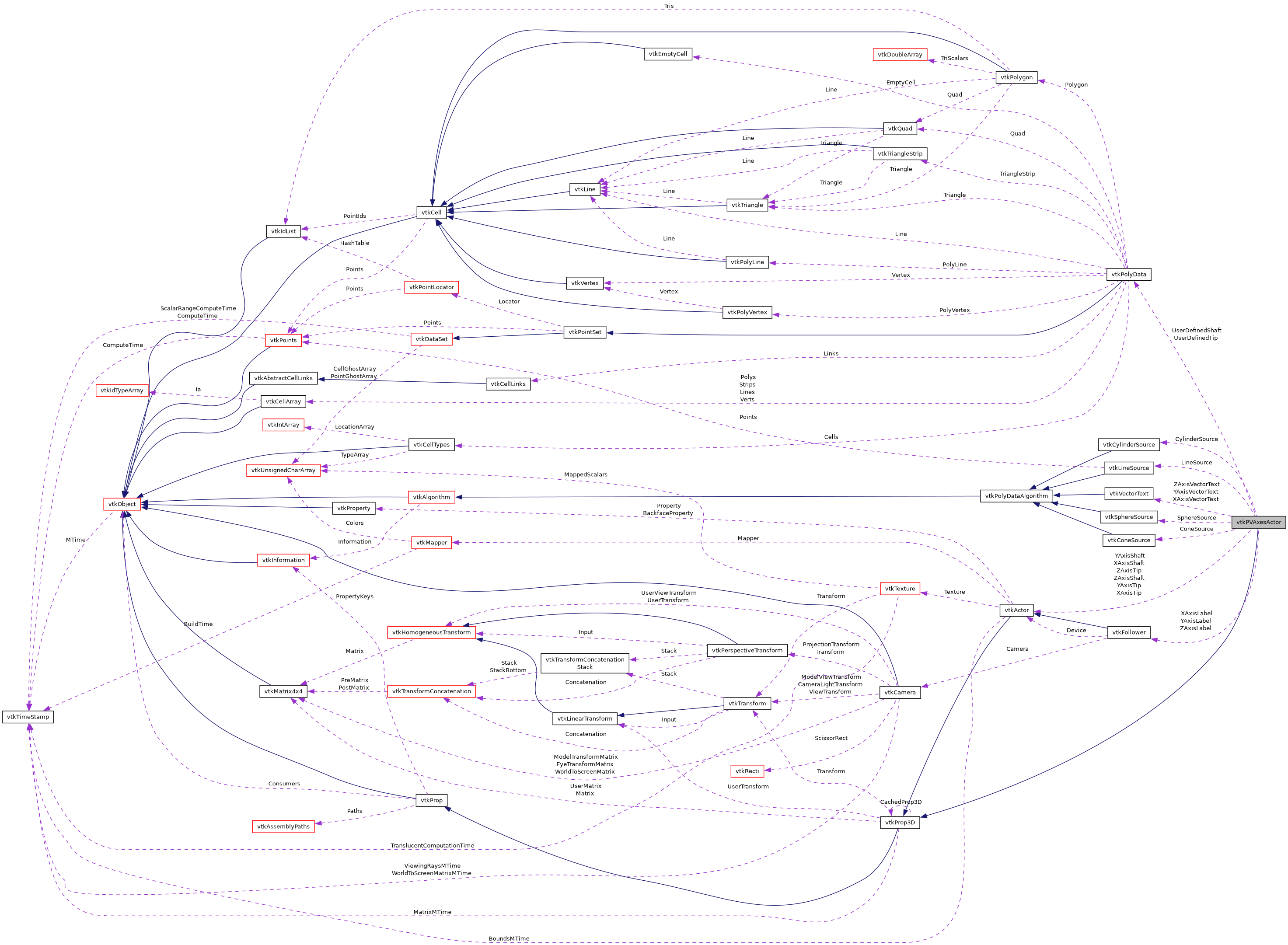

Collaboration diagram for vtkPVAxesActor:

Public Types
enum	{ CYLINDER_SHAFT, LINE_SHAFT, USER_DEFINED_SHAFT }
enum	{ CONE_TIP, SPHERE_TIP, USER_DEFINED_TIP }
typedef vtkProp3D	Superclass
Public Types inherited from vtkProp3D
typedef vtkProp	Superclass
Public Types inherited from vtkProp
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
void	GetActors (vtkPropCollection *) override
	For some exporters and other other operations we must be able to collect all the actors or volumes. More...
void	ShallowCopy (vtkProp *prop) override
	Shallow copy of an axes actor. More...
void	ReleaseGraphicsResources (vtkWindow *) override
	Release any graphics resources that are being consumed by this actor. More...
vtkMTimeType	GetMTime () override
	Get the actors mtime plus consider its properties and texture if set. More...
vtkMTimeType	GetRedrawMTime () override
	Return the mtime of anything that would cause the rendered image to appear differently. More...
void	SetShaftType (int type)
	Set the type of the shaft to a cylinder, line, or user defined geometry. More...
void	SetShaftTypeToCylinder ()
void	SetShaftTypeToLine ()
void	SetShaftTypeToUserDefined ()
void	SetTipType (int type)
	Set the type of the tip to a cone, sphere, or user defined geometry. More...
void	SetTipTypeToCone ()
void	SetTipTypeToSphere ()
void	SetTipTypeToUserDefined ()
int	RenderOpaqueGeometry (vtkViewport *viewport) override
	Support the standard render methods. More...
int	RenderTranslucentPolygonalGeometry (vtkViewport *viewport) override
	Support the standard render methods. More...
int	HasTranslucentPolygonalGeometry () override
	Support the standard render methods. More...
void	GetBounds (double bounds[6])
	Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). More...
double *	GetBounds () override
	Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). More...
void	SetTotalLength (float v[3])
	Set the total length of the axes in 3 dimensions. More...
void	SetTotalLength (float x, float y, float z)
	Set the total length of the axes in 3 dimensions. More...
virtual float *	GetTotalLength ()
	Set the total length of the axes in 3 dimensions. More...
virtual void	GetTotalLength (float data[3])
	Set the total length of the axes in 3 dimensions. More...
void	SetNormalizedShaftLength (float v[3])
	Set the normalized (0-1) length of the shaft. More...
void	SetNormalizedShaftLength (float x, float y, float z)
	Set the normalized (0-1) length of the shaft. More...
virtual float *	GetNormalizedShaftLength ()
	Set the normalized (0-1) length of the shaft. More...
virtual void	GetNormalizedShaftLength (float data[3])
	Set the normalized (0-1) length of the shaft. More...
void	SetNormalizedTipLength (float v[3])
	Set the normalized (0-1) length of the tip. More...
void	SetNormalizedTipLength (float x, float y, float z)
	Set the normalized (0-1) length of the tip. More...
virtual float *	GetNormalizedTipLength ()
	Set the normalized (0-1) length of the tip. More...
virtual void	GetNormalizedTipLength (float data[3])
	Set the normalized (0-1) length of the tip. More...
virtual void	SetConeResolution (int)
	Set/get the resolution of the pieces of the axes actor. More...
virtual int	GetConeResolution ()
	Set/get the resolution of the pieces of the axes actor. More...
virtual void	SetSphereResolution (int)
	Set/get the resolution of the pieces of the axes actor. More...
virtual int	GetSphereResolution ()
	Set/get the resolution of the pieces of the axes actor. More...
virtual void	SetCylinderResolution (int)
	Set/get the resolution of the pieces of the axes actor. More...
virtual int	GetCylinderResolution ()
	Set/get the resolution of the pieces of the axes actor. More...
virtual void	SetConeRadius (float)
	Set/get the radius of the pieces of the axes actor. More...
virtual float	GetConeRadius ()
	Set/get the radius of the pieces of the axes actor. More...
virtual void	SetSphereRadius (float)
	Set/get the radius of the pieces of the axes actor. More...
virtual float	GetSphereRadius ()
	Set/get the radius of the pieces of the axes actor. More...
virtual void	SetCylinderRadius (float)
	Set/get the radius of the pieces of the axes actor. More...
virtual float	GetCylinderRadius ()
	Set/get the radius of the pieces of the axes actor. More...
virtual void	SetXAxisLabelPosition (float)
	Set/get the positions of the axis labels. More...
virtual float	GetXAxisLabelPosition ()
	Set/get the positions of the axis labels. More...
virtual void	SetYAxisLabelPosition (float)
	Set/get the positions of the axis labels. More...
virtual float	GetYAxisLabelPosition ()
	Set/get the positions of the axis labels. More...
virtual void	SetZAxisLabelPosition (float)
	Set/get the positions of the axis labels. More...
virtual float	GetZAxisLabelPosition ()
	Set/get the positions of the axis labels. More...
void	SetUserDefinedTip (vtkPolyData *)
	Set the user defined tip polydata. More...
virtual vtkPolyData *	GetUserDefinedTip ()
	Set the user defined tip polydata. More...
void	SetUserDefinedShaft (vtkPolyData *)
	Set the user defined shaft polydata. More...
virtual vtkPolyData *	GetUserDefinedShaft ()
	Set the user defined shaft polydata. More...
vtkProperty *	GetXAxisTipProperty ()
	Get the tip properties. More...
vtkProperty *	GetYAxisTipProperty ()
	Get the tip properties. More...
vtkProperty *	GetZAxisTipProperty ()
	Get the tip properties. More...
vtkProperty *	GetXAxisShaftProperty ()
	Get the shaft properties. More...
vtkProperty *	GetYAxisShaftProperty ()
	Get the shaft properties. More...
vtkProperty *	GetZAxisShaftProperty ()
	Get the shaft properties. More...
vtkProperty *	GetXAxisLabelProperty ()
	Get the label properties. More...
vtkProperty *	GetYAxisLabelProperty ()
	Get the label properties. More...
vtkProperty *	GetZAxisLabelProperty ()
	Get the label properties. More...
virtual void	SetXAxisVisibility (bool)
	Get/Set the visibitity for each individual axis. More...
virtual bool	GetXAxisVisibility ()
	Get/Set the visibitity for each individual axis. More...
virtual void	SetYAxisVisibility (bool)
	Get/Set the visibitity for each individual axis. More...
virtual bool	GetYAxisVisibility ()
	Get/Set the visibitity for each individual axis. More...
virtual void	SetZAxisVisibility (bool)
	Get/Set the visibitity for each individual axis. More...
virtual bool	GetZAxisVisibility ()
	Get/Set the visibitity for each individual axis. More...
virtual void	SetXAxisLabelText (const char *)
	Set the label text. More...
virtual void	SetYAxisLabelText (const char *)
	Get/Set the visibitity for each individual axis. More...
virtual void	SetZAxisLabelText (const char *)
	Get/Set the visibitity for each individual axis. More...
Public Member Functions inherited from vtkProp3D
vtkProp3D *	NewInstance () const
virtual void	SetPosition (double pos[3])
virtual double *	GetPosition ()
virtual void	GetPosition (double data[3])
void	AddPosition (double deltaPosition[3])
void	AddPosition (double deltaX, double deltaY, double deltaZ)
double *	GetCenter ()
double *	GetXRange ()
double *	GetYRange ()
double *	GetZRange ()
double	GetLength ()
void	RotateX (double)
void	RotateY (double)
void	RotateZ (double)
void	RotateWXYZ (double w, double x, double y, double z)
void	SetOrientation (double x, double y, double z)
void	SetOrientation (double orientation[3])
double *	GetOrientationWXYZ ()
void	AddOrientation (double x, double y, double z)
void	AddOrientation (double orentation[3])
void	PokeMatrix (vtkMatrix4x4 *matrix)
void	InitPathTraversal ()
vtkMTimeType	GetUserTransformMatrixMTime ()
virtual void	ComputeMatrix ()
virtual void	SetPosition (double x, double y, double z)
virtual void	SetOrigin (double x, double y, double z)
virtual void	SetOrigin (const double pos[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetScale (double x, double y, double z)
virtual void	SetScale (double scale[3])
virtual double *	GetScale ()
virtual void	GetScale (double data[3])
void	SetScale (double s)
void	SetUserTransform (vtkLinearTransform *transform)
virtual vtkLinearTransform *	GetUserTransform ()
void	SetUserMatrix (vtkMatrix4x4 *matrix)
vtkMatrix4x4 *	GetUserMatrix ()
virtual void	GetMatrix (vtkMatrix4x4 *m)
virtual void	GetMatrix (double m[16])
void	GetBounds (double bounds[6])
double *	GetOrientation ()
void	GetOrientation (double orentation[3])
vtkMatrix4x4 *	GetMatrix ()
virtual int	GetIsIdentity ()
virtual void	SetPosition (double x, double y, double z)
virtual void	SetOrigin (double x, double y, double z)
virtual void	SetOrigin (const double pos[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetScale (double x, double y, double z)
virtual void	SetScale (double scale[3])
virtual double *	GetScale ()
virtual void	GetScale (double data[3])
void	SetScale (double s)
void	SetUserTransform (vtkLinearTransform *transform)
virtual vtkLinearTransform *	GetUserTransform ()
void	SetUserMatrix (vtkMatrix4x4 *matrix)
vtkMatrix4x4 *	GetUserMatrix ()
virtual void	GetMatrix (vtkMatrix4x4 *m)
virtual void	GetMatrix (double m[16])
void	GetBounds (double bounds[6])
double *	GetOrientation ()
void	GetOrientation (double orentation[3])
vtkMatrix4x4 *	GetMatrix ()
virtual int	GetIsIdentity ()
Public Member Functions inherited from vtkProp
vtkProp *	NewInstance () const
virtual void	Pick ()
virtual bool	HasKeys (vtkInformation *requiredKeys)
virtual void	BuildPaths (vtkAssemblyPaths *paths, vtkAssemblyPath *path)
virtual void	GetActors2D (vtkPropCollection *)
virtual void	GetVolumes (vtkPropCollection *)
virtual void	SetVisibility (int)
virtual int	GetVisibility ()
virtual void	VisibilityOn ()
virtual void	VisibilityOff ()
virtual void	SetPickable (int)
virtual int	GetPickable ()
virtual void	PickableOn ()
virtual void	PickableOff ()
virtual void	SetDragable (int)
virtual int	GetDragable ()
virtual void	DragableOn ()
virtual void	DragableOff ()
virtual void	SetUseBounds (bool)
virtual bool	GetUseBounds ()
virtual void	UseBoundsOn ()
virtual void	UseBoundsOff ()
virtual vtkAssemblyPath *	GetNextPath ()
virtual int	GetNumberOfPaths ()
virtual void	PokeMatrix (vtkMatrix4x4 *vtkNotUsed(matrix))
virtual vtkInformation *	GetPropertyKeys ()
virtual void	SetPropertyKeys (vtkInformation *keys)
virtual int	RenderVolumetricGeometry (vtkViewport *)
virtual int	RenderOverlay (vtkViewport *)
virtual bool	RenderFilteredOpaqueGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredTranslucentPolygonalGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredVolumetricGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredOverlay (vtkViewport *v, vtkInformation *requiredKeys)
virtual double	GetEstimatedRenderTime (vtkViewport *)
virtual double	GetEstimatedRenderTime ()
virtual void	SetEstimatedRenderTime (double t)
virtual void	RestoreEstimatedRenderTime ()
virtual void	AddEstimatedRenderTime (double t, vtkViewport *vtkNotUsed(vp))
virtual void	SetAllocatedRenderTime (double t, vtkViewport *vtkNotUsed(v))
virtual double	GetAllocatedRenderTime ()
void	SetRenderTimeMultiplier (double t)
virtual double	GetRenderTimeMultiplier ()
virtual bool	GetSupportsSelection ()
virtual int	GetNumberOfConsumers ()
void	AddConsumer (vtkObject *c)
void	RemoveConsumer (vtkObject *c)
vtkObject *	GetConsumer (int i)
int	IsConsumer (vtkObject *c)
virtual void	GetActors2D (vtkPropCollection *)
virtual void	GetVolumes (vtkPropCollection *)
virtual void	SetVisibility (int)
virtual int	GetVisibility ()
virtual void	VisibilityOn ()
virtual void	VisibilityOff ()
virtual void	SetPickable (int)
virtual int	GetPickable ()
virtual void	PickableOn ()
virtual void	PickableOff ()
virtual void	SetDragable (int)
virtual int	GetDragable ()
virtual void	DragableOn ()
virtual void	DragableOff ()
virtual void	SetUseBounds (bool)
virtual bool	GetUseBounds ()
virtual void	UseBoundsOn ()
virtual void	UseBoundsOff ()
virtual vtkAssemblyPath *	GetNextPath ()
virtual int	GetNumberOfPaths ()
virtual void	PokeMatrix (vtkMatrix4x4 *vtkNotUsed(matrix))
virtual vtkInformation *	GetPropertyKeys ()
virtual void	SetPropertyKeys (vtkInformation *keys)
virtual int	RenderVolumetricGeometry (vtkViewport *)
virtual int	RenderOverlay (vtkViewport *)
virtual bool	RenderFilteredOpaqueGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredTranslucentPolygonalGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredVolumetricGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredOverlay (vtkViewport *v, vtkInformation *requiredKeys)
virtual double	GetEstimatedRenderTime (vtkViewport *)
virtual double	GetEstimatedRenderTime ()
virtual void	SetEstimatedRenderTime (double t)
virtual void	RestoreEstimatedRenderTime ()
virtual void	AddEstimatedRenderTime (double t, vtkViewport *vtkNotUsed(vp))
virtual void	SetAllocatedRenderTime (double t, vtkViewport *vtkNotUsed(v))
virtual double	GetAllocatedRenderTime ()
void	SetRenderTimeMultiplier (double t)
virtual double	GetRenderTimeMultiplier ()
virtual bool	GetSupportsSelection ()
virtual int	GetNumberOfConsumers ()
void	AddConsumer (vtkObject *c)
void	RemoveConsumer (vtkObject *c)
vtkObject *	GetConsumer (int i)
int	IsConsumer (vtkObject *c)
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVAxesActor *	New ()
static int	IsTypeOf (const char *type)
static vtkPVAxesActor *	SafeDownCast (vtkObject *o)
Static Public Member Functions inherited from vtkProp3D
static int	IsTypeOf (const char *type)
static vtkProp3D *	SafeDownCast (vtkObjectBase *o)
Static Public Member Functions inherited from vtkProp
static int	IsTypeOf (const char *type)
static vtkProp *	SafeDownCast (vtkObjectBase *o)
static vtkInformationIntegerKey *	GeneralTextureUnit ()
static vtkInformationDoubleVectorKey *	GeneralTextureTransform ()
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVAxesActor ()
	~vtkPVAxesActor () override
void	UpdateProps ()
Protected Member Functions inherited from vtkProp3D
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkProp3D ()
	~vtkProp3D ()
Protected Member Functions inherited from vtkProp
	vtkProp ()
	~vtkProp ()
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
vtkCylinderSource *	CylinderSource
vtkLineSource *	LineSource
vtkConeSource *	ConeSource
vtkSphereSource *	SphereSource
vtkActor *	XAxisShaft
vtkActor *	YAxisShaft
vtkActor *	ZAxisShaft
vtkActor *	XAxisTip
vtkActor *	YAxisTip
vtkActor *	ZAxisTip
float	TotalLength [3]
float	NormalizedShaftLength [3]
float	NormalizedTipLength [3]
int	ShaftType
int	TipType
vtkPolyData *	UserDefinedTip
vtkPolyData *	UserDefinedShaft
char *	XAxisLabelText
char *	YAxisLabelText
char *	ZAxisLabelText
vtkVectorText *	XAxisVectorText
vtkVectorText *	YAxisVectorText
vtkVectorText *	ZAxisVectorText
vtkFollower *	XAxisLabel
vtkFollower *	YAxisLabel
vtkFollower *	ZAxisLabel
int	ConeResolution
int	SphereResolution
int	CylinderResolution
float	ConeRadius
float	SphereRadius
float	CylinderRadius
float	XAxisLabelPosition
float	YAxisLabelPosition
float	ZAxisLabelPosition
bool	XAxisVisibility = true
bool	YAxisVisibility = true
bool	ZAxisVisibility = true
Protected Attributes inherited from vtkProp3D
vtkLinearTransform *	UserTransform
vtkMatrix4x4 *	UserMatrix
vtkMatrix4x4 *	Matrix
vtkTimeStamp	MatrixMTime
double	Origin [3]
double	Position [3]
double	Orientation [3]
double	Scale [3]
double	Center [3]
vtkTransform *	Transform
double	Bounds [6]
vtkProp3D *	CachedProp3D
int	IsIdentity
Protected Attributes inherited from vtkProp
int	Visibility
int	Pickable
int	Dragable
bool	UseBounds
double	AllocatedRenderTime
double	EstimatedRenderTime
double	SavedEstimatedRenderTime
double	RenderTimeMultiplier
int	NumberOfConsumers
vtkObject **	Consumers
vtkAssemblyPaths *	Paths
vtkInformation *	PropertyKeys
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers

Detailed Description

a 3D axes representation

vtkPVAxesActor is used to represent 3D axes in the scene. The user can define the geometry to use for the shaft and the tip, and the user can set the text for the three axes. The text will follow the camera.

Definition at line 32 of file vtkPVAxesActor.h.

Member Typedef Documentation

Superclass

typedef vtkProp3D vtkPVAxesActor::Superclass

Definition at line 36 of file vtkPVAxesActor.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
CYLINDER_SHAFT
LINE_SHAFT
USER_DEFINED_SHAFT

Definition at line 233 of file vtkPVAxesActor.h.

anonymous enum

anonymous enum

Enumerator
CONE_TIP
SPHERE_TIP
USER_DEFINED_TIP

Definition at line 240 of file vtkPVAxesActor.h.

Constructor & Destructor Documentation

vtkPVAxesActor()

vtkPVAxesActor::vtkPVAxesActor ( )

protected

~vtkPVAxesActor()

vtkPVAxesActor::~vtkPVAxesActor ( )

overrideprotected

Member Function Documentation

New()

static vtkPVAxesActor* vtkPVAxesActor::New ( )

static

GetClassName()

virtual const char* vtkPVAxesActor::GetClassName ( )

virtual

IsTypeOf()

static int vtkPVAxesActor::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkPVAxesActor::IsA ( const char *  type )

virtual

Reimplemented from vtkProp3D.

SafeDownCast()

static vtkPVAxesActor* vtkPVAxesActor::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkPVAxesActor::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkProp3D.

GetActors()

void vtkPVAxesActor::GetActors ( vtkPropCollection *  )

overridevirtual

For some exporters and other other operations we must be able to collect all the actors or volumes.

These methods are used in that process.

Reimplemented from vtkProp.

RenderOpaqueGeometry()

int vtkPVAxesActor::RenderOpaqueGeometry ( vtkViewport *  viewport )

overridevirtual

Support the standard render methods.

Reimplemented from vtkProp.

RenderTranslucentPolygonalGeometry()

int vtkPVAxesActor::RenderTranslucentPolygonalGeometry ( vtkViewport *  viewport )

overridevirtual

Support the standard render methods.

Reimplemented from vtkProp.

HasTranslucentPolygonalGeometry()

int vtkPVAxesActor::HasTranslucentPolygonalGeometry ( )

overridevirtual

Support the standard render methods.

Reimplemented from vtkProp.

ShallowCopy()

void vtkPVAxesActor::ShallowCopy ( vtkProp *  prop )

overridevirtual

Shallow copy of an axes actor.

Overloads the virtual vtkProp method.

Reimplemented from vtkProp3D.

ReleaseGraphicsResources()

void vtkPVAxesActor::ReleaseGraphicsResources ( vtkWindow *  )

overridevirtual

Release any graphics resources that are being consumed by this actor.

The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkProp.

GetBounds() [1/2]

void vtkPVAxesActor::GetBounds

(

double

bounds[6]

)

Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

(The method GetBounds(double bounds[6]) is available from the superclass.)

GetBounds() [2/2]

double* vtkPVAxesActor::GetBounds ( )

overridevirtual

Get the bounds for this Actor as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

(The method GetBounds(double bounds[6]) is available from the superclass.)

Implements vtkProp3D.

GetMTime()

vtkMTimeType vtkPVAxesActor::GetMTime ( )

overridevirtual

Get the actors mtime plus consider its properties and texture if set.

Reimplemented from vtkProp3D.

GetRedrawMTime()

vtkMTimeType vtkPVAxesActor::GetRedrawMTime ( )

overridevirtual

Return the mtime of anything that would cause the rendered image to appear differently.

Usually this involves checking the mtime of the prop plus anything else it depends on such as properties, textures etc.

Reimplemented from vtkProp.

SetTotalLength() [1/2]

void vtkPVAxesActor::SetTotalLength ( float  v[3] )

inline

Set the total length of the axes in 3 dimensions.

Definition at line 93 of file vtkPVAxesActor.h.

SetTotalLength() [2/2]

void vtkPVAxesActor::SetTotalLength	(	float	x,
		float	y,
		float	z
	)

Set the total length of the axes in 3 dimensions.

GetTotalLength() [1/2]

virtual float* vtkPVAxesActor::GetTotalLength ( )

virtual

Set the total length of the axes in 3 dimensions.

GetTotalLength() [2/2]

virtual void vtkPVAxesActor::GetTotalLength ( float  data[3] )

virtual

Set the total length of the axes in 3 dimensions.

SetNormalizedShaftLength() [1/2]

void vtkPVAxesActor::SetNormalizedShaftLength ( float  v[3] )

inline

Set the normalized (0-1) length of the shaft.

Definition at line 102 of file vtkPVAxesActor.h.

SetNormalizedShaftLength() [2/2]

void vtkPVAxesActor::SetNormalizedShaftLength	(	float	x,
		float	y,
		float	z
	)

Set the normalized (0-1) length of the shaft.

GetNormalizedShaftLength() [1/2]

virtual float* vtkPVAxesActor::GetNormalizedShaftLength ( )

virtual

Set the normalized (0-1) length of the shaft.

GetNormalizedShaftLength() [2/2]

virtual void vtkPVAxesActor::GetNormalizedShaftLength ( float  data[3] )

virtual

Set the normalized (0-1) length of the shaft.

SetNormalizedTipLength() [1/2]

void vtkPVAxesActor::SetNormalizedTipLength ( float  v[3] )

inline

Set the normalized (0-1) length of the tip.

Definition at line 111 of file vtkPVAxesActor.h.

SetNormalizedTipLength() [2/2]

void vtkPVAxesActor::SetNormalizedTipLength	(	float	x,
		float	y,
		float	z
	)

Set the normalized (0-1) length of the tip.

GetNormalizedTipLength() [1/2]

virtual float* vtkPVAxesActor::GetNormalizedTipLength ( )

virtual

Set the normalized (0-1) length of the tip.

GetNormalizedTipLength() [2/2]

virtual void vtkPVAxesActor::GetNormalizedTipLength ( float  data[3] )

virtual

Set the normalized (0-1) length of the tip.

SetConeResolution()

virtual void vtkPVAxesActor::SetConeResolution ( int  )

virtual

Set/get the resolution of the pieces of the axes actor.

GetConeResolution()

virtual int vtkPVAxesActor::GetConeResolution ( )

virtual

Set/get the resolution of the pieces of the axes actor.

SetSphereResolution()

virtual void vtkPVAxesActor::SetSphereResolution ( int  )

virtual

Set/get the resolution of the pieces of the axes actor.

GetSphereResolution()

virtual int vtkPVAxesActor::GetSphereResolution ( )

virtual

Set/get the resolution of the pieces of the axes actor.

SetCylinderResolution()

virtual void vtkPVAxesActor::SetCylinderResolution ( int  )

virtual

Set/get the resolution of the pieces of the axes actor.

GetCylinderResolution()

virtual int vtkPVAxesActor::GetCylinderResolution ( )

virtual

Set/get the resolution of the pieces of the axes actor.

SetConeRadius()

virtual void vtkPVAxesActor::SetConeRadius ( float  )

virtual

Set/get the radius of the pieces of the axes actor.

GetConeRadius()

virtual float vtkPVAxesActor::GetConeRadius ( )

virtual

Set/get the radius of the pieces of the axes actor.

SetSphereRadius()

virtual void vtkPVAxesActor::SetSphereRadius ( float  )

virtual

Set/get the radius of the pieces of the axes actor.

GetSphereRadius()

virtual float vtkPVAxesActor::GetSphereRadius ( )

virtual

Set/get the radius of the pieces of the axes actor.

SetCylinderRadius()

virtual void vtkPVAxesActor::SetCylinderRadius ( float  )

virtual

Set/get the radius of the pieces of the axes actor.

GetCylinderRadius()

virtual float vtkPVAxesActor::GetCylinderRadius ( )

virtual

Set/get the radius of the pieces of the axes actor.

SetXAxisLabelPosition()

virtual void vtkPVAxesActor::SetXAxisLabelPosition ( float  )

virtual

Set/get the positions of the axis labels.

GetXAxisLabelPosition()

virtual float vtkPVAxesActor::GetXAxisLabelPosition ( )

virtual

Set/get the positions of the axis labels.

SetYAxisLabelPosition()

virtual void vtkPVAxesActor::SetYAxisLabelPosition ( float  )

virtual

Set/get the positions of the axis labels.

GetYAxisLabelPosition()

virtual float vtkPVAxesActor::GetYAxisLabelPosition ( )

virtual

Set/get the positions of the axis labels.

SetZAxisLabelPosition()

virtual void vtkPVAxesActor::SetZAxisLabelPosition ( float  )

virtual

Set/get the positions of the axis labels.

GetZAxisLabelPosition()

virtual float vtkPVAxesActor::GetZAxisLabelPosition ( )

virtual

Set/get the positions of the axis labels.

SetShaftType()

void vtkPVAxesActor::SetShaftType

(

int

type

)

Set the type of the shaft to a cylinder, line, or user defined geometry.

SetShaftTypeToCylinder()

void vtkPVAxesActor::SetShaftTypeToCylinder ( )

inline

Definition at line 156 of file vtkPVAxesActor.h.

SetShaftTypeToLine()

void vtkPVAxesActor::SetShaftTypeToLine ( )

inline

Definition at line 157 of file vtkPVAxesActor.h.

SetShaftTypeToUserDefined()

void vtkPVAxesActor::SetShaftTypeToUserDefined ( )

inline

Definition at line 158 of file vtkPVAxesActor.h.

SetTipType()

void vtkPVAxesActor::SetTipType

(

int

type

)

Set the type of the tip to a cone, sphere, or user defined geometry.

SetTipTypeToCone()

void vtkPVAxesActor::SetTipTypeToCone ( )

inline

Definition at line 164 of file vtkPVAxesActor.h.

SetTipTypeToSphere()

void vtkPVAxesActor::SetTipTypeToSphere ( )

inline

Definition at line 165 of file vtkPVAxesActor.h.

SetTipTypeToUserDefined()

void vtkPVAxesActor::SetTipTypeToUserDefined ( )

inline

Definition at line 166 of file vtkPVAxesActor.h.

SetUserDefinedTip()

void vtkPVAxesActor::SetUserDefinedTip

(

vtkPolyData *

)

Set the user defined tip polydata.

GetUserDefinedTip()

virtual vtkPolyData* vtkPVAxesActor::GetUserDefinedTip ( )

virtual

Set the user defined tip polydata.

SetUserDefinedShaft()

void vtkPVAxesActor::SetUserDefinedShaft

(

vtkPolyData *

)

Set the user defined shaft polydata.

GetUserDefinedShaft()

virtual vtkPolyData* vtkPVAxesActor::GetUserDefinedShaft ( )

virtual

Set the user defined shaft polydata.

GetXAxisTipProperty()

vtkProperty* vtkPVAxesActor::GetXAxisTipProperty

(

)

Get the tip properties.

GetYAxisTipProperty()

vtkProperty* vtkPVAxesActor::GetYAxisTipProperty

(

)

Get the tip properties.

GetZAxisTipProperty()

vtkProperty* vtkPVAxesActor::GetZAxisTipProperty

(

)

Get the tip properties.

GetXAxisShaftProperty()

vtkProperty* vtkPVAxesActor::GetXAxisShaftProperty

(

)

Get the shaft properties.

GetYAxisShaftProperty()

vtkProperty* vtkPVAxesActor::GetYAxisShaftProperty

(

)

Get the shaft properties.

GetZAxisShaftProperty()

vtkProperty* vtkPVAxesActor::GetZAxisShaftProperty

(

)

Get the shaft properties.

GetXAxisLabelProperty()

vtkProperty* vtkPVAxesActor::GetXAxisLabelProperty

(

)

Get the label properties.

GetYAxisLabelProperty()

vtkProperty* vtkPVAxesActor::GetYAxisLabelProperty

(

)

Get the label properties.

GetZAxisLabelProperty()

vtkProperty* vtkPVAxesActor::GetZAxisLabelProperty

(

)

Get the label properties.

SetXAxisVisibility()

virtual void vtkPVAxesActor::SetXAxisVisibility ( bool  )

virtual

Get/Set the visibitity for each individual axis.

GetXAxisVisibility()

virtual bool vtkPVAxesActor::GetXAxisVisibility ( )

virtual

Get/Set the visibitity for each individual axis.

SetYAxisVisibility()

virtual void vtkPVAxesActor::SetYAxisVisibility ( bool  )

virtual

Get/Set the visibitity for each individual axis.

GetYAxisVisibility()

virtual bool vtkPVAxesActor::GetYAxisVisibility ( )

virtual

Get/Set the visibitity for each individual axis.

SetZAxisVisibility()

virtual void vtkPVAxesActor::SetZAxisVisibility ( bool  )

virtual

Get/Set the visibitity for each individual axis.

GetZAxisVisibility()

virtual bool vtkPVAxesActor::GetZAxisVisibility ( )

virtual

Get/Set the visibitity for each individual axis.

SetXAxisLabelText()

virtual void vtkPVAxesActor::SetXAxisLabelText ( const char *  )

virtual

Set the label text.

SetYAxisLabelText()

virtual void vtkPVAxesActor::SetYAxisLabelText ( const char *  )

virtual

Get/Set the visibitity for each individual axis.

SetZAxisLabelText()

virtual void vtkPVAxesActor::SetZAxisLabelText ( const char *  )

virtual

Get/Set the visibitity for each individual axis.

UpdateProps()

void vtkPVAxesActor::UpdateProps ( )

protected

Member Data Documentation

CylinderSource

vtkCylinderSource* vtkPVAxesActor::CylinderSource

protected

Definition at line 251 of file vtkPVAxesActor.h.

LineSource

vtkLineSource* vtkPVAxesActor::LineSource

protected

Definition at line 252 of file vtkPVAxesActor.h.

ConeSource

vtkConeSource* vtkPVAxesActor::ConeSource

protected

Definition at line 253 of file vtkPVAxesActor.h.

SphereSource

vtkSphereSource* vtkPVAxesActor::SphereSource

protected

Definition at line 254 of file vtkPVAxesActor.h.

XAxisShaft

vtkActor* vtkPVAxesActor::XAxisShaft

protected

Definition at line 256 of file vtkPVAxesActor.h.

YAxisShaft

vtkActor* vtkPVAxesActor::YAxisShaft

protected

Definition at line 257 of file vtkPVAxesActor.h.

ZAxisShaft

vtkActor* vtkPVAxesActor::ZAxisShaft

protected

Definition at line 258 of file vtkPVAxesActor.h.

XAxisTip

vtkActor* vtkPVAxesActor::XAxisTip

protected

Definition at line 260 of file vtkPVAxesActor.h.

YAxisTip

vtkActor* vtkPVAxesActor::YAxisTip

protected

Definition at line 261 of file vtkPVAxesActor.h.

ZAxisTip

vtkActor* vtkPVAxesActor::ZAxisTip

protected

Definition at line 262 of file vtkPVAxesActor.h.

TotalLength

float vtkPVAxesActor::TotalLength[3]

protected

Definition at line 266 of file vtkPVAxesActor.h.

NormalizedShaftLength

float vtkPVAxesActor::NormalizedShaftLength[3]

protected

Definition at line 267 of file vtkPVAxesActor.h.

NormalizedTipLength

float vtkPVAxesActor::NormalizedTipLength[3]

protected

Definition at line 268 of file vtkPVAxesActor.h.

ShaftType

int vtkPVAxesActor::ShaftType

protected

Definition at line 270 of file vtkPVAxesActor.h.

TipType

int vtkPVAxesActor::TipType

protected

Definition at line 271 of file vtkPVAxesActor.h.

UserDefinedTip

vtkPolyData* vtkPVAxesActor::UserDefinedTip

protected

Definition at line 273 of file vtkPVAxesActor.h.

UserDefinedShaft

vtkPolyData* vtkPVAxesActor::UserDefinedShaft

protected

Definition at line 274 of file vtkPVAxesActor.h.

XAxisLabelText

char* vtkPVAxesActor::XAxisLabelText

protected

Definition at line 276 of file vtkPVAxesActor.h.

YAxisLabelText

char* vtkPVAxesActor::YAxisLabelText

protected

Definition at line 277 of file vtkPVAxesActor.h.

ZAxisLabelText

char* vtkPVAxesActor::ZAxisLabelText

protected

Definition at line 278 of file vtkPVAxesActor.h.

XAxisVectorText

vtkVectorText* vtkPVAxesActor::XAxisVectorText

protected

Definition at line 280 of file vtkPVAxesActor.h.

YAxisVectorText

vtkVectorText* vtkPVAxesActor::YAxisVectorText

protected

Definition at line 281 of file vtkPVAxesActor.h.

ZAxisVectorText

vtkVectorText* vtkPVAxesActor::ZAxisVectorText

protected

Definition at line 282 of file vtkPVAxesActor.h.

XAxisLabel

vtkFollower* vtkPVAxesActor::XAxisLabel

protected

Definition at line 284 of file vtkPVAxesActor.h.

YAxisLabel

vtkFollower* vtkPVAxesActor::YAxisLabel

protected

Definition at line 285 of file vtkPVAxesActor.h.

ZAxisLabel

vtkFollower* vtkPVAxesActor::ZAxisLabel

protected

Definition at line 286 of file vtkPVAxesActor.h.

ConeResolution

int vtkPVAxesActor::ConeResolution

protected

Definition at line 288 of file vtkPVAxesActor.h.

SphereResolution

int vtkPVAxesActor::SphereResolution

protected

Definition at line 289 of file vtkPVAxesActor.h.

CylinderResolution

int vtkPVAxesActor::CylinderResolution

protected

Definition at line 290 of file vtkPVAxesActor.h.

ConeRadius

float vtkPVAxesActor::ConeRadius

protected

Definition at line 292 of file vtkPVAxesActor.h.

SphereRadius

float vtkPVAxesActor::SphereRadius

protected

Definition at line 293 of file vtkPVAxesActor.h.

CylinderRadius

float vtkPVAxesActor::CylinderRadius

protected

Definition at line 294 of file vtkPVAxesActor.h.

XAxisLabelPosition

float vtkPVAxesActor::XAxisLabelPosition

protected

Definition at line 296 of file vtkPVAxesActor.h.

YAxisLabelPosition

float vtkPVAxesActor::YAxisLabelPosition

protected

Definition at line 297 of file vtkPVAxesActor.h.

ZAxisLabelPosition

float vtkPVAxesActor::ZAxisLabelPosition

protected

Definition at line 298 of file vtkPVAxesActor.h.

XAxisVisibility

bool vtkPVAxesActor::XAxisVisibility = true

protected

Definition at line 300 of file vtkPVAxesActor.h.

YAxisVisibility

bool vtkPVAxesActor::YAxisVisibility = true

protected

Definition at line 301 of file vtkPVAxesActor.h.

ZAxisVisibility

bool vtkPVAxesActor::ZAxisVisibility = true

protected

Definition at line 302 of file vtkPVAxesActor.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVAxesActor.h
