Custom scalar bar actor for ParaView that uses the Charts API. More...

#include <vtkContext2DScalarBarActor.h>

Inheritance diagram for vtkContext2DScalarBarActor:

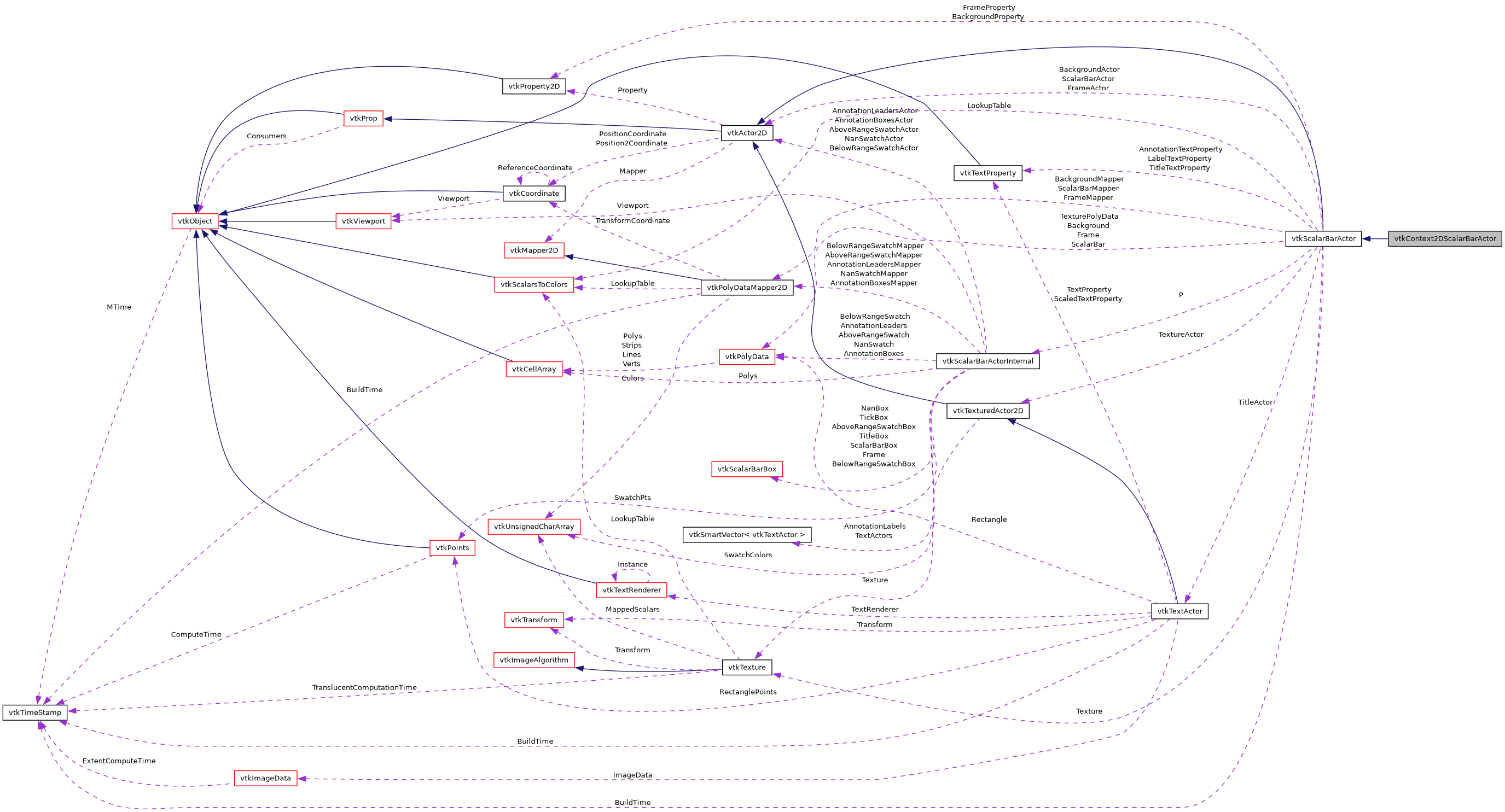

Collaboration diagram for vtkContext2DScalarBarActor:

[legend]

Public Types
enum	{ PrecedeScalarBar = 0, SucceedScalarBar }

enum	OutOfRangeType { BELOW_RANGE = 0, ABOVE_RANGE = 1 }

typedef vtkScalarBarActor	Superclass

Public Types inherited from vtkScalarBarActor
typedef vtkActor2D	Superclass

Public Types inherited from vtkActor2D
typedef vtkProp	Superclass

Public Types inherited from vtkProp
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetBackgroundColor (double, double, double, double)
	Set color of background to draw behind the color bar. More...

virtual void	SetBackgroundColor (double [4])

virtual double *	GetBackgroundColor ()

virtual void	GetBackgroundColor (double &, double &, double &, double &)

virtual void	GetBackgroundColor (double [4])

virtual void	SetBackgroundPadding (double)
	Set the padding to add to the background rectangle past the contents of the color legend contents. More...

virtual double	GetBackgroundPadding ()

void	SetCustomLabel (vtkIdType index, double value)
	Set label for index. More...

int	RenderOverlay (vtkViewport *viewport) override
	We only render in the overlay for the context scene. More...

int	RenderOpaqueGeometry (vtkViewport *viewport) override
	Draw the scalar bar and annotation text to the screen. More...

void	ReleaseGraphicsResources (vtkWindow *window) override
	Release any graphics resources that are being consumed by this actor. More...

virtual bool	Paint (vtkContext2D *painter)
	Responsible for actually drawing the scalar bar. More...

vtkRectf	GetBoundingRect ()
	Get the bounding rectangle of the scalar bar actor contents in display coordinates. More...

int	GetEstimatedNumberOfAnnotations ()
	Get an estimated number of annotations emulating loosely the algorithm generating the annotations. More...


virtual int	GetTitleJustification ()
	Set the title justification. More...

virtual void	SetTitleJustification (int)
	Set the title justification. More...


virtual void	SetForceHorizontalTitle (bool)
	If this flag is on, the title will be drawn horizontally above the scalar bar. More...

virtual bool	GetForceHorizontalTitle ()
	If this flag is on, the title will be drawn horizontally above the scalar bar. More...

virtual void	ForceHorizontalTitleOn ()
	If this flag is on, the title will be drawn horizontally above the scalar bar. More...

virtual void	ForceHorizontalTitleOff ()
	If this flag is on, the title will be drawn horizontally above the scalar bar. More...


virtual void	SetScalarBarThickness (int)
	Set the scalar bar thickness. More...

virtual int	GetScalarBarThickness ()
	Set the scalar bar thickness. More...


virtual void	SetScalarBarLength (double)
	Set the scalar bar length. More...

virtual double	GetScalarBarLength ()
	Set the scalar bar length. More...


virtual void	SetDrawScalarBarOutline (bool)
	Enable drawing an outline around the scalar bar. More...

virtual bool	GetDrawScalarBarOutline ()
	Enable drawing an outline around the scalar bar. More...

virtual void	DrawScalarBarOutlineOn ()
	Enable drawing an outline around the scalar bar. More...

virtual void	DrawScalarBarOutlineOff ()
	Enable drawing an outline around the scalar bar. More...


virtual void	SetScalarBarOutlineColor (double, double, double)
	Set the RGB color of the scalar bar outline. More...

virtual void	SetScalarBarOutlineColor (double [3])
	Set the RGB color of the scalar bar outline. More...

virtual double *	GetScalarBarOutlineColor ()
	Set the RGB color of the scalar bar outline. More...

virtual void	GetScalarBarOutlineColor (double &, double &, double &)
	Set the RGB color of the scalar bar outline. More...

virtual void	GetScalarBarOutlineColor (double [3])
	Set the RGB color of the scalar bar outline. More...


virtual void	SetScalarBarOutlineThickness (int)
	Set the thickness of the scalar bar outline. More...

virtual int	GetScalarBarOutlineThickness ()
	Set the thickness of the scalar bar outline. More...


virtual void	SetReverseLegend (bool)
	Set whether the scalar bar is reversed ie from high to low instead of from low to high. More...

virtual bool	GetReverseLegend ()
	Set whether the scalar bar is reversed ie from high to low instead of from low to high. More...

virtual void	ReverseLegendOn ()
	Set whether the scalar bar is reversed ie from high to low instead of from low to high. More...

virtual void	ReverseLegendOff ()
	Set whether the scalar bar is reversed ie from high to low instead of from low to high. More...


virtual int	GetAutomaticLabelFormat ()
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...

virtual void	SetAutomaticLabelFormat (int)
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...

virtual void	AutomaticLabelFormatOn ()
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...

virtual void	AutomaticLabelFormatOff ()
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...


virtual void	SetAddRangeLabels (int)
	Set/get whether to add range labels or not. More...

virtual int	GetAddRangeLabels ()
	Set/get whether to add range labels or not. More...


virtual void	SetAutomaticAnnotations (int)
	Set whether annotions are automatically created according the number of discrete colors. More...

virtual int	GetAutomaticAnnotations ()
	Set whether annotions are automatically created according the number of discrete colors. More...

virtual void	AutomaticAnnotationsOn ()
	Set whether annotions are automatically created according the number of discrete colors. More...

virtual void	AutomaticAnnotationsOff ()
	Set whether annotions are automatically created according the number of discrete colors. More...


virtual int	GetAddRangeAnnotations ()
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

virtual void	SetAddRangeAnnotations (int)
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

virtual void	AddRangeAnnotationsOn ()
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

virtual void	AddRangeAnnotationsOff ()
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...


virtual void	SetDrawTickMarks (bool)
	Set/get whether tick marks should be drawn. More...

virtual bool	GetDrawTickMarks ()
	Set/get whether tick marks should be drawn. More...


virtual void	SetRangeLabelFormat (const char *format)
	std::format style format for range labels. More...

virtual char *	GetRangeLabelFormat ()
	std::format style format for range labels. More...


virtual void	SetDataRangeLabelFormat (const char *format)
	std::format style format for range labels. More...

virtual char *	GetDataRangeLabelFormat ()
	std::format style format for range labels. More...


void	SetNumberOfCustomLabels (vtkIdType numLabels)
	Set number of custom labels. More...

vtkIdType	GetNumberOfCustomLabels ()
	Set number of custom labels. More...


virtual void	SetDrawDataRange (bool)
	If true, the ranges of the arrays linked to the scalar bar are displayed in the widget. More...

virtual bool	GetDrawDataRange ()
	If true, the ranges of the arrays linked to the scalar bar are displayed in the widget. More...

virtual void	DrawDataRangeOn ()
	If true, the ranges of the arrays linked to the scalar bar are displayed in the widget. More...

virtual void	DrawDataRangeOff ()
	If true, the ranges of the arrays linked to the scalar bar are displayed in the widget. More...


virtual void	SetDataRangeMin (double)
	Set/Get the minimum value of arrays linked to this scalar bar actor. More...

virtual double	GetDataRangeMin ()
	Set/Get the minimum value of arrays linked to this scalar bar actor. More...


virtual void	SetDataRangeMax (double)
	Set/Get the maximum value of arrays linked to this scalar bar actor. More...

virtual double	GetDataRangeMax ()
	Set/Get the maximum value of arrays linked to this scalar bar actor. More...

Public Member Functions inherited from vtkScalarBarActor
vtkScalarBarActor *	NewInstance () const

virtual int	HasTranslucentPolygonalGeometry ()

virtual void	GetScalarBarRect (int rect[4], vtkViewport *viewport)

void	ShallowCopy (vtkProp *prop)

virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)

virtual void	SetLookupTable (vtkScalarsToColors *)

virtual vtkScalarsToColors *	GetLookupTable ()

virtual void	SetUseOpacity (int)

virtual int	GetUseOpacity ()

virtual void	UseOpacityOn ()

virtual void	UseOpacityOff ()

virtual void	SetMaximumNumberOfColors (int)

virtual int	GetMaximumNumberOfColors ()

virtual void	SetNumberOfLabels (int)

virtual int	GetNumberOfLabels ()

virtual void	SetOrientation (int)

virtual int	GetOrientation ()

void	SetOrientationToHorizontal ()

void	SetOrientationToVertical ()

virtual void	SetTitleTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetTitleTextProperty ()

virtual void	SetLabelTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetLabelTextProperty ()

virtual void	SetAnnotationTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetAnnotationTextProperty ()

virtual void	SetLabelFormat (const char *)

virtual char *	GetLabelFormat ()

virtual void	SetTitle (const char *)

virtual char *	GetTitle ()

virtual void	SetComponentTitle (const char *)

virtual char *	GetComponentTitle ()

virtual void	SetTextureGridWidth (double)

virtual double	GetTextureGridWidth ()

virtual vtkTexturedActor2D *	GetTextureActor ()

virtual void	SetTextPosition (int)

virtual int	GetTextPosition ()

virtual void	SetTextPositionToPrecedeScalarBar ()

virtual void	SetTextPositionToSucceedScalarBar ()

virtual void	SetMaximumWidthInPixels (int)

virtual int	GetMaximumWidthInPixels ()

virtual void	SetMaximumHeightInPixels (int)

virtual int	GetMaximumHeightInPixels ()

virtual void	SetAnnotationLeaderPadding (double)

virtual double	GetAnnotationLeaderPadding ()

virtual void	SetDrawAnnotations (int)

virtual int	GetDrawAnnotations ()

virtual void	DrawAnnotationsOn ()

virtual void	DrawAnnotationsOff ()

virtual void	SetDrawNanAnnotation (int)

virtual int	GetDrawNanAnnotation ()

virtual void	DrawNanAnnotationOn ()

virtual void	DrawNanAnnotationOff ()

virtual void	SetDrawBelowRangeSwatch (bool)

virtual bool	GetDrawBelowRangeSwatch ()

virtual void	DrawBelowRangeSwatchOn ()

virtual void	DrawBelowRangeSwatchOff ()

virtual void	SetBelowRangeAnnotation (const char *)

virtual char *	GetBelowRangeAnnotation ()

virtual void	SetDrawAboveRangeSwatch (bool)

virtual bool	GetDrawAboveRangeSwatch ()

virtual void	DrawAboveRangeSwatchOn ()

virtual void	DrawAboveRangeSwatchOff ()

virtual void	SetAboveRangeAnnotation (const char *)

virtual char *	GetAboveRangeAnnotation ()

virtual void	SetFixedAnnotationLeaderLineColor (int)

virtual int	GetFixedAnnotationLeaderLineColor ()

virtual void	FixedAnnotationLeaderLineColorOn ()

virtual void	FixedAnnotationLeaderLineColorOff ()

virtual void	SetNanAnnotation (const char *)

virtual char *	GetNanAnnotation ()

virtual void	SetAnnotationTextScaling (int)

virtual int	GetAnnotationTextScaling ()

virtual void	AnnotationTextScalingOn ()

virtual void	AnnotationTextScalingOff ()

virtual void	SetDrawBackground (int)

virtual int	GetDrawBackground ()

virtual void	DrawBackgroundOn ()

virtual void	DrawBackgroundOff ()

virtual void	SetDrawFrame (int)

virtual int	GetDrawFrame ()

virtual void	DrawFrameOn ()

virtual void	DrawFrameOff ()

virtual void	SetDrawColorBar (int)

virtual int	GetDrawColorBar ()

virtual void	DrawColorBarOn ()

virtual void	DrawColorBarOff ()

virtual void	SetDrawTickLabels (int)

virtual int	GetDrawTickLabels ()

virtual void	DrawTickLabelsOn ()

virtual void	DrawTickLabelsOff ()

virtual void	SetBackgroundProperty (vtkProperty2D *p)

virtual vtkProperty2D *	GetBackgroundProperty ()

virtual void	SetFrameProperty (vtkProperty2D *p)

virtual vtkProperty2D *	GetFrameProperty ()

virtual int	GetTextPad ()

virtual void	SetTextPad (int)

virtual int	GetVerticalTitleSeparation ()

virtual void	SetVerticalTitleSeparation (int)

virtual double	GetBarRatio ()

virtual void	SetBarRatio (double)

virtual double	GetTitleRatio ()

virtual void	SetTitleRatio (double)

virtual void	SetUnconstrainedFontSize (bool)

virtual bool	GetUnconstrainedFontSize ()

virtual void	UnconstrainedFontSizeOn ()

virtual void	UnconstrainedFontSizeOff ()

virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)

virtual void	SetLookupTable (vtkScalarsToColors *)

virtual vtkScalarsToColors *	GetLookupTable ()

virtual void	SetUseOpacity (int)

virtual int	GetUseOpacity ()

virtual void	UseOpacityOn ()

virtual void	UseOpacityOff ()

virtual void	SetMaximumNumberOfColors (int)

virtual int	GetMaximumNumberOfColors ()

virtual void	SetNumberOfLabels (int)

virtual int	GetNumberOfLabels ()

virtual void	SetOrientation (int)

virtual int	GetOrientation ()

void	SetOrientationToHorizontal ()

void	SetOrientationToVertical ()

virtual void	SetTitleTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetTitleTextProperty ()

virtual void	SetLabelTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetLabelTextProperty ()

virtual void	SetAnnotationTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetAnnotationTextProperty ()

virtual void	SetLabelFormat (const char *)

virtual char *	GetLabelFormat ()

virtual void	SetTitle (const char *)

virtual char *	GetTitle ()

virtual void	SetComponentTitle (const char *)

virtual char *	GetComponentTitle ()

virtual void	SetTextureGridWidth (double)

virtual double	GetTextureGridWidth ()

virtual vtkTexturedActor2D *	GetTextureActor ()

virtual void	SetTextPosition (int)

virtual int	GetTextPosition ()

virtual void	SetTextPositionToPrecedeScalarBar ()

virtual void	SetTextPositionToSucceedScalarBar ()

virtual void	SetMaximumWidthInPixels (int)

virtual int	GetMaximumWidthInPixels ()

virtual void	SetMaximumHeightInPixels (int)

virtual int	GetMaximumHeightInPixels ()

virtual void	SetAnnotationLeaderPadding (double)

virtual double	GetAnnotationLeaderPadding ()

virtual void	SetDrawAnnotations (int)

virtual int	GetDrawAnnotations ()

virtual void	DrawAnnotationsOn ()

virtual void	DrawAnnotationsOff ()

virtual void	SetDrawNanAnnotation (int)

virtual int	GetDrawNanAnnotation ()

virtual void	DrawNanAnnotationOn ()

virtual void	DrawNanAnnotationOff ()

virtual void	SetDrawBelowRangeSwatch (bool)

virtual bool	GetDrawBelowRangeSwatch ()

virtual void	DrawBelowRangeSwatchOn ()

virtual void	DrawBelowRangeSwatchOff ()

virtual void	SetBelowRangeAnnotation (const char *)

virtual char *	GetBelowRangeAnnotation ()

virtual void	SetDrawAboveRangeSwatch (bool)

virtual bool	GetDrawAboveRangeSwatch ()

virtual void	DrawAboveRangeSwatchOn ()

virtual void	DrawAboveRangeSwatchOff ()

virtual void	SetAboveRangeAnnotation (const char *)

virtual char *	GetAboveRangeAnnotation ()

virtual void	SetFixedAnnotationLeaderLineColor (int)

virtual int	GetFixedAnnotationLeaderLineColor ()

virtual void	FixedAnnotationLeaderLineColorOn ()

virtual void	FixedAnnotationLeaderLineColorOff ()

virtual void	SetNanAnnotation (const char *)

virtual char *	GetNanAnnotation ()

virtual void	SetAnnotationTextScaling (int)

virtual int	GetAnnotationTextScaling ()

virtual void	AnnotationTextScalingOn ()

virtual void	AnnotationTextScalingOff ()

virtual void	SetDrawBackground (int)

virtual int	GetDrawBackground ()

virtual void	DrawBackgroundOn ()

virtual void	DrawBackgroundOff ()

virtual void	SetDrawFrame (int)

virtual int	GetDrawFrame ()

virtual void	DrawFrameOn ()

virtual void	DrawFrameOff ()

virtual void	SetDrawColorBar (int)

virtual int	GetDrawColorBar ()

virtual void	DrawColorBarOn ()

virtual void	DrawColorBarOff ()

virtual void	SetDrawTickLabels (int)

virtual int	GetDrawTickLabels ()

virtual void	DrawTickLabelsOn ()

virtual void	DrawTickLabelsOff ()

virtual void	SetBackgroundProperty (vtkProperty2D *p)

virtual vtkProperty2D *	GetBackgroundProperty ()

virtual void	SetFrameProperty (vtkProperty2D *p)

virtual vtkProperty2D *	GetFrameProperty ()

virtual int	GetTextPad ()

virtual void	SetTextPad (int)

virtual int	GetVerticalTitleSeparation ()

virtual void	SetVerticalTitleSeparation (int)

virtual double	GetBarRatio ()

virtual void	SetBarRatio (double)

virtual double	GetTitleRatio ()

virtual void	SetTitleRatio (double)

virtual void	SetUnconstrainedFontSize (bool)

virtual bool	GetUnconstrainedFontSize ()

virtual void	UnconstrainedFontSizeOn ()

virtual void	UnconstrainedFontSizeOff ()

Public Member Functions inherited from vtkActor2D
vtkActor2D *	NewInstance () const

vtkProperty2D *	GetProperty ()

virtual void	SetProperty (vtkProperty2D *)

void	SetDisplayPosition (int, int)

virtual vtkMTimeType	GetMTime ()

virtual void	GetActors2D (vtkPropCollection *pc)

virtual void	SetMapper (vtkMapper2D *mapper)

virtual vtkMapper2D *	GetMapper ()

virtual void	SetLayerNumber (int)

virtual int	GetLayerNumber ()

virtual vtkCoordinate *	GetPositionCoordinate ()

virtual void	SetPosition (float x[2])

virtual void	SetPosition (float x, float y)

virtual float *	GetPosition ()

virtual vtkCoordinate *	GetPosition2Coordinate ()

virtual void	SetPosition2 (float x[2])

virtual void	SetPosition2 (float x, float y)

virtual float *	GetPosition2 ()

void	SetWidth (double w)

double	GetWidth ()

void	SetHeight (double h)

double	GetHeight ()

virtual vtkCoordinate *	GetActualPositionCoordinate (void)

virtual vtkCoordinate *	GetActualPosition2Coordinate (void)

virtual void	SetMapper (vtkMapper2D *mapper)

virtual vtkMapper2D *	GetMapper ()

virtual void	SetLayerNumber (int)

virtual int	GetLayerNumber ()

virtual vtkCoordinate *	GetPositionCoordinate ()

virtual void	SetPosition (float x[2])

virtual void	SetPosition (float x, float y)

virtual float *	GetPosition ()

virtual vtkCoordinate *	GetPosition2Coordinate ()

virtual void	SetPosition2 (float x[2])

virtual void	SetPosition2 (float x, float y)

virtual float *	GetPosition2 ()

void	SetWidth (double w)

double	GetWidth ()

void	SetHeight (double h)

double	GetHeight ()

virtual vtkCoordinate *	GetActualPositionCoordinate (void)

virtual vtkCoordinate *	GetActualPosition2Coordinate (void)

Public Member Functions inherited from vtkProp
vtkProp *	NewInstance () const

virtual void	Pick ()

virtual bool	HasKeys (vtkInformation *requiredKeys)

virtual void	BuildPaths (vtkAssemblyPaths paths, vtkAssemblyPath path)

virtual void	GetActors (vtkPropCollection *)

virtual void	GetVolumes (vtkPropCollection *)

virtual void	SetVisibility (int)

virtual int	GetVisibility ()

virtual void	VisibilityOn ()

virtual void	VisibilityOff ()

virtual void	SetPickable (int)

virtual int	GetPickable ()

virtual void	PickableOn ()

virtual void	PickableOff ()

virtual void	SetDragable (int)

virtual int	GetDragable ()

virtual void	DragableOn ()

virtual void	DragableOff ()

virtual vtkMTimeType	GetRedrawMTime ()

virtual void	SetUseBounds (bool)

virtual bool	GetUseBounds ()

virtual void	UseBoundsOn ()

virtual void	UseBoundsOff ()

virtual double *	GetBounds ()

virtual void	InitPathTraversal ()

virtual vtkAssemblyPath *	GetNextPath ()

virtual int	GetNumberOfPaths ()

virtual void	PokeMatrix (vtkMatrix4x4 *vtkNotUsed(matrix))

virtual vtkMatrix4x4 *	GetMatrix ()

virtual vtkInformation *	GetPropertyKeys ()

virtual void	SetPropertyKeys (vtkInformation *keys)

virtual int	RenderVolumetricGeometry (vtkViewport *)

virtual bool	RenderFilteredOpaqueGeometry (vtkViewport v, vtkInformation requiredKeys)

virtual bool	RenderFilteredTranslucentPolygonalGeometry (vtkViewport v, vtkInformation requiredKeys)

virtual bool	RenderFilteredVolumetricGeometry (vtkViewport v, vtkInformation requiredKeys)

virtual bool	RenderFilteredOverlay (vtkViewport v, vtkInformation requiredKeys)

virtual double	GetEstimatedRenderTime (vtkViewport *)

virtual double	GetEstimatedRenderTime ()

virtual void	SetEstimatedRenderTime (double t)

virtual void	RestoreEstimatedRenderTime ()

virtual void	AddEstimatedRenderTime (double t, vtkViewport *vtkNotUsed(vp))

virtual void	SetAllocatedRenderTime (double t, vtkViewport *vtkNotUsed(v))

virtual double	GetAllocatedRenderTime ()

void	SetRenderTimeMultiplier (double t)

virtual double	GetRenderTimeMultiplier ()

virtual bool	GetSupportsSelection ()

virtual int	GetNumberOfConsumers ()

void	AddConsumer (vtkObject *c)

void	RemoveConsumer (vtkObject *c)

vtkObject *	GetConsumer (int i)

int	IsConsumer (vtkObject *c)

virtual void	GetActors (vtkPropCollection *)

virtual void	GetVolumes (vtkPropCollection *)

virtual void	SetVisibility (int)

virtual int	GetVisibility ()

virtual void	VisibilityOn ()

virtual void	VisibilityOff ()

virtual void	SetPickable (int)

virtual int	GetPickable ()

virtual void	PickableOn ()

virtual void	PickableOff ()

virtual void	SetDragable (int)

virtual int	GetDragable ()

virtual void	DragableOn ()

virtual void	DragableOff ()

virtual vtkMTimeType	GetRedrawMTime ()

virtual void	SetUseBounds (bool)

virtual bool	GetUseBounds ()

virtual void	UseBoundsOn ()

virtual void	UseBoundsOff ()

virtual double *	GetBounds ()

virtual void	InitPathTraversal ()

virtual vtkAssemblyPath *	GetNextPath ()

virtual int	GetNumberOfPaths ()

virtual void	PokeMatrix (vtkMatrix4x4 *vtkNotUsed(matrix))

virtual vtkMatrix4x4 *	GetMatrix ()

virtual vtkInformation *	GetPropertyKeys ()

virtual void	SetPropertyKeys (vtkInformation *keys)

virtual int	RenderVolumetricGeometry (vtkViewport *)

virtual bool	RenderFilteredOpaqueGeometry (vtkViewport v, vtkInformation requiredKeys)

virtual bool	RenderFilteredTranslucentPolygonalGeometry (vtkViewport v, vtkInformation requiredKeys)

virtual bool	RenderFilteredVolumetricGeometry (vtkViewport v, vtkInformation requiredKeys)

virtual bool	RenderFilteredOverlay (vtkViewport v, vtkInformation requiredKeys)

virtual double	GetEstimatedRenderTime (vtkViewport *)

virtual double	GetEstimatedRenderTime ()

virtual void	SetEstimatedRenderTime (double t)

virtual void	RestoreEstimatedRenderTime ()

virtual void	AddEstimatedRenderTime (double t, vtkViewport *vtkNotUsed(vp))

virtual void	SetAllocatedRenderTime (double t, vtkViewport *vtkNotUsed(v))

virtual double	GetAllocatedRenderTime ()

void	SetRenderTimeMultiplier (double t)

virtual double	GetRenderTimeMultiplier ()

virtual bool	GetSupportsSelection ()

virtual int	GetNumberOfConsumers ()

void	AddConsumer (vtkObject *c)

void	RemoveConsumer (vtkObject *c)

vtkObject *	GetConsumer (int i)

int	IsConsumer (vtkObject *c)

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkContext2DScalarBarActor *	SafeDownCast (vtkObject *o)

static vtkContext2DScalarBarActor *	New ()

Static Public Member Functions inherited from vtkScalarBarActor
static int	IsTypeOf (const char *type)

static vtkScalarBarActor *	SafeDownCast (vtkObjectBase *o)

static vtkScalarBarActor *	New ()

Static Public Member Functions inherited from vtkActor2D
static int	IsTypeOf (const char *type)

static vtkActor2D *	SafeDownCast (vtkObjectBase *o)

static vtkActor2D *	New ()

Static Public Member Functions inherited from vtkProp
static int	IsTypeOf (const char *type)

static vtkProp *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	GeneralTextureUnit ()

static vtkInformationDoubleVectorKey *	GeneralTextureTransform ()

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkContext2DScalarBarActor ()

	~vtkContext2DScalarBarActor () override

Protected Member Functions inherited from vtkScalarBarActor
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkScalarBarActor ()

	~vtkScalarBarActor ()

virtual void	RebuildLayout (vtkViewport *viewport)

virtual int	RebuildLayoutIfNeeded (vtkViewport *viewport)

virtual void	FreeLayoutStorage ()

virtual void	ComputeFrame ()

virtual void	ComputeScalarBarThickness ()

virtual void	ComputeSwatchPad ()

virtual void	LayoutNanSwatch ()

virtual void	LayoutBelowRangeSwatch ()

virtual void	LayoutAboveRangeSwatch ()

virtual void	LayoutAboveRangeSwatchPosn ()

virtual void	PrepareTitleText ()

virtual void	LayoutTitle ()

virtual void	LayoutForUnconstrainedFont ()

virtual void	ComputeScalarBarLength ()

virtual void	LayoutTicks ()

virtual void	LayoutAnnotations ()

virtual void	ConfigureAnnotations ()

virtual void	ConfigureFrame ()

virtual void	DrawBoxes ()

virtual void	ConfigureScalarBar ()

virtual void	ConfigureTitle ()

virtual void	ConfigureTicks ()

virtual void	ConfigureNanSwatch ()

virtual void	ConfigureAboveBelowRangeSwatch (bool above)

virtual void	EditAnnotations ()

virtual void	SizeTitle (double titleSize, int size, vtkViewport *viewport)

int	MapAnnotationLabels (vtkScalarsToColors lkup, double start, double delta, const double range)

int	PlaceAnnotationsVertically (double barX, double barY, double barWidth, double barHeight, double delta, double pad)

int	PlaceAnnotationsHorizontally (double barX, double barY, double barWidth, double barHeight, double delta, double pad)

int	MapAnnotationLabels (vtkScalarsToColors lkup, double start, double delta, const double range)

int	PlaceAnnotationsVertically (double barX, double barY, double barWidth, double barHeight, double delta, double pad)

int	PlaceAnnotationsHorizontally (double barX, double barY, double barWidth, double barHeight, double delta, double pad)

Protected Member Functions inherited from vtkActor2D
	vtkActor2D ()

	~vtkActor2D ()

Protected Member Functions inherited from vtkProp
	vtkProp ()

	~vtkProp ()

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
bool	DrawDataRange
	Flag to show the range on the scalar bar. More...

int	VerticalOffset = 0
	Offset applied to scalar bar when `DrawDataRange` is true. More...


double	DataRangeMin = 0
	Range to be displayed. More...

double	DataRangeMax = 0
	Range to be displayed. More...

Protected Attributes inherited from vtkScalarBarActor
int	MaximumNumberOfColors

int	NumberOfLabels

int	NumberOfLabelsBuilt

int	Orientation

int	DrawBackground

int	DrawFrame

int	DrawColorBar

int	DrawTickLabels

int	DrawAnnotations

int	DrawNanAnnotation

int	AnnotationTextScaling

int	FixedAnnotationLeaderLineColor

vtkProperty2D *	BackgroundProperty

vtkProperty2D *	FrameProperty

char *	Title

char *	ComponentTitle

char *	LabelFormat

int	UseOpacity

double	TextureGridWidth

int	TextPosition

char *	NanAnnotation

char *	BelowRangeAnnotation

char *	AboveRangeAnnotation

double	AnnotationLeaderPadding

int	MaximumWidthInPixels

int	MaximumHeightInPixels

int	TextPad

int	VerticalTitleSeparation

double	BarRatio

double	TitleRatio

bool	UnconstrainedFontSize

bool	DrawBelowRangeSwatch

bool	DrawAboveRangeSwatch

vtkTimeStamp	BuildTime

int	LastSize [2]

int	LastOrigin [2]

vtkScalarBarActorInternal *	P

vtkScalarsToColors *	LookupTable

vtkTextProperty *	TitleTextProperty

vtkTextProperty *	LabelTextProperty

vtkTextProperty *	AnnotationTextProperty

vtkTextActor *	TitleActor

vtkPolyData *	ScalarBar

vtkPolyDataMapper2D *	ScalarBarMapper

vtkActor2D *	ScalarBarActor

vtkPolyData *	TexturePolyData

vtkTexture *	Texture

vtkTexturedActor2D *	TextureActor

vtkPolyData *	Background

vtkPolyDataMapper2D *	BackgroundMapper

vtkActor2D *	BackgroundActor

vtkPolyData *	Frame

vtkPolyDataMapper2D *	FrameMapper

vtkActor2D *	FrameActor

Protected Attributes inherited from vtkActor2D
vtkMapper2D *	Mapper

int	LayerNumber

vtkProperty2D *	Property

vtkCoordinate *	PositionCoordinate

vtkCoordinate *	Position2Coordinate

Protected Attributes inherited from vtkProp
int	Visibility

int	Pickable

int	Dragable

bool	UseBounds

double	AllocatedRenderTime

double	EstimatedRenderTime

double	SavedEstimatedRenderTime

double	RenderTimeMultiplier

int	NumberOfConsumers

vtkObject **	Consumers

vtkAssemblyPaths *	Paths

vtkInformation *	PropertyKeys

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkScalarBarActor
	PrecedeScalarBar

	SucceedScalarBar

Detailed Description

Custom scalar bar actor for ParaView that uses the Charts API.

.SECTION Description

vtkContext2DScalarBarActor is a custom scalar bar actor that uses the Charts API for drawing calls. As the scalar bar actor is inherently 2D, the Charts API offers a comparatively simpler way of implementing features in the scalar bar actor than using vtkPolyData primitives.

Definition at line 37 of file vtkContext2DScalarBarActor.h.

Member Typedef Documentation

◆ Superclass

typedef vtkScalarBarActor vtkContext2DScalarBarActor::Superclass

Definition at line 40 of file vtkContext2DScalarBarActor.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
PrecedeScalarBar
SucceedScalarBar

Definition at line 63 of file vtkContext2DScalarBarActor.h.

◆ OutOfRangeType

enum vtkContext2DScalarBarActor::OutOfRangeType

Enumerator
BELOW_RANGE
ABOVE_RANGE

Definition at line 69 of file vtkContext2DScalarBarActor.h.

Constructor & Destructor Documentation

◆ vtkContext2DScalarBarActor()

vtkContext2DScalarBarActor::vtkContext2DScalarBarActor ( )

protected

◆ ~vtkContext2DScalarBarActor()

vtkContext2DScalarBarActor::~vtkContext2DScalarBarActor ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkContext2DScalarBarActor::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkContext2DScalarBarActor::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkContext2DScalarBarActor::IsA ( const char * type )

virtual

Reimplemented from vtkScalarBarActor.

◆ SafeDownCast()

static vtkContext2DScalarBarActor* vtkContext2DScalarBarActor::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkContext2DScalarBarActor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkScalarBarActor.

◆ New()

static vtkContext2DScalarBarActor* vtkContext2DScalarBarActor::New ( )

static

◆ GetTitleJustification()

virtual int vtkContext2DScalarBarActor::GetTitleJustification ( )

virtual

Set the title justification.

Valid values are VTK_TEXT_LEFT, VTK_TEXT_CENTERED, and VTK_TEXT_RIGHT.

◆ SetTitleJustification()

virtual void vtkContext2DScalarBarActor::SetTitleJustification ( int )

virtual

Set the title justification.

Valid values are VTK_TEXT_LEFT, VTK_TEXT_CENTERED, and VTK_TEXT_RIGHT.

◆ SetForceHorizontalTitle()

virtual void vtkContext2DScalarBarActor::SetForceHorizontalTitle ( bool )

virtual

If this flag is on, the title will be drawn horizontally above the scalar bar.

Off by default.

◆ GetForceHorizontalTitle()

virtual bool vtkContext2DScalarBarActor::GetForceHorizontalTitle ( )

virtual

If this flag is on, the title will be drawn horizontally above the scalar bar.

Off by default.

◆ ForceHorizontalTitleOn()

virtual void vtkContext2DScalarBarActor::ForceHorizontalTitleOn ( )

virtual

If this flag is on, the title will be drawn horizontally above the scalar bar.

Off by default.

◆ ForceHorizontalTitleOff()

virtual void vtkContext2DScalarBarActor::ForceHorizontalTitleOff ( )

virtual

If this flag is on, the title will be drawn horizontally above the scalar bar.

Off by default.

◆ SetScalarBarThickness()

virtual void vtkContext2DScalarBarActor::SetScalarBarThickness ( int )

virtual

Set the scalar bar thickness.

When the orientation is VTK_ORIENT_VERTICAL, this sets the scalar bar width. When the orientation is VTK_ORIENT_HORIZONTAL, this sets the scalar bar height. Specified in points akin to font size.

◆ GetScalarBarThickness()

virtual int vtkContext2DScalarBarActor::GetScalarBarThickness ( )

virtual

Set the scalar bar thickness.

When the orientation is VTK_ORIENT_VERTICAL, this sets the scalar bar width. When the orientation is VTK_ORIENT_HORIZONTAL, this sets the scalar bar height. Specified in points akin to font size.

◆ SetScalarBarLength()

virtual void vtkContext2DScalarBarActor::SetScalarBarLength ( double )

virtual

Set the scalar bar length.

When the orientation is VTK_ORIENT_VERTICAL, this sets the scalar bar height. When the orientation is VTK_ORIENT_HORIZONTAL, this sets the scalar bar width. Specified in normalized viewport coordinates, meaning the value is the fractional span of the viewport's width or height in the range [0, 1], depending on orientation.

◆ GetScalarBarLength()

virtual double vtkContext2DScalarBarActor::GetScalarBarLength ( )

virtual

Set the scalar bar length.

When the orientation is VTK_ORIENT_VERTICAL, this sets the scalar bar height. When the orientation is VTK_ORIENT_HORIZONTAL, this sets the scalar bar width. Specified in normalized viewport coordinates, meaning the value is the fractional span of the viewport's width or height in the range [0, 1], depending on orientation.

◆ SetDrawScalarBarOutline()

virtual void vtkContext2DScalarBarActor::SetDrawScalarBarOutline ( bool )

virtual

Enable drawing an outline around the scalar bar.

◆ GetDrawScalarBarOutline()

virtual bool vtkContext2DScalarBarActor::GetDrawScalarBarOutline ( )

virtual

Enable drawing an outline around the scalar bar.

◆ DrawScalarBarOutlineOn()

virtual void vtkContext2DScalarBarActor::DrawScalarBarOutlineOn ( )

virtual

Enable drawing an outline around the scalar bar.

◆ DrawScalarBarOutlineOff()

virtual void vtkContext2DScalarBarActor::DrawScalarBarOutlineOff ( )

virtual

Enable drawing an outline around the scalar bar.
