pqDisplaySizedImplicitPlanePropertyWidget is a custom property widget that uses "DisplaySizedImplicitPlaneWidgetRepresentation" to help users interactively set the origin and normal for a plane. More...

#include <pqDisplaySizedImplicitPlanePropertyWidget.h>

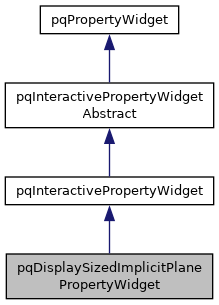

Inheritance diagram for pqDisplaySizedImplicitPlanePropertyWidget:

[legend]

Collaboration diagram for pqDisplaySizedImplicitPlanePropertyWidget:

[legend]

Public Slots
void	showPlane ()
	Slots used to toggle the visibility of the translucent plane. More...

void	hidePlane ()

void	setDrawPlane (bool val)

void	setDrawOutlineAndIntersectionEdges (bool val)
	Set draw outline and intersection edges. More...

void	useXNormal ()
	Set the widget normal to be along the X axis. More...

void	useYNormal ()
	Set the widget normal to be along the Y axis. More...

void	useZNormal ()
	Set the widget normal to be along the Z axis. More...

void	resetRadiusSize ()
	Reset the disk-radius size to the default size. More...

void	resetToDataBounds ()
	Update the widget's origin and bounds using current data bounds. More...

void	resetCameraToNormal ()
	Reset the camera to be down the plane normal. More...

void	useCameraNormal ()
	Set the widget normal to be along the camera view direction. More...

Public Slots inherited from pqInteractivePropertyWidgetAbstract
virtual void	setWidgetVisible (bool val)
	Toggle the interactive widget's visibility. More...

void	setDataSource (vtkSMProxy *dataSource)
	DataSource is used by interactive widgets to determine now to place the widget in the view e.g. More...

Public Slots inherited from pqPropertyWidget

Public Member Functions
	pqDisplaySizedImplicitPlanePropertyWidget (vtkSMProxy proxy, vtkSMPropertyGroup smgroup, QWidget *parent=nullptr)

	~pqDisplaySizedImplicitPlanePropertyWidget () override

void	apply () override
	Overridden to update the DrawPlane state. More...

void	reset () override

Public Member Functions inherited from pqInteractivePropertyWidget
	pqInteractivePropertyWidget (const char widget_smgroup, const char widget_smname, vtkSMProxy proxy, vtkSMPropertyGroup smgroup, QWidget *parent=nullptr)

	~pqInteractivePropertyWidget () override

vtkSMNewWidgetRepresentationProxy *	widgetProxy () const
	Returns the proxy for the 3D interactive widget. More...

Public Member Functions inherited from pqInteractivePropertyWidgetAbstract
	pqInteractivePropertyWidgetAbstract (const char widget_smgroup, const char widget_smname, vtkSMProxy proxy, vtkSMPropertyGroup smgroup, QWidget *parent=nullptr)

	~pqInteractivePropertyWidgetAbstract () override

void	reset () override
	Overridden to call this->render() to ensure that the widget is redrawn. More...

void	setView (pqView *view) override
	Overridden to show the widget proxy in the new view. More...

bool	isWidgetVisible () const
	Returns the interactive widget's visibility. More...

vtkSMProxy *	dataSource () const
	Returns the data source. More...

vtkBoundingBox	dataBounds (bool visibleOnly=false) const
	Returns bounds from the dataSource, if possible. More...

vtkSMPropertyGroup *	propertyGroup () const
	Returns the vtkSMPropertyGroup pass to the constructor. More...

void	hideEvent (QHideEvent *) override
	Overriden in order to hide the VTK widget. More...

void	showEvent (QShowEvent *) override
	Overriden in order to show the VTK widget. More...

void	select () override
	In these methods, we show/hide the widget since the interactive widget is not supposed to be visible except when the panel is "active" or "selected". More...

void	deselect () override
	In these methods, we show/hide the widget since the interactive widget is not supposed to be visible except when the panel is "active" or "selected". More...

void	selectPort (int portIndex) final
	In these methods, we show/hide the widget since the interactive widget is not supposed to be visible except when the panel is "active" or "selected". More...

Public Member Functions inherited from pqPropertyWidget
	pqPropertyWidget (vtkSMProxy proxy, QWidget parent=nullptr)

	~pqPropertyWidget () override

virtual void	updateWidget (bool showing_advanced_properties)

pqView *	view () const

vtkSMProxy *	proxy () const

vtkSMProperty *	property () const

virtual char *	panelVisibility () const
	Forward calls to vtkSMProperty. More...

virtual void	setPanelVisibility (const char *vis)

virtual bool	isSingleRowItem () const
	Determines if the PropertyWidget must be constructed using a single row. More...

bool	showLabel () const

const QList< QPointer< pqPropertyWidgetDecorator > > &	decorators () const
	Provides access to the decorators for this widget. More...

virtual void	setReadOnly (bool readOnly)
	Set widget in read-only mode. More...

void	setProperty (vtkSMProperty *property)

bool	isSelected () const
	These methods are called by pqPropertiesPanel when the panel for proxy becomes active/deactive. More...

Protected Slots
void	placeWidget () override
	Places the interactive widget using current data source information. More...

Protected Slots inherited from pqInteractivePropertyWidgetAbstract
virtual void	placeWidget ()=0
	Places the interactive widget using current data source information. More...

void	render ()
	Safe call render on the view. More...

virtual void	updateWidgetVisibility ()
	This method is called to update the state of Visibility and Enabled properties on the widget based on the state of isWidgetVisible(), isSelected() and the active view. More...

Additional Inherited Members
Signals inherited from pqInteractivePropertyWidgetAbstract
void	widgetVisibilityToggled (bool)
	Fired whenever setWidgetVisible() changes the widget's visibility. More...

void	widgetVisibilityUpdated (bool)
	Fired whenever the widgets visibility is updated for whatever reason, be it because the panel was selected/deselected or the view changed, etc. More...

void	startInteraction ()
	Fired by the underlying interactive widget representation proxy, for each respective events. More...

void	interaction ()
	Fired by the underlying interactive widget representation proxy, for each respective events. More...

void	endInteraction ()
	Fired by the underlying interactive widget representation proxy, for each respective events. More...

Signals inherited from pqPropertyWidget
void	viewChanged (pqView *view)
	This signal is emitted when the current view changes. More...

void	changeAvailable ()
	This signal is fired as soon as the user starts editing in the widget. More...

void	changeFinished ()
	This signal is fired as soon as the user is done with making an atomic change. More...

void	restartRequired ()
	Indicates that a restart of the program is required for the setting to take effect. More...

Static Public Member Functions inherited from pqPropertyWidget
template<class T >
static QString	getXMLName (T *object)
	Description: This static utility method returns the XML name for an object as a QString. More...

static QString	getTooltip (vtkSMProperty *property)
	Returns the tooltip to use for the property. More...

static int	hintsWidgetHeightNumberOfRows (vtkPVXMLElement *hints, int defaultValue=10)
	Helper method to return value from WidgetHeight XML hint, if any. More...

static std::vector< std::string >	parseComponentLabels (vtkPVXMLElement *hints, unsigned int elemCount=0)
	Parse a XML element as a list of label to use for this widget. More...

Protected Member Functions inherited from pqInteractivePropertyWidget
vtkSMNewWidgetRepresentationProxyAbstract *	internalWidgetProxy () final
	Get the internal instance of the widget proxy. More...

Protected Member Functions inherited from pqInteractivePropertyWidgetAbstract
void	setupConnections (vtkSMNewWidgetRepresentationProxyAbstract widget, vtkSMPropertyGroup smgroup, vtkSMProxy *smproxy)
	Setup all the links and events for the given widget and SM property group. More...

void	setupUserObserver (vtkSMProxy *smproxy)

Protected Member Functions inherited from pqPropertyWidget
void	addPropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProperty smproperty, int smindex=-1)

void	addPropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProxy smproxy, vtkSMProperty *smproperty, int smindex=-1)

void	removePropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProperty smproperty, int smindex=-1)

void	removePropertyLink (QObject qobject, const char qproperty, const char qsignal, vtkSMProxy smproxy, vtkSMProperty *smproperty, int smindex=-1)

void	setShowLabel (bool show)

void	setChangeAvailableAsChangeFinished (bool status)
	For most pqPropertyWidget subclasses a changeAvailable() signal, corresponds to a changeFinished() signal. More...

void	addDecorator (pqPropertyWidgetDecorator *)
	Register a decorator. More...

void	removeDecorator (pqPropertyWidgetDecorator *)
	Unregisters a decorator. More...

pqPropertyLinks &	links ()
	Provides access to the pqPropertyLinks instance. More...

Protected Attributes inherited from pqInteractivePropertyWidgetAbstract
bool	VisibleState = true

bool	WidgetVisibility = false

int	LinkedPortIndex = -1

Properties inherited from pqInteractivePropertyWidgetAbstract
pqSMProxy	dataSource

Detailed Description

pqDisplaySizedImplicitPlanePropertyWidget is a custom property widget that uses "DisplaySizedImplicitPlaneWidgetRepresentation" to help users interactively set the origin and normal for a plane.

To use this widget for a property group (vtkSMPropertyGroup), use "InteractivePlane" as the "panel_widget" in the XML configuration for the proxy. The property group should have properties for following functions:

Origin: a 3-tuple vtkSMDoubleVectorProperty that will be linked to the origin of the interactive plane.
Normal: a 3-tuple vtkSMDoubleVectorProperty that will be linked to the normal for the interactive plane.
Input: (optional) a vtkSMInputProperty that is used to get data information for bounds when placing/resetting the widget.

Definition at line 23 of file pqDisplaySizedImplicitPlanePropertyWidget.h.

Constructor & Destructor Documentation

◆ pqDisplaySizedImplicitPlanePropertyWidget()

pqDisplaySizedImplicitPlanePropertyWidget::pqDisplaySizedImplicitPlanePropertyWidget	(	vtkSMProxy *	proxy,
		vtkSMPropertyGroup *	smgroup,
		QWidget *	parent = `nullptr`
	)

◆ ~pqDisplaySizedImplicitPlanePropertyWidget()

pqDisplaySizedImplicitPlanePropertyWidget::~pqDisplaySizedImplicitPlanePropertyWidget ( )

override

Member Function Documentation

◆ apply()

void pqDisplaySizedImplicitPlanePropertyWidget::apply ( )

overridevirtual

Overridden to update the DrawPlane state.

Reimplemented from pqPropertyWidget.

◆ reset()

void pqDisplaySizedImplicitPlanePropertyWidget::reset ( )

overridevirtual

Reimplemented from pqPropertyWidget.

◆ showPlane

void pqDisplaySizedImplicitPlanePropertyWidget::showPlane ( )

inlineslot

Slots used to toggle the visibility of the translucent plane.

Definition at line 44 of file pqDisplaySizedImplicitPlanePropertyWidget.h.

◆ hidePlane

void pqDisplaySizedImplicitPlanePropertyWidget::hidePlane ( )

inlineslot

Definition at line 45 of file pqDisplaySizedImplicitPlanePropertyWidget.h.

◆ setDrawPlane

void pqDisplaySizedImplicitPlanePropertyWidget::setDrawPlane ( bool val )

slot

◆ setDrawOutlineAndIntersectionEdges

void pqDisplaySizedImplicitPlanePropertyWidget::setDrawOutlineAndIntersectionEdges ( bool val )

slot

Set draw outline and intersection edges.

◆ useXNormal

void pqDisplaySizedImplicitPlanePropertyWidget::useXNormal ( )

inlineslot

Set the widget normal to be along the X axis.

Definition at line 56 of file pqDisplaySizedImplicitPlanePropertyWidget.h.

◆ useYNormal

void pqDisplaySizedImplicitPlanePropertyWidget::useYNormal ( )

inlineslot

Set the widget normal to be along the Y axis.

Definition at line 61 of file pqDisplaySizedImplicitPlanePropertyWidget.h.

◆ useZNormal

void pqDisplaySizedImplicitPlanePropertyWidget::useZNormal ( )

inlineslot

Set the widget normal to be along the Z axis.

Definition at line 66 of file pqDisplaySizedImplicitPlanePropertyWidget.h.

◆ resetRadiusSize

void pqDisplaySizedImplicitPlanePropertyWidget::resetRadiusSize ( )

slot

Reset the disk-radius size to the default size.

◆ resetToDataBounds

void pqDisplaySizedImplicitPlanePropertyWidget::resetToDataBounds ( )

slot

Update the widget's origin and bounds using current data bounds.

◆ resetCameraToNormal

void pqDisplaySizedImplicitPlanePropertyWidget::resetCameraToNormal ( )

slot

Reset the camera to be down the plane normal.

◆ useCameraNormal

void pqDisplaySizedImplicitPlanePropertyWidget::useCameraNormal ( )

slot

Set the widget normal to be along the camera view direction.

◆ placeWidget

void pqDisplaySizedImplicitPlanePropertyWidget::placeWidget ( )

overrideprotectedslot

Places the interactive widget using current data source information.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Qt/ApplicationComponents/pqDisplaySizedImplicitPlanePropertyWidget.h

Public Slots

Public Member Functions

Protected Slots

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ pqDisplaySizedImplicitPlanePropertyWidget()

◆ ~pqDisplaySizedImplicitPlanePropertyWidget()

Member Function Documentation

◆ apply()

◆ reset()

◆ showPlane

◆ hidePlane

◆ setDrawPlane

◆ setDrawOutlineAndIntersectionEdges

◆ useXNormal

◆ useYNormal

◆ useZNormal

◆ resetRadiusSize

◆ resetToDataBounds

◆ resetCameraToNormal

◆ useCameraNormal

◆ placeWidget
