vtkSMSessionClient is a remote-session that connects to a remote server. More...

#include <vtkSMSessionClient.h>

Inheritance diagram for vtkSMSessionClient:

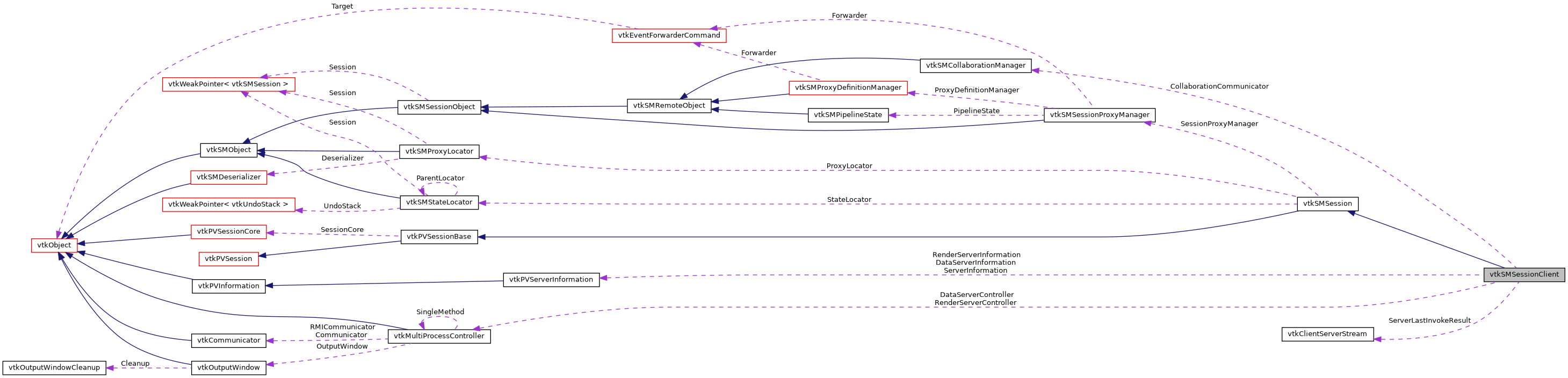

Collaboration diagram for vtkSMSessionClient:

[legend]

Public Types
typedef vtkSMSession	Superclass

Public Types inherited from vtkSMSession
enum	RenderingMode { RENDERING_NOT_AVAILABLE = 0x00, RENDERING_UNIFIED = 0x01, RENDERING_SPLIT = 0x02 }

typedef vtkPVSessionBase	Superclass

Public Types inherited from vtkPVSessionBase
enum	EventIds { RegisterRemoteObjectEvent = 1234, UnRegisterRemoteObjectEvent = 4321, ProcessingRemoteEnd = 2143, ConnectionLost = 6789 }

typedef vtkPVSession	Superclass

Public Types inherited from vtkPVSession
enum	ServerFlags { NONE = 0, DATA_SERVER = 0x01, DATA_SERVER_ROOT = 0x02, RENDER_SERVER = 0x04, RENDER_SERVER_ROOT = 0x08, SERVERS = DATA_SERVER \| RENDER_SERVER, CLIENT = 0x10, CLIENT_AND_SERVERS = DATA_SERVER \| CLIENT \| RENDER_SERVER }

typedef vtkSession	Superclass

Public Types inherited from vtkSession
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

const char *	GetURI () override
	Return the url used to connect the current session to a server. More...

bool	GetIsAlive () override
	Returns true is this session is active/alive/valid. More...

ServerFlags	GetProcessRoles () override
	Returns a ServerFlags indicate the nature of the current processes. More...

vtkMultiProcessController *	GetController (ServerFlags processType) override
	Returns the controller used to communicate with the process. More...

vtkPVServerInformation *	GetServerInformation () override
	vtkPVServerInformation is an information-object that provides information about the server processes. More...

void	Initialize () override
	Called to do any initializations after a successful session has been established. More...

void	CloseSession ()
	Gracefully exits the session. More...

bool	GatherInformation (vtkTypeUInt32 location, vtkPVInformation *information, vtkTypeUInt32 globalid) override
	Gather information about an object referred by the `globalid`. More...

int	GetNumberOfProcesses (vtkTypeUInt32 servers) override
	Returns the number of processes on the given server/s. More...

bool	IsMPIInitialized (vtkTypeUInt32 servers) override
	Returns whether or not MPI is initialized on the specified server/s. More...

void	PreDisconnection () override

virtual bool	IsNotBusy ()
	Flag used to know if it is a good time to handle server notification. More...

virtual void	StartBusyWork ()
	BusyWork should be declared inside method that will request several network call that we don't want to interrupt such as GatherInformation and Pull. More...

virtual void	EndBusyWork ()
	BusyWork should be declared inside method that will request several network call that we don't want to interrupt such as GatherInformation and Pull. More...

vtkSMCollaborationManager *	GetCollaborationManager () override
	Return the instance of vtkSMCollaborationManager that will be lazy created at the first call. More...

int	GetConnectID ()
	Return the connect id of this client. More...

vtkTypeUInt32	GetNextGlobalUniqueIdentifier () override
	Provides the next available identifier. More...

vtkTypeUInt32	GetNextChunkGlobalUniqueIdentifier (vtkTypeUInt32 chunkSize) override
	Return the first Id of the requested chunk. More...

void	OnServerNotificationMessageRMI (void *message, int message_length)


virtual bool	Connect (const char *url, int timeout=60)
	Connects a remote server. More...

virtual bool	Connect (const char url, int timeout, bool(callback)(), vtkNetworkAccessManager::ConnectionResult &connectionResult)
	Connects a remote server. More...


void	PushState (vtkSMMessage *msg) override
	Push the state. More...

void	PullState (vtkSMMessage *message) override
	Push the state. More...

void	ExecuteStream (vtkTypeUInt32 location, const vtkClientServerStream &stream, bool ignore_errors=false) override
	Push the state. More...

const vtkClientServerStream &	GetLastResult (vtkTypeUInt32 location) override
	Push the state. More...


virtual void	SetAbortConnect (bool)
	When Connect() is waiting for a server to connect back to the client (in reverse connect mode), then it periodically fires ProgressEvent. More...


void	PrepareProgressInternal () override
	Should be called to begin/end receiving progresses on this session. More...

void	CleanupPendingProgressInternal () override
	Should be called to begin/end receiving progresses on this session. More...

Public Member Functions inherited from vtkSMSession
virtual vtkSMProxyLocator *	GetProxyLocator ()

virtual unsigned int	GetRenderClientMode ()
	Convenient method to determine if the rendering is done in a pvrenderer or not. More...

void	NotifyAllClients (const vtkSMMessage *msg) override
	Sends the message to all clients. More...

void	NotifyOtherClients (const vtkSMMessage *) override
	Sends the message to all but the active client-session. More...

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Returns the vtkSMSessionProxyManager associated with this session. More...

virtual vtkSMStateLocator *	GetStateLocator ()
	Provide an access to the session state locator that can provide the last state of a given remote object that have been pushed. More...

Public Member Functions inherited from vtkPVSessionBase
vtkMPIMToNSocketConnection *	GetMPIMToNSocketConnection () override
	This is socket connection, if any to communicate between the data-server and render-server nodes. More...

vtkSIProxyDefinitionManager *	GetProxyDefinitionManager ()
	Get the ProxyDefinitionManager. More...

vtkSIObject *	GetSIObject (vtkTypeUInt32 globalid)
	Returns a vtkSIObject or subclass given its global id, if any. More...

vtkObject *	GetRemoteObject (vtkTypeUInt32 globalid)
	Return a vtkSMRemoteObject given its global id if any otherwise return nullptr;. More...

virtual void	GetAllRemoteObjects (vtkCollection *collection)
	Allow the user to fill its vtkCollection with all RemoteObject This could be useful when you want to hold a reference to them to prevent any deletion across several method call. More...

virtual bool	IsProcessingRemoteNotification ()
	This property is used to discard ignore_synchronization proxy property when we load protobuf states. More...

virtual void	UseSessionCoreOf (vtkPVSessionBase *other)
	Update internal session core in order to use the one used in another session. More...

virtual vtkPVSessionCore *	GetSessionCore ()
	Provides access to the session core. More...

Public Member Functions inherited from vtkPVSession
bool	HasProcessRole (vtkTypeUInt32 flag)
	Convenience method that returns true if the current session is serving the indicated role on this process. More...

virtual bool	IsMultiClients ()
	Allow anyone to know easily if the current session is involved in collaboration or not. More...

bool	GetPendingProgress ()
	Returns true if the session is within a PrepareProgress() and CleanupPendingProgress() block. More...

virtual vtkPVProgressHandler *	GetProgressHandler ()
	Provides access to the progress handler. More...

void	PrepareProgress ()
	Should be called to begin/end receiving progresses on this session. More...

void	CleanupPendingProgress ()
	Should be called to begin/end receiving progresses on this session. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMSessionClient *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionClient *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSession
static vtkSMSession *	New ()

static vtkSMSession *	New (vtkPVSessionBase *otherSession)

static vtkSMSession *	New (vtkPVSessionCore *otherSessionCore)

static int	IsTypeOf (const char *type)

static vtkSMSession *	SafeDownCast (vtkObject *o)

static vtkIdType	ConnectToCatalyst ()
	These are static helper methods that help create Catalyst ParaView sessions. More...

static vtkIdType	ConnectToSelf ()
	These are static helper methods that help create standard ParaView sessions. More...

static vtkIdType	ConnectToRemote (const char *hostname, int port, int timeout=60)
	These are static helper methods that help create standard ParaView sessions. More...

static vtkIdType	ConnectToRemote (const char hostname, int port, int timeout, bool(callback)(), vtkNetworkAccessManager::ConnectionResult &result)
	These are static helper methods that help create standard ParaView sessions. More...

static vtkIdType	ReverseConnectToRemote (int port)
	Same as ConnectToRemote() except that it waits for a reverse connection for timeout seconds. More...

static vtkIdType	ReverseConnectToRemoteWithTimeout (int port, int timeout)
	Same as ConnectToRemote() except that it waits for a reverse connection for timeout seconds. More...

static vtkIdType	ReverseConnectToRemote (int port, int timeout, bool(*callback)(), vtkNetworkAccessManager::ConnectionResult &result)
	Same as ConnectToRemote() except that it waits for a reverse connection for timeout seconds. More...

static vtkIdType	ConnectToRemote (const char dshost, int dsport, const char rshost, int rsport, int timeout=60)
	These are static helper methods that help create standard ParaView sessions. More...

static vtkIdType	ConnectToRemote (const char dshost, int dsport, const char rshost, int rsport, int timeout, bool(*callback)(), vtkNetworkAccessManager::ConnectionResult &result)
	These are static helper methods that help create standard ParaView sessions. More...

static vtkIdType	ReverseConnectToRemote (int dsport, int rsport)
	Same as ConnectToRemote() except that it waits for a reverse connection for timeout seconds. More...

static vtkIdType	ReverseConnectToRemoteWithTimeout (int dsport, int rsport, int timeout)
	Same as ConnectToRemote() except that it waits for a reverse connection for timeout seconds. More...

static vtkIdType	ReverseConnectToRemote (int dsport, int rsport, int timeout, bool(*callback)(), vtkNetworkAccessManager::ConnectionResult &result)
	Same as ConnectToRemote() except that it waits for a reverse connection for timeout seconds. More...

static void	Disconnect (vtkIdType sessionid)
	Use this method to disconnect from a session. More...

static void	Disconnect (vtkSMSession *session)
	Use this method to disconnect from a session. More...

Static Public Member Functions inherited from vtkPVSessionBase
static int	IsTypeOf (const char *type)

static vtkPVSessionBase *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVSession
static int	IsTypeOf (const char *type)

static vtkPVSession *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSession
static int	IsTypeOf (const char *type)

static vtkSession *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMSessionClient ()

	~vtkSMSessionClient () override

void	SetRenderServerController (vtkMultiProcessController *)

void	SetDataServerController (vtkMultiProcessController *)

void	SetupDataServerRenderServerConnection ()

void	UnRegisterSIObject (vtkSMMessage *msg) override
	Delete server side object. More...

void	RegisterSIObject (vtkSMMessage *msg) override
	Notify server side object that it is used by one more client. More...

vtkTypeUInt32	GetRealLocation (vtkTypeUInt32)
	Translates the location to a real location based on whether a separate render-server exists. More...

virtual void	SetURI (const char *)

bool	OnWrongTagEvent (vtkObject caller, unsigned long eventid, void calldata) override
	Callback when any vtkMultiProcessController subclass fires a WrongTagEvent. More...

virtual void	OnConnectionLost (vtkObject caller, unsigned long eventid, void calldata)
	Callback when any vtkMultiProcessController subclass fires a ErrorEvent. More...

Protected Member Functions inherited from vtkSMSession
	vtkSMSession (bool initialize_during_constructor=true, vtkPVSessionCore *preExistingSessionCore=nullptr)

	~vtkSMSession () override

virtual void	ProcessNotification (const vtkSMMessage *)
	Process the Notifation message sent using API to communicate from server-to-client. More...

void	UpdateStateHistory (vtkSMMessage *msg)
	This method has been externalized so classes that heritate from vtkSMSession and override PushState could easily keep track of the StateHistory and maintain the UndoRedo mecanisme. More...

Protected Member Functions inherited from vtkPVSessionBase
	vtkPVSessionBase ()

	vtkPVSessionBase (vtkPVSessionCore *coreToUse)

	~vtkPVSessionBase () override

void	RegisterRemoteObject (vtkTypeUInt32 globalid, vtkTypeUInt32 location, vtkObject *obj)
	Register a remote object. More...

void	UnRegisterRemoteObject (vtkTypeUInt32 globalid, vtkTypeUInt32 location)
	Unregister a remote object. More...

vtkPVSessionCore *	GetSessionCore () const
	Method used to migrate from one Session type to another by keeping the same vtkPVSessionCore. More...

void	SetSessionCore (vtkPVSessionCore *)
	Method used to migrate from one Session type to another by keeping the same vtkPVSessionCore. More...

virtual bool	StartProcessingRemoteNotification ()
	Methods used to monitor if we are currently processing a server notification Only vtkSMSessionClient use the flag to disable ignore_synchronization properties from being updated. More...

virtual void	StopProcessingRemoteNotification (bool previousValue)
	Methods used to monitor if we are currently processing a server notification Only vtkSMSessionClient use the flag to disable ignore_synchronization properties from being updated. More...

Protected Member Functions inherited from vtkPVSession
	vtkPVSession ()

	~vtkPVSession () override

Protected Member Functions inherited from vtkSession
	vtkSession ()

	~vtkSession () override

virtual void	Activate ()
	Subclasses must call this to mark the session active. More...

virtual void	DeActivate ()
	Subclasses must call this to mark the session inactive. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkMultiProcessController *	RenderServerController

vtkMultiProcessController *	DataServerController

vtkPVServerInformation *	DataServerInformation

vtkPVServerInformation *	RenderServerInformation

vtkPVServerInformation *	ServerInformation

vtkClientServerStream *	ServerLastInvokeResult

bool	AbortConnect

char *	URI

bool	NoMoreDelete

vtkSMCollaborationManager *	CollaborationCommunicator

Protected Attributes inherited from vtkSMSession
vtkSMSessionProxyManager *	SessionProxyManager

vtkSMStateLocator *	StateLocator

vtkSMProxyLocator *	ProxyLocator

Protected Attributes inherited from vtkPVSessionBase
vtkPVSessionCore *	SessionCore

bool	ProcessingRemoteNotification
	Methods used to monitor if we are currently processing a server notification Only vtkSMSessionClient use the flag to disable ignore_synchronization properties from being updated. More...

Protected Attributes inherited from vtkPVSession
vtkPVProgressHandler *	ProgressHandler

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Protected Types inherited from vtkPVSession
enum	{ EXCEPTION_EVENT_TAG = 31416 }

Detailed Description

vtkSMSessionClient is a remote-session that connects to a remote server.

vtkSMSessionClient supports both connecting a pvserver as well as connecting a pvdataserver/pvrenderserver.

Definition at line 23 of file vtkSMSessionClient.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMSession vtkSMSessionClient::Superclass

Definition at line 27 of file vtkSMSessionClient.h.

Constructor & Destructor Documentation

◆ vtkSMSessionClient()

vtkSMSessionClient::vtkSMSessionClient ( )

protected

◆ ~vtkSMSessionClient()

vtkSMSessionClient::~vtkSMSessionClient ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMSessionClient* vtkSMSessionClient::New ( )

static

◆ GetClassName()

virtual const char* vtkSMSessionClient::GetClassName ( )

virtual

Reimplemented from vtkSMSession.

◆ IsTypeOf()

static int vtkSMSessionClient::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMSessionClient::IsA ( const char * type )

virtual

Reimplemented from vtkSMSession.

◆ SafeDownCast()

static vtkSMSessionClient* vtkSMSessionClient::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMSessionClient::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMSession.

◆ GetURI()

const char* vtkSMSessionClient::GetURI ( )

inlineoverridevirtual

Return the url used to connect the current session to a server.

Reimplemented from vtkSMSession.

Definition at line 33 of file vtkSMSessionClient.h.

◆ Connect() [1/2]

virtual bool vtkSMSessionClient::Connect	(	const char *	url,
		int	timeout = `60`
	)

inlinevirtual

Connects a remote server.

URL can be of the following format: cs://<pvserver-host>:<pvserver-port> cdsrs://<pvdataserver-host>:<pvdataserver-port>/<pvrenderserver-host>:<pvrenderserver-port> In both cases the port is optional. When not provided default pvserver/pvdataserver port // is 11111, while default pvrenderserver port is 22221. For reverse connect i.e. the client waits for the server to connect back, simply add "rc" to the protocol e.g. csrc://<pvserver-host>:<pvserver-port> cdsrsrc://<pvdataserver-host>:<pvdataserver-port>/<pvrenderserver-host>:<pvrenderserver-port> In this case, the hostname is irrelevant and is ignored. Wait for timeout seconds for the connection. Default is 60, 0 means no retry. -1 means infinite retries. The callback should return true, if the connection should continue trying to connect, else return false to abort. The result arg provide information about the failure or sucess of the connection, see vtkNetworkAccessManager::ConnectionResult for possible values.

Definition at line 55 of file vtkSMSessionClient.h.

◆ Connect() [2/2]

virtual bool vtkSMSessionClient::Connect	(	const char *	url,
		int	timeout,
		bool(*)()	callback,
		vtkNetworkAccessManager::ConnectionResult &	connectionResult
	)

virtual

Connects a remote server.

URL can be of the following format: cs://<pvserver-host>:<pvserver-port> cdsrs://<pvdataserver-host>:<pvdataserver-port>/<pvrenderserver-host>:<pvrenderserver-port> In both cases the port is optional. When not provided default pvserver/pvdataserver port // is 11111, while default pvrenderserver port is 22221. For reverse connect i.e. the client waits for the server to connect back, simply add "rc" to the protocol e.g. csrc://<pvserver-host>:<pvserver-port> cdsrsrc://<pvdataserver-host>:<pvdataserver-port>/<pvrenderserver-host>:<pvrenderserver-port> In this case, the hostname is irrelevant and is ignored. Wait for timeout seconds for the connection. Default is 60, 0 means no retry. -1 means infinite retries. The callback should return true, if the connection should continue trying to connect, else return false to abort. The result arg provide information about the failure or sucess of the connection, see vtkNetworkAccessManager::ConnectionResult for possible values.

◆ GetIsAlive()

bool vtkSMSessionClient::GetIsAlive ( )

overridevirtual

Returns true is this session is active/alive/valid.

Reimplemented from vtkSMSession.

◆ GetProcessRoles()

ServerFlags vtkSMSessionClient::GetProcessRoles ( )

inlineoverridevirtual

Returns a ServerFlags indicate the nature of the current processes.

e.g. if the current processes acts as a data-server and a render-server, it returns DATA_SERVER | RENDER_SERVER. Overridden to return CLIENT since this process only acts as the client.

Reimplemented from vtkSMSession.

Definition at line 75 of file vtkSMSessionClient.h.

◆ GetController()

vtkMultiProcessController* vtkSMSessionClient::GetController ( ServerFlags processType )

overridevirtual

Returns the controller used to communicate with the process.

Value must be DATA_SERVER_ROOT or RENDER_SERVER_ROOT or CLIENT.

Reimplemented from vtkPVSession.

◆ GetServerInformation()

vtkPVServerInformation* vtkSMSessionClient::GetServerInformation ( )

inlineoverridevirtual

vtkPVServerInformation is an information-object that provides information about the server processes.

These include server-side capabilities as well as server-side command line arguments e.g. tile-display parameters. Use this method to obtain the server-side information. Overridden to provide return the information gathered from data-server and render-server.

Reimplemented from vtkPVSessionBase.

Definition at line 91 of file vtkSMSessionClient.h.

◆ Initialize()

void vtkSMSessionClient::Initialize ( )

overridevirtual

Called to do any initializations after a successful session has been established.

Initialize the data-server-render-server connection, if applicable.

Reimplemented from vtkSMSession.

◆ PushState()

void vtkSMSessionClient::PushState ( vtkSMMessage * msg )

overridevirtual

Push the state.

Reimplemented from vtkSMSession.

◆ PullState()

void vtkSMSessionClient::PullState ( vtkSMMessage * message )

overridevirtual

Push the state.

Reimplemented from vtkPVSessionBase.

◆ ExecuteStream()

void vtkSMSessionClient::ExecuteStream	(	vtkTypeUInt32	location,
		const vtkClientServerStream &	stream,
		bool	ignore_errors = `false`
	)

overridevirtual

Push the state.

Reimplemented from vtkPVSessionBase.

◆ GetLastResult()

const vtkClientServerStream& vtkSMSessionClient::GetLastResult ( vtkTypeUInt32 location )

overridevirtual

Push the state.

Reimplemented from vtkPVSessionBase.

◆ SetAbortConnect()

virtual void vtkSMSessionClient::SetAbortConnect ( bool )

virtual

When Connect() is waiting for a server to connect back to the client (in reverse connect mode), then it periodically fires ProgressEvent.

Application can add observer to this signal and set this flag to true, if it wants to abort the wait for the server.

◆ CloseSession()

void vtkSMSessionClient::CloseSession ( )

Gracefully exits the session.

◆ GatherInformation()

bool vtkSMSessionClient::GatherInformation	(	vtkTypeUInt32	location,
		vtkPVInformation *	information,
		vtkTypeUInt32	globalid
	)

overridevirtual

Gather information about an object referred by the globalid.

location identifies the processes to gather the information from. Overridden to fetch the information from server if needed, otherwise it's handled locally.

Reimplemented from vtkPVSessionBase.

◆ GetNumberOfProcesses()

int vtkSMSessionClient::GetNumberOfProcesses ( vtkTypeUInt32 servers )

overridevirtual

Returns the number of processes on the given server/s.

If more than 1 server is identified, than it returns the maximum number of processes e.g. is servers = DATA_SERVER | RENDER_SERVER and there are 3 data-server nodes and 2 render-server nodes, then this method will return 3.

Reimplemented from vtkSMSession.

◆ IsMPIInitialized()

bool vtkSMSessionClient::IsMPIInitialized ( vtkTypeUInt32 servers )

overridevirtual

Returns whether or not MPI is initialized on the specified server/s.

If more than 1 server is identified it will return true only if all of the servers have MPI initialized.

Reimplemented from vtkSMSession.

◆ PreDisconnection()

void vtkSMSessionClient::PreDisconnection ( )

overridevirtual

Reimplemented from vtkSMSession.

◆ IsNotBusy()

virtual bool vtkSMSessionClient::IsNotBusy ( )

virtual

Flag used to know if it is a good time to handle server notification.

◆ StartBusyWork()

virtual void vtkSMSessionClient::StartBusyWork ( )

virtual

BusyWork should be declared inside method that will request several network call that we don't want to interrupt such as GatherInformation and Pull.

◆ EndBusyWork()

virtual void vtkSMSessionClient::EndBusyWork ( )

virtual

BusyWork should be declared inside method that will request several network call that we don't want to interrupt such as GatherInformation and Pull.

◆ GetCollaborationManager()

vtkSMCollaborationManager* vtkSMSessionClient::GetCollaborationManager ( )

overridevirtual

Return the instance of vtkSMCollaborationManager that will be lazy created at the first call.

Reimplemented from vtkSMSession.

◆ PrepareProgressInternal()

void vtkSMSessionClient::PrepareProgressInternal ( )

overridevirtual

Should be called to begin/end receiving progresses on this session.

Overridden to relay to the server(s).

Reimplemented from vtkPVSessionBase.

◆ CleanupPendingProgressInternal()

void vtkSMSessionClient::CleanupPendingProgressInternal ( )

overridevirtual

Should be called to begin/end receiving progresses on this session.

Overridden to relay to the server(s).

Reimplemented from vtkPVSessionBase.

◆ GetConnectID()

int vtkSMSessionClient::GetConnectID ( )

Return the connect id of this client.

◆ GetNextGlobalUniqueIdentifier()

vtkTypeUInt32 vtkSMSessionClient::GetNextGlobalUniqueIdentifier ( )

overridevirtual

Provides the next available identifier.

This implementation works locally. without any code distribution. To support the distributed architecture the vtkSMSessionClient override those method to call them on the DATA_SERVER vtkPVSessionBase instance.

Reimplemented from vtkPVSessionBase.

◆ GetNextChunkGlobalUniqueIdentifier()

vtkTypeUInt32 vtkSMSessionClient::GetNextChunkGlobalUniqueIdentifier ( vtkTypeUInt32 chunkSize )

overridevirtual

Return the first Id of the requested chunk.

1 = ReverveNextIdChunk(10); | Reserved ids [1,2,3,4,5,6,7,8,9,10] 11 = ReverveNextIdChunk(10);| Reserved ids [11,12,13,14,15,16,17,18,19,20] b = a + 10;

Reimplemented from vtkPVSessionBase.

◆ OnServerNotificationMessageRMI()

void vtkSMSessionClient::OnServerNotificationMessageRMI	(	void *	message,
		int	message_length
	)

◆ SetRenderServerController()

void vtkSMSessionClient::SetRenderServerController ( vtkMultiProcessController * )

protected

◆ SetDataServerController()

void vtkSMSessionClient::SetDataServerController ( vtkMultiProcessController * )

protected

◆ SetupDataServerRenderServerConnection()

void vtkSMSessionClient::SetupDataServerRenderServerConnection ( )

protected

◆ UnRegisterSIObject()

void vtkSMSessionClient::UnRegisterSIObject ( vtkSMMessage * msg )

overrideprotectedvirtual

Delete server side object.

(SIObject)

Reimplemented from vtkPVSessionBase.

◆ RegisterSIObject()

void vtkSMSessionClient::RegisterSIObject ( vtkSMMessage * msg )

overrideprotectedvirtual

Notify server side object that it is used by one more client.

(SIObject)

Reimplemented from vtkPVSessionBase.

◆ GetRealLocation()

vtkTypeUInt32 vtkSMSessionClient::GetRealLocation ( vtkTypeUInt32 )

protected

Translates the location to a real location based on whether a separate render-server exists.

◆ SetURI()

virtual void vtkSMSessionClient::SetURI ( const char * )

protectedvirtual

◆ OnWrongTagEvent()

bool vtkSMSessionClient::OnWrongTagEvent	(	vtkObject *	caller,
		unsigned long	eventid,
		void *	calldata
	)

overrideprotectedvirtual

Callback when any vtkMultiProcessController subclass fires a WrongTagEvent.

Return true if the event was handle locally.

Reimplemented from vtkPVSession.

◆ OnConnectionLost()

virtual void vtkSMSessionClient::OnConnectionLost	(	vtkObject *	caller,
		unsigned long	eventid,
		void *	calldata
	)

protectedvirtual

Callback when any vtkMultiProcessController subclass fires a ErrorEvent.

Member Data Documentation

◆ RenderServerController

vtkMultiProcessController* vtkSMSessionClient::RenderServerController

protected

Definition at line 243 of file vtkSMSessionClient.h.

◆ DataServerController

vtkMultiProcessController* vtkSMSessionClient::DataServerController

protected

Definition at line 244 of file vtkSMSessionClient.h.

◆ DataServerInformation

vtkPVServerInformation* vtkSMSessionClient::DataServerInformation

protected

Definition at line 246 of file vtkSMSessionClient.h.

◆ RenderServerInformation

vtkPVServerInformation* vtkSMSessionClient::RenderServerInformation

protected

Definition at line 247 of file vtkSMSessionClient.h.

◆ ServerInformation

vtkPVServerInformation* vtkSMSessionClient::ServerInformation

protected

Definition at line 248 of file vtkSMSessionClient.h.

◆ ServerLastInvokeResult

vtkClientServerStream* vtkSMSessionClient::ServerLastInvokeResult

protected

Definition at line 249 of file vtkSMSessionClient.h.

◆ AbortConnect

bool vtkSMSessionClient::AbortConnect

protected

Definition at line 251 of file vtkSMSessionClient.h.

◆ URI

char* vtkSMSessionClient::URI

protected

Definition at line 254 of file vtkSMSessionClient.h.

◆ NoMoreDelete

bool vtkSMSessionClient::NoMoreDelete

protected

Definition at line 260 of file vtkSMSessionClient.h.

◆ CollaborationCommunicator

vtkSMCollaborationManager* vtkSMSessionClient::CollaborationCommunicator

protected

Definition at line 263 of file vtkSMSessionClient.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMSessionClient.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMSessionClient()

◆ ~vtkSMSessionClient()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetURI()

◆ Connect() [1/2]

◆ Connect() [2/2]

◆ GetIsAlive()

◆ GetProcessRoles()

◆ GetController()

◆ GetServerInformation()

◆ Initialize()

◆ PushState()

◆ PullState()

◆ ExecuteStream()

◆ GetLastResult()

◆ SetAbortConnect()

◆ CloseSession()

◆ GatherInformation()

◆ GetNumberOfProcesses()

◆ IsMPIInitialized()

◆ PreDisconnection()

◆ IsNotBusy()

◆ StartBusyWork()

◆ EndBusyWork()

◆ GetCollaborationManager()

◆ PrepareProgressInternal()

◆ CleanupPendingProgressInternal()

◆ GetConnectID()

◆ GetNextGlobalUniqueIdentifier()

◆ GetNextChunkGlobalUniqueIdentifier()

◆ OnServerNotificationMessageRMI()

◆ SetRenderServerController()

◆ SetDataServerController()

◆ SetupDataServerRenderServerConnection()

◆ UnRegisterSIObject()

◆ RegisterSIObject()

◆ GetRealLocation()

◆ SetURI()

◆ OnWrongTagEvent()

◆ OnConnectionLost()

Member Data Documentation

◆ RenderServerController

◆ DataServerController

◆ DataServerInformation

◆ RenderServerInformation

◆ ServerInformation

◆ ServerLastInvokeResult

◆ AbortConnect

◆ URI

◆ NoMoreDelete

◆ CollaborationCommunicator
