representation for "Render View" like views in ParaView. More...

#include <vtkSMPVRepresentationProxy.h>

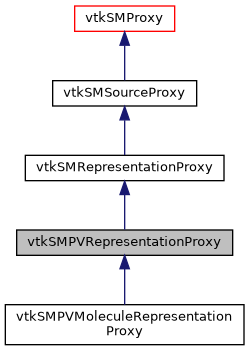

Inheritance diagram for vtkSMPVRepresentationProxy:

[legend]

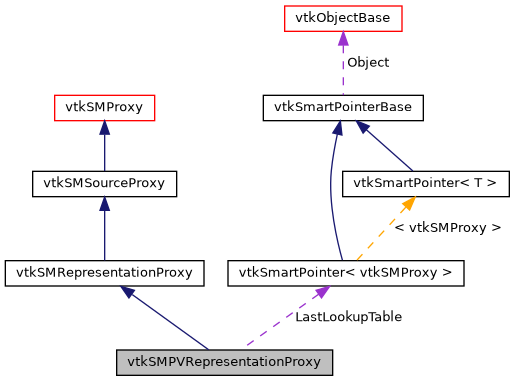

Collaboration diagram for vtkSMPVRepresentationProxy:

[legend]

Public Types
typedef vtkSMRepresentationProxy	Superclass

Public Types inherited from vtkSMRepresentationProxy
typedef vtkSMSourceProxy	Superclass

Public Types inherited from vtkSMSourceProxy
enum	ProcessSupportType { SINGLE_PROCESS, MULTIPLE_PROCESSES, BOTH }

typedef vtkSMProxy	Superclass

Public Types inherited from vtkSMProxy
enum	ResetPropertiesMode { DEFAULT = 0, ONLY_XML = 1, ONLY_DOMAIN = 2 }

enum	{ COPY_PROXY_PROPERTY_VALUES_BY_REFERENCE = 0, COPY_PROXY_PROPERTY_VALUES_BY_CLONING }
	Flags used for the proxyPropertyCopyFlag argument to the Copy method. More...

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

bool	SetRepresentationType (const char *type) override
	Overridden to ensure when picking representation types that require scalar colors, scalar coloring it setup properly. More...

bool	GetVolumeIndependentRanges ()
	True if ranges have to be computed independently on component 0 for the color and 1 for the opacity on the Volume representation. More...

void	ViewUpdated (vtkSMProxy *view) override
	Called after the view updates. More...


void	SetLastLookupTable (vtkSMProxy *proxy)
	Set/get last LUT proxy. More...

vtkSMProxy *	GetLastLookupTable ()
	Set/get last LUT proxy. More...

void	SetLastBlockLookupTable (const std::string &blockSelector, vtkSMProxy *proxy)
	Set/get last LUT proxy. More...

void	SetLastBlocksLookupTable (const std::vector< std::string > &blockSelectors, vtkSMProxy *proxy)
	Set/get last LUT proxy. More...

vtkSMProxy *	GetLastBlockLookupTable (const std::string &blockSelector)
	Set/get last LUT proxy. More...

std::vector< vtkSMProxy * >	GetLastBlocksLookupTables (const std::vector< std::string > &blockSelectors)
	Set/get last LUT proxy. More...


virtual bool	GetUsingScalarColoring ()
	Returns true if scalar coloring is enabled. More...

virtual bool	GetBlockUsingScalarColoring (const std::string &blockSelector)
	Returns true if scalar coloring is enabled. More...

virtual std::vector< vtkTypeBool >	GetBlocksUsingScalarColoring (const std::vector< std::string > &blockSelectors)
	Returns true if scalar coloring is enabled. More...

virtual bool	GetAnyBlockUsingScalarColoring ()
	Returns true if scalar coloring is enabled. More...


vtkSMProxy *	GetLookupTable (vtkSMProxy *view)
	Returns the lut proxy of this representation in the given view. More...

vtkSMProxy *	GetBlockLookupTable (vtkSMProxy *view, const std::string &blockSelector)
	Returns the lut proxy of this representation in the given view. More...

std::vector< vtkSMProxy * >	GetBlocksLookupTables (vtkSMProxy *view, const std::vector< std::string > &blockSelectors)
	Returns the lut proxy of this representation in the given view. More...


bool	UpdateScalarBarRange (vtkSMProxy *view, bool deleteRange)
	Updates the ranges shown in the scalar bar. More...

std::vector< vtkTypeBool >	UpdateBlocksScalarBarRange (vtkSMProxy *view, bool deleteRange)
	Updates the ranges shown in the scalar bar. More...


virtual bool	SetScalarColoring (const char *arrayName, int attributeType)
	Enable/disable scalar coloring using the specified array. More...

virtual bool	SetBlockScalarColoring (const std::string &blockSelector, const char *arrayName, int attributeType)
	Enable/disable scalar coloring using the specified array. More...

virtual std::vector< vtkTypeBool >	SetBlocksScalarColoring (const std::vector< std::string > &blockSelectors, const char *arrayName, int attributeType)
	Enable/disable scalar coloring using the specified array. More...


virtual bool	SetScalarColoring (const char *arrayName, int attributeType, int component)
	Enable/disable scalar coloring using the specified array. More...

virtual bool	SetBlockScalarColoring (const std::string &blockSelector, const char *arrayName, int attributeType, int component)
	Enable/disable scalar coloring using the specified array. More...

virtual std::vector< vtkTypeBool >	SetBlocksScalarColoring (const std::vector< std::string > &blockSelectors, const char *arrayName, int attributeType, int component)
	Enable/disable scalar coloring using the specified array. More...


virtual bool	RescaleTransferFunctionToDataRange (bool extend=false, bool force=true)
	Rescales the color transfer function and opacity transfer function using the current data range. More...

virtual bool	RescaleBlockTransferFunctionToDataRange (const std::string &blockSelector, bool extend=false, bool force=true)
	Rescales the color transfer function and opacity transfer function using the current data range. More...

virtual std::vector< vtkTypeBool >	RescaleBlocksTransferFunctionToDataRange (const std::vector< std::string > &blockSelectors, bool extend=false, bool force=true)
	Rescales the color transfer function and opacity transfer function using the current data range. More...


virtual bool	RescaleTransferFunctionToDataRange (const char *arrayName, int attributeType, bool extend=false, bool force=true)
	Rescales the color transfer function and opacity transfer function using the current data range for the chosen data-array. More...

virtual bool	RescaleBlockTransferFunctionToDataRange (const std::string &blockSelector, const char *arrayName, int attributeType, bool extend=false, bool force=true)
	Rescales the color transfer function and opacity transfer function using the current data range for the chosen data-array. More...

virtual std::vector< vtkTypeBool >	RescaleBlocksTransferFunctionToDataRange (const std::vector< std::string > &blockSelectors, const char *arrayName, int attributeType, bool extend=false, bool force=true)
	Rescales the color transfer function and opacity transfer function using the current data range for the chosen data-array. More...


virtual bool	RescaleTransferFunctionToDataRangeOverTime ()
	Rescales the color transfer function and opacity transfer function using the current data range over time. More...

virtual bool	RescaleBlockTransferFunctionToDataRangeOverTime (const std::string &blockSelector)
	Rescales the color transfer function and opacity transfer function using the current data range over time. More...

virtual std::vector< vtkTypeBool >	RescaleBlocksTransferFunctionToDataRangeOverTime (const std::vector< std::string > &blockSelectors)
	Rescales the color transfer function and opacity transfer function using the current data range over time. More...


virtual bool	RescaleTransferFunctionToDataRangeOverTime (const char *arrayName, int attributeType)
	Rescales the color transfer function and opacity transfer function using the current data range over time for the chosen data-array. More...

virtual bool	RescaleBlockTransferFunctionToDataRangeOverTime (const std::string &blockSelector, const char *arrayName, int attributeType)
	Rescales the color transfer function and opacity transfer function using the current data range over time for the chosen data-array. More...

virtual std::vector< vtkTypeBool >	RescaleBlocksTransferFunctionToDataRangeOverTime (const std::vector< std::string > &blockSelectors, const char *arrayName, int attributeType)
	Rescales the color transfer function and opacity transfer function using the current data range over time for the chosen data-array. More...


virtual bool	RescaleTransferFunctionToVisibleRange (vtkSMProxy *view)
	Rescales the color transfer function and the opacity transfer function using the current data range, limited to the currernt visible elements. More...

virtual bool	RescaleTransferFunctionToVisibleRange (vtkSMProxy view, const char arrayName, int attributeType)
	Rescales the color transfer function and the opacity transfer function using the current data range, limited to the currernt visible elements. More...


virtual bool	SetScalarBarVisibility (vtkSMProxy *view, bool visible)
	Set the scalar bar visibility. More...

virtual bool	SetBlockScalarBarVisibility (vtkSMProxy *view, const std::string &blockSelector, bool visible)
	Set the scalar bar visibility. More...

virtual std::vector< vtkTypeBool >	SetBlocksScalarBarVisibility (vtkSMProxy *view, const std::vector< std::string > &blockSelectors, bool visible)
	Set the scalar bar visibility. More...


virtual bool	HideScalarBarIfNotNeeded (vtkSMProxy *view)
	While SetScalarBarVisibility can be used to hide a scalar bar, it will always simply hide the scalar bar even if its being used by some other representation. More...

virtual bool	HideBlocksScalarBarIfNotNeeded (vtkSMProxy *view)
	While SetScalarBarVisibility can be used to hide a scalar bar, it will always simply hide the scalar bar even if its being used by some other representation. More...


virtual bool	IsScalarBarVisible (vtkSMProxy *view)
	Check scalar bar visibility. More...

virtual bool	IsBlockScalarBarVisible (vtkSMProxy *view, const std::string &blockSelector)
	Check scalar bar visibility. More...

virtual std::vector< vtkTypeBool >	IsBlocksScalarBarVisible (vtkSMProxy *view, const std::vector< std::string > &blockSelectors)
	Check scalar bar visibility. More...


virtual vtkPVArrayInformation *	GetArrayInformationForColorArray (bool checkRepresentedData=true)
	Returns the array information for the data array used for scalar coloring, from input data. More...

virtual vtkPVArrayInformation *	GetBlockArrayInformationForColorArray (const std::string &blockSelector)
	Returns the array information for the data array used for scalar coloring, from input data. More...

virtual std::vector< vtkPVArrayInformation * >	GetBlocksArrayInformationForColorArray (const std::vector< std::string > &blockSelectors)
	Returns the array information for the data array used for scalar coloring, from input data. More...


virtual vtkPVProminentValuesInformation *	GetProminentValuesInformationForColorArray (double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Call vtkSMRepresentationProxy::GetProminentValuesInformation() for the array used for scalar color, if any. More...

virtual vtkPVProminentValuesInformation *	GetBlockProminentValuesInformationForColorArray (const std::string &blockSelector, double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Call vtkSMRepresentationProxy::GetProminentValuesInformation() for the array used for scalar color, if any. More...

virtual std::vector< vtkPVProminentValuesInformation * >	GetBlocksProminentValuesInformationForColorArray (const std::vector< std::string > &blockSelectors, double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Call vtkSMRepresentationProxy::GetProminentValuesInformation() for the array used for scalar color, if any. More...


int	GetEstimatedNumberOfAnnotationsOnScalarBar (vtkSMProxy *view)
	Get an estimated number of annotation shown on this representation scalar bar. More...

int	GetBlockEstimatedNumberOfAnnotationsOnScalarBar (vtkSMProxy *view, const std::string &blockSelector)
	Get an estimated number of annotation shown on this representation scalar bar. More...

std::vector< int >	GetBlocksEstimatedNumberOfAnnotationsOnScalarBars (vtkSMProxy *view, const std::vector< std::string > &blockSelectors)
	Get an estimated number of annotation shown on this representation scalar bar. More...


int	IsScalarBarStickyVisible (vtkSMProxy *view)
	Checks if the scalar bar of this representation in view is sticky visible, i.e. More...

int	IsBlockScalarBarStickyVisible (vtkSMProxy *view, const std::string &blockSelector)
	Checks if the scalar bar of this representation in view is sticky visible, i.e. More...

std::vector< int >	IsBlocksScalarBarStickyVisible (vtkSMProxy *view, const std::vector< std::string > &blockSelectors)
	Checks if the scalar bar of this representation in view is sticky visible, i.e. More...


std::pair< int, std::string >	GetBlockColorArray (const std::string &blockSelector)
	Set/Get the block color array name. More...

std::vector< std::pair< int, std::string > >	GetBlocksColorArrays (const std::vector< std::string > &blockSelectors)
	Set/Get the block color array name. More...

int	GetBlockColorArrayAssociation (const std::string &blockSelector)
	Set/Get the block color array name. More...

std::string	GetBlockColorArrayName (const std::string &blockSelector)
	Set/Get the block color array name. More...


void	SetBlockUseSeparateColorMap (const std::string &blockSelector, bool use)
	Set/Get if we should use a separate color map for this block. More...

void	SetBlocksUseSeparateColorMap (const std::vector< std::string > &blockSelectors, bool use)
	Set/Get if we should use a separate color map for this block. More...

bool	GetBlockUseSeparateColorMap (const std::string &blockSelector)
	Set/Get if we should use a separate color map for this block. More...

std::vector< vtkTypeBool >	GetBlocksUseSeparateColorMaps (const std::vector< std::string > &blockSelectors)
	Set/Get if we should use a separate color map for this block. More...

Public Member Functions inherited from vtkSMRepresentationProxy
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkPVDataInformation *	GetRepresentedDataInformation ()
	Returns information about the data that is finally rendered by this representation. More...

void	UpdatePipeline () override
	Calls Update() on all sources. More...

void	UpdatePipeline (double time) override
	Calls Update() on all sources with the given time request. More...

void	PostUpdateData (bool) override
	Overridden to reset this->MarkedModified flag. More...

vtkTypeUInt32	GetGlobalID () override
	Overridden to reserve additional IDs for use by internal composite representation. More...

void	MarkDirty (vtkSMProxy *modifiedProxy) override
	Marks the selection proxies dirty as well as chain to superclass. More...

virtual vtkPVProminentValuesInformation *	GetProminentValuesInformation (std::string name, int fieldAssoc, int numComponents, double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Returns information about a specific array component's prominent values (or nullptr). More...

virtual vtkPVProminentValuesInformation *	GetBlockProminentValuesInformation (std::string blockSelector, std::string assemblyName, std::string name, int fieldAssoc, int numComponents, double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Returns information about a specific array component's prominent values (or nullptr). More...

const char *	GetRepresentationType ()
	Set the representation type. More...

bool	IsVolumeRendering ()
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

bool	GetUsing2DTransferFunction ()
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

Public Member Functions inherited from vtkSMSourceProxy
void	UpdatePipelineInformation () override
	Calls UpdateInformation() on all sources. More...

virtual unsigned int	GetNumberOfOutputPorts ()
	Return the number of output ports. More...

virtual vtkSMOutputPort *	GetOutputPort (unsigned int idx)
	Return an output port. More...

virtual vtkSMOutputPort *	GetOutputPort (const char *portname)
	Return an output port, given the name for the port. More...

virtual unsigned int	GetOutputPortIndex (const char *portname)
	Returns the port index, given the name of an output port. More...

virtual const char *	GetOutputPortName (unsigned int index)
	Returns the output port name given its index. More...

virtual void	CreateOutputPorts ()
	Creates the output port proxies for this filter. More...

vtkPVDataInformation *	GetDataSetInformation (unsigned int outputIdx)
	Return the DataInformation of the source proxy. More...

vtkPVDataInformation *	GetSubsetDataInformation (unsigned int outputIdx, unsigned int compositeIndex)
	A `GetSubsetDataInformation` overload that uses composite index. More...

virtual void	CreateSelectionProxies ()
	Creates extract selection proxies for each output port if not already created. More...

void	SetSelectionInput (unsigned int portIndex, vtkSMSourceProxy *input, unsigned int outputPort)
	Set/Get the selection input. More...

void	CleanSelectionInputs (unsigned int portIndex)
	Clean all selection inputs for the given port. More...

vtkSMSourceProxy *	GetSelectionOutput (unsigned int portIndex)
	Returns the source proxy which provides the selected data from the given output port. More...

virtual int	GetProcessSupport ()
	This returns information about whether the VTK algorithm supports multiple processes or not. More...

virtual bool	GetMPIRequired ()
	This returns information about whether the VTK algorithm explicitly needs MPI to be initialized. More...

virtual bool	GetStreamReply ()
	This returns information about whether this proxy will wait for a reply when executing a stream. More...

unsigned int	GetNumberOfAlgorithmOutputPorts ()
	Returns the number of output ports provided by the algorithm. More...

virtual unsigned int	GetNumberOfAlgorithmRequiredInputPorts ()
	Returns the number of non-optional input ports required by the algorithm. More...

void	EnableAbortCheck ()
	Enable AbortCheck on both remote and local progress handler for this proxy. More...

void	ClearAbortFlags ()
	Clear abort execute flags on remote vtk objects. More...

void	RecreateVTKObjects () override
	Overidden to handle disabling abort check for the deleted objects Also calls superclass. More...

virtual int	GetOutputPortsCreated ()
	Returns if the output port proxies have been created. More...

vtkSMDocumentation *	GetOutputPortDocumentation (unsigned int index)
	It is possible to provide some documentation for each output port in the configuration xml. More...

vtkSMDocumentation *	GetOutputPortDocumentation (const char *portname)
	It is possible to provide some documentation for each output port in the configuration xml. More...

vtkPVDataInformation *	GetDataInformation ()
	DataInformation is used by the source proxy to obtain information on the output(s) from the server. More...

vtkPVDataInformation *	GetDataInformation (unsigned int outputIdx)
	DataInformation is used by the source proxy to obtain information on the output(s) from the server. More...

vtkPVDataInformation *	GetSubsetDataInformation (unsigned int outputIdx, const char selector, const char assemblyName=nullptr)
	For composite datasets, `GetDataInformation` returns summary data information for all blocks combined. More...

vtkPVDataInformation *	GetRankDataInformation (int rank)
	Get rank-specific data information. More...

vtkPVDataInformation *	GetRankDataInformation (unsigned int outputIdx, int rank)
	Get rank-specific data information. More...

vtkSMSourceProxy *	GetSelectionInput (unsigned int portIndex)
	API to query selection input set using SetSelectionInput. More...

unsigned int	GetSelectionInputPort (unsigned int portIndex)
	API to query selection input set using SetSelectionInput. More...

vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement root, vtkSMPropertyIterator iter) override
	Overridden to handle selections. More...

unsigned int	GetSelectionId ()
	Get/Set the ID and port of the proxy refered by this selection proxy. More...

unsigned int	GetSelectionPort ()
	Get/Set the ID and port of the proxy refered by this selection proxy. More...

void	SetSelectionId (unsigned int id)
	Get/Set the ID and port of the proxy refered by this selection proxy. More...

void	SetSelectionPort (unsigned int port)
	Get/Set the ID and port of the proxy refered by this selection proxy. More...

Public Member Functions inherited from vtkSMProxy
void	SetAnnotation (const char key, const char value)

const char *	GetAnnotation (const char *key)
	Retrieve an annotation with a given key. More...

void	RemoveAnnotation (const char *key)
	Remove a given annotation based on its key to the proxy. More...

void	RemoveAllAnnotations ()
	Remove all proxy annotations. More...

bool	HasAnnotation (const char *key)
	Return true if a given annotation exists. More...

int	GetNumberOfAnnotations ()
	Return the number of available annotations. More...

const char *	GetAnnotationKeyAt (int index)
	Return the nth key of the available annotations. More...

void	SetLocation (vtkTypeUInt32) override
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkSMProperty *	GetProperty (const char *name)
	Return the property with the given name. More...

virtual vtkSMProperty *	GetProperty (const char *name, int selfOnly)
	Return a property of the given name from self or one of the sub-proxies. More...

const char *	GetPropertyName (vtkSMProperty *prop)
	Given a property pointer, returns the name that was used to add it to the proxy. More...

virtual void	UpdateVTKObjects ()
	Update the VTK object on the server by pushing the values of all modified properties (un-modified properties are ignored). More...

void	InvokeCommand (const char *name)
	Convenience method equivalent to UpdateProperty(name, 1). More...

virtual bool	GetNeedsUpdate ()
	Returns if the underlying VTK object needs to be updated or not. More...

virtual vtkSMPropertyIterator *	NewPropertyIterator ()
	Returns a new (initialized) iterator of the properties. More...

unsigned int	GetNumberOfConsumers ()
	Returns the number of consumers. More...

vtkSMProxy *	GetConsumerProxy (unsigned int idx)
	Returns the consumer of given index. More...

vtkSMProperty *	GetConsumerProperty (unsigned int idx)
	Returns the corresponding property of the consumer of given index. More...

unsigned int	GetNumberOfProducers ()
	Returns the number of proxies this proxy depends on (uses or is connected to through the pipeline). More...

vtkSMProxy *	GetProducerProxy (unsigned int idx)
	Returns a proxy this proxy depends on, given index. More...

vtkSMProperty *	GetProducerProperty (unsigned int idx)
	Returns the property holding a producer proxy given an index. More...

virtual void	UpdatePropertyInformation ()
	Updates all property information by calling UpdateInformation() and populating the values. More...

virtual void	UpdatePropertyInformation (vtkSMProperty *prop)
	Similar to UpdatePropertyInformation() but updates only the given property. More...

virtual void	MarkAllPropertiesAsModified ()
	Marks all properties as modified. More...

virtual void	ResetPropertiesToXMLDefaults ()
	Use this method to set all properties on this proxy to their default values. More...

virtual void	ResetPropertiesToDomainDefaults ()
	Use this method to set all properties on this proxy to their default domains. More...

virtual void	ResetPropertiesToDefault (ResetPropertiesMode mode=DEFAULT)
	Use this method to set all properties on this proxy to their default domain or values. More...

virtual void	MarkModified (vtkSMProxy *modifiedProxy)
	Calls MarkDirty() and invokes ModifiedEvent. More...

bool	IsDeprecated ()
	Returns true if the proxy has a deprecation tag. More...

void	InitializeAndCopyFromProxy (vtkSMProxy *source)
	Given a source proxy, makes this proxy point to the same server-side object (with a new id). More...

vtkObjectBase *	GetClientSideObject ()
	Returns the client side object associated with the VTKObjectID (if any). More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement *root)
	Saves the state of the proxy. More...

void	UpdateSelfAndAllInputs ()
	This method call UpdateVTKObjects on the current pipeline by starting at the sources. More...

bool	GetIsSubProxy ()
	A proxy instance can be a sub-proxy for some other proxy. More...

vtkSMProxy *	GetParentProxy ()
	If this instance is a sub-proxy, this method will return the proxy of which this instance is an immediate sub-proxy. More...

vtkSMProxy *	GetTrueParentProxy ()
	Call GetParentProxy() recursively till a proxy that is not a subproxy of any other proxy is found. More...

void	EnableLocalPushOnly () override
	Allow to switch off any push of state change to the server for that particular object. More...

void	DisableLocalPushOnly () override
	Enable the given remote object to communicate its state normally to the server location. More...

const vtkSMMessage *	GetFullState () override
	This method return the full object state that can be used to create that object from scratch. More...

void	LoadState (const vtkSMMessage msg, vtkSMProxyLocator locator) override
	This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set. More...

vtkSMPropertyGroup *	GetPropertyGroup (size_t index) const
	Returns the property group at `index` for the proxy. More...

size_t	GetNumberOfPropertyGroups () const
	Returns the number of property groups that the proxy contains. More...

const char *	GetLogNameOrDefault ()
	A helper that makes up an default name if none is provided. More...

bool	GetPropertiesModified ()

virtual std::vector< std::string >	GetPropertiesWithDifferentValues (vtkSMProxy *otherProxy)
	Return the property names that have values different from the otherProxy argument. More...

bool	UpdateProperty (const char *name)
	Update the value of one property (pushed to the server) if it is modified. More...

bool	UpdateProperty (const char *name, int force)
	Update the value of one property (pushed to the server) if it is modified. More...

virtual char *	GetVTKClassName ()
	Returns the type of object managed by the proxy. More...

virtual void	SetVTKClassName (const char *)
	the type of object created by the proxy. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual char *	GetXMLGroup ()
	Assigned by the XML parser. More...

virtual char *	GetXMLLabel ()
	Assigned by the XML parser. More...

void	Copy (vtkSMProxy *src)
	Copies values of all the properties and sub-proxies from src. More...

void	Copy (vtkSMProxy src, const char exceptionClass)
	Copies values of all the properties and sub-proxies from src. More...

virtual void	Copy (vtkSMProxy src, const char exceptionClass, int proxyPropertyCopyFlag)
	Copies values of all the properties and sub-proxies from src. More...

virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...

virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a proxy. More...

virtual int	GetObjectsCreated ()
	Returns if the VTK objects for this proxy have been created. More...

bool	GatherInformation (vtkPVInformation *information)
	Gathers information about this proxy. More...

bool	GatherInformation (vtkPVInformation *information, vtkTypeUInt32 location)
	Gathers information about this proxy. More...

void	PrototypeOn () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	PrototypeOff () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetPrototype (bool undo) override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetLogName (const char *name)
	Log name is a name for this proxy that will be used when logging status messages. More...

virtual char *	GetLogName ()
	Log name is a name for this proxy that will be used when logging status messages. More...

Public Member Functions inherited from vtkSMRemoteObject
void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMPVRepresentationProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMPVRepresentationProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRepresentationProxy
static vtkSMRepresentationProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMRepresentationProxy *	SafeDownCast (vtkObject *o)

static bool	SetRepresentationType (vtkSMProxy repr, const char type)
	Set the representation type. More...

static const char *	GetRepresentationType (vtkSMProxy *repr)
	Set the representation type. More...

static bool	IsVolumeRendering (vtkSMProxy *repr)
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

static bool	GetUsing2DTransferFunction (vtkSMProxy *repr)
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

Static Public Member Functions inherited from vtkSMSourceProxy
static vtkSMSourceProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSourceProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMProxy
static vtkSMProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMPVRepresentationProxy ()

	~vtkSMPVRepresentationProxy () override

void	CreateVTKObjects () override
	Overridden to ensure that the RepresentationTypesInfo and Representations's domain are up-to-date. More...

void	OnPropertyUpdated (vtkObject , unsigned long, void calldata)

void	SetPropertyModifiedFlag (const char *name, int flag) override
	Overridden to ensure that whenever "Input" property changes, we update the "Input" properties for all internal representations (including setting up of the link to the extract-selection representation). More...

int	ReadXMLAttributes (vtkSMSessionProxyManager pm, vtkPVXMLElement element) override
	Overridden to process "RepresentationType" elements. More...

Protected Member Functions inherited from vtkSMRepresentationProxy
	vtkSMRepresentationProxy ()

	~vtkSMRepresentationProxy () override

void	MarkDirtyFromProducer (vtkSMProxy modifiedProxy, vtkSMProxy producer, vtkSMProperty *property) override
	When the representation is being marked dirty due to a producer i.e. More...

void	AddConsumer (vtkSMProperty property, vtkSMProxy proxy) override
	Called by a proxy property, this adds the property,proxy pair to the list of consumers. More...

void	RemoveConsumer (vtkSMProperty property, vtkSMProxy proxy) override
	Remove the property,proxy pair from the list of consumers. More...

void	RemoveAllConsumers () override
	Remove all consumers. More...

void	CreateVTKObjects () override
	Call superclass' and then assigns a new executive (vtkCompositeDataPipeline) More...

void	OnVTKRepresentationUpdated ()

void	OnVTKRepresentationUpdateSkipped ()

void	OnVTKRepresentationUpdateTimeChanged ()

virtual void	UpdatePipelineInternal (double time, bool doTime)

void	InvalidateDataInformation () override
	Mark the data information as invalid. More...

int	LoadXMLState (vtkPVXMLElement element, vtkSMProxyLocator locator) override
	Overridden to restore this->Servers flag state. More...

Protected Member Functions inherited from vtkSMSourceProxy
	vtkSMSourceProxy ()

	~vtkSMSourceProxy () override

void	ExecuteStream (const vtkClientServerStream &msg, bool ignoreErrors=false, vtkTypeUInt32 location=0) override
	Execute provided stream using the internal session with sendReply positioned to StreamReply value. More...

virtual void	SetExecutiveName (const char *)

void	SetLogNameInternal (const char *name, bool propagate_to_subproxies, bool propagate_to_proxylistdomains) override
	Overridden to pass the logname to the internal ExtractSelection proxies. More...

void	SetOutputPort (unsigned int index, const char name, vtkSMOutputPort port, vtkSMDocumentation *doc)
	Method to set an output port at the given index. More...

void	RemoveAllOutputPorts ()
	Method to set an output port at the given index. More...

void	SetExtractSelectionProxy (unsigned int index, vtkSMSourceProxy *proxy)
	Method to set an output port at the given index. More...

void	RemoveAllExtractSelectionProxies ()
	Method to set an output port at the given index. More...

Protected Member Functions inherited from vtkSMProxy
	vtkSMProxy ()

	~vtkSMProxy () override

virtual void	UpdateAndPushAnnotationState ()

virtual void	AddProperty (const char name, vtkSMProperty prop)
	Add a property with the given key (name). More...

virtual void	MarkConsumersAsDirty (vtkSMProxy *modifiedProxy)
	Calls `MarkDirtyFromProducer` on all consumers. More...

void	MarkInputsAsDirty ()
	This method is called by vtkSMRepresentationProxy whenever the time request for the pipeline may have potentially changed. More...

void	RemoveAllObservers ()
	Cleanup code. More...

void	AddSubProxy (const char name, vtkSMProxy proxy, int overrideOK=0)
	Add a sub-proxy. More...

void	RemoveSubProxy (const char *name)
	Remove a sub-proxy. More...

vtkSMProxy *	GetSubProxy (const char *name)
	Returns a sub-proxy. More...

vtkSMProxy *	GetSubProxy (unsigned int index)
	Returns a sub-proxy. More...

const char *	GetSubProxyName (unsigned int index)
	Returns the name used to store sub-proxy. More...

const char *	GetSubProxyName (vtkSMProxy *)
	Returns the name used to store sub-proxy. More...

unsigned int	GetNumberOfSubProxies ()
	Returns the number of sub-proxies. More...

void	AddProducer (vtkSMProperty property, vtkSMProxy proxy)
	Called by an proxy/input property to add property, proxy pair to the list of producers. More...

void	RemoveProducer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of producers. More...

void	PostUpdateDataSelfOnly (bool using_cache)
	This is called by `PostUpdateData` to only update state for this proxy without iterative over producers. More...

bool	WarnIfDeprecated ()
	If a proxy is deprecated, prints a warning. More...

bool	LoadPluginIfEnsured ()
	If a proxy need to ensure a plugin is loaded, make sure it is. More...

void	LinkProperty (vtkSMProperty inputProperty, vtkSMProperty outputProperty)
	Links properties such that when inputProperty's checked or unchecked values are changed, the outputProperty's corresponding values are also changed. More...

vtkSMPropertyGroup *	NewPropertyGroup (vtkPVXMLElement *propElement)
	Parses the XML to create a new property group. More...

void	AppendPropertyGroup (vtkSMPropertyGroup *group)
	Adds a property groups. More...

void	ExposeSubProxyProperty (const char subproxy_name, const char property_name, const char *exposed_name, int overrideOK=0)
	Expose a subproxy property from the base proxy. More...

virtual void	ExecuteSubProxyEvent (vtkSMProxy o, unsigned long event, void data)
	Handle events fired by subproxies. More...

virtual int	CreateSubProxiesAndProperties (vtkSMSessionProxyManager pm, vtkPVXMLElement element)

virtual void	UpdatePropertyInformationInternal (vtkSMProperty *prop=nullptr)
	Called to update the property information on the property. More...

void	RebuildStateForProperties ()
	vtkSMProxy tracks state of properties on this proxy in an internal State object. More...

bool	ArePropertiesModified ()
	Indicates if any properties are modified. More...

void	SetHints (vtkPVXMLElement *hints)

void	SetDeprecated (vtkPVXMLElement *deprecated)

void	SetEnsurePluginLoaded (vtkPVXMLElement *ensurePluginLoaded)
	Set the "EnsurePluginLoaded" XML element that is used in LoadPluginIfEnsured. More...

void	SetXMLElement (vtkPVXMLElement *element)

	vtkSMProxy (const vtkSMProxy &)=delete

void	operator= (const vtkSMProxy &)=delete

virtual const vtkClientServerStream &	GetLastResult ()
	Get the last result. More...

virtual const vtkClientServerStream &	GetLastResult (vtkTypeUInt32 location)
	Get the last result. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLGroup (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLLabel (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLSubProxyName (const char *)
	Assigned by the XML parser. More...

vtkSMProperty *	NewProperty (const char *name)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

vtkSMProperty *	NewProperty (const char name, vtkPVXMLElement propElement)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

void	SetupExposedProperties (const char subproxy_name, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupSharedProperties (vtkSMProxy subproxy, vtkPVXMLElement element)
	Read attributes from an XML element. More...

virtual void	SetSIClassName (const char *)
	SIClassName identifies the classname for the helper on the server side. More...

virtual char *	GetSIClassName ()
	SIClassName identifies the classname for the helper on the server side. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSmartPointer< vtkSMProxy >	LastLookupTable
	Used as a memory of what was the last LUT proxy linked to this representation. More...

std::unordered_map< std::string, vtkSmartPointer< vtkSMProxy > >	LastBlocksLookupTables

Protected Attributes inherited from vtkSMSourceProxy
int	OutputPortsCreated

int	ProcessSupport

bool	MPIRequired

char *	ExecutiveName

bool	DisableSelectionProxies

bool	SelectionProxiesCreated

Protected Attributes inherited from vtkSMProxy
bool	NeedsUpdate

char *	VTKClassName

char *	XMLGroup

char *	XMLName

char *	XMLLabel

char *	XMLSubProxyName

int	ObjectsCreated

int	DoNotUpdateImmediately

int	DoNotModifyProperty

int	InUpdateVTKObjects
	Avoids calls to UpdateVTKObjects in UpdateVTKObjects. More...

bool	PropertiesModified
	Flag used to help speed up UpdateVTKObjects and ArePropertiesModified calls. More...

vtkPVXMLElement *	XMLElement

vtkSMDocumentation *	Documentation

vtkPVXMLElement *	Hints = nullptr

vtkPVXMLElement *	Deprecated = nullptr

vtkPVXMLElement *	EnsurePluginLoaded = nullptr

vtkSMMessage *	State

int	InMarkModified

vtkWeakPointer< vtkSMProxy >	ParentProxy

vtkSMProxyInternals *	Internals

vtkSMProxyObserver *	SubProxyObserver

char *	SIClassName
	SIClassName identifies the classname for the helper on the server side. More...

Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

representation for "Render View" like views in ParaView.

vtkSMPVRepresentationProxy combines surface representation and volume representation proxies typically used for displaying data. This class also takes over the selection obligations for all the internal representations, i.e. is disables showing of selection in all the internal representations, and manages it. This avoids duplicate execution of extract selection filter for each of the internal representations.

vtkSMPVRepresentationProxy is used for pretty much all of the data-representations (i.e. representations showing input data) in the render views. It provides helper functions redirecting to vtkSMColorMapEditorHelper for controlling transfer functions, scalar coloring, etc.

See also: vtkSMColorMapEditorHelper

Definition at line 34 of file vtkSMPVRepresentationProxy.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMRepresentationProxy vtkSMPVRepresentationProxy::Superclass

Definition at line 38 of file vtkSMPVRepresentationProxy.h.

Constructor & Destructor Documentation

◆ vtkSMPVRepresentationProxy()

vtkSMPVRepresentationProxy::vtkSMPVRepresentationProxy ( )

protected

◆ ~vtkSMPVRepresentationProxy()

vtkSMPVRepresentationProxy::~vtkSMPVRepresentationProxy ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMPVRepresentationProxy* vtkSMPVRepresentationProxy::New ( )

static

◆ GetClassName()

virtual const char* vtkSMPVRepresentationProxy::GetClassName ( )

virtual

Reimplemented from vtkSMRepresentationProxy.

Reimplemented in vtkSMPVMoleculeRepresentationProxy.

◆ IsTypeOf()

static int vtkSMPVRepresentationProxy::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMPVRepresentationProxy::IsA ( const char * type )

virtual

Reimplemented from vtkSMRepresentationProxy.

Reimplemented in vtkSMPVMoleculeRepresentationProxy.

◆ SafeDownCast()

static vtkSMPVRepresentationProxy* vtkSMPVRepresentationProxy::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMPVRepresentationProxy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMSourceProxy.

◆ SetLastLookupTable()

void vtkSMPVRepresentationProxy::SetLastLookupTable ( vtkSMProxy * proxy )

Set/get last LUT proxy.

Used as a memory of what was the last LUT proxy linked to this representation.

◆ GetLastLookupTable()

vtkSMProxy* vtkSMPVRepresentationProxy::GetLastLookupTable ( )

Set/get last LUT proxy.

Used as a memory of what was the last LUT proxy linked to this representation.

◆ SetLastBlockLookupTable()

void vtkSMPVRepresentationProxy::SetLastBlockLookupTable	(	const std::string &	blockSelector,
		vtkSMProxy *	proxy
	)

inline

Set/get last LUT proxy.

Used as a memory of what was the last LUT proxy linked to this representation.

Definition at line 48 of file vtkSMPVRepresentationProxy.h.

◆ SetLastBlocksLookupTable()

void vtkSMPVRepresentationProxy::SetLastBlocksLookupTable	(	const std::vector< std::string > &	blockSelectors,
		vtkSMProxy *	proxy
	)

Set/get last LUT proxy.

Used as a memory of what was the last LUT proxy linked to this representation.

◆ GetLastBlockLookupTable()

vtkSMProxy* vtkSMPVRepresentationProxy::GetLastBlockLookupTable ( const std::string & blockSelector )

inline

Set/get last LUT proxy.

Used as a memory of what was the last LUT proxy linked to this representation.

Definition at line 53 of file vtkSMPVRepresentationProxy.h.

◆ GetLastBlocksLookupTables()

std::vector<vtkSMProxy*> vtkSMPVRepresentationProxy::GetLastBlocksLookupTables ( const std::vector< std::string > & blockSelectors )

Set/get last LUT proxy.

Used as a memory of what was the last LUT proxy linked to this representation.

◆ GetUsingScalarColoring()

virtual bool vtkSMPVRepresentationProxy::GetUsingScalarColoring ( )

virtual

Returns true if scalar coloring is enabled.

This checks whether a property named "ColorArrayName" exists and has a non-empty string. This does not check for the validity of the array.

◆ GetBlockUsingScalarColoring()

virtual bool vtkSMPVRepresentationProxy::GetBlockUsingScalarColoring ( const std::string & blockSelector )

inlinevirtual

Returns true if scalar coloring is enabled.

This checks whether a property named "ColorArrayName" exists and has a non-empty string. This does not check for the validity of the array.

Definition at line 68 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksUsingScalarColoring()

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::GetBlocksUsingScalarColoring ( const std::vector< std::string > & blockSelectors )

virtual

Returns true if scalar coloring is enabled.

This checks whether a property named "ColorArrayName" exists and has a non-empty string. This does not check for the validity of the array.

◆ GetAnyBlockUsingScalarColoring()

virtual bool vtkSMPVRepresentationProxy::GetAnyBlockUsingScalarColoring ( )

virtual

Returns true if scalar coloring is enabled.

This checks whether a property named "ColorArrayName" exists and has a non-empty string. This does not check for the validity of the array.

◆ GetLookupTable()

vtkSMProxy* vtkSMPVRepresentationProxy::GetLookupTable ( vtkSMProxy * view )

Returns the lut proxy of this representation in the given view.

This method will return nullptr if no lut proxy exists in this view.

◆ GetBlockLookupTable()

vtkSMProxy* vtkSMPVRepresentationProxy::GetBlockLookupTable	(	vtkSMProxy *	view,
		const std::string &	blockSelector
	)

inline

Returns the lut proxy of this representation in the given view.

This method will return nullptr if no lut proxy exists in this view.

Definition at line 83 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksLookupTables()

std::vector<vtkSMProxy*> vtkSMPVRepresentationProxy::GetBlocksLookupTables	(	vtkSMProxy *	view,
		const std::vector< std::string > &	blockSelectors
	)

Returns the lut proxy of this representation in the given view.

This method will return nullptr if no lut proxy exists in this view.

◆ UpdateScalarBarRange()

bool vtkSMPVRepresentationProxy::UpdateScalarBarRange	(	vtkSMProxy *	view,
		bool	deleteRange
	)

Updates the ranges shown in the scalar bar.

If deleteRange is true, then the range stored for current representation proxy is deleted. This should be done when the scalar bar gets separated or becomes not visible. If deleteRange is false, then the range stored for current representation proxy is updated with the new range value.

◆ UpdateBlocksScalarBarRange()

std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::UpdateBlocksScalarBarRange	(	vtkSMProxy *	view,
		bool	deleteRange
	)

Updates the ranges shown in the scalar bar.

If deleteRange is true, then the range stored for current representation proxy is deleted. This should be done when the scalar bar gets separated or becomes not visible. If deleteRange is false, then the range stored for current representation proxy is updated with the new range value.

◆ SetScalarColoring() [1/2]

virtual bool vtkSMPVRepresentationProxy::SetScalarColoring	(	const char *	arrayName,
		int	attributeType
	)

virtual

Enable/disable scalar coloring using the specified array.

This will set up a color and opacity transfer functions using vtkSMTransferFunctionProxy instance. If arrayName is nullptr, then scalar coloring is turned off. attributeType must be one of vtkDataObject::AttributeTypes.

◆ SetBlockScalarColoring() [1/2]

virtual bool vtkSMPVRepresentationProxy::SetBlockScalarColoring	(	const std::string &	blockSelector,
		const char *	arrayName,
		int	attributeType
	)

inlinevirtual

Enable/disable scalar coloring using the specified array.

This will set up a color and opacity transfer functions using vtkSMTransferFunctionProxy instance. If arrayName is nullptr, then scalar coloring is turned off. attributeType must be one of vtkDataObject::AttributeTypes.

Definition at line 111 of file vtkSMPVRepresentationProxy.h.

◆ SetBlocksScalarColoring() [1/2]

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::SetBlocksScalarColoring	(	const std::vector< std::string > &	blockSelectors,
		const char *	arrayName,
		int	attributeType
	)

virtual

Enable/disable scalar coloring using the specified array.

This will set up a color and opacity transfer functions using vtkSMTransferFunctionProxy instance. If arrayName is nullptr, then scalar coloring is turned off. attributeType must be one of vtkDataObject::AttributeTypes.

◆ SetScalarColoring() [2/2]

virtual bool vtkSMPVRepresentationProxy::SetScalarColoring	(	const char *	arrayName,
		int	attributeType,
		int	component
	)

virtual

Enable/disable scalar coloring using the specified array.

This will set up a color and opacity transfer functions using vtkSMTransferFunctionProxy instance. If arrayName is nullptr, then scalar coloring is turned off. if component name is -1, then the magnitude of the array is used. If component name is >=0, then the corresponding component is used.

◆ SetBlockScalarColoring() [2/2]

virtual bool vtkSMPVRepresentationProxy::SetBlockScalarColoring	(	const std::string &	blockSelector,
		const char *	arrayName,
		int	attributeType,
		int	component
	)

inlinevirtual

Enable/disable scalar coloring using the specified array.

This will set up a color and opacity transfer functions using vtkSMTransferFunctionProxy instance. If arrayName is nullptr, then scalar coloring is turned off. if component name is -1, then the magnitude of the array is used. If component name is >=0, then the corresponding component is used.

Definition at line 129 of file vtkSMPVRepresentationProxy.h.

◆ SetBlocksScalarColoring() [2/2]

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::SetBlocksScalarColoring	(	const std::vector< std::string > &	blockSelectors,
		const char *	arrayName,
		int	attributeType,
		int	component
	)

virtual

Enable/disable scalar coloring using the specified array.

This will set up a color and opacity transfer functions using vtkSMTransferFunctionProxy instance. If arrayName is nullptr, then scalar coloring is turned off. if component name is -1, then the magnitude of the array is used. If component name is >=0, then the corresponding component is used.

◆ RescaleTransferFunctionToDataRange() [1/2]

virtual bool vtkSMPVRepresentationProxy::RescaleTransferFunctionToDataRange	(	bool	extend = `false`,
		bool	force = `true`
	)

virtual

Rescales the color transfer function and opacity transfer function using the current data range.

Returns true if rescale was successful. If extend is true (false by default), the transfer function range will only be extended as needed to fit the data range. If force is false (true by default), then the transfer function range is not changed if locked.

blockSelector the block selector. extend Extend existing range instead of clamping to the new range (default: false). force Update transfer function even if the range is locked (default: true).

◆ RescaleBlockTransferFunctionToDataRange() [1/2]

virtual bool vtkSMPVRepresentationProxy::RescaleBlockTransferFunctionToDataRange	(	const std::string &	blockSelector,
		bool	extend = `false`,
		bool	force = `true`
	)

inlinevirtual

Rescales the color transfer function and opacity transfer function using the current data range.

Returns true if rescale was successful. If extend is true (false by default), the transfer function range will only be extended as needed to fit the data range. If force is false (true by default), then the transfer function range is not changed if locked.

blockSelector the block selector. extend Extend existing range instead of clamping to the new range (default: false). force Update transfer function even if the range is locked (default: true).

Definition at line 156 of file vtkSMPVRepresentationProxy.h.

◆ RescaleBlocksTransferFunctionToDataRange() [1/2]

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::RescaleBlocksTransferFunctionToDataRange	(	const std::vector< std::string > &	blockSelectors,
		bool	extend = `false`,
		bool	force = `true`
	)

virtual

Rescales the color transfer function and opacity transfer function using the current data range.

Returns true if rescale was successful. If extend is true (false by default), the transfer function range will only be extended as needed to fit the data range. If force is false (true by default), then the transfer function range is not changed if locked.

blockSelector the block selector. extend Extend existing range instead of clamping to the new range (default: false). force Update transfer function even if the range is locked (default: true).

◆ RescaleTransferFunctionToDataRange() [2/2]

virtual bool vtkSMPVRepresentationProxy::RescaleTransferFunctionToDataRange	(	const char *	arrayName,
		int	attributeType,
		bool	extend = `false`,
		bool	force = `true`
	)

virtual

Rescales the color transfer function and opacity transfer function using the current data range for the chosen data-array.

Returns true if rescale was successful. If extend is true (false by default), the transfer function range will only be extended as needed to fit the data range. If force is false (true by default), then the transfer function range is not changed if locked.

blockSelector the block selector. arrayName the name of the array. attributeType must be one of vtkDataObject::AttributeTypes. extend Extend existing range instead of clamping to the new range (default: false). force Update transfer function even if the range is locked (default: true).

◆ RescaleBlockTransferFunctionToDataRange() [2/2]

virtual bool vtkSMPVRepresentationProxy::RescaleBlockTransferFunctionToDataRange	(	const std::string &	blockSelector,
		const char *	arrayName,
		int	attributeType,
		bool	extend = `false`,
		bool	force = `true`
	)

inlinevirtual

Rescales the color transfer function and opacity transfer function using the current data range for the chosen data-array.

Returns true if rescale was successful. If extend is true (false by default), the transfer function range will only be extended as needed to fit the data range. If force is false (true by default), then the transfer function range is not changed if locked.

blockSelector the block selector. arrayName the name of the array. attributeType must be one of vtkDataObject::AttributeTypes. extend Extend existing range instead of clamping to the new range (default: false). force Update transfer function even if the range is locked (default: true).

Definition at line 185 of file vtkSMPVRepresentationProxy.h.

◆ RescaleBlocksTransferFunctionToDataRange() [2/2]

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::RescaleBlocksTransferFunctionToDataRange	(	const std::vector< std::string > &	blockSelectors,
		const char *	arrayName,
		int	attributeType,
		bool	extend = `false`,
		bool	force = `true`
	)

virtual

Rescales the color transfer function and opacity transfer function using the current data range for the chosen data-array.

Returns true if rescale was successful. If extend is true (false by default), the transfer function range will only be extended as needed to fit the data range. If force is false (true by default), then the transfer function range is not changed if locked.

blockSelector the block selector. arrayName the name of the array. attributeType must be one of vtkDataObject::AttributeTypes. extend Extend existing range instead of clamping to the new range (default: false). force Update transfer function even if the range is locked (default: true).

◆ RescaleTransferFunctionToDataRangeOverTime() [1/2]

virtual bool vtkSMPVRepresentationProxy::RescaleTransferFunctionToDataRangeOverTime ( )

virtual

Rescales the color transfer function and opacity transfer function using the current data range over time.

Returns true if rescale was successful.

◆ RescaleBlockTransferFunctionToDataRangeOverTime() [1/2]

virtual bool vtkSMPVRepresentationProxy::RescaleBlockTransferFunctionToDataRangeOverTime ( const std::string & blockSelector )

inlinevirtual

Rescales the color transfer function and opacity transfer function using the current data range over time.

Returns true if rescale was successful.

Definition at line 204 of file vtkSMPVRepresentationProxy.h.

◆ RescaleBlocksTransferFunctionToDataRangeOverTime() [1/2]

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::RescaleBlocksTransferFunctionToDataRangeOverTime ( const std::vector< std::string > & blockSelectors )

virtual

Rescales the color transfer function and opacity transfer function using the current data range over time.

Returns true if rescale was successful.

◆ RescaleTransferFunctionToDataRangeOverTime() [2/2]

virtual bool vtkSMPVRepresentationProxy::RescaleTransferFunctionToDataRangeOverTime	(	const char *	arrayName,
		int	attributeType
	)

virtual

Rescales the color transfer function and opacity transfer function using the current data range over time for the chosen data-array.

Returns true if rescale was successful. field_association must be one of vtkDataObject::AttributeTypes,

◆ RescaleBlockTransferFunctionToDataRangeOverTime() [2/2]

virtual bool vtkSMPVRepresentationProxy::RescaleBlockTransferFunctionToDataRangeOverTime	(	const std::string &	blockSelector,
		const char *	arrayName,
		int	attributeType
	)

inlinevirtual

Rescales the color transfer function and opacity transfer function using the current data range over time for the chosen data-array.

Returns true if rescale was successful. field_association must be one of vtkDataObject::AttributeTypes,

Definition at line 220 of file vtkSMPVRepresentationProxy.h.

◆ RescaleBlocksTransferFunctionToDataRangeOverTime() [2/2]

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::RescaleBlocksTransferFunctionToDataRangeOverTime	(	const std::vector< std::string > &	blockSelectors,
		const char *	arrayName,
		int	attributeType
	)

virtual

Rescales the color transfer function and opacity transfer function using the current data range over time for the chosen data-array.

Returns true if rescale was successful. field_association must be one of vtkDataObject::AttributeTypes,

◆ RescaleTransferFunctionToVisibleRange() [1/2]

virtual bool vtkSMPVRepresentationProxy::RescaleTransferFunctionToVisibleRange ( vtkSMProxy * view )

virtual

Rescales the color transfer function and the opacity transfer function using the current data range, limited to the currernt visible elements.

◆ RescaleTransferFunctionToVisibleRange() [2/2]

virtual bool vtkSMPVRepresentationProxy::RescaleTransferFunctionToVisibleRange	(	vtkSMProxy *	view,
		const char *	arrayName,
		int	attributeType
	)

virtual

Rescales the color transfer function and the opacity transfer function using the current data range, limited to the currernt visible elements.

◆ SetScalarBarVisibility()

virtual bool vtkSMPVRepresentationProxy::SetScalarBarVisibility	(	vtkSMProxy *	view,
		bool	visible
	)

virtual

Set the scalar bar visibility.

This will create a new scalar bar as needed. Scalar bar is only shown if scalar coloring is indeed being used.

◆ SetBlockScalarBarVisibility()

virtual bool vtkSMPVRepresentationProxy::SetBlockScalarBarVisibility	(	vtkSMProxy *	view,
		const std::string &	blockSelector,
		bool	visible
	)

inlinevirtual

Set the scalar bar visibility.

This will create a new scalar bar as needed. Scalar bar is only shown if scalar coloring is indeed being used.

Definition at line 248 of file vtkSMPVRepresentationProxy.h.

◆ SetBlocksScalarBarVisibility()

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::SetBlocksScalarBarVisibility	(	vtkSMProxy *	view,
		const std::vector< std::string > &	blockSelectors,
		bool	visible
	)

virtual

Set the scalar bar visibility.

This will create a new scalar bar as needed. Scalar bar is only shown if scalar coloring is indeed being used.

◆ HideScalarBarIfNotNeeded()

virtual bool vtkSMPVRepresentationProxy::HideScalarBarIfNotNeeded ( vtkSMProxy * view )

virtual

While SetScalarBarVisibility can be used to hide a scalar bar, it will always simply hide the scalar bar even if its being used by some other representation.

Use this method instead to only hide the scalar/color bar if no other visible representation in the view is mapping data using the scalar bar.

◆ HideBlocksScalarBarIfNotNeeded()

virtual bool vtkSMPVRepresentationProxy::HideBlocksScalarBarIfNotNeeded ( vtkSMProxy * view )

virtual

While SetScalarBarVisibility can be used to hide a scalar bar, it will always simply hide the scalar bar even if its being used by some other representation.

Use this method instead to only hide the scalar/color bar if no other visible representation in the view is mapping data using the scalar bar.

◆ IsScalarBarVisible()

virtual bool vtkSMPVRepresentationProxy::IsScalarBarVisible ( vtkSMProxy * view )

virtual

Check scalar bar visibility.

Return true if the scalar bar for this representation and view is visible, return false otherwise.

◆ IsBlockScalarBarVisible()

virtual bool vtkSMPVRepresentationProxy::IsBlockScalarBarVisible	(	vtkSMProxy *	view,
		const std::string &	blockSelector
	)

inlinevirtual

Check scalar bar visibility.

Return true if the scalar bar for this representation and view is visible, return false otherwise.

Definition at line 275 of file vtkSMPVRepresentationProxy.h.

◆ IsBlocksScalarBarVisible()

virtual std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::IsBlocksScalarBarVisible	(	vtkSMProxy *	view,
		const std::vector< std::string > &	blockSelectors
	)

virtual

Check scalar bar visibility.

Return true if the scalar bar for this representation and view is visible, return false otherwise.

◆ GetArrayInformationForColorArray()

virtual vtkPVArrayInformation* vtkSMPVRepresentationProxy::GetArrayInformationForColorArray ( bool checkRepresentedData = true )

virtual

Returns the array information for the data array used for scalar coloring, from input data.

If checkRepresentedData is true, it will also check in the represented data. Default is true. If none is found, returns nullptr.

◆ GetBlockArrayInformationForColorArray()

virtual vtkPVArrayInformation* vtkSMPVRepresentationProxy::GetBlockArrayInformationForColorArray ( const std::string & blockSelector )

inlinevirtual

Returns the array information for the data array used for scalar coloring, from input data.

If checkRepresentedData is true, it will also check in the represented data. Default is true. If none is found, returns nullptr.

Definition at line 290 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksArrayInformationForColorArray()

virtual std::vector<vtkPVArrayInformation*> vtkSMPVRepresentationProxy::GetBlocksArrayInformationForColorArray ( const std::vector< std::string > & blockSelectors )

virtual

Returns the array information for the data array used for scalar coloring, from input data.

If checkRepresentedData is true, it will also check in the represented data. Default is true. If none is found, returns nullptr.

◆ GetProminentValuesInformationForColorArray()

virtual vtkPVProminentValuesInformation* vtkSMPVRepresentationProxy::GetProminentValuesInformationForColorArray	(	double	uncertaintyAllowed = `1e-6`,
		double	fraction = `1e-3`,
		bool	force = `false`
	)

virtual

Call vtkSMRepresentationProxy::GetProminentValuesInformation() for the array used for scalar color, if any.

Otherwise returns nullptr.

◆ GetBlockProminentValuesInformationForColorArray()

virtual vtkPVProminentValuesInformation* vtkSMPVRepresentationProxy::GetBlockProminentValuesInformationForColorArray	(	const std::string &	blockSelector,
		double	uncertaintyAllowed = `1e-6`,
		double	fraction = `1e-3`,
		bool	force = `false`
	)

inlinevirtual

Call vtkSMRepresentationProxy::GetProminentValuesInformation() for the array used for scalar color, if any.

Otherwise returns nullptr.

Definition at line 306 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksProminentValuesInformationForColorArray()

virtual std::vector<vtkPVProminentValuesInformation*> vtkSMPVRepresentationProxy::GetBlocksProminentValuesInformationForColorArray	(	const std::vector< std::string > &	blockSelectors,
		double	uncertaintyAllowed = `1e-6`,
		double	fraction = `1e-3`,
		bool	force = `false`
	)

virtual

Call vtkSMRepresentationProxy::GetProminentValuesInformation() for the array used for scalar color, if any.

Otherwise returns nullptr.

◆ GetEstimatedNumberOfAnnotationsOnScalarBar()

int vtkSMPVRepresentationProxy::GetEstimatedNumberOfAnnotationsOnScalarBar ( vtkSMProxy * view )

Get an estimated number of annotation shown on this representation scalar bar.

◆ GetBlockEstimatedNumberOfAnnotationsOnScalarBar()

int vtkSMPVRepresentationProxy::GetBlockEstimatedNumberOfAnnotationsOnScalarBar	(	vtkSMProxy *	view,
		const std::string &	blockSelector
	)

inline

Get an estimated number of annotation shown on this representation scalar bar.

Definition at line 325 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksEstimatedNumberOfAnnotationsOnScalarBars()

std::vector<int> vtkSMPVRepresentationProxy::GetBlocksEstimatedNumberOfAnnotationsOnScalarBars	(	vtkSMProxy *	view,
		const std::vector< std::string > &	blockSelectors
	)

Get an estimated number of annotation shown on this representation scalar bar.

◆ SetRepresentationType()

bool vtkSMPVRepresentationProxy::SetRepresentationType ( const char * type )

overridevirtual

Overridden to ensure when picking representation types that require scalar colors, scalar coloring it setup properly.

Currently this is hard-coded for Volume and Slice representation types.

Reimplemented from vtkSMRepresentationProxy.

◆ GetVolumeIndependentRanges()

bool vtkSMPVRepresentationProxy::GetVolumeIndependentRanges ( )

True if ranges have to be computed independently on component 0 for the color and 1 for the opacity on the Volume representation.

◆ IsScalarBarStickyVisible()

int vtkSMPVRepresentationProxy::IsScalarBarStickyVisible ( vtkSMProxy * view )

Checks if the scalar bar of this representation in view is sticky visible, i.e.

should be visible whenever this representation is also visible. It returns 1 if the scalar bar is sticky visible, 0 other wise. If any problem is encountered, for example if view == nullptr, or if the scalar bar representation is not instanciated / found, it returns -1.

◆ IsBlockScalarBarStickyVisible()

int vtkSMPVRepresentationProxy::IsBlockScalarBarStickyVisible	(	vtkSMProxy *	view,
		const std::string &	blockSelector
	)

inline

Checks if the scalar bar of this representation in view is sticky visible, i.e.

should be visible whenever this representation is also visible. It returns 1 if the scalar bar is sticky visible, 0 other wise. If any problem is encountered, for example if view == nullptr, or if the scalar bar representation is not instanciated / found, it returns -1.

Definition at line 358 of file vtkSMPVRepresentationProxy.h.

◆ IsBlocksScalarBarStickyVisible()

std::vector<int> vtkSMPVRepresentationProxy::IsBlocksScalarBarStickyVisible	(	vtkSMProxy *	view,
		const std::vector< std::string > &	blockSelectors
	)

Checks if the scalar bar of this representation in view is sticky visible, i.e.

should be visible whenever this representation is also visible. It returns 1 if the scalar bar is sticky visible, 0 other wise. If any problem is encountered, for example if view == nullptr, or if the scalar bar representation is not instanciated / found, it returns -1.

◆ ViewUpdated()

void vtkSMPVRepresentationProxy::ViewUpdated ( vtkSMProxy * view )

overridevirtual

Called after the view updates.

Reimplemented from vtkSMRepresentationProxy.

◆ GetBlockColorArray()

std::pair<int, std::string> vtkSMPVRepresentationProxy::GetBlockColorArray ( const std::string & blockSelector )

inline

Set/Get the block color array name.

Definition at line 375 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksColorArrays()

std::vector<std::pair<int, std::string> > vtkSMPVRepresentationProxy::GetBlocksColorArrays ( const std::vector< std::string > & blockSelectors )

Set/Get the block color array name.

◆ GetBlockColorArrayAssociation()

int vtkSMPVRepresentationProxy::GetBlockColorArrayAssociation ( const std::string & blockSelector )

inline

Set/Get the block color array name.

Definition at line 381 of file vtkSMPVRepresentationProxy.h.

◆ GetBlockColorArrayName()

std::string vtkSMPVRepresentationProxy::GetBlockColorArrayName ( const std::string & blockSelector )

inline

Set/Get the block color array name.

Definition at line 385 of file vtkSMPVRepresentationProxy.h.

◆ SetBlockUseSeparateColorMap()

void vtkSMPVRepresentationProxy::SetBlockUseSeparateColorMap	(	const std::string &	blockSelector,
		bool	use
	)

inline

Set/Get if we should use a separate color map for this block.

Definition at line 395 of file vtkSMPVRepresentationProxy.h.

◆ SetBlocksUseSeparateColorMap()

void vtkSMPVRepresentationProxy::SetBlocksUseSeparateColorMap	(	const std::vector< std::string > &	blockSelectors,
		bool	use
	)

Set/Get if we should use a separate color map for this block.

◆ GetBlockUseSeparateColorMap()

bool vtkSMPVRepresentationProxy::GetBlockUseSeparateColorMap ( const std::string & blockSelector )

inline

Set/Get if we should use a separate color map for this block.

Definition at line 400 of file vtkSMPVRepresentationProxy.h.

◆ GetBlocksUseSeparateColorMaps()

std::vector<vtkTypeBool> vtkSMPVRepresentationProxy::GetBlocksUseSeparateColorMaps ( const std::vector< std::string > & blockSelectors )

Set/Get if we should use a separate color map for this block.

◆ CreateVTKObjects()

void vtkSMPVRepresentationProxy::CreateVTKObjects ( )

overrideprotectedvirtual

Overridden to ensure that the RepresentationTypesInfo and Representations's domain are up-to-date.

Reimplemented from vtkSMSourceProxy.

◆ OnPropertyUpdated()

void vtkSMPVRepresentationProxy::OnPropertyUpdated	(	vtkObject *	,
		unsigned	long,
		void *	calldata
	)

protected

◆ SetPropertyModifiedFlag()

void vtkSMPVRepresentationProxy::SetPropertyModifiedFlag	(	const char *	name,
		int	flag
	)

overrideprotectedvirtual

Overridden to ensure that whenever "Input" property changes, we update the "Input" properties for all internal representations (including setting up of the link to the extract-selection representation).

Reimplemented from vtkSMProxy.

◆ ReadXMLAttributes()

int vtkSMPVRepresentationProxy::ReadXMLAttributes	(	vtkSMSessionProxyManager *	pm,
		vtkPVXMLElement *	element
	)

overrideprotectedvirtual

Overridden to process "RepresentationType" elements.

Reimplemented from vtkSMSourceProxy.

Member Data Documentation

◆ LastLookupTable

vtkSmartPointer<vtkSMProxy> vtkSMPVRepresentationProxy::LastLookupTable

protected

Used as a memory of what was the last LUT proxy linked to this representation.

This is used in UpdateScalarBarRange to update the scalar bar range when turning off the coloring for this representation.

Definition at line 439 of file vtkSMPVRepresentationProxy.h.

◆ LastBlocksLookupTables

std::unordered_map<std::string, vtkSmartPointer<vtkSMProxy> > vtkSMPVRepresentationProxy::LastBlocksLookupTables

protected

Definition at line 440 of file vtkSMPVRepresentationProxy.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkSMPVRepresentationProxy.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMPVRepresentationProxy()

◆ ~vtkSMPVRepresentationProxy()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetLastLookupTable()

◆ GetLastLookupTable()

◆ SetLastBlockLookupTable()

◆ SetLastBlocksLookupTable()

◆ GetLastBlockLookupTable()

◆ GetLastBlocksLookupTables()

◆ GetUsingScalarColoring()

◆ GetBlockUsingScalarColoring()

◆ GetBlocksUsingScalarColoring()

◆ GetAnyBlockUsingScalarColoring()

◆ GetLookupTable()

◆ GetBlockLookupTable()

◆ GetBlocksLookupTables()

◆ UpdateScalarBarRange()

◆ UpdateBlocksScalarBarRange()

◆ SetScalarColoring() [1/2]

◆ SetBlockScalarColoring() [1/2]

◆ SetBlocksScalarColoring() [1/2]

◆ SetScalarColoring() [2/2]

◆ SetBlockScalarColoring() [2/2]

◆ SetBlocksScalarColoring() [2/2]

◆ RescaleTransferFunctionToDataRange() [1/2]

◆ RescaleBlockTransferFunctionToDataRange() [1/2]

◆ RescaleBlocksTransferFunctionToDataRange() [1/2]

◆ RescaleTransferFunctionToDataRange() [2/2]

◆ RescaleBlockTransferFunctionToDataRange() [2/2]

◆ RescaleBlocksTransferFunctionToDataRange() [2/2]

◆ RescaleTransferFunctionToDataRangeOverTime() [1/2]

◆ RescaleBlockTransferFunctionToDataRangeOverTime() [1/2]

◆ RescaleBlocksTransferFunctionToDataRangeOverTime() [1/2]

◆ RescaleTransferFunctionToDataRangeOverTime() [2/2]

◆ RescaleBlockTransferFunctionToDataRangeOverTime() [2/2]

◆ RescaleBlocksTransferFunctionToDataRangeOverTime() [2/2]

◆ RescaleTransferFunctionToVisibleRange() [1/2]

◆ RescaleTransferFunctionToVisibleRange() [2/2]

◆ SetScalarBarVisibility()

◆ SetBlockScalarBarVisibility()

◆ SetBlocksScalarBarVisibility()

◆ HideScalarBarIfNotNeeded()

◆ HideBlocksScalarBarIfNotNeeded()

◆ IsScalarBarVisible()

◆ IsBlockScalarBarVisible()

◆ IsBlocksScalarBarVisible()

◆ GetArrayInformationForColorArray()

◆ GetBlockArrayInformationForColorArray()

◆ GetBlocksArrayInformationForColorArray()

◆ GetProminentValuesInformationForColorArray()

◆ GetBlockProminentValuesInformationForColorArray()

◆ GetBlocksProminentValuesInformationForColorArray()

◆ GetEstimatedNumberOfAnnotationsOnScalarBar()

◆ GetBlockEstimatedNumberOfAnnotationsOnScalarBar()

◆ GetBlocksEstimatedNumberOfAnnotationsOnScalarBars()

◆ SetRepresentationType()

◆ GetVolumeIndependentRanges()

◆ IsScalarBarStickyVisible()

◆ IsBlockScalarBarStickyVisible()

◆ IsBlocksScalarBarStickyVisible()

◆ ViewUpdated()

◆ GetBlockColorArray()

◆ GetBlocksColorArrays()

◆ GetBlockColorArrayAssociation()

◆ GetBlockColorArrayName()
