A scalar bar with labels of fixed font. More...

#include <vtkPVScalarBarActor.h>

Inheritance diagram for vtkPVScalarBarActor:

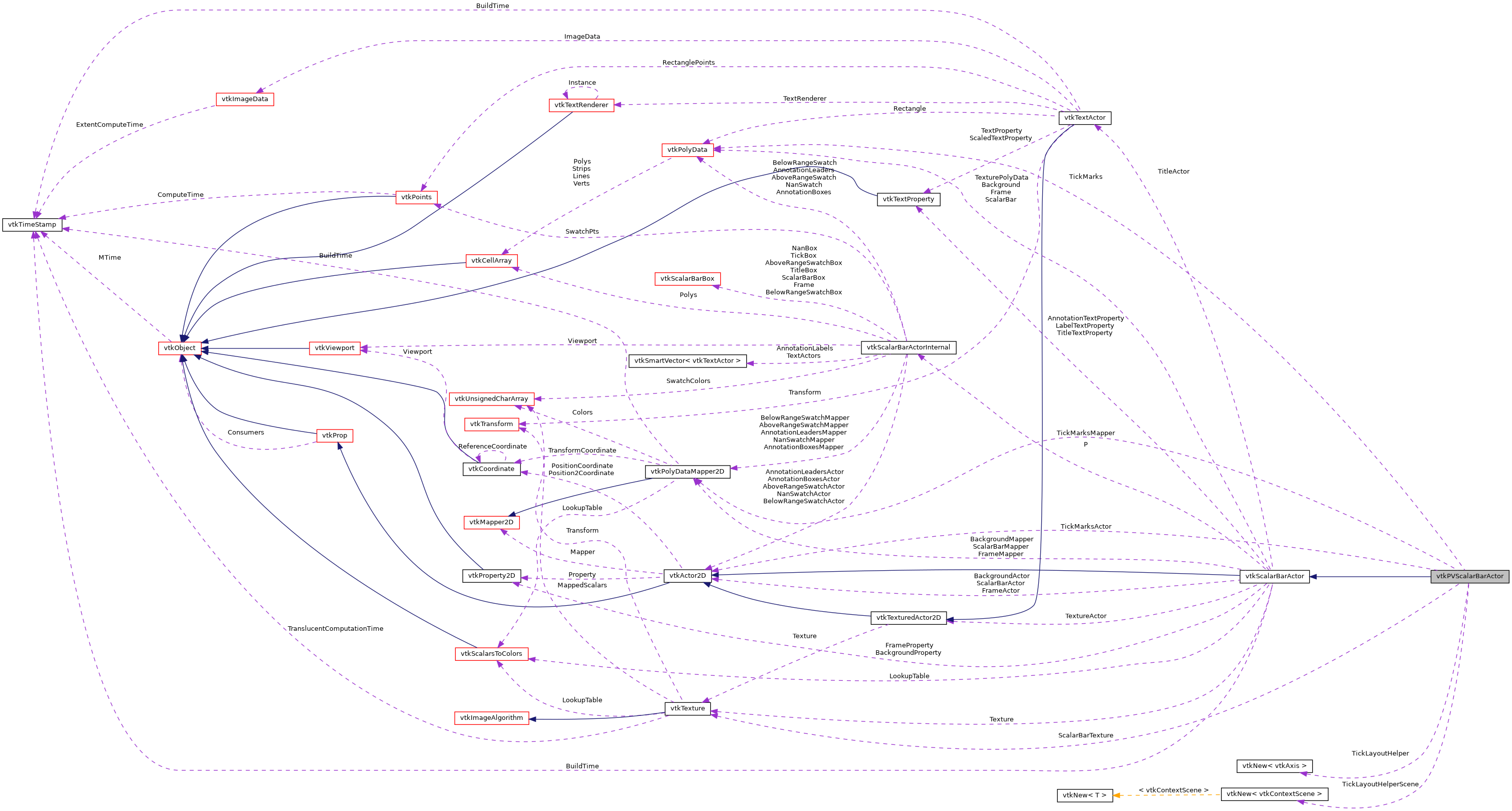

Collaboration diagram for vtkPVScalarBarActor:

[legend]

Public Types
typedef vtkScalarBarActor	Superclass

Public Types inherited from vtkScalarBarActor
typedef vtkActor2D	Superclass

Public Types inherited from vtkActor2D
typedef vtkProp	Superclass

Public Types inherited from vtkProp
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	AddValueLabelIfUnoccluded (double value, double pos, double diff)
	Add value as annotation label on scalar bar at the given position. More...

void	ReleaseGraphicsResources (vtkWindow *) override
	Release any graphics resources that are being consumed by this actor. More...

int	RenderOpaqueGeometry (vtkViewport *viewport) override
	Overridden to sync internal variables with renderer state. More...

int	RenderOverlay (vtkViewport *viewport) override
	Draw the scalar bar and annotation text to the screen. More...


virtual double	GetAspectRatio ()
	The bar aspect ratio (length/width). More...

virtual void	SetAspectRatio (double)
	The bar aspect ratio (length/width). More...


virtual int	GetAutomaticLabelFormat ()
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...

virtual void	SetAutomaticLabelFormat (int)
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...

virtual void	AutomaticLabelFormatOn ()
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...

virtual void	AutomaticLabelFormatOff ()
	If true (the default), the printf format used for the labels will be automatically generated to make the numbers best fit within the widget. More...


virtual int	GetDrawTickMarks ()
	If true (the default), tick marks will be drawn. More...

virtual void	SetDrawTickMarks (int)
	If true (the default), tick marks will be drawn. More...

virtual void	DrawTickMarksOn ()
	If true (the default), tick marks will be drawn. More...

virtual void	DrawTickMarksOff ()
	If true (the default), tick marks will be drawn. More...


virtual int	GetDrawSubTickMarks ()
	If true (the default), sub-tick marks will be drawn. More...

virtual void	SetDrawSubTickMarks (int)
	If true (the default), sub-tick marks will be drawn. More...

virtual void	DrawSubTickMarksOn ()
	If true (the default), sub-tick marks will be drawn. More...

virtual void	DrawSubTickMarksOff ()
	If true (the default), sub-tick marks will be drawn. More...


virtual int	GetAddRangeLabels ()
	Set whether the range endpoints (minimum and maximum) are added as labels alongside other value labels. More...

virtual void	SetAddRangeLabels (int)
	Set whether the range endpoints (minimum and maximum) are added as labels alongside other value labels. More...

virtual void	AddRangeLabelsOn ()
	Set whether the range endpoints (minimum and maximum) are added as labels alongside other value labels. More...

virtual void	AddRangeLabelsOff ()
	Set whether the range endpoints (minimum and maximum) are added as labels alongside other value labels. More...


virtual void	SetAutomaticAnnotations (int)
	Set whether annotions are automatically created according the number of discrete colors. More...

virtual int	GetAutomaticAnnotations ()
	Set whether annotions are automatically created according the number of discrete colors. More...

virtual void	AutomaticAnnotationsOn ()
	Set whether annotions are automatically created according the number of discrete colors. More...

virtual void	AutomaticAnnotationsOff ()
	Set whether annotions are automatically created according the number of discrete colors. More...


virtual char *	GetRangeLabelFormat ()
	Set the C-style format string for the range labels. More...

virtual void	SetRangeLabelFormat (const char *)
	Set the C-style format string for the range labels. More...


virtual int	GetTitleJustification ()
	Set the title justification. More...

virtual void	SetTitleJustification (int)
	Set the title justification. More...


virtual int	GetAddRangeAnnotations ()
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

virtual void	SetAddRangeAnnotations (int)
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

virtual void	AddRangeAnnotationsOn ()
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

virtual void	AddRangeAnnotationsOff ()
	Set whether the scalar data range endpoints (minimum and maximum) are added as annotations. More...

Public Member Functions inherited from vtkScalarBarActor
vtkScalarBarActor *	NewInstance () const

virtual int	HasTranslucentPolygonalGeometry ()

virtual void	GetScalarBarRect (int rect[4], vtkViewport *viewport)

void	ShallowCopy (vtkProp *prop)

virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)

virtual void	SetLookupTable (vtkScalarsToColors *)

virtual vtkScalarsToColors *	GetLookupTable ()

virtual void	SetUseOpacity (int)

virtual int	GetUseOpacity ()

virtual void	UseOpacityOn ()

virtual void	UseOpacityOff ()

virtual void	SetMaximumNumberOfColors (int)

virtual int	GetMaximumNumberOfColors ()

virtual void	SetNumberOfLabels (int)

virtual int	GetNumberOfLabels ()

virtual void	SetOrientation (int)

virtual int	GetOrientation ()

void	SetOrientationToHorizontal ()

void	SetOrientationToVertical ()

virtual void	SetTitleTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetTitleTextProperty ()

virtual void	SetLabelTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetLabelTextProperty ()

virtual void	SetAnnotationTextProperty (vtkTextProperty *p)

virtual vtkTextProperty *	GetAnnotationTextProperty ()

virtual void	SetLabelFormat (const char *)

virtual char *	GetLabelFormat ()

virtual void	SetTitle (const char *)

virtual char *	GetTitle ()

virtual void	SetComponentTitle (const char *)

virtual char *	GetComponentTitle ()

virtual void	SetTextureGridWidth (double)

virtual double	GetTextureGridWidth ()

virtual vtkTexturedActor2D *	GetTextureActor ()

virtual void	SetTextPosition (int)

virtual int	GetTextPosition ()

virtual void	SetTextPositionToPrecedeScalarBar ()

virtual void	SetTextPositionToSucceedScalarBar ()

virtual void	SetMaximumWidthInPixels (int)

virtual int	GetMaximumWidthInPixels ()

virtual void	SetMaximumHeightInPixels (int)

virtual int	GetMaximumHeightInPixels ()

virtual void	SetAnnotationLeaderPadding (double)

virtual double	GetAnnotationLeaderPadding ()

virtual void	SetDrawAnnotations (int)

virtual int	GetDrawAnnotations ()

virtual void	DrawAnnotationsOn ()

virtual void	DrawAnnotationsOff ()

virtual void	SetDrawNanAnnotation (int)

virtual int	GetDrawNanAnnotation ()

virtual void	DrawNanAnnotationOn ()

virtual void	DrawNanAnnotationOff ()

virtual void	SetDrawBelowRangeSwatch (bool)

virtual bool	GetDrawBelowRangeSwatch ()

virtual void	DrawBelowRangeSwatchOn ()

virtual void	DrawBelowRangeSwatchOff ()

virtual void	SetBelowRangeAnnotation (const char *)

virtual char *	GetBelowRangeAnnotation ()

virtual void	SetDrawAboveRangeSwatch (bool)

virtual bool	GetDrawAboveRangeSwatch ()

virtual void	DrawAboveRangeSwatchOn ()

virtual void	DrawAboveRangeSwatchOff ()

virtual void	SetAboveRangeAnnotation (const char *)

virtual char *	GetAboveRangeAnnotation ()

virtual void	SetFixedAnnotationLeaderLineColor (int)

virtual int	GetFixedAnnotationLeaderLineColor ()

virtual void	FixedAnnotationLeaderLineColorOn ()

virtual void	FixedAnnotationLeaderLineColorOff ()

virtual void	SetNanAnnotation (const char *)

virtual char *	GetNanAnnotation ()

virtual void	SetAnnotationTextScaling (int)

virtual int	GetAnnotationTextScaling ()

virtual void	AnnotationTextScalingOn ()

virtual void	AnnotationTextScalingOff ()

virtual void	SetDrawBackground (int)

virtual int	GetDrawBackground ()

virtual void	DrawBackgroundOn ()

virtual void	DrawBackgroundOff ()

virtual void	SetDrawFrame (int)

virtual int	GetDrawFrame ()

virtual void	DrawFrameOn ()

virtual void	DrawFrameOff ()

virtual void	SetDrawColorBar (int)

virtual int	GetDrawColorBar ()

virtual void	DrawColorBarOn ()

virtual void	DrawColorBarOff ()

virtual void	SetDrawTickLabels (int)

virtual int	GetDrawTickLabels ()

virtual void	DrawTickLabelsOn ()

virtual void	DrawTickLabelsOff ()

virtual void	SetBackgroundProperty (vtkProperty2D *p)

virtual vtkProperty2D *	GetBackgroundProperty ()

virtual void	SetFrameProperty (vtkProperty2D *p)

virtual vtkProperty2D *	GetFrameProperty ()

virtual int	GetTextPad ()

virtual void	SetTextPad (int)

virtual int	GetVerticalTitleSeparation ()

virtual void	SetVerticalTitleSeparation (int)

virtual double	GetBarRatio ()

virtual void	SetBarRatio (double)

virtual double	GetTitleRatio ()

virtual void	SetTitleRatio (double)

virtual void	SetUnconstrainedFontSize (bool)

virtual bool	GetUnconstrainedFontSize ()

virtual void	UnconstrainedFontSizeOn ()

virtual void	UnconstrainedFontSizeOff ()
