#include <vtkNvPipeCompressor.h>

Inheritance diagram for vtkNvPipeCompressor:

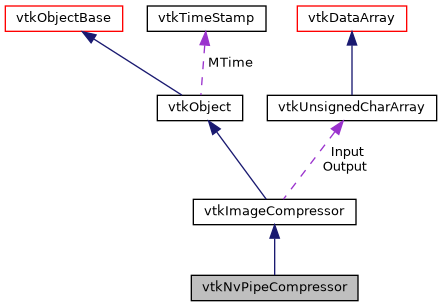

Collaboration diagram for vtkNvPipeCompressor:

[legend]

Public Types
typedef vtkImageCompressor	Superclass

Public Types inherited from vtkImageCompressor
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetImageResolution (int img_width, int img_height)
	Communicates the next expected image resolution. More...


virtual void	SetQuality (unsigned int)
	Set the quality measure. More...

virtual unsigned int	GetQuality ()
	Set the quality measure. More...


virtual int	Compress ()
	Call this method to compress the input and generate the compressed data. More...

virtual int	Decompress ()
	Decompresses and geenartes the decompressed data as output. More...


virtual void	SaveConfiguration (vtkMultiProcessStream *stream)

virtual bool	RestoreConfiguration (vtkMultiProcessStream *stream)

virtual const char *	SaveConfiguration ()

virtual const char *	RestoreConfiguration (const char *stream)

Public Member Functions inherited from vtkImageCompressor
void	SetInput (vtkUnsignedCharArray *input)
	Get/Set the input to this compressor. More...

virtual vtkUnsignedCharArray *	GetInput ()
	Get/Set the input to this compressor. More...

virtual vtkUnsignedCharArray *	GetOutput ()
	Get/Set the output of the compressor. More...

void	SetOutput (vtkUnsignedCharArray *)
	Get/Set the output of the compressor. More...

virtual void	SetLossLessMode (int)
	When set the implementation must use loss-less compression, otherwise implemnetation should user provided settings. More...

virtual int	GetLossLessMode ()
	When set the implementation must use loss-less compression, otherwise implemnetation should user provided settings. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkNvPipeCompressor *	New ()

static int	IsTypeOf (const char *type)

static vtkNvPipeCompressor *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkImageCompressor
static int	IsTypeOf (const char *type)

static vtkImageCompressor *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkNvPipeCompressor ()

virtual	~vtkNvPipeCompressor ()

Protected Member Functions inherited from vtkImageCompressor
virtual void	SetConfiguration (const char *)

	vtkImageCompressor ()
	Construct with nullptr input array and empty but allocated output array. More...

	~vtkImageCompressor () override
	Construct with nullptr input array and empty but allocated output array. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
unsigned int	Quality

Protected Attributes inherited from vtkImageCompressor
vtkUnsignedCharArray *	Output

vtkUnsignedCharArray *	Input

int	LossLessMode

char *	Configuration

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

Definition at line 21 of file vtkNvPipeCompressor.h.

Member Typedef Documentation

◆ Superclass

typedef vtkImageCompressor vtkNvPipeCompressor::Superclass

Definition at line 25 of file vtkNvPipeCompressor.h.

Constructor & Destructor Documentation

◆ vtkNvPipeCompressor()

vtkNvPipeCompressor::vtkNvPipeCompressor ( )

protected

◆ ~vtkNvPipeCompressor()

virtual vtkNvPipeCompressor::~vtkNvPipeCompressor ( )

protectedvirtual

Member Function Documentation

◆ New()

static vtkNvPipeCompressor* vtkNvPipeCompressor::New ( )

static

◆ GetClassName()

virtual const char* vtkNvPipeCompressor::GetClassName ( )

virtual

Reimplemented from vtkImageCompressor.

◆ IsTypeOf()

static int vtkNvPipeCompressor::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkNvPipeCompressor::IsA ( const char * type )

virtual

Reimplemented from vtkImageCompressor.

◆ SafeDownCast()

static vtkNvPipeCompressor* vtkNvPipeCompressor::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkNvPipeCompressor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkImageCompressor.

◆ SetQuality()

virtual void vtkNvPipeCompressor::SetQuality ( unsigned int )

virtual

Set the quality measure.

The value can be between 1 and 5. 1 means preserve input image quality while 5 emphasizes compression ratio at the expense of image quality.

◆ GetQuality()

virtual unsigned int vtkNvPipeCompressor::GetQuality ( )

virtual

Set the quality measure.

The value can be between 1 and 5. 1 means preserve input image quality while 5 emphasizes compression ratio at the expense of image quality.

◆ Compress()

virtual int vtkNvPipeCompressor::Compress ( )

virtual

Call this method to compress the input and generate the compressed data.

Implements vtkImageCompressor.

◆ Decompress()

virtual int vtkNvPipeCompressor::Decompress ( )

virtual

Decompresses and geenartes the decompressed data as output.

Input must be compressed data.

Implements vtkImageCompressor.

◆ SetImageResolution()

void vtkNvPipeCompressor::SetImageResolution	(	int	width,
		int	height
	)

virtual

Communicates the next expected image resolution.

Reimplemented from vtkImageCompressor.

◆ SaveConfiguration() [1/2]

virtual void vtkNvPipeCompressor::SaveConfiguration ( vtkMultiProcessStream * stream )

virtual

Description: Serialize/Restore compressor configuration (but not the data) into the stream.

Reimplemented from vtkImageCompressor.

◆ RestoreConfiguration() [1/2]

virtual bool vtkNvPipeCompressor::RestoreConfiguration ( vtkMultiProcessStream * stream )

virtual

Description: Serialize/Restore compressor configuration (but not the data) into the stream.

Reimplemented from vtkImageCompressor.

◆ SaveConfiguration() [2/2]

virtual const char* vtkNvPipeCompressor::SaveConfiguration ( )

virtual

Description: Serialize/Restore compressor configuration (but not the data) into the stream.

Reimplemented from vtkImageCompressor.

◆ RestoreConfiguration() [2/2]

virtual const char* vtkNvPipeCompressor::RestoreConfiguration ( const char * stream )

virtual

Description: Serialize/Restore compressor configuration (but not the data) into the stream.

Reimplemented from vtkImageCompressor.

Member Data Documentation

◆ Quality

unsigned int vtkNvPipeCompressor::Quality

protected

Definition at line 61 of file vtkNvPipeCompressor.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/FiltersRendering/vtkNvPipeCompressor.h
