vtkSynchronizedRenderers subclass that handles adjusting of camera for cave configurations. More...

#include <vtkCaveSynchronizedRenderers.h>

Inheritance diagram for vtkCaveSynchronizedRenderers:

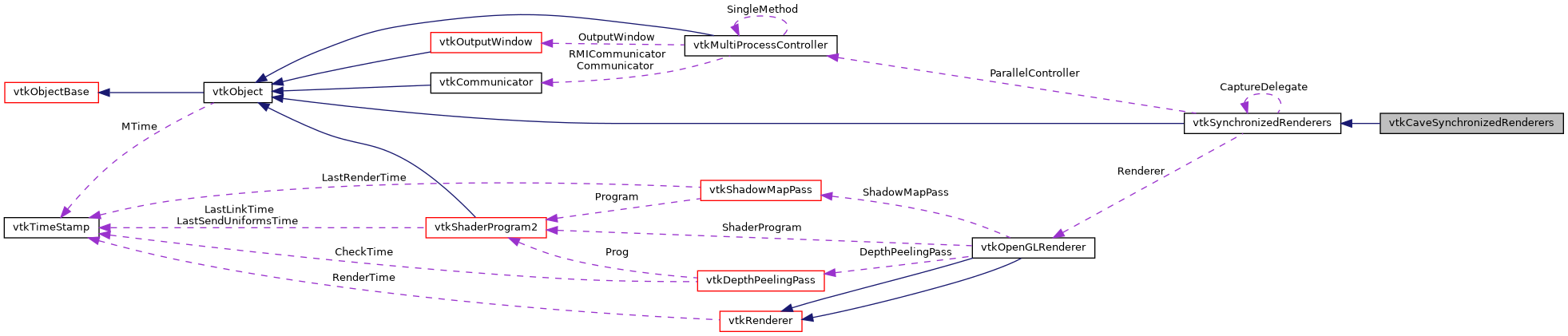

Collaboration diagram for vtkCaveSynchronizedRenderers:

[legend]

Public Types
typedef vtkSynchronizedRenderers	Superclass

Public Types inherited from vtkSynchronizedRenderers
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkSynchronizedRenderers
vtkSynchronizedRenderers *	NewInstance () const

void	CollectiveExpandForVisiblePropBounds (double bounds[6])

virtual vtkRenderer *	GetRenderer ()

virtual void	SetParallelController (vtkMultiProcessController *)

virtual vtkMultiProcessController *	GetParallelController ()

virtual void	SetParallelRendering (bool)

virtual bool	GetParallelRendering ()

virtual void	ParallelRenderingOn ()

virtual void	ParallelRenderingOff ()

virtual void	SetImageReductionFactor (int)

virtual int	GetImageReductionFactor ()

virtual void	SetWriteBackImages (bool)

virtual bool	GetWriteBackImages ()

virtual void	WriteBackImagesOn ()

virtual void	WriteBackImagesOff ()

virtual void	SetRootProcessId (int)

virtual int	GetRootProcessId ()

virtual void	SetCaptureDelegate (vtkSynchronizedRenderers *)

virtual vtkSynchronizedRenderers *	GetCaptureDelegate ()

virtual void	SetAutomaticEventHandling (bool)

virtual bool	GetAutomaticEventHandling ()

virtual void	AutomaticEventHandlingOn ()

virtual void	AutomaticEventHandlingOff ()

virtual vtkRenderer *	GetRenderer ()

virtual void	SetParallelController (vtkMultiProcessController *)

virtual vtkMultiProcessController *	GetParallelController ()

virtual void	SetParallelRendering (bool)

virtual bool	GetParallelRendering ()

virtual void	ParallelRenderingOn ()

virtual void	ParallelRenderingOff ()

virtual void	SetImageReductionFactor (int)

virtual int	GetImageReductionFactor ()

virtual void	SetWriteBackImages (bool)

virtual bool	GetWriteBackImages ()

virtual void	WriteBackImagesOn ()

virtual void	WriteBackImagesOff ()

virtual void	SetRootProcessId (int)

virtual int	GetRootProcessId ()

virtual void	SetCaptureDelegate (vtkSynchronizedRenderers *)

virtual vtkSynchronizedRenderers *	GetCaptureDelegate ()

virtual void	SetAutomaticEventHandling (bool)

virtual bool	GetAutomaticEventHandling ()

virtual void	AutomaticEventHandlingOn ()

virtual void	AutomaticEventHandlingOff ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkCaveSynchronizedRenderers *	New ()

static int	IsTypeOf (const char *type)

static vtkCaveSynchronizedRenderers *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSynchronizedRenderers
static vtkSynchronizedRenderers *	New ()

static int	IsTypeOf (const char *type)

static vtkSynchronizedRenderers *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkCaveSynchronizedRenderers ()

	~vtkCaveSynchronizedRenderers () override

void	HandleStartRender () override
	Called at the start of each render. More...

void	ProcessCaveConfiguration ()
	During constructor, processes the configuration file to setup the display information. More...

void	SetNumberOfDisplays (int numberOfDisplays)
	These are to initialize the displays. More...

void	SetEyeSeparation (double eyeSeparation)
	Set the eye separation for all the displays. More...

void	DefineDisplay (int idx, double origin[3], double x[3], double y[3])

void	ComputeCamera (vtkCamera *cam)
	Method to update the camera. More...

void	SetRenderer (vtkRenderer *renderer) override
	Override Superclass to compute Displays parameters in case of a single screen cave (e.g. More...

Protected Member Functions inherited from vtkSynchronizedRenderers
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkSynchronizedRenderers ()

	~vtkSynchronizedRenderers ()

virtual void	HandleEndRender ()

virtual void	HandleAbortRender ()

virtual void	MasterStartRender ()

virtual void	SlaveStartRender ()

virtual void	MasterEndRender ()

virtual void	SlaveEndRender ()

virtual vtkRawImage &	CaptureRenderedImage ()

virtual void	PushImageToScreen ()

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
double	EyeSeparation

int	NumberOfDisplays

double **	Displays

double	DisplayOrigin [3]

double	DisplayX [3]

double	DisplayY [3]

int	once

Protected Attributes inherited from vtkSynchronizedRenderers
vtkMultiProcessController *	ParallelController

vtkOpenGLRenderer *	Renderer

vtkSynchronizedRenderers *	CaptureDelegate

vtkRawImage	ReducedImage

vtkRawImage	FullImage

bool	ParallelRendering

int	ImageReductionFactor

bool	WriteBackImages

int	RootProcessId

bool	AutomaticEventHandling

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkSynchronizedRenderers
	SYNC_RENDERER_TAG

	RESET_CAMERA_TAG

	COMPUTE_BOUNDS_TAG

Detailed Description

vtkSynchronizedRenderers subclass that handles adjusting of camera for cave configurations.

vtkCaveSynchronizedRenderers is vtkSynchronizedRenderers used for in CAVE configuration. It is used on the render-server side. It ensures that the camera is transformed based on the orientations specified in the pvx configuration file. This code was previously in class vtkCaveRenderManager.

In case of a single display, if the cave bounds are not set, we compute these values from vtkDisplayConfiguration::Geometry and the client camera view angle.

Definition at line 27 of file vtkCaveSynchronizedRenderers.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSynchronizedRenderers vtkCaveSynchronizedRenderers::Superclass

Definition at line 31 of file vtkCaveSynchronizedRenderers.h.

Constructor & Destructor Documentation

◆ vtkCaveSynchronizedRenderers()

vtkCaveSynchronizedRenderers::vtkCaveSynchronizedRenderers ( )

protected

◆ ~vtkCaveSynchronizedRenderers()

vtkCaveSynchronizedRenderers::~vtkCaveSynchronizedRenderers ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkCaveSynchronizedRenderers* vtkCaveSynchronizedRenderers::New ( )

static

◆ GetClassName()

virtual const char* vtkCaveSynchronizedRenderers::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkCaveSynchronizedRenderers::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCaveSynchronizedRenderers::IsA ( const char * type )

virtual

Reimplemented from vtkSynchronizedRenderers.

◆ SafeDownCast()

static vtkCaveSynchronizedRenderers* vtkCaveSynchronizedRenderers::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCaveSynchronizedRenderers::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSynchronizedRenderers.

◆ HandleStartRender()

void vtkCaveSynchronizedRenderers::HandleStartRender ( )

overrideprotectedvirtual

Called at the start of each render.

Overridden to ensure that the camera is updated based on the configuration.

Reimplemented from vtkSynchronizedRenderers.

◆ ProcessCaveConfiguration()

void vtkCaveSynchronizedRenderers::ProcessCaveConfiguration ( )

protected

During constructor, processes the configuration file to setup the display information.

◆ SetNumberOfDisplays()

void vtkCaveSynchronizedRenderers::SetNumberOfDisplays ( int numberOfDisplays )

protected

These are to initialize the displays.

(This is directly copied from vtkCaveRenderManager).

◆ SetEyeSeparation()

void vtkCaveSynchronizedRenderers::SetEyeSeparation ( double eyeSeparation )

protected

Set the eye separation for all the displays.

◆ DefineDisplay()

void vtkCaveSynchronizedRenderers::DefineDisplay	(	int	idx,
		double	origin[3],
		double	x[3],
		double	y[3]
	)

protected

◆ ComputeCamera()

void vtkCaveSynchronizedRenderers::ComputeCamera ( vtkCamera * cam )

protected

Method to update the camera.

◆ SetRenderer()

void vtkCaveSynchronizedRenderers::SetRenderer ( vtkRenderer * renderer )

overrideprotectedvirtual

Override Superclass to compute Displays parameters in case of a single screen cave (e.g.

zSpace)

Reimplemented from vtkSynchronizedRenderers.

Member Data Documentation

◆ EyeSeparation

double vtkCaveSynchronizedRenderers::EyeSeparation

protected

Definition at line 74 of file vtkCaveSynchronizedRenderers.h.

◆ NumberOfDisplays

int vtkCaveSynchronizedRenderers::NumberOfDisplays

protected

Definition at line 75 of file vtkCaveSynchronizedRenderers.h.

◆ Displays

double** vtkCaveSynchronizedRenderers::Displays

protected

Definition at line 76 of file vtkCaveSynchronizedRenderers.h.

◆ DisplayOrigin

double vtkCaveSynchronizedRenderers::DisplayOrigin[3]

protected

Definition at line 77 of file vtkCaveSynchronizedRenderers.h.

◆ DisplayX

double vtkCaveSynchronizedRenderers::DisplayX[3]

protected

Definition at line 78 of file vtkCaveSynchronizedRenderers.h.

◆ DisplayY

double vtkCaveSynchronizedRenderers::DisplayY[3]

protected

Definition at line 79 of file vtkCaveSynchronizedRenderers.h.

◆ once

int vtkCaveSynchronizedRenderers::once

protected

Definition at line 80 of file vtkCaveSynchronizedRenderers.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkCaveSynchronizedRenderers.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkCaveSynchronizedRenderers()

◆ ~vtkCaveSynchronizedRenderers()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ HandleStartRender()

◆ ProcessCaveConfiguration()

◆ SetNumberOfDisplays()

◆ SetEyeSeparation()

◆ DefineDisplay()

◆ ComputeCamera()

◆ SetRenderer()

Member Data Documentation

◆ EyeSeparation

◆ NumberOfDisplays

◆ Displays

◆ DisplayOrigin

◆ DisplayX

◆ DisplayY

◆ once
